AB326401

Mouse MAP2 ELISA Kit, Chemiluminescent

SimpleStep Ignite™ ELISA
Recombinant
What is this?

Be the first to review this product! Submit a review

(0 Publication)

Mouse MAP2 ELISA Kit, Chemiluminescent is a 55-min single-wash SimpleStep Ignite™ ELISA for the rapid quantification of Mouse MAP2 with higher sensitivity and broader measuring range.

- Single 30 min incubation and single-wash step for results in less than an hour.
- Chemiluminescent detection allows a broad dynamic range: 13.72 - 30000 pg/ml with a sensitivity of 9.47pg/mL.
- Design your own immunoassay: we also offer the conjugation-ready antibody pair.
-Patent pending

View Alternative Names

Mtap2, Map2, Microtubule-associated protein 2, MAP-2

4 Images

Sandwich ELISA - Mouse MAP2 ELISA Kit, Chemiluminescent (AB326401)

sELISA

Lab

Sandwich ELISA - Mouse MAP2 ELISA Kit, Chemiluminescent (AB326401)

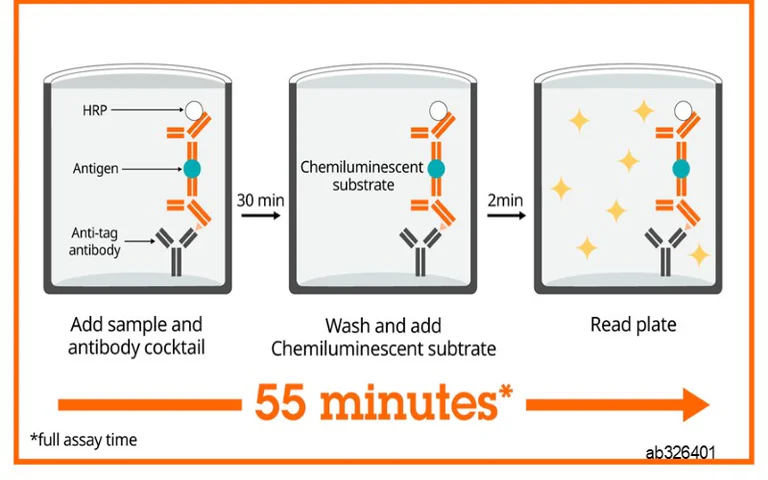

SimpleStep ELISA® Ignite technology allows the formation of the antibody-antigen complex in one single step, reducing assay time to 55 minutes. Add samples or standards and antibody mix to wells all at once, incubate, wash, and add your final substrate. See protocol for a detailed step-by-step guide.

sELISA

Lab

Sandwich ELISA - Mouse MAP2 ELISA Kit, Chemiluminescent (AB326401)

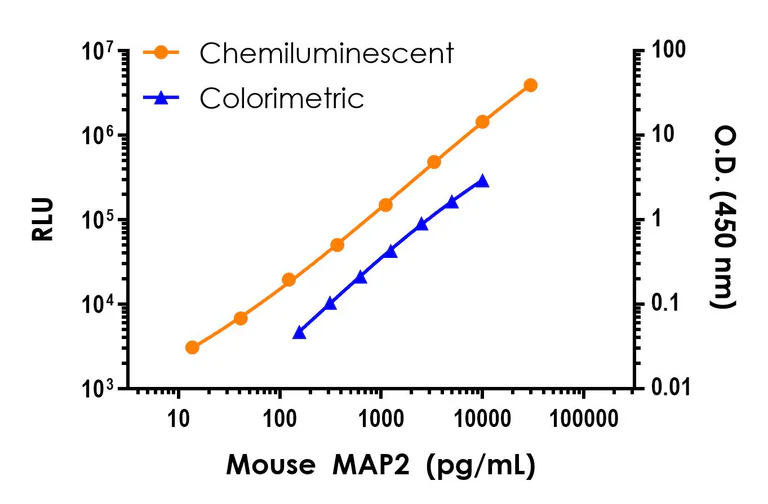

Standard curve comparison between the Chemiluminescent Mouse MAP2 SimpleStep ELISA and colorimetric Mouse MAP2 SimpleStep ELISA (ab253229) in Sample Diluent NS. Background-subtracted data values (mean +/- SD) are graphed.

sELISA

Lab

Sandwich ELISA - Mouse MAP2 ELISA Kit, Chemiluminescent (AB326401)

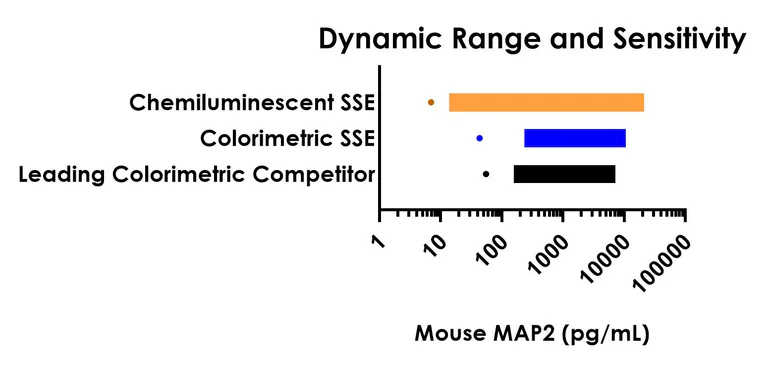

Dynamic range comparison between the Chemiluminescent Mouse MAP2 SimpleStep ELISA, colorimetric Mouse MAP2 SimpleStep ELISA (ab253229), and leading colorimetric competitor. The Chemiluminescent SimpleStep ELISA kit shows increased sensitivity and increased dynamic range.

sELISA

Unknown

Sandwich ELISA - Mouse MAP2 ELISA Kit, Chemiluminescent (AB326401)

Interpolated concentrations of native MAP2 in mouse brain tissue based on a 15 µg/mL extract load.

The concentrations of MAP2 were measured in duplicate and interpolated from the MAP2 standard curve and corrected for sample dilution. The interpolated dilution factor corrected values are plotted (mean +/- SD n=2). The mean MAP2 concentration was determined to be 3632.84 pg/mL in mouse brain tissue extract.

Key facts

Detection method

Luminescent

Sample types

Cell culture supernatant, Serum, EDTA Plasma, Heparin Plasma, Citrate plasma, Tissue Extracts

Reacts with

Mouse

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 9.47 pg/mL

Range

13.72 - 30000 pg/mL

Assay time

55m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

style

left-column

Product details

Mouse MAP2 ELISA Kit, Chemiluminescent (ab326401) is a rapid single-wash sandwich 55-min ELISA to measure Mouse MAP2 in Cell culture supernatant, Serum, EDTA Plasma, Heparin Plasma, Citrate plasma, Tissue Extracts with a sensitivity of 9.47 pg/mL.

How the assay works

Mouse MAP2 ELISA Kit, Chemiluminescent (ab326401) SimpleStep Ignite™ ELISA employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA^® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step during a 30 min only incubation, significantly reducing assay time. By utilizing a chemiluminscent detection method this improves the sensitivity and dynamic range when compared to traditional colorimetric ELISAs.

Assay Specificity

Our SimpleStep Ignite™ ELISA kits use recombinant monoclonal antibodies rigorously validated to ensure the highest level of consistency and reproducibility, improved sensitivity and specificity and ease of scalability and security of supply.
Please refer to our protocol booklet for more details.

Mouse MAP2 (ab326401) protocol summary

1. Mix : add samples / standards to the wells together with the capture and detector antibody cocktail. Incubate 30 min at room temperature
2. Wash
3. Add ChemiHRP development solution - incubate for 2 min
4. Read the results on a plate reader capable of luminescence detection

Design your own immunoassay

We offer the antibody pair used in this kit in a BSA and Azide-free format, ready for conjugation:

- Anti-Mouse MAP-2 antibody [EPR22036-148] - BSA and Aside free (Capture) ab259711
- Anti-Mouse MAP-2 antibody [EPR22036-137] - BSA and Aside free (Detector) ab259712

style

left-column

Precision

[ { "reproducibilityType": "Intra", "sample": "Serum", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 5.8" }, { "reproducibilityType": "Inter", "sample": "Serum", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 2.5" } ]

style

left-column

Recovery

[ { "sample": "Cell culture supernatant", "range": "90 - 99 %", "average": "= 93" }, { "sample": "Serum", "range": "82 - 87 %", "average": "= 84" }, { "sample": "EDTA Plasma", "range": "82 - 89 %", "average": "= 84" }, { "sample": "Heparin Plasma", "range": "93 - 101 %", "average": "= 91" }, { "sample": "Citrate plasma", "range": "81 - 86 %", "average": "= 84" }, { "sample": "Tissue Extracts", "range": "80 - 83 %", "average": "= 81" } ]

style

left-column

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab326401-1x96Tests", "assetComponentDetails": [ { "size":"1 x 10 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB326401-CMP05", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 5BR", "number":"AB326401-CMP04", "productcode":"" }, { "size":"1 x 3 mL", "name":"ChemiHRP Reagent B", "number":"AB326401-CMP10", "productcode":"" }, { "size":"1 x 12 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB326401-CMP07", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB326401-CMP12", "productcode":"" }, { "size":"1 x 3 mL", "name":"ChemiHRP Reagent A", "number":"AB326401-CMP09", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Mouse MAP2 Lyophilized Recombinant Protein", "number":"AB326401-CMP03", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Mouse MAP2 Capture Antibody", "number":"AB326401-CMP01", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB326401-CMP08", "productcode":"" }, { "size":"1 x 1 mL", "name":"50X Cell Extraction Enhancer Solution (ab193971)", "number":"AB326401-CMP06", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Mouse MAP2 Detector Antibody", "number":"AB326401-CMP02", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated Black 96-Well Microplate", "number":"AB326401-CMP11", "productcode":"" } ] } } }

style

left-column

Properties and storage information

Shipped at conditions

Blue Ice

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

+4°C

Storage information

+4°C

style

left-column

style

left-column

Product protocols

style

left-column

Target data

The exact function of MAP2 is unknown but MAPs may stabilize the microtubules against depolymerization. They also seem to have a stiffening effect on microtubules.

See full target information Map2

style

left-column

style

left-column

websiteProtocolBooklet

style

right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.

For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.

For licensing inquiries, please contact partnerships@abcam.com
