AB204525

Mouse MDC ELISA Kit (CCL22)

Be the first to review this product! Submit a review

|

(2 Publications)

Mouse MDC ELISA Kit (CCL22) is a single-wash 90-min Simplestep used to quantify Mouse MDC (CCL22) with a sensitivity of 1.4 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Design your own immunoassay: we also offer the conjugation-ready antibody pair

View Alternative Names

Abcd1, Scya22, Ccl22, C-C motif chemokine 22, Activated B and dendritic cell-derived, CC chemokine ABCD-1, Small-inducible cytokine A22

4 Images
Sandwich ELISA - Mouse MDC ELISA Kit (CCL22) (AB204525)
  • sELISA

Unknown

Sandwich ELISA - Mouse MDC ELISA Kit (CCL22) (AB204525)

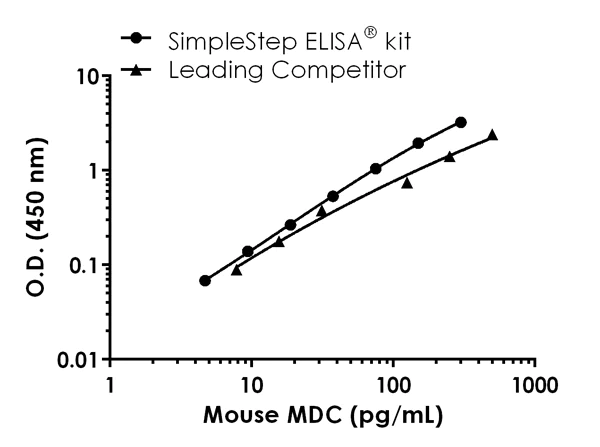

Mouse MDC standard curve comparison data.

Standard curve comparison between mouse MDC SimpleStep ELISA® kit and traditional ELISA kit from leading competitor. SimpleStep ELISA kit shows comparable sensitivity.

Sandwich ELISA - Mouse MDC ELISA Kit (CCL22) (AB204525)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse MDC ELISA Kit (CCL22) (AB204525)

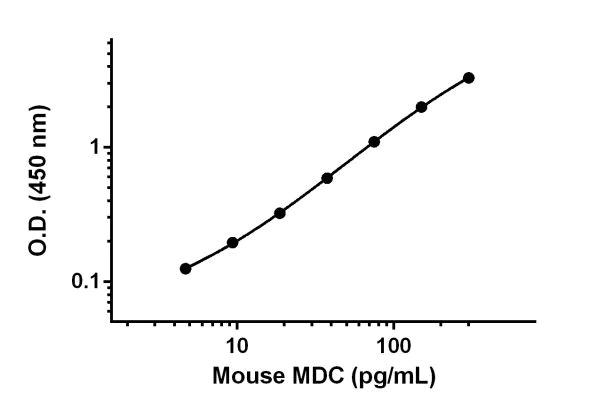

Example of MDC standard curve.

Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Mouse MDC ELISA Kit (CCL22) (AB204525)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse MDC ELISA Kit (CCL22) (AB204525)

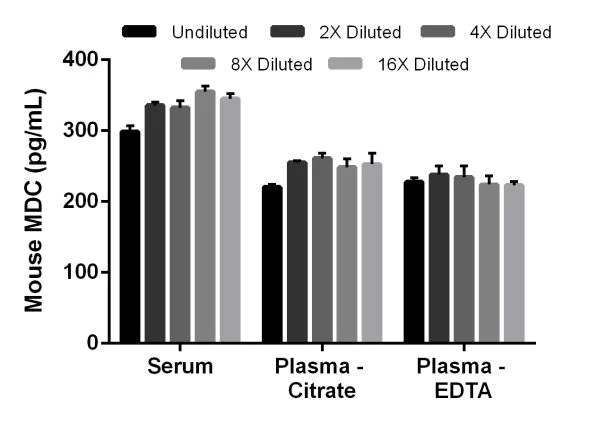

Interpolated concentrations of MDC in mouse serum, plasma (citrate), and plasma (EDTA).

The concentrations of MDC were measured in duplicate and interpolated from the MDC standard curve and corrected for sample dilution. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean MDC concentration was determined to be 333.6 pg/mL in mouse serum, 247.6 pg/mL in mouse plasma (Citrate), and 229.6 pg/mL in mouse plasma (EDTA).

Sandwich ELISA - Mouse MDC ELISA Kit (CCL22) (AB204525)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse MDC ELISA Kit (CCL22) (AB204525)

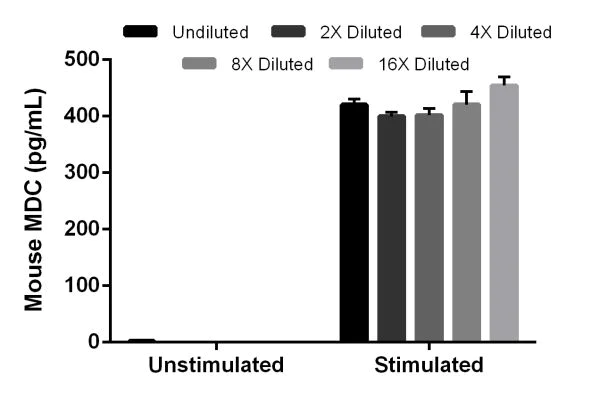

Comparison of secreted MDC in unstimulated and PMA/PHA-stimulated J774A.1 Cells.

J7774A.1 cells were grown in the absence (unstimulated) or presence of Phorbol Myristate Acetate (PMA) and phytohemagglutinin (PHA) (stimulated) for 3 days. MDC was measured in 2-fold diluted cell culture supernatants of unstimulated and PMA/PHA stimulated J774A.1 and cell culture media. Measured values were interpolated from the MDC Standard Curve diluted in Sample Diluent NS and corrected for dilution factor. Mean of duplicate values +/-SD are graphed : 2.9 pg/mL unstimulated, 419.5 pg/mL stimulated, and undetectable in media.

Key facts

Detection method

Colorimetric

Sample types

Plasma, Cell culture supernatant, Serum

Reacts with

Mouse

Assay type

Sandwich (quantitative)

Sensitivity

= 1.4 pg/mL

Range

4.69 - 300 pg/mL

Assay time

1h 30m

Assay Platform

Microplate (12 x 8 well strips)

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

Product details

Mouse MDC ELISA Kit (CCL22) (ab204525) is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of MDC (CCL22) protein in cell culture supernatant, serum, and plasma. It uses our proprietary SimpleStep ELISA® technology. Quantitate Mouse MDC (CCL22) with 1.4 pg/ml sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

- Single-wash protocol reduces assay time to 90 minutes or less
- High sensitivity, specificity and reproducibility from superior antibodies
- Fully validated in biological samples
- 96-wells plate breakable into 12 x 8 wells strips

A 384-well SimpleStep ELISA® microplate (ab203359) is available to use as an alternative to the 96-well microplate provided with SimpleStep ELISA® kits.

Macrophage-derived chemokine (MDC), also known as C-C motif chemokine 22 (CCL22), is a secreted cytokine and member of the intercrine beta (chemokine CC) family. It is highly expressed in macrophage and in monocyte-derived dendritic cells. CCL22 is a chemotactic for monocytes, dendritic cells and natural killer cells and potent chemoattractant for chronically activated T-lymphocytes.

Precision

[ { "reproducibilityType": "Inter", "sample": "Serum", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "8.4" }, { "reproducibilityType": "Intra", "sample": "Serum", "replicates": 5, "mean": null, "standardDeviation": null, "coefficientOfVariability": "3.4" } ]

Recovery

[ { "sample": "Serum", "range": "96 - 123 %", "average": "= 109" }, { "sample": "Cell culture media", "range": "95 - 116 %", "average": "= 108" }, { "sample": "Citrate plasma", "range": "100 - 112 %", "average": "= 107" }, { "sample": "EDTA Plasma", "range": "97 - 116 %", "average": "= 106" } ]

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab204525-1x96Tests", "assetComponentDetails": [ { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB204525-CMP04", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB204525-CMP10", "productcode":"" }, { "size":"1 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB204525-CMP02", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB204525-CMP05", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB204525-CMP09", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 4BI", "number":"AB204525-CMP07", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Mouse MDC Capture Antibody", "number":"AB204525-CMP06", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Mouse MDC Lyophilized Recombinant Protein", "number":"AB204525-CMP01", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB204525-CMP03", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Mouse MDC Detector Antibody", "number":"AB204525-CMP08", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

MDC also known as CCL22 or macrophage-derived chemokine is a small protein involved in immune system signaling. The molecular mass of MDC is approximately 8 kDa. It is expressed in various tissues including lymph nodes thymus and lungs where it mainly acts to regulate immune cell movement. Researchers commonly study this target using MDC assays and CCL22 ELISA to better understand its functions and expression patterns.
Biological function summary

MDC interacts with immune cells to mediate responses such as chemotaxis. It binds to the CCR4 receptor which is found on T cells and other immune cells. MDC does not require complex formation to function; it works independently to attract specific cell types. This chemokine provides a way for immune cells to navigate to sites of inflammation or infection.

Pathways

MDC plays a significant role in inflammatory and immune response pathways. It is integrally linked with the chemokine signaling pathway where it works along with other chemokines to guide immune responses. MDC is related to proteins like CCR4 and other chemokines in these pathways facilitating communication between cells during immune responses and maintaining homeostasis.

MDC is implicated in conditions such as allergic responses and autoimmune diseases. Its interaction with CCR4 connects it to disorders like asthma and atopic dermatitis where excessive immune cell recruitment leads to inflammation. Studying MDC levels through macrophage assays and chemokine ELISAs can provide insights into its role in these diseases and help develop potential therapeutic strategies.

Product protocols

Target data

Chemotactic for activated T-lymphocytes. May play an important role in the collaboration of dendritic cells and B-lymphocytes with T-cells in immune responses.
See full target information Ccl22

Publications (2)

Recent publications for all applications. Explore the full list and refine your search

Clinical cancer research : an official journal of the American Association for Cancer Research 30:4450-4463 PubMed38691100

2024

Targeting the Dendritic Cell-Secreted Immunoregulatory Cytokine CCL22 Alleviates Radioresistance.

Applications

Unspecified application

Species

Unspecified reactive species

Jason Bugno,Liangliang Wang,Xianbin Yu,Xuezhi Cao,Jiaai Wang,Xiaona Huang,Kaiting Yang,Andras Piffko,Katherine Chen,Stephen Y Luo,Emile Naccasha,Yuzhu Hou,Sherry Fu,Chuan He,Yang-Xin Fu,Hua L Liang,Ralph R Weichselbaum

Molecular medicine reports 19:4195-4204 PubMed30896872

2019

Umbilical cord blood‑derived Helios‑positive regulatory T cells promote angiogenesis in acute lymphoblastic leukemia in mice via CCL22 and the VEGFA‑VEGFR2 pathway.

Applications

Unspecified application

Species

Unspecified reactive species

Xue Li,Dong Li,Qing Shi,Xiaoyang Huang,Xiuli Ju
View all publications
