Mouse Neuropilin-1 ELISA Kit is a Sandwich (quantitative) ELISA kit for the measurement of Mouse Neuropilin-1 in Mouse in Cell Lysate, Cell culture supernatant, EDTA Plasma, Heparin Plasma, Serum samples.

Be the first to review this product! Submit a review

Images

Key facts

Detection method

Colorimetric

Sample types

Cell Lysate, Cell culture supernatant, EDTA Plasma, Heparin Plasma, Serum

Assay type

Sandwich (quantitative)

Reactive species

Mouse

Range

780 - 50000 pg/mL

Assay time

3h 30m

Sensitivity

< 20 pg/mL

Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...

Reactivity data

Application

sELISA

Reactivity

Reacts

Dilution info

-

Notes

-

Target data

Function

Receptor involved in the development of the cardiovascular system, in angiogenesis, in the formation of certain neuronal circuits and in organogenesis outside the nervous system (By similarity). Mediates the chemorepulsant activity of semaphorins (PubMed:26503042). Recognizes a C-end rule (CendR) motif R/KXXR/K on its ligands which causes cellular internalization and vascular leakage (By similarity). Binds to semaphorin 3A (SEMA3A), the PLGF-2 isoform of PGF, the VEGF165 isoform of VEGFA and VEGFB (By similarity). Coexpression with KDR results in increased VEGF165 binding to KDR as well as increased chemotaxis. Regulates VEGF-induced angiogenesis (By similarity). Binding to VEGFA initiates a signaling pathway needed for motor neuron axon guidance and cell body migration, including for the caudal migration of facial motor neurons from rhombomere 4 to rhombomere 6 during embryonic development (PubMed:26503042). Regulates mitochondrial iron transport via interaction with ABCB8/MITOSUR (By similarity).

Alternative names

What's included?

1 x 96 Tests
Components
ABC Diluent Buffer
1 x 12 mL
Adhesive Plate Seal
4 x 1 Unit
Anti-Mouse Neuropilin-1 coated Microplate (12 x 8 wells)
1 x 1 Unit
Antibody Diluent Buffer
1 x 12 mL
Avidin-Biotin-Peroxidase Complex (ABC)
1 x 100 µL
Biotinylated anti- Mouse Neuropilin-1 antibody
1 x 100 µL
Lyophilized recombinant Mouse Neuropilin-1 standard
2 x 1 Vial
Sample Diluent Buffer
1 x 30 mL
TMB Color Developing Agent
1 x 10 mL
TMB Stop Solution
1 x 10 mL
Wash Buffer (25X)
1 x 20 mL

Recommended products

  1. Loading...
  2. Loading...
  3. Loading...
  4. Loading...

Mouse Neuropilin-1 ELISA Kit is a Sandwich (quantitative) ELISA kit for the measurement of Mouse Neuropilin-1 in Mouse in Cell Lysate, Cell culture supernatant, EDTA Plasma, Heparin Plasma, Serum samples.

Alternative names

Key facts

Detection method

Colorimetric

Sample types

Cell Lysate, Cell culture supernatant, EDTA Plasma, Heparin Plasma, Serum

Assay type

Sandwich (quantitative)

Reactive species

Mouse

Range

780 - 50000 pg/mL

Assay time

3h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

Sensitivity

< 20 pg/mL

Precision

Intra assay

Sample

Sample 1

n

16

mean

1.119 ng/mL

SD

0.085

C.V.

= 7.6

Sample

Sample 2

n

16

mean

5.985 ng/mL

SD

0.442

C.V.

= 7.4

Sample

Sample 3

n

16

mean

20.843 ng/mL

SD

1.354

C.V.

= 6.5

Inter assay

Sample

Sample 3

n

24

mean

19.936 ng/mL

SD

1.375

C.V.

= 6.9

Sample

Sample 1

n

24

mean

1.206 ng/mL

SD

0.096

C.V.

= 8

Sample

Sample 2

n

24

mean

6.427 ng/mL

SD

0.533

C.V.

= 8.3

Storage

Shipped at conditions

Blue Ice

Appropriate short-term storage conditions

-20°C

Appropriate long-term storage conditions

-20°C

Storage information

-20°C

Notes

The Mouse Neuropilin-1 Enzyme-Linked Immunosorbent Assay (ELISA) kit (ab213880) is designed for the quantitative measurement of Mouse Neuropilin-1 in cell culture supernatants, cell lysates, serum and plasma (heparin, EDTA).

The ELISA kit is based on standard sandwich enzyme-linked immunosorbent assay technology. A polyclonal antibody from goat specific for Neuropilin-1 has been precoated onto 96-well plates. Standards (Expression system for standard: NSO; Immunogen sequence: F22-P856) and test samples are added to the wells, a biotinylated detection polyclonal antibody from goat specific for Neuropilin-1 is added subsequently and then followed by washing with PBS or TBS buffer. Avidin-Biotin-Peroxidase Complex was added and unbound conjugates were washed away with PBS or TBS buffer. HRP substrate TMB was used to visualize HRP enzymatic reaction. TMB was catalyzed by HRP to produce a blue color product that changed into yellow after adding acidic stop solution. The density of yellow is proportional to the Mouse Neuropilin-1 amount of sample captured in plate.

NRP1 (Neuropilin 1) also known as NP1, NRP, BDCA4 or VEGF165R, is a membrane-bound coreceptor to a tyrosine kinase receptor for both vascular endothelial growth factor (VEGF) and semaphorin family members. NRP1 plays versatile roles in angiogenesis, axon guidance, cell survival, migration, and invasion. By somatic cell hybrid analysis, the NRP1 gene was mapped to chromosome 10. NRP1 bounds PGF1 with lower affinity. NRP1-mediated interactions are a necessary element in the initiation of the primary immune response and offer another example, like that of agrin, of a molecule shared by neurologic and immunologic synapses. After T-cell contact with DC, T-cell NRP1 colocalized with CD3 in the immunologic synapse and, sometimes, also at the opposite pole of the T cell. Soluble NRP1 interacts in a homophilic fashion with NRP1 on both DC and T cells, and this binding can be inhibited by blocking antibodies to NRP1. Furthermore, selective NRP1 inhibition in this model suppressed neovascular formation substantially.

Supplementary info

Biological summary

Neuropilin-1 serves as a co-receptor for both the Vascular Endothelial Growth Factor (VEGF) and Semaphorin family proteins. It plays an important role in processes such as angiogenesis axonal guidance and the immune system. Neuropilin-1 does not function alone; it forms complexes with neuropilin-2 and other receptors like Plexin and VEGFR enhancing signal transduction pathways for angiogenesis and neuronal development. This involvement allows cells to respond appropriately to their environment especially during organismal development and repair processes.

Mechanical summary

Neuropilin-1 also known as NRP1 is a transmembrane protein with a significant role in the nervous and vascular systems. It has a molecular mass of approximately 130 kDa. Neuropilin-1 expression occurs broadly in tissues including neurons endothelial cells and tumor cells. Its structure includes a large extracellular domain that binds various ligands mediating several cellular functions. Neuropilin-1 is sometimes targeted in experiments using methods like neuropilin-1 ELISA and PE immunofluorescence to study its distribution and function in different tissues.

Pathway

Neuropilin-1 facilitates interactions within the VEGF and Semaphorin pathways. In the VEGF pathway Neuropilin-1 enhances binding and signaling efficiency with VEGF closely working alongside VEGFR to promote endothelial cell survival migration and new blood vessel formation. In the Semaphorin pathway Neuropilin-1 interacts with Plexins mediating neuronal pathfinding and axonal growth. These interactions highlight Neuropilin-1's adaptive capabilities in various physiological processes critical for system development.

Disease

Neuropilin-1 is linked to pathological conditions like cancer and cardiovascular diseases. Neuropilin-1 overexpression is frequently observed in tumors driving cancer progression through enhanced angiogenesis and tissue invasion closely interacting with proteins like VEGF-A. In cardiovascular disease Neuropilin-1 contributes to abnormal blood vessel formation and stability. By studying Neuropilin-1 and other biomarkers like CD304 FITC researchers aim to develop therapeutic strategies targeting its role in these diseases.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

1 product image

  • Sandwich ELISA - Mouse Neuropilin-1 ELISA Kit (ab213880), expandable thumbnail

    Sandwich ELISA - Mouse Neuropilin-1 ELISA Kit (ab213880)

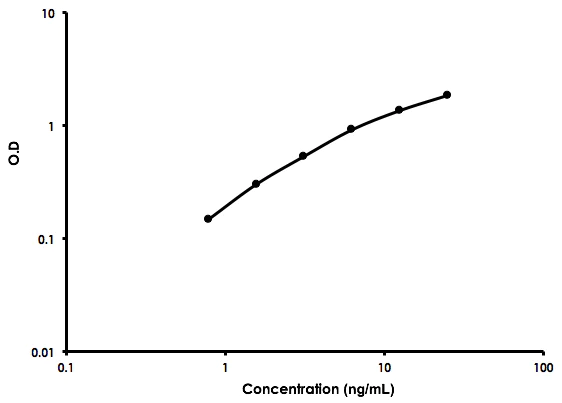

    Mouse Neuropilin-1 ELISA Kit (ab213880) Standard Curve.

Downloads

Product protocols

For this product, it's our understanding that no specific protocols are required. You can:

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
