AB323695

Mouse PD-L1 ELISA Kit- Extracellular

Be the first to review this product! Submit a review

|

(0 Publication)

Mouse PD-L1 ELISA Kit- Extracellular is a single-wash 90-min Simplestep used to quantify Mouse PD-L1 with a sensitivity of 6.267 pg/mL. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Different formats for different needs: 10x96 plates for bulk orders and 384-well plate for higher throughput
- Design your own immunoassay: we also offer the conjugation-ready antibody pair

View Alternative Names

CD274, B7h1, Pdcd1l1, Pdcd1lg1, Pdl1, Cd274, Programmed cell death 1 ligand 1, PD-L1, PDCD1 ligand 1, Programmed death ligand 1, B7 homolog 1, B7-H1

3 Images
Sandwich ELISA - Mouse PD-L1 ELISA Kit- Extracellular (AB323695)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse PD-L1 ELISA Kit- Extracellular (AB323695)

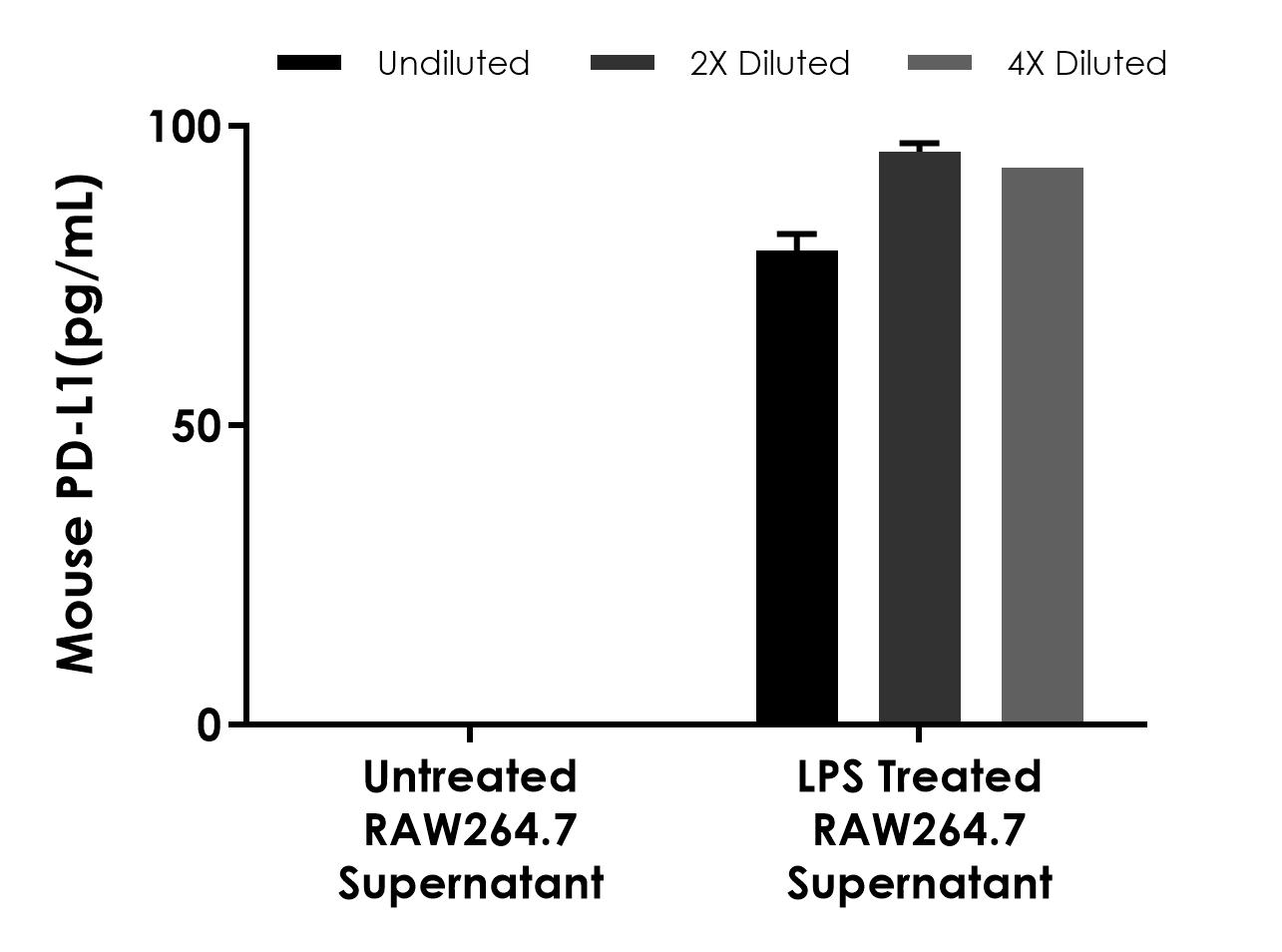

Interpolated concentration of native PD-L1 was measured in duplicate at different sample concentrations. Undiluted samples are 100% RAW264.7 cell culture supernatant (treated with 1 µg/ml LPS for 48 hrs) and 100% untreated RAW264.7 cell culture supernatant. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in 1X Wash Buffer PT. No signal was detected in untreated RAW264.7 cell culture supernatant.

Sandwich ELISA - Mouse PD-L1 ELISA Kit- Extracellular (AB323695)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse PD-L1 ELISA Kit- Extracellular (AB323695)

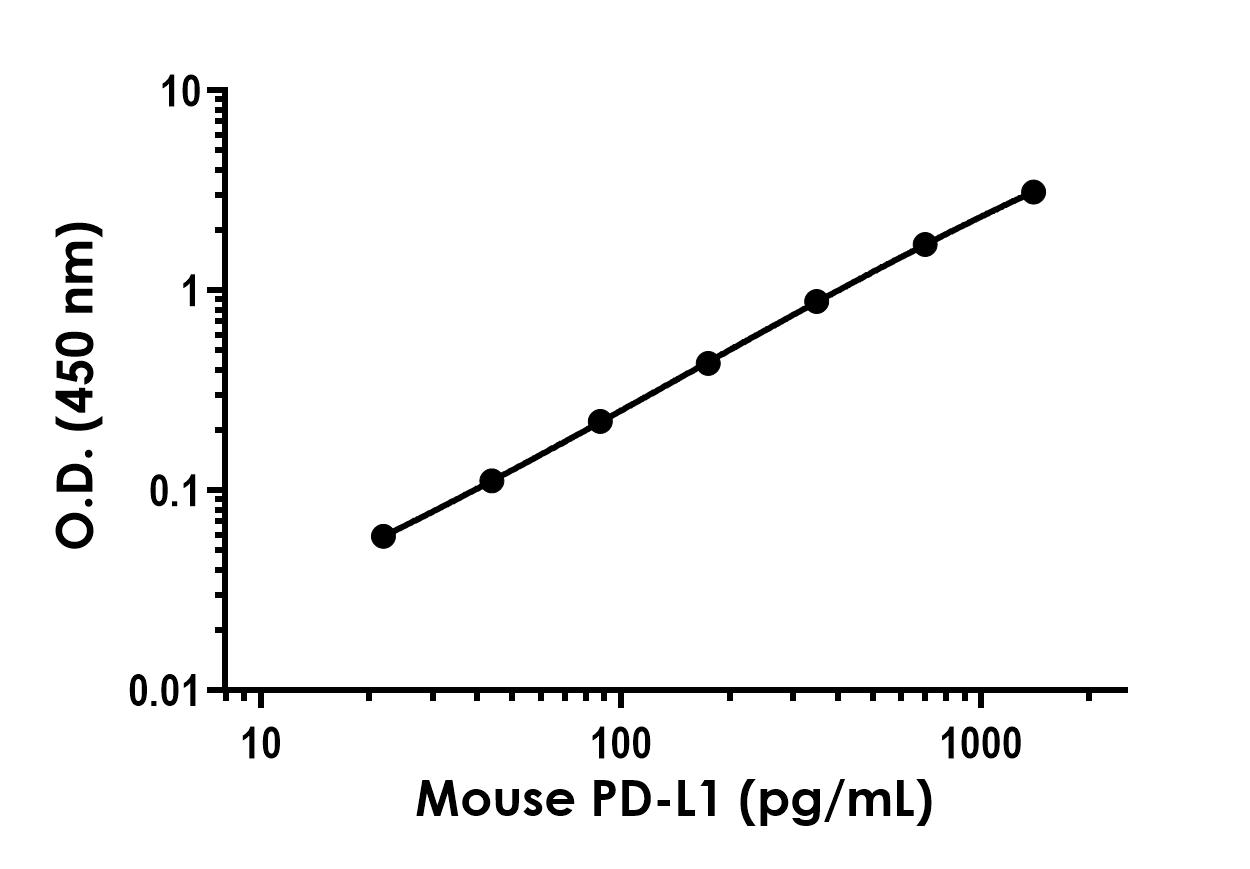

Example of mouse PD-L1 standard curve in 1X Wash Buffer PT. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Mouse PD-L1 ELISA Kit- Extracellular (AB323695)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse PD-L1 ELISA Kit- Extracellular (AB323695)

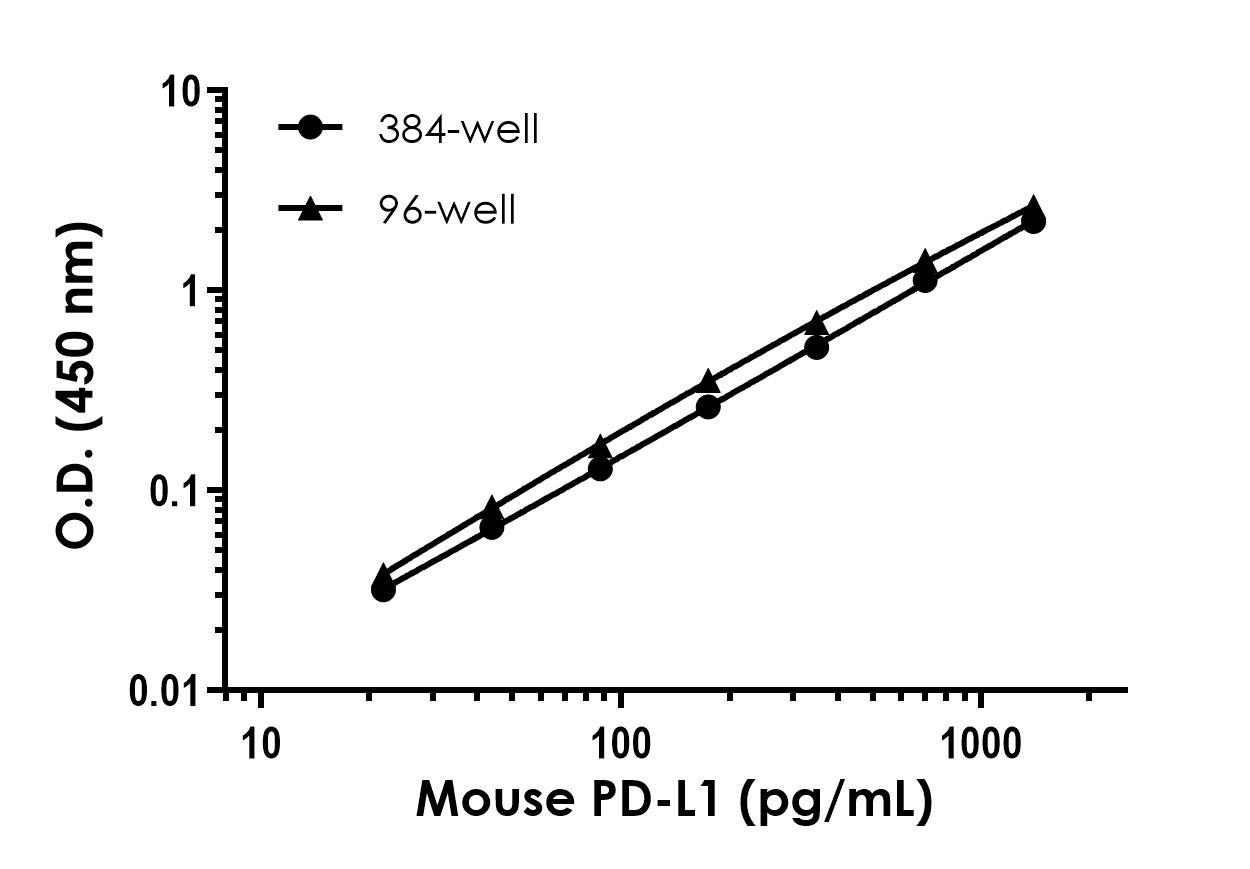

Example of mouse PD-L1 standard curve in 1X Wash Buffer PT in 96-well vs. 384-well plate. Background-subtracted data values (mean +/- SD) are graphed.

Key facts

Detection method

Colorimetric

Sample types

Serum, Citrate plasma, EDTA Plasma, Cell culture supernatant

Reacts with

Mouse

Assay type

Sandwich (quantitative)

Sensitivity

= 6.267 pg/mL

Range

21.875 - 1400 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

Product details

Mouse PD-L1 SimpleStep ELISA® kit is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of PD-L1 protein in Serum, Citrate Plasma, EDTA Plasma, Cell culture supernatant. Quantitate Mouse PD-L1 with 6.267 pg/ml sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:
- Single-wash protocol reduces assay time to 90 minutes or less
- High sensitivity, specificity and reproducibility from superior antibodies
- Fully validated in biological samples
- 96-wells plate breakable into 12 x 8 wells strips, available in 10-pack (10 x 96-well plates)
- Also available in a fully validated 384-well format.

style
left-column

Precision

[ { "reproducibilityType": "Intra", "sample": "Serum", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 6" }, { "reproducibilityType": "Inter", "sample": "Serum", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 4.4" } ]
style
left-column

Recovery

[ { "sample": "Serum", "range": "90 - 93 %", "average": "= 92" }, { "sample": "Citrate plasma", "range": "81 - 88 %", "average": "= 83" }, { "sample": "EDTA Plasma", "range": "88 - 92 %", "average": "= 91" }, { "sample": "Cell culture supernatant", "range": "87 - 105 %", "average": "= 96" } ]
style
left-column

What's included?

{ "values": { "10x96Tests": { "sellingSize": "10 x 96 Tests", "publicAssetCode":"ab323695-10x96Tests", "assetComponentDetails": [ { "size":"1 x 120 mL", "name":"Stop Solution", "number":"AB323695-CMP08" }, { "size":"10 x 600 µL", "name":"10X Mouse PD-L1 Capture Antibody", "number":"AB323695-CMP01" }, { "size":"10 x 300 µL", "name":"20X Mouse PD-L1 Detector Antibody", "number":"AB323695-CMP02" }, { "size":"20 x 1 Vial", "name":"Mouse PD-L1 Lyophilized Recombinant Protein", "number":"AB323695-CMP03" }, { "size":"10 x 6 mL", "name":"Antibody Diluent BAR", "number":"AB323695-CMP04" }, { "size":"1 x 120 mL", "name":"TMB Development Solution", "number":"AB323695-CMP07" }, { "size":"1 x 200 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB323695-CMP05" }, { "size":"10 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB323695-CMP09" }, { "size":"10 x 1 Unit", "name":"Plate Seal", "number":"AB323695-CMP10" } ] }, "1x384Tests": { "sellingSize": "1 x 384 Tests", "publicAssetCode":"ab323695-1x384Tests", "assetComponentDetails": [ { "size":"2 x 12 mL", "name":"Stop Solution", "number":"AB323695-CMP08" }, { "size":"1 x 600 µL", "name":"10X Mouse PD-L1 Capture Antibody", "number":"AB323695-CMP01" }, { "size":"1 x 300 µL", "name":"20X Mouse PD-L1 Detector Antibody", "number":"AB323695-CMP02" }, { "size":"2 x 1 Vial", "name":"Mouse PD-L1 Lyophilized Recombinant Protein", "number":"AB323695-CMP03" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB323695-CMP10" }, { "size":"1 x 1 Unit", "name":"384 well CaptSure™ microplates", "number":"AB323695-CMP11" }, { "size":"2 x 12 mL", "name":"TMB Development Solution", "number":"AB323695-CMP07" }, { "size":"1 x 6 mL", "name":"Antibody Diluent BAR", "number":"AB323695-CMP04" }, { "size":"2 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB323695-CMP05" } ] }, "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab323695-1x96Tests", "assetComponentDetails": [ { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB323695-CMP08", "productcode":"" }, { "size":"1 x 300 µL", "name":"20X Mouse PD-L1 Detector Antibody", "number":"AB323695-CMP02", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Mouse PD-L1 Lyophilized Recombinant Protein", "number":"AB323695-CMP03", "productcode":"" }, { "size":"1 x 12 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB323695-CMP06", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB323695-CMP10", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB323695-CMP05", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent BAR", "number":"AB323695-CMP04", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB323695-CMP07", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Mouse PD-L1 Capture Antibody", "number":"AB323695-CMP01", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB323695-CMP09", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C
style
left-column
style
left-column

Product protocols

style
left-column

Target data

Plays a critical role in induction and maintenance of immune tolerance to self (PubMed : 11238124). As a ligand for the inhibitory receptor PDCD1/PD-1, modulates the activation threshold of T-cells and limits T-cell effector response (PubMed : 11238124). Through a yet unknown activating receptor, may costimulate T-cell subsets that predominantly produce interleukin-10 (IL10) (PubMed : 11015443, PubMed : 12719480).. The PDCD1-mediated inhibitory pathway is exploited by tumors to attenuate anti-tumor immunity and escape destruction by the immune system, thereby facilitating tumor survival (PubMed : 12218188, PubMed : 27281199). The interaction with PDCD1/PD-1 inhibits cytotoxic T lymphocytes (CTLs) effector function (PubMed : 12218188). The blockage of the PDCD1-mediated pathway results in the reversal of the exhausted T-cell phenotype and the normalization of the anti-tumor response, providing a rationale for cancer immunotherapy (PubMed : 12218188).
See full target information Cd274
style
left-column
style
left-column
websiteProtocolBooklet
en
style
right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.

For licensing inquiries, please contact partnerships@abcam.com
