AB202403

Mouse PF4 ELISA Kit (CXCL4)

Be the first to review this product! Submit a review

|

(1 Publication)

Mouse PF4 ELISA Kit (CXCL4) is a single-wash 90-min Simplestep used to quantify Mouse PF4 (CXCL4) with a sensitivity of 148 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Design your own immunoassay: we also offer the conjugation-ready antibody pair

View Alternative Names

Cxcl4, Scyb4, Pf4, Platelet factor 4, PF-4, C-X-C motif chemokine 4

4 Images
Sandwich ELISA - Mouse PF4 ELISA Kit (CXCL4) (AB202403)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse PF4 ELISA Kit (CXCL4) (AB202403)

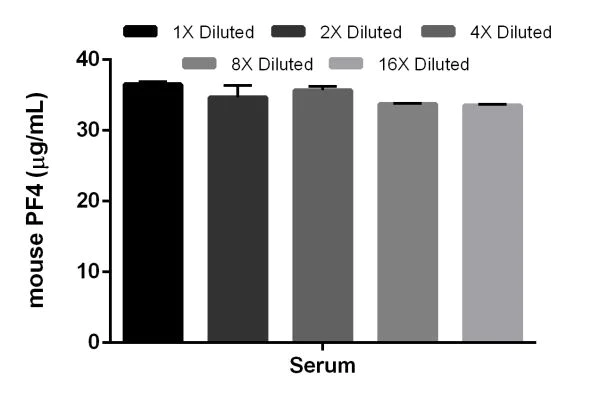

Linearity of dilution of native mouse PF4 in mouse serum.

Native mouse PF4 protein was measured in serum (diluted 1 : 2,500 in Sample Diluent NS) in a 2-fold dilution series in Sample Diluent NS. The interpolated dilution factor corrected values are graphed (mean +/- SD).

Sandwich ELISA - Mouse PF4 ELISA Kit (CXCL4) (AB202403)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse PF4 ELISA Kit (CXCL4) (AB202403)

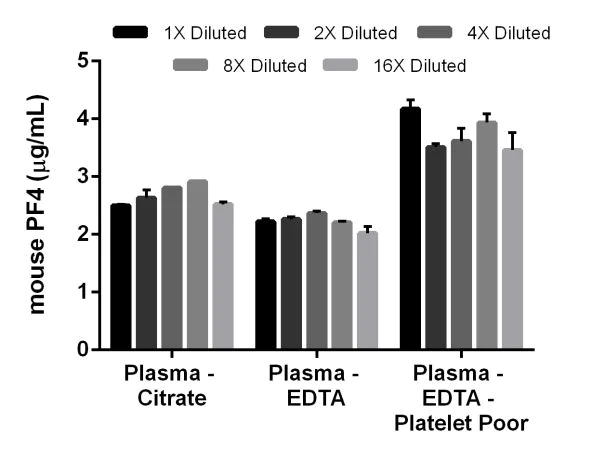

Linearity of dilution of native mouse PF4 in mouse Citrate, EDTA, and Platelet Poor EDTA plasmas.

Native mouse PF4 protein was measured in citrate plasma (1 : 300), EDTA plasma (1 : 400), and Platelet Poor EDTA plasma (1 : 350) in a 2-fold dilution series in Sample Diluent NS. The interpolated dilution factor corrected values are graphed (mean +/- SD).

Sandwich ELISA - Mouse PF4 ELISA Kit (CXCL4) (AB202403)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse PF4 ELISA Kit (CXCL4) (AB202403)

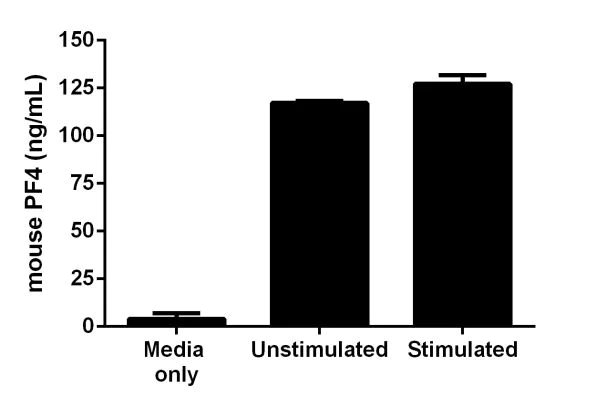

Mouse PF4 expression is shown for cultured media from the J774A.1 mouse cell line.

J774A.1 cells were cultured in HGDMEM with 10% fetal calf serum, and 100 μg/mL of Kanamycin. J774A.1 cells were treated for 72 hours in the presence and absence of 1.5% PHA and 10ng/mL of PMA. Samples were loaded on the plate diluted 1 : 10 and the concentrations of mouse PF4 were interpolated from a calibration curve diluted in Sample Diluent NS. The interpolated dilution factor corrected values are graphed (mean +/- SD).

Sandwich ELISA - Mouse PF4 ELISA Kit (CXCL4) (AB202403)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse PF4 ELISA Kit (CXCL4) (AB202403)

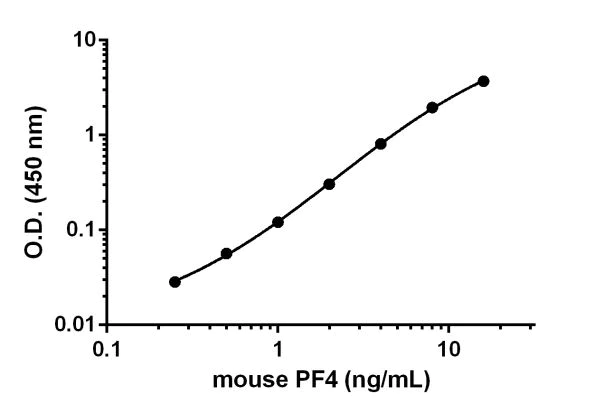

Example of the mouse PF4 standard curve.

Background-subtracted data values (mean +/- SD) are graphed.

Key facts

Detection method

Colorimetric

Sample types

Citrate plasma, Cell culture supernatant, Serum, EDTA Plasma

Reacts with

Mouse

Assay type

Sandwich (quantitative)

Sensitivity

= 148 pg/mL

Range

0.25 - 16 ng/mL

Assay time

1h 30m

Assay Platform

Microplate (12 x 8 well strips)

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

Product details

Mouse PF4 ELISA Kit (CXCL4) (ab202403) is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of PF4 (CXCL4) protein in cell culture supernatant, cit plasma, edta plasma, and serum. It uses our proprietary SimpleStep ELISA® technology. Quantitate Mouse PF4 (CXCL4) with 148 pg/ml sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

- Single-wash protocol reduces assay time to 90 minutes or less
- High sensitivity, specificity and reproducibility from superior antibodies
- Fully validated in biological samples
- 96-wells plate breakable into 12 x 8 wells strips

A 384-well SimpleStep ELISA® microplate (ab203359) is available to use as an alternative to the 96-well microplate provided with SimpleStep ELISA® kits.

Platelet factor 4 (PF4) is a small cytokine belonging to the CXC chemokine family that is also known as chemokine (C-X-C motif) ligand 4 (CXCL4). Chemokines play fundamental roles in the development, homeostasis, and function of the immune system, and they have effects on cells of the central nervous system as well as on endothelial cells involved in angiogenesis and angiostasis. PF4 is a 70-amino acid protein (8 kDa) that is released from the alpha-granules of activated platelets and binds with high affinity to heparin. Specifically, the active protein is a tetramer of PF4 subunits that forms a ring of heparin-binding positive charges from sites at the C-terminal region of each monomer. In contrast to other CXC chemokines, PF4 does not contain an ELR motif and lacks binding to nearly all chemokine receptors. Mouse PF4 shares 64% and 89% amino acid identity with human and rat PF4, respectively. As a strong chemoattractant for neutrophils and fibroblasts, PF4 probably has a role in inflammation and wound repair. However, the major physiologic role of PF4 appears to be neutralization of heparin-like molecules on the endothelial surface of blood vessels, thereby inhibiting local antithrombin III activity and promoting coagulation. There can be over 100-fold higher concentrations of PF4 within clots than within normal serum. Therapeutic doses of heparin (an anticoagulant) neutralize PF4 pro-coagulant effects. The complex between heparin and PF4 can be immunogenic, producing the pathological syndrome HITT (heparin-induced thrombocytopenia and thrombosis). In addition, immunogenic complexes of PF4 with apolipoprotein H can contribute to antiphospholipid syndrome (APS).

Precision

[ { "reproducibilityType": "Inter", "sample": "Mouse Serum", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "5.5" }, { "reproducibilityType": "Intra", "sample": "Mouse Serum", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "3.2" } ]

Recovery

[ { "sample": "Serum", "range": "93 - 99 %", "average": "= 97" }, { "sample": "EDTA Plasma", "range": "100 - 102 %", "average": "= 101" }, { "sample": "Citrate plasma", "range": "106 - 114 %", "average": "= 110" }, { "sample": "Cell culture media", "range": "83 - 96 %", "average": "= 91" } ]

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab202403-1x96Tests", "assetComponentDetails": [ { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB202403-CMP07", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Mouse PF4 (CXCL4)Capture Antibody", "number":"AB202403-CMP03", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB202403-CMP10", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent CP2", "number":"AB202403-CMP11", "productcode":"" }, { "size":"1 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB202403-CMP05", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Mouse PF4 (CXCL4) Lyophilized Recombinant Protein", "number":"AB202403-CMP02", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB202403-CMP09", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB202403-CMP06", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB202403-CMP08", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Mouse PF4 (CXCL4) Detector Antibody", "number":"AB202403-CMP04", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

The protein Platelet Factor 4 (PF4) also known as CXCL4 is a member of the chemokine (C-X-C motif) ligand family. This small protein has a molecular weight of approximately 7.8 kDa. PF4 is mainly expressed in megakaryocytes and stored in the alpha granules of platelets. During platelet activation PF4 releases into the bloodstream where it interacts with other proteins and cell types. Researchers measure PF4 levels with methods such as PF4 ELISA to study its expression and functions under various physiological and pathological conditions.
Biological function summary

PF4 plays an important role in modulating the immune response and coagulation processes. PF4 is not part of a stable protein complex but can interact dynamically with heparin on the surface of endothelial cells and glycosaminoglycans. It inhibits the action of heparin promoting clot formation and angiogenesis. PF4 also attracts and activates different types of leukocytes and can regulate inflammatory processes influencing how the immune system responds to injury.

Pathways

PF4 significantly interacts with both the coagulation and inflammation pathways. In the coagulation pathway PF4 acts to neutralize heparin-like molecules thereby enhancing thrombosis. It works closely with proteins such as thrombin and fibrinogen contributing to the blood clot cascade. Within the inflammatory pathway PF4's chemokine activity helps direct leukocytes to sites of tissue damage or infection linking it to cytokines and other chemokines that mediate immune responses.

Researchers associate PF4 with conditions such as thrombosis and autoimmune pathologies. In thrombosis the overexpression of PF4 can lead to excessive clot formation pointing to its interaction with proteins like thrombin. PF4 also plays a role in heparin-induced thrombocytopenia (HIT) a disorder where the immune system mistakenly produces antibodies against heparin-PF4 complexes further indicating its direct involvement with immune and coagulation pathways.

Product protocols

Target data

Chemokine released during platelet aggregation that plays a role in different biological processes including hematopoiesis, cell proliferation, differentiation, and activation. Acts via different functional receptors including CCR1, CXCR3A or CXCR3B. Upon interaction with CXCR3A receptor, induces activated T-lymphocytes migration mediated via downstream Ras/extracellular signal-regulated kinase (ERK) signaling. Neutralizes the anticoagulant effect of heparin by binding more strongly to heparin than to the chondroitin-4-sulfate chains of the carrier molecule. Plays a role in the inhibition of hematopoiesis and in the maintenance of hematopoietic stem cell (HSC) quiescence. Chemotactic for neutrophils and monocytes via CCR1. Inhibits endothelial cell proliferation. In cooperation with toll-like receptor 8/TLR8, induces chromatin remodeling and activates inflammatory gene expression via the TBK1-IRF5 axis. In addition, induces myofibroblast differentiation and collagen synthesis in different precursor cells, including endothelial cells, by stimulating endothelial-to-mesenchymal transition. Interacts with thrombomodulin/THBD to enhance the activation of protein C and thus potentiates its anticoagulant activity.
See full target information Pf4

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

Nature communications 10:4586 PubMed31594932

2019

Upconversion superballs for programmable photoactivation of therapeutics.

Applications

Unspecified application

Species

Unspecified reactive species

Zhen Zhang,Muthu Kumara Gnanasammandhan Jayakumar,Xiang Zheng,Swati Shikha,Yi Zhang,Akshaya Bansal,Dennis J J Poon,Pek Lim Chu,Eugenia L L Yeo,Melvin L K Chua,Soo Khee Chee,Yong Zhang
