AB197748

Mouse PLGF ELISA Kit

5

(1 Review)

|

(4 Publications)

Mouse PLGF ELISA Kit is a single-wash 90-min Simplestep used to quantify Mouse PLGF with a sensitivity of 0.526 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Design your own immunoassay: we also offer the conjugation-ready antibody pair

View Alternative Names

Plgf, Pgf, Placenta growth factor, PlGF

5 Images
Sandwich ELISA - Mouse PLGF ELISA Kit (AB197748)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse PLGF ELISA Kit (AB197748)

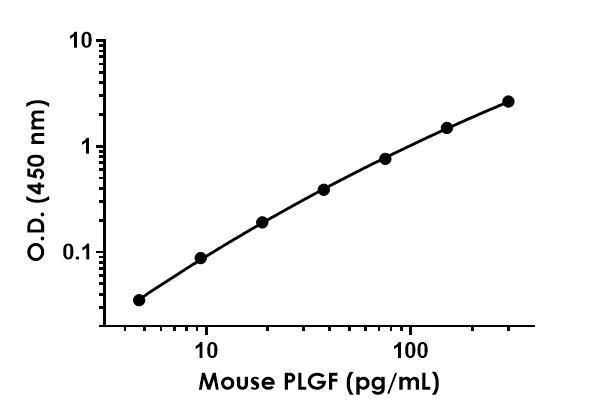

Example of PLGF mouse standard curve in Sample Diluent NS.

Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Mouse PLGF ELISA Kit (AB197748)
  • sELISA

Lab

Sandwich ELISA - Mouse PLGF ELISA Kit (AB197748)

Mouse PLGF standard curve comparision data.

Standard curve comparison between mouse PLGF SimpleStep ELISA® kit and traditional ELISA kit from leading competitor. SimpleStep ELISA kit shows a 2-fold sensitivity.

Sandwich ELISA - Mouse PLGF ELISA Kit (AB197748)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse PLGF ELISA Kit (AB197748)

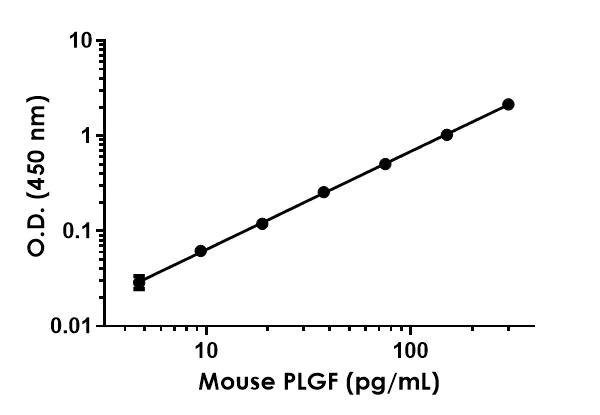

Example of PLGF mouse standard curve in Sample Diluent 75BP.

Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Mouse PLGF ELISA Kit (AB197748)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse PLGF ELISA Kit (AB197748)

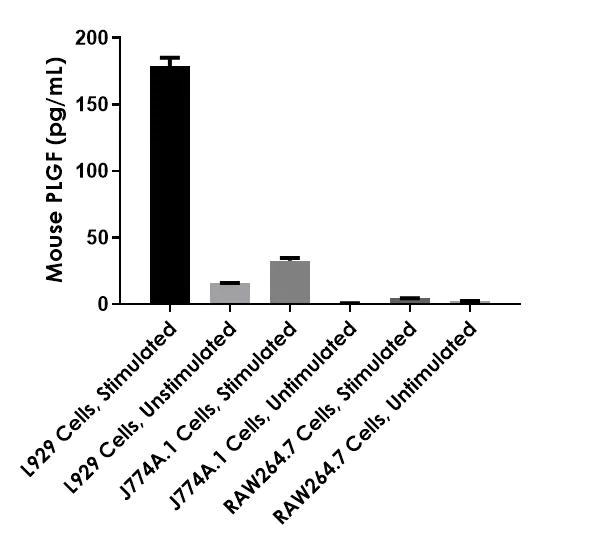

PLGF Mouse expression is shown for cultured media from three Mouse cell lines.

L929, J774A.1 and RAW264.7 cells were cultured in HGDMEM with 10% fetal calf serum or Horse serum, 2mM L-glutamine and 100 μg/mL Kanamycin. L929 and J774A.1 cells were treated for 72 hours in the presence and absence of 1.5% PHA and 10ng/mL of PMA. RAW264.7 cells were starved for 24 hours and treated in the presence and absence of 5 μg/mL of LPS. Samples were loaded on the plate undiluted and the concentrations of PLGF were interpolated from a calibration curve diluted in NS. The mean PLGF concentration was determined to be 178.9 pg/mL in stimulated L929 cells, 15.8 pg/mL in unstimulated L929 cells, 32.8 pg/mL in stimulated J774A.1 cells, 0.4 pg/mL in unstimulated J774A.1 cells, 4.4 pg/mL in stimulated RAW264.7 cells, and 2.3 pg/mL in unstimulated RAW264.7 cells.

Sandwich ELISA - Mouse PLGF ELISA Kit (AB197748)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse PLGF ELISA Kit (AB197748)

Example of PLGF mouse standard curve in Sample Diluent 25BS.

Background-subtracted data values (mean +/- SD) are graphed.

Key facts

Detection method

Colorimetric

Sample types

Citrate plasma, Cell culture supernatant, Serum

Reacts with

Mouse

Assay type

Sandwich (quantitative)

Sensitivity

= 0.526 pg/mL

Range

4.69 - 300 pg/mL

Assay time

1h 30m

Assay Platform

Microplate (12 x 8 well strips)

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

Product details

Mouse PLGF ELISA Kit (ab197748) is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of PLGF protein in cell culture supernatant, cit plasma, and serum. It uses our proprietary SimpleStep ELISA® technology. Quantitate Mouse PLGF with 0.526 pg/ml sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

- Single-wash protocol reduces assay time to 90 minutes or less
- High sensitivity, specificity and reproducibility from superior antibodies
- Fully validated in biological samples
- 96-wells plate breakable into 12 x 8 wells strips

A 384-well SimpleStep ELISA® microplate (ab203359) is available to use as an alternative to the 96-well microplate provided with SimpleStep ELISA® kits.

Placental growth factor (PLGF) is an angiogenic factor that is variably glycosylated and secreted. The PLGF protein is a 55-60 kDa disulfide linked homodimer and it belongs to the small family of PDGF/VEGF-related angiogenic growth factors, all of which contain 8 conserved cysteines. Due to alternative splicing, there are three human PLGF mRNAs encoding human PLGF-1, -2, and -3 isoform precursors. There is a unique 21 aa insert at the C-terminus of the PLGF-2 isoform and this isoform is the heparin binding form of PLGF. In mouse tissues there is currently only one identified PLGF mRNA form encoding the equivalent of human PLGF-2. Mouse PLGF is a 158 aa polypeptide that contains an 18 aa signal sequence and a 140 aa mature segment. Human and rat PLGF share 66% and 91% aa sequence identity, respectively, to mouse PLGF.Homodimeric mouse PLGF binds the tyrosine kinase receptor VEGF R1/Flt-1. This receptor is a 180 kDa type I transmembrane glycoprotein with high affinity for PLGF. In addition to forming homodimers, PLGF also forms heterodimers with VEGF-A isoforms, forming bioactive molecules. When heterodimerized with VEGF, PLGF will activate VEGF R2.A limited number of functions have been directly attributed to PLGF. It is known to induce monocyte activation and to provide a stimulus for monocyte migration. PLGF also upregulates VEGF production in PBMCs and induces tissue factor secretion in both monocytes and HUVECs. Furthermore, PLGF is also reported to serve as a growth and chemotactic factor for endothelial cells. Finally, PLGF is known to be expressed by trophoblasts and may protect against growth factor withdrawal-induced trophoblast apoptosis.The standard is affinity purified.

Precision

[ { "reproducibilityType": "Inter", "sample": "Serum", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "6.5" }, { "reproducibilityType": "Intra", "sample": "Serum", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "4.27" } ]

Recovery

[ { "sample": "Serum", "range": "101.3 - 107.1 %", "average": "= 103.8" }, { "sample": "Citrate plasma", "range": "100.6 - 118.8 %", "average": "= 110.7" }, { "sample": "Cell culture media", "range": "96.2 - 100.6 %", "average": "= 98.2" } ]

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab197748-1x96Tests", "assetComponentDetails": [ { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB197748-CMP12", "productcode":"" }, { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB197748-CMP09", "productcode":"" }, { "size":"1 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB197748-CMP07", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB197748-CMP10", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB197748-CMP11", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Mouse PLGF Capture Antibody", "number":"AB197748-CMP04", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 5BI", "number":"AB197748-CMP02", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Mouse PLGF Lyophilized Recombinant Protein", "number":"AB197748-CMP03", "productcode":"" }, { "size":"1 x 20 mL", "name":"Sample Diluent 75BP", "number":"AB197748-CMP06", "productcode":"" }, { "size":"1 x 20 mL", "name":"Sample Diluent 25BS", "number":"AB197748-CMP01", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB197748-CMP08", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Mouse PLGF Detector Antibody", "number":"AB197748-CMP05", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C

Product protocols

Target data

Growth factor active in angiogenesis and endothelial cell growth, stimulating their proliferation and migration. It binds to the receptor FLT1/VEGFR-1. Also promotes cell tumor growth (By similarity).
See full target information Pgf

Publications (4)

Recent publications for all applications. Explore the full list and refine your search

Journal of translational medicine 21:509 PubMed37507742

2023

Hsa_circ_0002348 regulates trophoblast proliferation and apoptosis through miR-126-3p/BAK1 axis in preeclampsia.

Applications

Unspecified application

Species

Unspecified reactive species

Jizi Zhou,Ying Zhao,Ping An,Huanqiang Zhao,Xiaotian Li,Yu Xiong

Kidney international 99:646-656 PubMed33144212

2020

Mechanisms of vascular dysfunction in the interleukin-10-deficient murine model of preeclampsia indicate nitric oxide dysregulation.

Applications

Unspecified application

Species

Unspecified reactive species

Hajrunisa Cubro,Karl A Nath,Sonja Suvakov,Oscar Garcia-Valencia,Santosh Parashuram,Wendy M White,Tracey L Weissgerber,Meryl C Nath,Natasa M Milic,Fernando Sontag,Livius V d'Uscio,Yi Zhu,James L Kirkland,Tamar Tchkonia,Mariam P Alexander,Reade A Quinton,Zvonimir S Katusic,Joseph P Grande,Vesna D Garovic

American journal of physiology. Lung cellular and molecular physiology 318:L705-L722 PubMed32083945

2020

In utero exposures to electronic-cigarette aerosols impair the signaling during mouse lung development.

Applications

Unspecified application

Species

Unspecified reactive species

Alexandra Noël,Shannon Hansen,Anusha Zaman,Zakia Perveen,Rakeysha Pinkston,Ekhtear Hossain,Rui Xiao,Arthur Penn

Frontiers in cellular and infection microbiology 9:252 PubMed31355153

2019

Thymic Microenvironment Is Modified by Malnutrition and Infection.

Applications

Unspecified application

Species

Unspecified reactive species

Monica Losada-Barragán,Adriana Umaña-Pérez,Jonathan Durães,Sergio Cuervo-Escobar,Andrés Rodríguez-Vega,Flávia L Ribeiro-Gomes,Luiz R Berbert,Fernanda Morgado,Renato Porrozzi,Daniella Arêas Mendes-da-Cruz,Priscila Aquino,Paulo C Carvalho,Wilson Savino,Myriam Sánchez-Gómez,Gabriel Padrón,Patricia Cuervo
