Mouse TNF alpha ELISA Kit, Fluorescent is a single-wash 90-min Simplestep used to quantify Mouse TNF alpha with a sensitivity of 8.5 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.
- Fluorescent Sandwich ELISA - 530/570/590 nm readout : works on any standard plate reader
Images
Publications
Filter by
- International journal of molecular sciences 21:2020Behaviour of Vascular Smooth Muscle Cells on Amine Plasma-Coated Materials with Various Chemical Structures and Morphologies.Applications:Unspecified applicationReactive species:Unspecified reactive speciesIvana Nemcakova et. al.PubMed 33322781
Key facts
- Detection method
- Fluorescent
- Sample types
- Heparin Plasma, Citrate plasma, Cell culture supernatant, Serum, EDTA Plasma
- Assay type
- Sandwich (quantitative)
- Reactive species
- Mouse
- Range
- 11.72 - 6000 pg/mL
- Assay time
- 1h 30m
- Sensitivity
- = 8.5 pg/mL
Reactivity data
| Application | Reactivity | Dilution info | Notes |
|---|---|---|---|
Application sELISA | Reactivity Reacts | Dilution info - | Notes - |
Associated Products
Select an associated product type
5 products for Alternative Product
Target data
Function
Cytokine that binds to TNFRSF1A/TNFR1 and TNFRSF1B/TNFBR. It is mainly secreted by macrophages and can induce cell death of certain tumor cell lines. It is potent pyrogen causing fever by direct action or by stimulation of interleukin-1 secretion and is implicated in the induction of cachexia, Under certain conditions it can stimulate cell proliferation and induce cell differentiation (By similarity). Induces insulin resistance in adipocytes via inhibition of insulin-induced IRS1 tyrosine phosphorylation and insulin-induced glucose uptake. Induces GKAP42 protein degradation in adipocytes which is partially responsible for TNF-induced insulin resistance (PubMed:25586176). Plays a role in angiogenesis by inducing VEGF production synergistically with IL1B and IL6 (By similarity). Promotes osteoclastogenesis and therefore mediates bone resorption (PubMed:32741026). The TNF intracellular domain (ICD) form induces IL12 production in dendritic cells.
Alternative names
Tnfa, Tnfsf2, Tnf, Tumor necrosis factor, Cachectin, TNF-alpha, Tumor necrosis factor ligand superfamily member 2, TNF-a
What's included?
Recommended products
Mouse TNF alpha ELISA Kit, Fluorescent is a single-wash 90-min Simplestep used to quantify Mouse TNF alpha with a sensitivity of 8.5 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.
- Fluorescent Sandwich ELISA - 530/570/590 nm readout : works on any standard plate reader
Key facts
- Detection method
- Fluorescent
- Sample types
- Heparin Plasma, Citrate plasma, Cell culture supernatant, Serum, EDTA Plasma
- Assay type
- Sandwich (quantitative)
- Reactive species
- Mouse
- Range
- 11.72 - 6000 pg/mL
- Assay time
- 1h 30m
- Assay Platform
- Pre-coated microplate (12 x 8 well strips)
- Sensitivity
- = 8.5 pg/mL
Precision
Intra assay
| Sample | n | mean | SD | C.V. |
|---|---|---|---|---|
Sample Media | n 8 | mean - | SD - | C.V. 6.7 |
Inter assay
| Sample | n | mean | SD | C.V. |
|---|---|---|---|---|
Sample Media | n 3 | mean - | SD - | C.V. 9.8 |
Recovery
Sample specific recovery
| Sample type | Average % | Range |
|---|---|---|
Sample type Serum | Average % = 97 | Range 85 - 115 % |
Sample type EDTA Plasma | Average % = 99 | Range 98 - 101 % |
Sample type Heparin Plasma | Average % = 92 | Range 85 - 103 % |
Sample type Citrate plasma | Average % = 87 | Range 85 - 88 % |
Sample type Cell culture media | Average % = 111 | Range 109 - 115 % |
Storage
- Shipped at conditions
- Blue Ice
- Appropriate short-term storage conditions
- +4°C
- Appropriate long-term storage conditions
- +4°C
- Storage information
- +4°C
Notes
TNF alpha in vitro CatchPoint SimpleStep ELISA (Enzyme-Linked Immunosorbent Assay) kit is designed for the quantitative measurement of TNF alpha protein in mouseserum, plasma, and cell culture supernatants.
This CatchPoint SimpleStep ELISA kit has been optimized for Molecular Devices Microplate Readers. Click here for a list of recommended Microplate Readers.
If using a Molecular Devices' plate reader supported by SoftMax® Pro software, a preconfigured protocol for these CatchPoint SimpleStep ELISA Kits is available with all the protocol and analysis settings at www.softmaxpro.org.
The CatchPoint SimpleStep ELISA employs an affinity tag labeled capture antibody and a reporter conjugated detector antibody which immunocapture the sample analyte in solution. This entire complex (capture antibody/analyte/detector antibody) is in turn immobilized via immunoaffinity of an anti-tag antibody coating the well. To perform the assay, samples or standards are added to the wells, followed by the antibody mix. After incubation, the wells are washed to remove unbound material. CatchPoint HRP Development Solution containing the Stoplight Red Substrate is added. During incubation, the substrate is catalyzed by HRP generating a fluorescent product. Signal is generated proportionally to the amount of bound analyte and the intensity is measured in a fluorescence plater reader at 530/570/590 nm Excitation/Cutoff/Emission.
Tumor necrosis factor, or TNF alpha, is a cytokine that binds to TNFRSF1A/TNFR1 and TNFRSF1B/TNFBR. Furthermore, TNF alpha is a ligand of the TNF superfamily which plays a central role in inflammation, apoptosis, proliferation, invasion, angiogenesis, metastasis, and morphogenesis. It is mainly secreted by macrophages, and can induce cell death of certain tumor cell lines. Rat and Human TNF alpha are 95% and 79% identical to Mouse TNF alpha, respectively.
TNF alpha is expressed on macrophages and endothelial, epithelial, and tumor cells as a 26 kDa transmembrane protein. TNF-alpha is cleaved by proteolytic processing into six chains: (1) TNF membrane form, (2) Intracellular domain 1 (ICD1), (3) Intracellular domain 2 (ICD2), (4) C-domain 1, (5) C-domain 2 and (6) TNF soluble form. ICD1 and ICD2 are released into the cytosol, while C-domain 1 and C-domain 2 are released into the extracellular space. Furthermore, the membrane form, but not the soluble form, is phosphorylated on serine residues. Dephosphorylation of the membrane form occurs by binding to soluble TNFRSF1A/TNFR1.
Signaling from TNF-alpha differs depending on the type of ligand initiating the signaling event (intracellular, membrane, or soluble). As an example, the membrane form of TNF-alpha appears to mediate anti-tumorigenic therapeutic responses whereas the soluble ligand is linked to inflammation and proliferation. Likewise, the TNF intracellular domain (ICD) form induces IL-12 production in dendritic cells.
Product promise
We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.
In the unlikely event of one of our products not working as expected, you are covered by our product promise.
Full details and terms and conditions can be found here:
Terms & Conditions.
4 product images

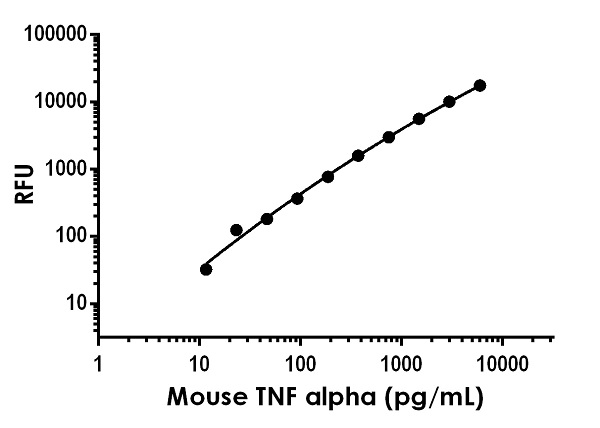

Sandwich ELISA - Mouse TNF alpha ELISA Kit, Fluorescent (ab229393)
Example of mouse TNF alpha standard curve in Sample Diluent NS.
Background-subtracted data values (mean +/- SD) are graphed.

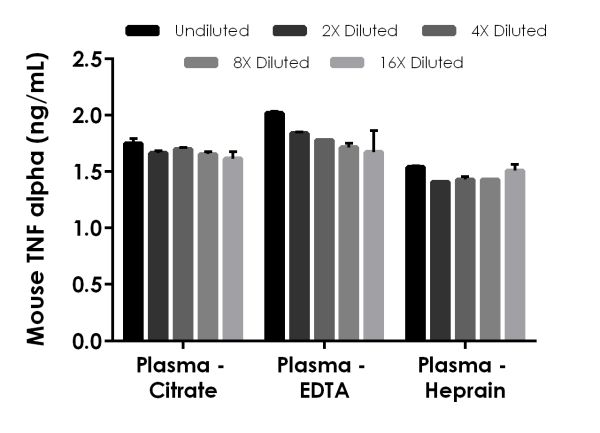

Sandwich ELISA - Mouse TNF alpha ELISA Kit, Fluorescent (ab229393)
Interpolated concentrations of spiked TNF alpha in mouse plasma samples.
The concentrations of TNF alpha were measured in duplicates, interpolated from the TNF alpha standard curves and corrected for sample dilution. Undiluted samples are as follows: plasma (citrate) 100%, plasma (EDTA) 100%, and plasma (heparin) 100%. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean TNF alpha concentration was determined to be 1.68 ng/mL in plasma (citrate), 1.81 ng/mL in plasma (EDTA) and 1.47 ng/mL in plasma (heparin).

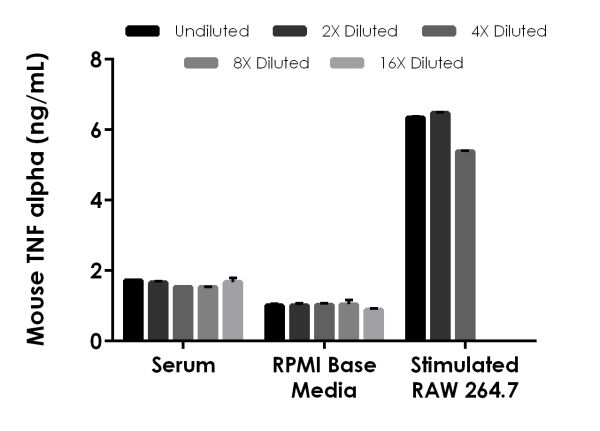

Sandwich ELISA - Mouse TNF alpha ELISA Kit, Fluorescent (ab229393)
Interpolated concentrations of spiked mouse TNF alpha in mouse serum and cell culture samples and native mouse TNF alpha in mouse RAW 264.7 LPS stimulated cell culture supernatants.
The concentrations of TNF alpha were measured in duplicates, interpolated from the TNF alpha standard curves and corrected for sample dilution. Undiluted samples are as follows: serum 100%, cell culture 100%, and RAW 264.7 LPS stimulated cell culture supernatants 50%. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean TNF alpha concentration was determined to be 1.63 ng/mL in serum, 1.00 ng/mL in cell culture and 6.07 ng/mL in RAW 264.7 LPS stimulated cell culture supernatants.

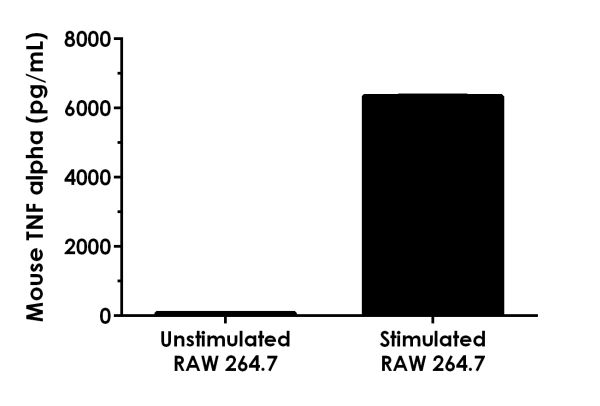

Sandwich ELISA - Mouse TNF alpha ELISA Kit, Fluorescent (ab229393)
Interpolated concentrations of native TNF alpha in mouse RAW 264.7 LPS stimulated and unstimulated cell culture supernatant samples.
The concentrations of TNF alpha were measured in duplicates, interpolated from the TNF alpha standard curves and corrected for sample dilution. Undiluted samples are as follows: RAW 264.7 LPS stimulated supernatant 50% and RAW 264.7 LPS unstimulated supernatant 50%. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean TNF alpha concentration was determined to be 6346.4 pg/mL in RAW 264.7 LPS stimulated supernatant and 83.7 pg/mL in RAW 264.7 LPS unstimulated supernatant. RAW 264.7 cells were cultured in HGDMEM with 100 μg/mL Kanamycin and 2 mM L-glutamine. Cells were starved for 24 hours and treated in the presence and absence of 5 μg/mL of LPS.
