AB243674

Mouse Transferrin Receptor ELISA Kit

Be the first to review this product! Submit a review

|

(0 Publication)

Mouse Transferrin Receptor ELISA Kit is a single-wash 90-min Simplestep used to quantify Mouse Transferrin Receptor with a sensitivity of 2.03 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Design your own immunoassay: we also offer the conjugation-ready antibody pair

View Alternative Names

CD71, Trfr, Tfrc, Transferrin receptor protein 1, TR, TfR, TfR1

3 Images
ELISA - Mouse Transferrin Receptor ELISA Kit (AB243674)
  • ELISA

Supplier Data

ELISA - Mouse Transferrin Receptor ELISA Kit (AB243674)
Sandwich ELISA - Mouse Transferrin Receptor ELISA Kit (AB243674)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse Transferrin Receptor ELISA Kit (AB243674)

Interpolated concentrations of native Transferrin Receptor in mouse serum and plasma (citrate) samples.

The concentrations of Transferrin Receptor were measured in duplicates, interpolated from the Transferrin Receptor standard curves and corrected for sample dilution. Undiluted samples are as follows : serum 3.13% and plasma (citrate) 3.13%. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean Transferrin Receptor concentration was determined to be 155.0 ng/mL in neat serum, 198.7 ng/mL in neat plasma (citrate).

Sandwich ELISA - Mouse Transferrin Receptor ELISA Kit (AB243674)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse Transferrin Receptor ELISA Kit (AB243674)

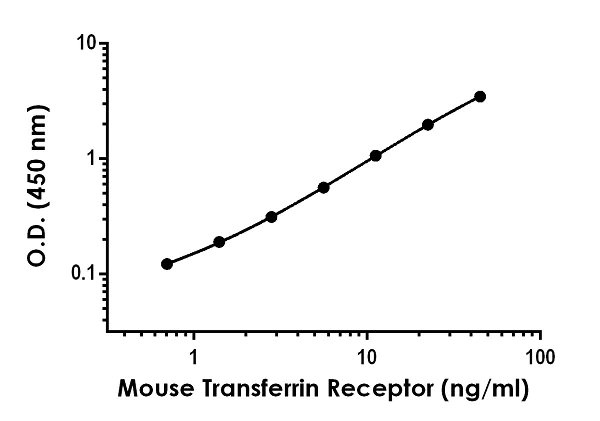

Example of mouse Transferrin Receptor standard curve in Sample Diluent NS.

The Transferrin Receptor standard curve was prepared as described in Section 10. Raw data values are shown in the table. Background-subtracted data values (mean +/- SD) are graphed.

Key facts

Detection method

Colorimetric

Sample types

Citrate plasma, Serum

Reacts with

Mouse

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 2.03 pg/mL

Range

0.7 - 45 ng/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style
left-column

Complementary Products

Assay Kits

AB157713

Mouse Ferritin ELISA Kit (FTL)

Sandwich ELISA - Mouse Ferritin ELISA Kit (FTL) (AB157713)

  • 5
  • 2
Assay Kits

AB157724

Mouse Transferrin ELISA Kit

Sandwich ELISA - Mouse Transferrin ELISA Kit (AB157724)

  • 4
  • 1
Primary Antibodies

AB214039

Anti-Transferrin Receptor antibody [EPR20584]

RabMAb|Recombinant|20ul selling size

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Transferrin Receptor antibody [EPR20584] (AB214039)

  • 5
  • 1
Assay Kits

AB285280

Mouse Hepcidin ELISA Kit

Sandwich ELISA - Mouse Hepcidin ELISA Kit (AB285280)

  • 0
  • 0
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

Product details

Mouse Transferrin Receptor ELISA Kit ab243674 is a rapid single-wash 90-min Sandwich ELISA to measure Mouse Transferrin Receptor in citrate plasma, serum. This SimpleStep sensitivity is 2.03 pg/mL.

How the assay works

Mouse Transferrin Receptor SimpleStep ELISA®employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details.

Assay Specificity

Our SimpleStep ELISA® kits use recombinant monoclonal antibodies rigorously validated to ensure the highest level of consistency and reproducibility, improved sensitivity and specificity and ease of scalability and security of supply.
Please refer to our protocol booklet for more details.

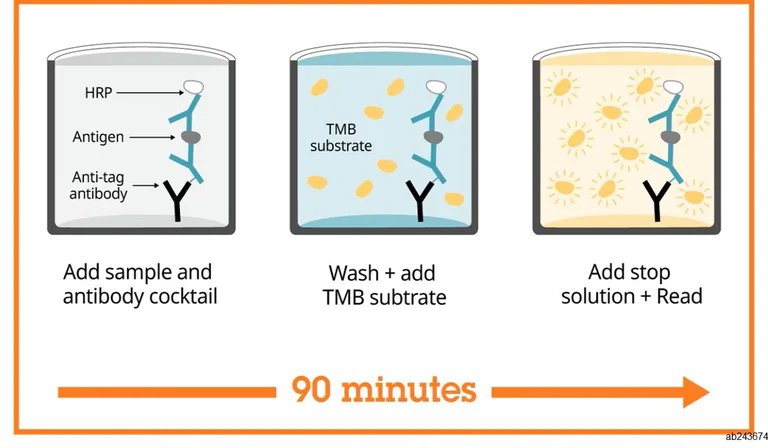

Mouse Transferrin Receptor ELISA Kit ab243674 protocol summary

1. Mix: add samples/standards to the wells together with the capture and detector antibody cocktail. Incubate 1 hr at room temperature
2. Wash
3. Add TMB development solution - incubate for 10 min
4. Add Stop solution
5. Read the results on a plate reader at 450 nm

Design your own immunoassay

We offer the antibody pair used in this kit in a BSA and Azide-free format, ready for conjugation:

- Anti-Transferrin Receptor antibody [EPR20671-220] - BSA and Azide free (Capture) ab259510
- Anti-Transferrin Receptor antibody [EPR20671-266] - BSA and Azide free (Detector) ab259510
style
left-column

Precision

[ { "reproducibilityType": "Intra", "sample": "Plasma", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "6.6" } ]
style
left-column

Recovery

[ { "sample": "Serum", "range": "103 - 117 %", "average": "= 109" }, { "sample": "Citrate plasma", "range": "100 - 109 %", "average": "= 106" } ]
style
left-column

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab243674-1x96Tests", "assetComponentDetails": [ { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB243674-CMP07", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB243674-CMP08", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB243674-CMP10", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Mouse Transferrin Receptor Detector Antibody", "number":"AB243674-CMP04", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB243674-CMP06", "productcode":"" }, { "size":"1 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB243674-CMP05", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 5BR", "number":"AB243674-CMP01", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB243674-CMP09", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Mouse Transferrin Receptor Capture Antibody", "number":"AB243674-CMP03", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Mouse Transferrin Receptor Lyophilized Recombinant Protein", "number":"AB243674-CMP02", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

The transferrin receptor commonly referred to as TfR or CD71 is an integral membrane protein that facilitates the uptake of transferrin-bound iron into cells. This receptor has a molecular weight of around 95 kDa and often exists as a homodimer on the cell surface. It is widely expressed in many tissues especially in erythroid precursors and rapidly dividing cells. Alternate names for this receptor include TfR1 and TfR2 though they have distinct roles and distributions. Other transmembrane proteins like OX26 and MEM have been studied in relation to the transferrin receptor due to their involvement in drug delivery.
Biological function summary

TfR plays a critical role in iron homeostasis by mediating the internalization of transferrin and release of iron in the endosomes. It operates as part of the transferrin-transferrin receptor complex facilitating iron assimilation necessary for DNA synthesis and cell growth. Iron release involves acidifying endosomes allowing transferrin to bind with specific cellular receptors including alternate forms like beta 2 transferrin. The process subsequently contributes to erythropoiesis and various metabolic processes by regulating essential cellular iron levels.

Pathways

The transferrin receptor is central to iron metabolism and the receptor-mediated endocytosis pathway. It tightly interacts with transferrin and intracellular pathways process the iron released from transferrin within endosomes. The receptor's role in this pathway involves a dynamic with other proteins such as HFE and hepcidin. These interactions help control systemic iron levels linking closely to the maintenance of erythroid cell health and proliferation.

Disruptions in transferrin receptor function correlate with anemia and neurodegenerative disorders. In anemia related to iron deficiency impaired TfR activity reduces iron uptake culminating in insufficient erythropoiesis. Altered receptor expression or function also connects to neurological diseases like Alzheimer's where iron dysregulation is a concern. Here the transferrin receptor interacts with proteins like Amyloid precursor protein contributing to disease pathology through improper metal homeostasis.
style
left-column

Product protocols

style
left-column

Target data

Cellular uptake of iron occurs via receptor-mediated endocytosis of ligand-occupied transferrin receptor into specialized endosomes (By similarity). Endosomal acidification leads to iron release. The apotransferrin-receptor complex is then recycled to the cell surface with a return to neutral pH and the concomitant loss of affinity of apotransferrin for its receptor. Transferrin receptor is necessary for development of erythrocytes and the nervous system (By similarity). Upon stimulation, positively regulates T and B cell proliferation through iron uptake (PubMed : 26642240). Acts as a lipid sensor that regulates mitochondrial fusion by regulating activation of the JNK pathway (By similarity). When dietary levels of stearate (C18 : 0) are low, promotes activation of the JNK pathway, resulting in HUWE1-mediated ubiquitination and subsequent degradation of the mitofusin MFN2 and inhibition of mitochondrial fusion (By similarity). When dietary levels of stearate (C18 : 0) are high, TFRC stearoylation inhibits activation of the JNK pathway and thus degradation of the mitofusin MFN2 (By similarity). Mediates uptake of NICOL1 into fibroblasts where it may regulate extracellular matrix production (PubMed : 38625739).
See full target information Tfrc
style
left-column
style
left-column
websiteProtocolBooklet
en
style
right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
