AB309115

Mouse TREM2 ELISA Kit - Extracellular

Be the first to review this product! Submit a review

|

(0 Publication)

Mouse TREM2 ELISA Kit - Extracellular is a single-wash 90-min Simplestep used to quantify Mouse TREM2 with a sensitivity of 3.2 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Different formats for different needs: 384-well plate for higher throughput
- Validated on a number of sample types including cerebrospinal fluid (CSF)
- Design your own immunoassay: we also offer the conjugation-ready antibody pair

View Alternative Names

Trem2a, Trem2b, Trem2c, Trem2, Triggering receptor expressed on myeloid cells 2, TREM-2, Triggering receptor expressed on monocytes 2

6 Images
ELISA - Mouse TREM2 ELISA Kit - Extracellular (AB309115)
  • ELISA

Supplier Data

ELISA - Mouse TREM2 ELISA Kit - Extracellular (AB309115)
Sandwich ELISA - Mouse TREM2 ELISA Kit - Extracellular (AB309115)
  • sELISA

Lab

Sandwich ELISA - Mouse TREM2 ELISA Kit - Extracellular (AB309115)

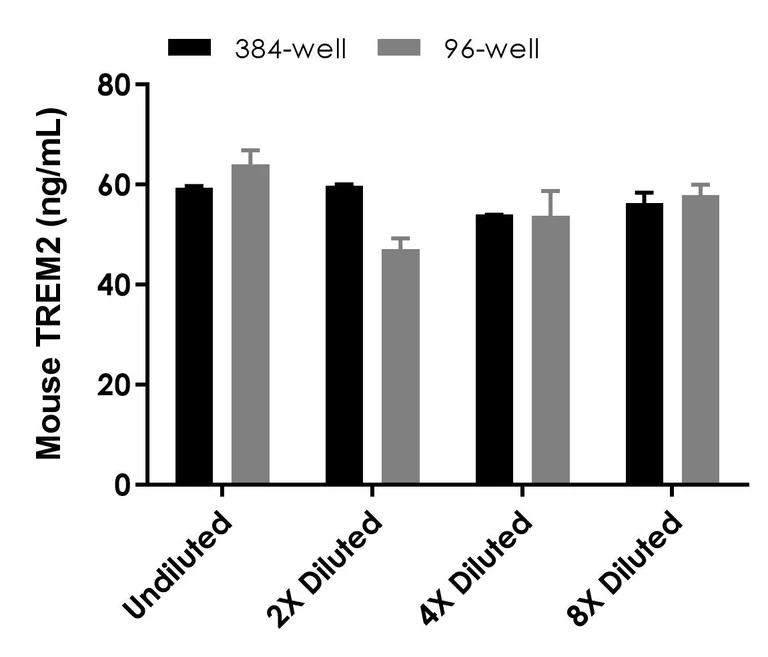

Interpolated concentrations of mouse TREM2 in J774A.1 cell culture supernatant in 96-well vs. 384-well plates

Interpolated concentration of native mouse TREM2 was measured in duplicate at different sample concentrations in 96-well vs. 384-well plates. Undiluted samples are 1% J774A.1 cell culture supernatant. The interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). Sample dilutions are made in Sample Diluent NS.

Sandwich ELISA - Mouse TREM2 ELISA Kit - Extracellular (AB309115)
  • sELISA

Lab

Sandwich ELISA - Mouse TREM2 ELISA Kit - Extracellular (AB309115)

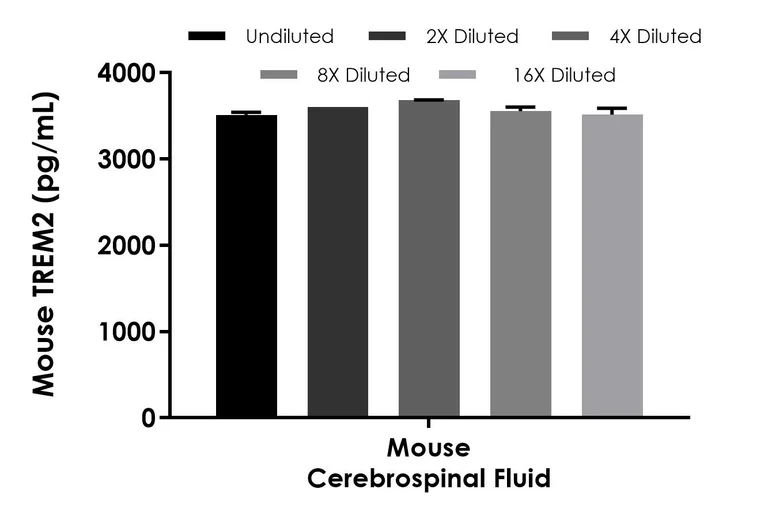

Interpolated concentrations of mouse TREM2 in mouse cerebrospinal fluid

Interpolated concentration of native TREM2 was measured in duplicate at different sample concentrations. Undiluted samples are 20% mouse cerebrospinal fluid. The interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). Sample dilutions are made in Sample Diluent NS.

Sandwich ELISA - Mouse TREM2 ELISA Kit - Extracellular (AB309115)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse TREM2 ELISA Kit - Extracellular (AB309115)

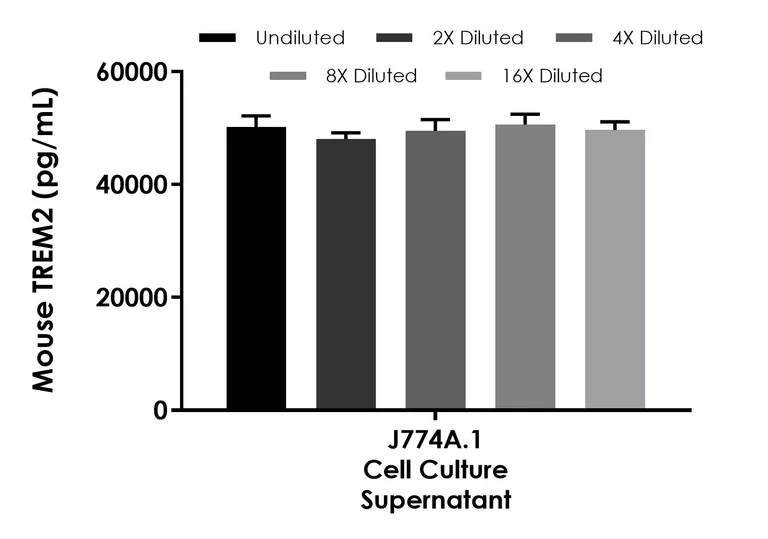

Interpolated concentrations of mouse TREM2 in J774A.1 cell culture supernatant

Interpolated concentration of native TREM2 was measured in duplicate at different sample concentrations. Undiluted samples are 1% J774A.1 cell culture supernatant.  The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in Sample Diluent NS.

Sandwich ELISA - Mouse TREM2 ELISA Kit - Extracellular (AB309115)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse TREM2 ELISA Kit - Extracellular (AB309115)

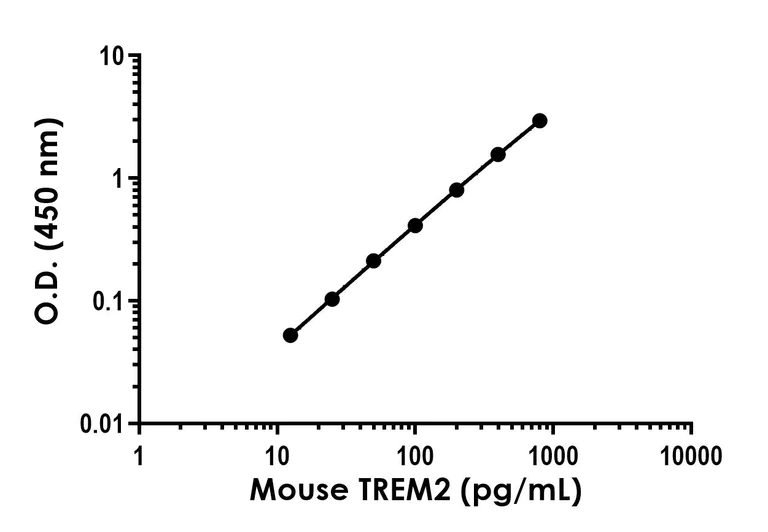

Example of mouse TREM2 standard curve in Sample Diluent NS. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Mouse TREM2 ELISA Kit - Extracellular (AB309115)
  • sELISA

Lab

Sandwich ELISA - Mouse TREM2 ELISA Kit - Extracellular (AB309115)

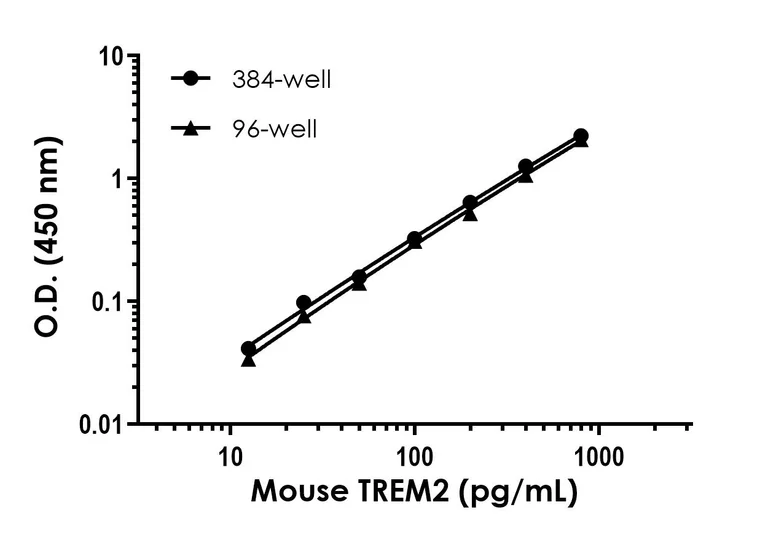

Example of mouse TREM2 standard curve in Sample Diluent NS in 96-well and 384-well plate. Background-subtracted data values (mean +/- SD) are graphed.

Key facts

Detection method

Colorimetric

Sample types

Cerebral Spinal Fluid, Cell culture supernatant

Reacts with

Mouse

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 3.2 pg/mL

Range

12.5 - 800 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

Product details

Mouse TREM2 ELISA Kit - Extracellular ab309115 is a rapid single-wash 90-min Sandwich ELISA to measure Mouse TREM2 - Extracellularin cell culture supernatant, CSF. This SimpleStep sensitivity is 3.2 pg/mL.

How the assay works

Mouse TREM2 - ExtracellularSimpleStep ELISA®employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details.

Assay Specificity

Our SimpleStep ELISA® kits use recombinant monoclonal antibodies rigorously validated to ensure the highest level of consistency and reproducibility, improved sensitivity and specificity and ease of scalability and security of supply.
Please refer to our protocol booklet for more details.

Mouse TREM2 ELISA Kit - Extracellular ab309115 protocol summary

1. Mix: add samples/standards to the wells together with the capture and detector antibody cocktail. Incubate 1 hr at room temperature
2. Wash
3. Add TMB development solution - incubate for 10 min
4. Add Stop solution
5. Read the results on a plate reader at 450 nm

Save your precious samples

Our 384-well Mouse TREM2 ELISA Kit - Extracellular only requires a maximum of 12.5µL sample

Precision

[ { "reproducibilityType": "Intra", "sample": "Supernatant", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "1.4" }, { "reproducibilityType": "Inter", "sample": "Supernatant", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "2.1" } ]

Recovery

[ { "sample": "Cell culture supernatant", "range": "91 - 106 %", "average": "= 99" }, { "sample": "Cerebral Spinal Fluid", "range": "96 - 106 %", "average": "= 101" } ]

What's included?

{ "values": { "1x384Tests": { "sellingSize": "1 x 384 Tests", "publicAssetCode":"ab309115-1x384Tests", "assetComponentDetails": [ { "size":"2 x 12 mL", "name":"Stop Solution", "number":"AB309115-CMP08" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB309115-CMP05" }, { "size":"2 x 12 mL", "name":"TMB Development Solution", "number":"AB309115-CMP07" }, { "size":"1 x 600 µL", "name":"10X Mouse TREM2 (Extracellular) Detector Antibody", "number":"AB309115-CMP02" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 4BR", "number":"AB309115-CMP04" }, { "size":"1 x 600 µL", "name":"10X Mouse TREM2 (Extracellular) Capture Antibody", "number":"AB309115-CMP01" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB309115-CMP10" }, { "size":"1 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB309115-CMP06" }, { "size":"2 x 1 Vial", "name":"Mouse TREM2 (Extracellular) Lyophilized Recombinant Protein", "number":"AB309115-CMP03" }, { "size":"1 x 1 Unit", "name":"384 well CaptSure™ microplates", "number":"AB309115-CMP11" } ] }, "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab309115-1x96Tests", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB309115-CMP09", "productcode":"" }, { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB309115-CMP08", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB309115-CMP05", "productcode":"" }, { "size":"1 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB309115-CMP06", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB309115-CMP07", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 4BR", "number":"AB309115-CMP04", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Mouse TREM2 (Extracellular) Lyophilized Recombinant Protein", "number":"AB309115-CMP03", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Mouse TREM2 (Extracellular) Capture Antibody", "number":"AB309115-CMP01", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB309115-CMP10", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Mouse TREM2 (Extracellular) Detector Antibody", "number":"AB309115-CMP02", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C

Product protocols

Target data

Forms a receptor signaling complex with TYROBP which mediates signaling and cell activation following ligand binding (PubMed : 11241283). Acts as a receptor for amyloid-beta protein 42, a cleavage product of the amyloid-beta precursor protein APP, and mediates its uptake and degradation by microglia (PubMed : 27477018, PubMed : 29518356). Binding to amyloid-beta 42 mediates microglial activation, proliferation, migration, apoptosis and expression of pro-inflammatory cytokines, such as IL6R and CCL3, and the anti-inflammatory cytokine ARG1 (PubMed : 27477018, PubMed : 29518356). Acts as a receptor for lipoprotein particles such as LDL, VLDL, and HDL and for apolipoproteins such as APOA1, APOA2, APOB, APOE, APOE2, APOE3, APOE4, and CLU and enhances their uptake in microglia (PubMed : 27477018). Binds phospholipids (preferably anionic lipids) such as phosphatidylserine, phosphatidylethanolamine, phosphatidylglycerol and sphingomyelin (By similarity). Regulates microglial proliferation by acting as an upstream regulator of the Wnt/beta-catenin signaling cascade (PubMed : 28077724). Required for microglial phagocytosis of apoptotic neurons (PubMed : 24990881). Also required for microglial activation and phagocytosis of myelin debris after neuronal injury and of neuronal synapses during synapse elimination in the developing brain (PubMed : 15728241, PubMed : 25631124, PubMed : 28592261, PubMed : 29752066). Regulates microglial chemotaxis and process outgrowth, and also the microglial response to oxidative stress and lipopolysaccharide (PubMed : 28483841, PubMed : 29663649, PubMed : 29859094, PubMed : 30232263). It suppresses PI3K and NF-kappa-B signaling in response to lipopolysaccharide; thus promoting phagocytosis, suppressing pro-inflammatory cytokine and nitric oxide production, inhibiting apoptosis and increasing expression of IL10 and TGFB (PubMed : 29663649). During oxidative stress, it promotes anti-apoptotic NF-kappa-B signaling and ERK signaling (PubMed : 28592261). Plays a role in microglial MTOR activation and metabolism (PubMed : 28802038). Regulates age-related changes in microglial numbers (PubMed : 25631124, PubMed : 29752066, PubMed : 30548312). Triggers activation of the immune responses in macrophages and dendritic cells. Mediates cytokine-induced formation of multinucleated giant cells which are formed by the fusion of macrophages (PubMed : 18957693). In dendritic cells, receptor of SEMA6D with PLEXNA1 as coreceptor and mediates up-regulation of chemokine receptor CCR7 and dendritic cell maturation and survival (PubMed : 16715077). Involved in the positive regulation of osteoclast differentiation (PubMed : 16418779).
See full target information Trem2
