AB314369

Mouse TREM2 ELISA Kit - Intracellular

Be the first to review this product! Submit a review

|

(0 Publication)

Mouse TREM2 ELISA Kit - Intracellular is a single-wash 90-min Simplestep used to quantify Mouse TREM2 with a sensitivity of 4.4 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Different formats for different needs: 384-well plate for higher throughput

View Alternative Names

Trem2a, Trem2b, Trem2c, Trem2, Triggering receptor expressed on myeloid cells 2, TREM-2, Triggering receptor expressed on monocytes 2

5 Images
Sandwich ELISA - Mouse TREM2 ELISA Kit - Intracellular (AB314369)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse TREM2 ELISA Kit - Intracellular (AB314369)

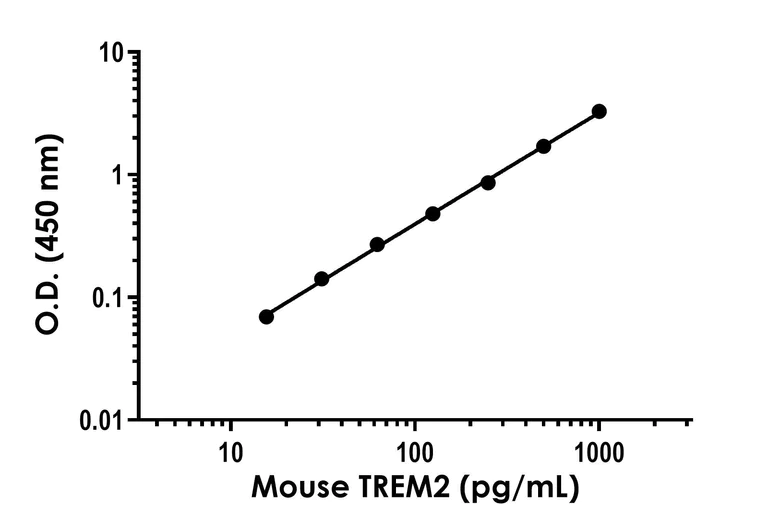

Example of mouse TREM2 standard curve in 1X Cell Extraction Buffer PTR. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Mouse TREM2 ELISA Kit - Intracellular (AB314369)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse TREM2 ELISA Kit - Intracellular (AB314369)

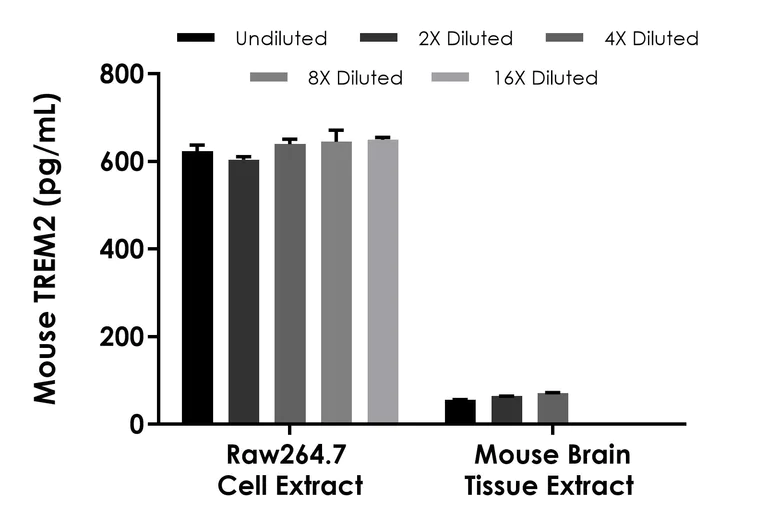

Interpolated concentration of native TREM2 was measured in duplicate at different sample concentrations. Undiluted samples are 100 µg/mL Raw264.7 cell extract and 500 µg/mL mouse brain extract. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in 1X Cell Extraction PTR.

Sandwich ELISA - Mouse TREM2 ELISA Kit - Intracellular (AB314369)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse TREM2 ELISA Kit - Intracellular (AB314369)

Representative image of Mouse TREM2 ELISA Kit - Intracellular (ab314369)

Components shown from left to right :

- 10X Wash Buffer PT (ab206977)

- 10X Mouse TREM2 - Intracellular Capture Antibody

- 10X Mouse TREM2 - Intracellular Detector Antibody

- Mouse TREM2 - Intracellular Lyophilised Purified Protein (2 vials)

- 50X Cell Extraction Enhancer Solution (ab193971)

- Sample diluent NS

- TMB solution

- Stop Solution

- 5X Cell Extraction Buffer PTR (ab193970)

- Antibody diluent 5BI

SimpleStep Pre-Coated 96-Well Microplate (ab206978) - shown behind bottles / vials.

Plate Seals - shown underneath bottles / vials.

Note : The vial labels shown in this image use generic names for illustrative purposes only and may not exactly match the specific component names included in the ELISA kit.

Note : Colors of solutions in image may not precisely match the shade of colors in the actual kit

Sandwich ELISA - Mouse TREM2 ELISA Kit - Intracellular (AB314369)
  • sELISA

Lab

Sandwich ELISA - Mouse TREM2 ELISA Kit - Intracellular (AB314369)

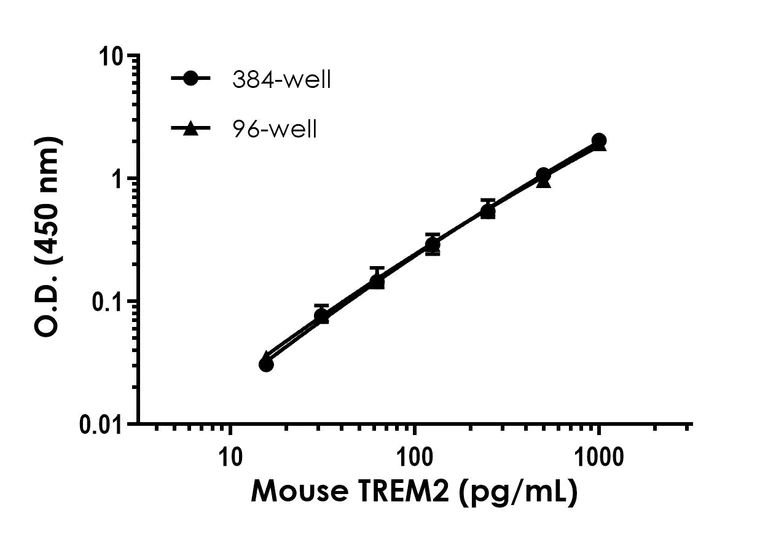

Example of mouse TREM2 standard curve in 96-well vs 384-well plate. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Mouse TREM2 ELISA Kit - Intracellular (AB314369)
  • sELISA

Lab

Sandwich ELISA - Mouse TREM2 ELISA Kit - Intracellular (AB314369)

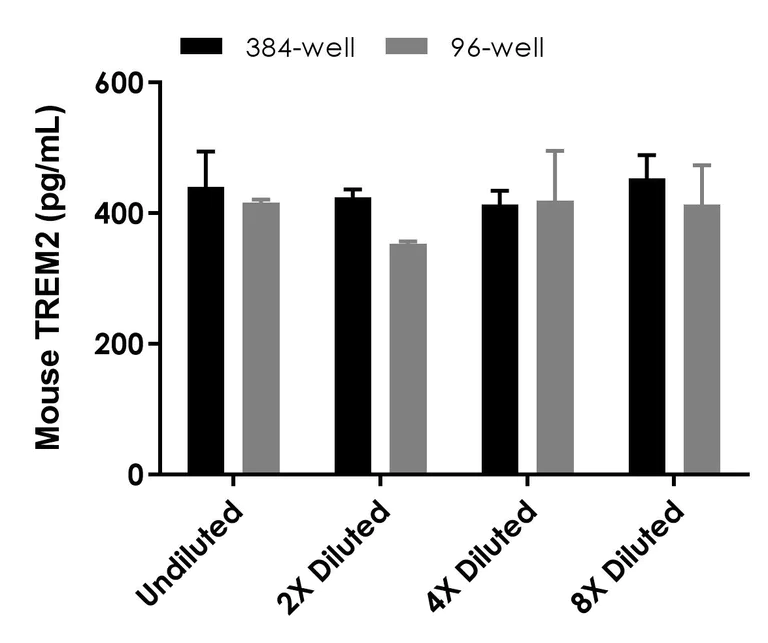

Interpolated concentration of native mouse TREM2 was measured in duplicate at different sample concentrations in 96-well vs. 384-well plates. Undiluted samples are 100 µg/mL Raw264.7 cell extract. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in 1X Cell Extraction Buffer PTR.

Key facts

Detection method

Colorimetric

Sample types

Cell Lysate, Tissue Extracts

Reacts with

Mouse

Assay type

Sandwich (quantitative)

Sensitivity

= 4.4 pg/mL

Range

15.625 - 1000 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

Product details

Mouse TREM2 SimpleStep ELISA® kit is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of TREM2 protein in Cell Lysate, Tissue extracts with 4.4 pg/ml sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

-Single-wash protocol reduces assay time to 90 minutes or less
        -High sensitivity, specificity and reproducibility from superior antibodies
        -Fully validated in biological samples
        -96-wells plate breakable into 12 x 8 wells strips

A 384-well SimpleStep ELISA® microplate (ab203359) is available to use as an alternative to the 96-well microplate provided with SimpleStep ELISA® kits.

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

Precision

[ { "reproducibilityType": "Intra", "sample": "Extract", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "2.3" }, { "reproducibilityType": "Inter", "sample": "Extract", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "1.48" } ]

Recovery

[ { "sample": "Cell Lysate", "range": "99 - 111 %", "average": "= 104" }, { "sample": "Tissue Extracts", "range": "96 - 110 %", "average": "= 105" } ]

What's included?

{ "values": { "1x384Tests": { "sellingSize": "1 x 384 Tests", "publicAssetCode":"ab314369-1x384Tests", "assetComponentDetails": [ { "size":"2 x 12 mL", "name":"Stop Solution", "number":"AB314369-CMP10" }, { "size":"6 x 1 mL", "name":"50X Cell Extraction Enhancer Solution (ab193971)", "number":"AB314369-CMP06" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB314369-CMP07" }, { "size":"2 x 12 mL", "name":"TMB Development Solution", "number":"AB314369-CMP09" }, { "size":"1 x 1 Unit", "name":"384 well CaptSure™ microplates", "number":"AB314369-CMP13" }, { "size":"1 x 600 µL", "name":"10X Mouse TREM2 Detector Antibody", "number":"AB314369-CMP02" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB314369-CMP12" }, { "size":"1 x 50 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB314369-CMP05" }, { "size":"2 x 1 Vial", "name":"Mouse TREM2 Lyophilized Recombinant Protein", "number":"AB314369-CMP03" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 5BI", "number":"AB314369-CMP04" }, { "size":"1 x 600 µL", "name":"10X Mouse TREM2 Capture Antibody", "number":"AB314369-CMP01" } ] }, "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab314369-1x96Tests", "assetComponentDetails": [ { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB314369-CMP10", "productcode":"" }, { "size":"1 x 1 mL", "name":"50X Cell Extraction Enhancer Solution (ab193971)", "number":"AB314369-CMP06", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB314369-CMP07", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB314369-CMP09", "productcode":"" }, { "size":"1 x 12 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB314369-CMP08", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 5BI", "number":"AB314369-CMP04", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Mouse TREM2 Capture Antibody", "number":"AB314369-CMP01", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Mouse TREM2 Lyophilized Recombinant Protein", "number":"AB314369-CMP03", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Mouse TREM2 Detector Antibody", "number":"AB314369-CMP02", "productcode":"" }, { "size":"1 x 10 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB314369-CMP05", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB314369-CMP11", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB314369-CMP12", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C

Product protocols

Target data

Forms a receptor signaling complex with TYROBP which mediates signaling and cell activation following ligand binding (PubMed : 11241283). Acts as a receptor for amyloid-beta protein 42, a cleavage product of the amyloid-beta precursor protein APP, and mediates its uptake and degradation by microglia (PubMed : 27477018, PubMed : 29518356). Binding to amyloid-beta 42 mediates microglial activation, proliferation, migration, apoptosis and expression of pro-inflammatory cytokines, such as IL6R and CCL3, and the anti-inflammatory cytokine ARG1 (PubMed : 27477018, PubMed : 29518356). Acts as a receptor for lipoprotein particles such as LDL, VLDL, and HDL and for apolipoproteins such as APOA1, APOA2, APOB, APOE, APOE2, APOE3, APOE4, and CLU and enhances their uptake in microglia (PubMed : 27477018). Binds phospholipids (preferably anionic lipids) such as phosphatidylserine, phosphatidylethanolamine, phosphatidylglycerol and sphingomyelin (By similarity). Regulates microglial proliferation by acting as an upstream regulator of the Wnt/beta-catenin signaling cascade (PubMed : 28077724). Required for microglial phagocytosis of apoptotic neurons (PubMed : 24990881). Also required for microglial activation and phagocytosis of myelin debris after neuronal injury and of neuronal synapses during synapse elimination in the developing brain (PubMed : 15728241, PubMed : 25631124, PubMed : 28592261, PubMed : 29752066). Regulates microglial chemotaxis and process outgrowth, and also the microglial response to oxidative stress and lipopolysaccharide (PubMed : 28483841, PubMed : 29663649, PubMed : 29859094, PubMed : 30232263). It suppresses PI3K and NF-kappa-B signaling in response to lipopolysaccharide; thus promoting phagocytosis, suppressing pro-inflammatory cytokine and nitric oxide production, inhibiting apoptosis and increasing expression of IL10 and TGFB (PubMed : 29663649). During oxidative stress, it promotes anti-apoptotic NF-kappa-B signaling and ERK signaling (PubMed : 28592261). Plays a role in microglial MTOR activation and metabolism (PubMed : 28802038). Regulates age-related changes in microglial numbers (PubMed : 25631124, PubMed : 29752066, PubMed : 30548312). Triggers activation of the immune responses in macrophages and dendritic cells. Mediates cytokine-induced formation of multinucleated giant cells which are formed by the fusion of macrophages (PubMed : 18957693). In dendritic cells, receptor of SEMA6D with PLEXNA1 as coreceptor and mediates up-regulation of chemokine receptor CCR7 and dendritic cell maturation and survival (PubMed : 16715077). Involved in the positive regulation of osteoclast differentiation (PubMed : 16418779).
See full target information Trem2
