AB245725

Mouse VEGFR2 ELISA Kit

Be the first to review this product! Submit a review

|

(0 Publication)

Mouse VEGFR2 ELISA Kit is a single-wash 90-min Simplestep used to quantify Mouse VEGFR2 with a sensitivity of 28.8 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Design your own immunoassay: we also offer the conjugation-ready antibody pair

View Alternative Names

CD309, Flk-1, Flk1, Kdr, Vascular endothelial growth factor receptor 2, VEGFR-2, Fetal liver kinase 1, Kinase NYK, Protein-tyrosine kinase receptor flk-1, FLK-1

4 Images
Sandwich ELISA - Mouse VEGFR2 ELISA Kit (AB245725)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse VEGFR2 ELISA Kit (AB245725)

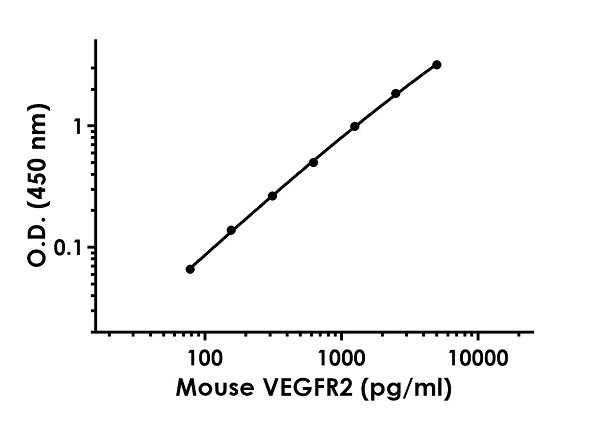

Example of mouse VEGF Receptor 2 standard curve in Sample Diluent 50BS.

The VEGF Receptor 2 standard curve was prepared as described in Section 10. Raw data values are shown in the table. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Mouse VEGFR2 ELISA Kit (AB245725)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse VEGFR2 ELISA Kit (AB245725)

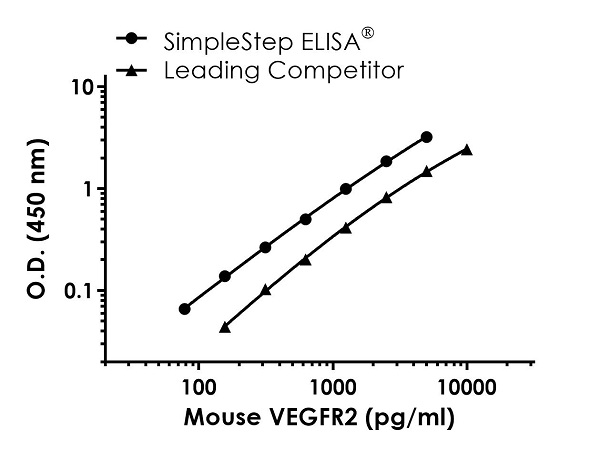

Mouse VEGF Receptor 2 Standard Curve Comparison.

Standard Curve comparison between mouse VEGF Receptor 2 SimpleStep ELISA kit and traditional ELISA kit from leading competitor. SimpleStep ELISA kit shows increased sensitivity.

Sandwich ELISA - Mouse VEGFR2 ELISA Kit (AB245725)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse VEGFR2 ELISA Kit (AB245725)

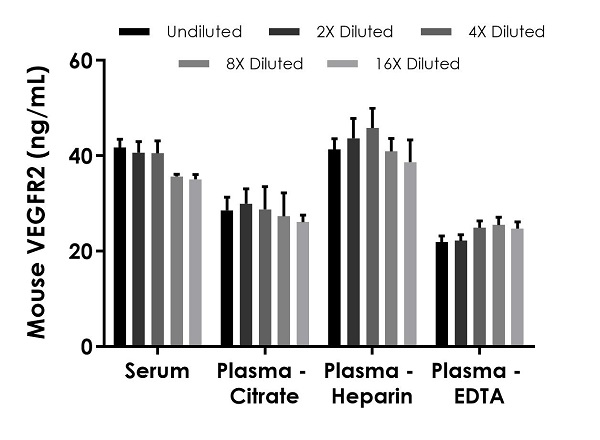

Interpolated concentrations of native VEGF Receptor 2 in mouse serum and plasma samples.

The concentrations of VEGF Receptor 2 were measured in duplicates, interpolated from the VEGF Receptor 2 standard curves and corrected for sample dilution. Undiluted samples are as follows : serum 10%, plasma (citrate) 10%, plasma (heparin) 10%, and plasma (EDTA) 10%. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean VEGF Receptor 2 concentration was determined to be 38.9 ng/mL in serum, 27.9 ng/mL in plasma (citrate), 42.1 ng/mL in plasma (heparin), and 24.1 ng/mL in plasma (EDTA).

Sandwich ELISA - Mouse VEGFR2 ELISA Kit (AB245725)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse VEGFR2 ELISA Kit (AB245725)

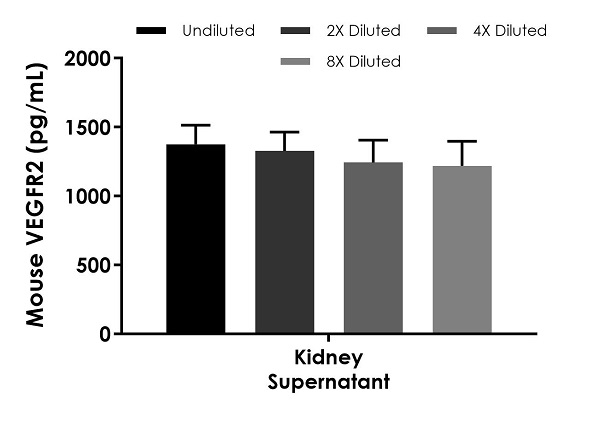

Interpolated concentrations of native VEGF Receptor 2 in mouse kidney tissue culture supernatant samples.

The concentrations of VEGF Receptor 2 were measured in duplicates, interpolated from the VEGF Receptor 2 standard curves and corrected for sample dilution. Undiluted samples are as follows : kidney supernatant 50%. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean VEGF Receptor 2 concentration was determined to be 1,291.7 pg/mL in mouse kidney supernatant.

Key facts

Detection method

Colorimetric

Sample types

Heparin Plasma, Citrate plasma, Cell culture supernatant, Serum, EDTA Plasma

Reacts with

Mouse

Assay type

Sandwich (quantitative)

Sensitivity

= 28.8 pg/mL

Range

78.13 - 5000 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

Product details

Mouse VEGFR2 ELISA Kit (ab245725) is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of VEGFR2 protein in cell culture supernatant, cit plasma, edta plasma, hep plasma, and serum. It uses our proprietary SimpleStep ELISA® technology. Quantitate Mouse VEGFR2 with 28.8 pg/ml sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

- Single-wash protocol reduces assay time to 90 minutes or less
- High sensitivity, specificity and reproducibility from superior antibodies
- Fully validated in biological samples
- 96-wells plate breakable into 12 x 8 wells strips

A 384-well SimpleStep ELISA® microplate (ab203359) is available to use as an alternative to the 96-well microplate provided with SimpleStep ELISA® kits.

style
left-column

Precision

[ { "reproducibilityType": "Inter", "sample": "Serum", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "6.9" }, { "reproducibilityType": "Intra", "sample": "Serum", "replicates": 5, "mean": null, "standardDeviation": null, "coefficientOfVariability": "6.4" } ]
style
left-column

Recovery

[ { "sample": "Cell culture supernatant", "range": "113 - 124 %", "average": "= 120" }, { "sample": "Serum", "range": "102 - 110 %", "average": "= 106" }, { "sample": "EDTA Plasma", "range": "99 - 102 %", "average": "= 101" }, { "sample": "Heparin Plasma", "range": "90 - 107 %", "average": "= 101" }, { "sample": "Citrate plasma", "range": "106 - 117 %", "average": "= 112" } ]
style
left-column

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab245725-1x96Tests", "assetComponentDetails": [ { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB245725-CMP08", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent CPR2", "number":"AB245725-CMP13", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB245725-CMP11", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Mouse VEGFR2 Capture Antibody", "number":"AB245725-CMP04", "productcode":"" }, { "size":"1 x 12 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB245725-CMP12", "productcode":"" }, { "size":"1 x 20 mL", "name":"Sample Diluent 50BS", "number":"AB245725-CMP03", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Mouse VEGFR2 Lyophilized Recombinant Protein", "number":"AB245725-CMP06", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB245725-CMP10", "productcode":"" }, { "size":"1 x 1 Vial", "name":"Mouse VEGFR2 Detector Antibody (Lyophilized)", "number":"AB245725-CMP05", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB245725-CMP09", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB245725-CMP07", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

VEGF Receptor 2 also known as KDR or Flk-1 is a receptor tyrosine kinase important for mediating the effects of vascular endothelial growth factor (VEGF). This protein has a mass of approximately 150 kDa. It mostly expresses in vascular endothelial cells playing a primary role in the formation of blood vessels. The receptor can also be found in various non-endothelial tissues though in smaller amounts indicating its broad functional roles outside of the vascular system.
Biological function summary

VEGF Receptor 2 is important for angiogenesis and vascular permeability. It is part of the VEGF receptor family which also includes VEGF Receptors 1 and 3 forming a complex interaction network. Upon binding with VEGF it phosphorylates key proteins to initiate signals that regulate endothelial cell migration proliferation and survival. The receptor's function is critical for normal developmental processes and wound healing as well.

Pathways

VEGF Receptor 2 is especially important within the angiogenesis and vascular permeability pathways. It plays a central role in the VEGF signaling pathway alongside proteins like VEGF A which is the primary ligand for the receptor. The signaling through this receptor modulates various downstream proteins through phosphorylation linking it to pathways that control cellular responses essential for blood vessel formation and maintenance.

VEGF Receptor 2 is significantly linked with cancer and age-related macular degeneration. In the context of cancer the overexpression or dysregulation of VEGF and its receptors including VEGF Receptor 2 often leads to enhanced tumor angiogenesis promoting tumor growth and metastasis. Additionally the receptor interacts with other proteins in pathological states such as CD309 in endothelial cell-based assays which are used for research like flow cytometry and ELISA to monitor VEGF Receptor 2 activity and its impact on diseases.
style
left-column

Product protocols

style
left-column

Target data

Tyrosine-protein kinase that acts as a cell-surface receptor for VEGFA, VEGFC and VEGFD. Plays an essential role in the regulation of angiogenesis, vascular development, vascular permeability, and embryonic hematopoiesis. Promotes proliferation, survival, migration and differentiation of endothelial cells. Promotes reorganization of the actin cytoskeleton. Isoforms lacking a transmembrane domain, such as isoform 2, may function as decoy receptors for VEGFA, VEGFC and/or VEGFD. Isoform 2 plays an important role as a negative regulator of VEGFA- and VEGFC-mediated lymphangiogenesis by limiting the amount of free VEGFA and/or VEGFC and by preventing their binding to FLT4. Modulates FLT1 and FLT4 signaling by forming heterodimers. Binding of vascular growth factors to isoform 1 leads to the activation of several signaling cascades. Activation of PLCG1 leads to the production of the cellular signaling molecules diacylglycerol and inositol 1,4,5-trisphosphate and the activation of protein kinase C. Mediates activation of MAPK1/ERK2, MAPK3/ERK1 and the MAP kinase signaling pathway, as well as of the AKT1 signaling pathway. Mediates phosphorylation of PIK3R1, the regulatory subunit of phosphatidylinositol 3-kinase, reorganization of the actin cytoskeleton and activation of PTK2/FAK1. Required for VEGFA-mediated induction of NOS2 and NOS3, leading to the production of the signaling molecule nitric oxide (NO) by endothelial cells. Phosphorylates PLCG1. Promotes phosphorylation of FYN, NCK1, NOS3, PIK3R1, PTK2/FAK1 and SRC.
See full target information Kdr
