AB318928

Pig Lipocalin-2/NGAL ELISA Kit

5

(2 Reviews)

|

(0 Publication)

Pig Lipocalin-2/NGAL ELISA Kit is a single-wash 90-min Simplestep used to quantify Pig Lipocalin-2/NGAL with a sensitivity of 4.144 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Different formats for different needs: 10x96 plates for bulk orders and 384-well plate for higher throughput

View Alternative Names

LCN2, NGAL

5 Images
Sandwich ELISA - Pig Lipocalin-2/NGAL ELISA Kit (AB318928)
  • sELISA

Supplier Data

Sandwich ELISA - Pig Lipocalin-2/NGAL ELISA Kit (AB318928)

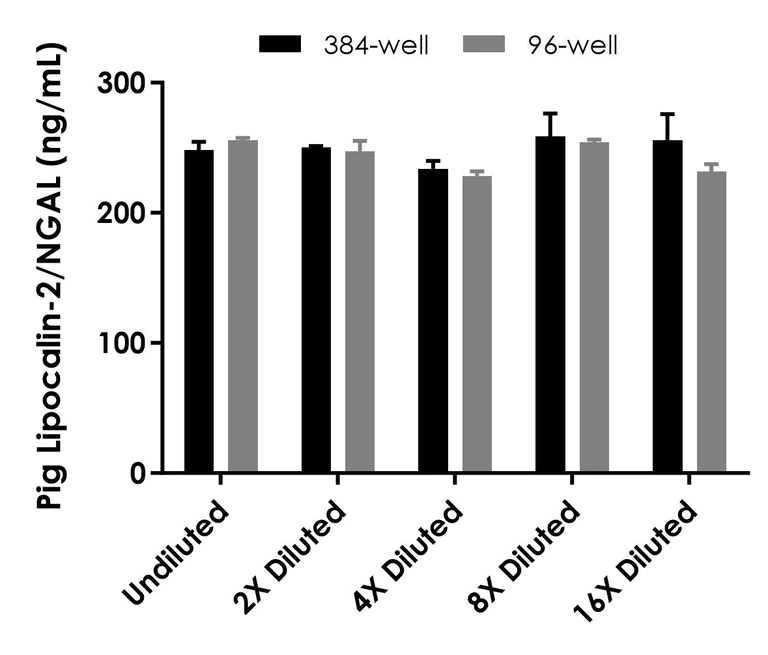

Interpolated concentrations of pig Lipocalin-2/NGAL in Göttingen minipig serum in 96-well vs. 384-well plates. Interpolated concentration of native Lipocalin-2/NGAL was measured in duplicate at different sample concentrations in 96-well vs. 384-well plates. Undiluted samples are 1 : 400 Göttingen mini pig serum.  The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in Sample Diluent NS.

Sandwich ELISA - Pig Lipocalin-2/NGAL ELISA Kit (AB318928)
  • sELISA

Supplier Data

Sandwich ELISA - Pig Lipocalin-2/NGAL ELISA Kit (AB318928)

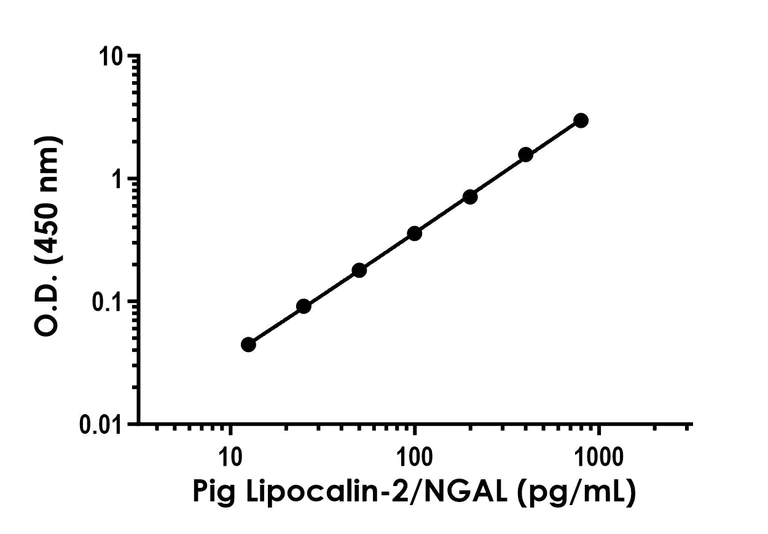

Example of pig Lipocalin-2/NGAL standard curve in Sample Diluent NS. Example of pig Lipocalin-2/NGAL standard curve. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Pig Lipocalin-2/NGAL ELISA Kit (AB318928)
  • sELISA

Supplier Data

Sandwich ELISA - Pig Lipocalin-2/NGAL ELISA Kit (AB318928)

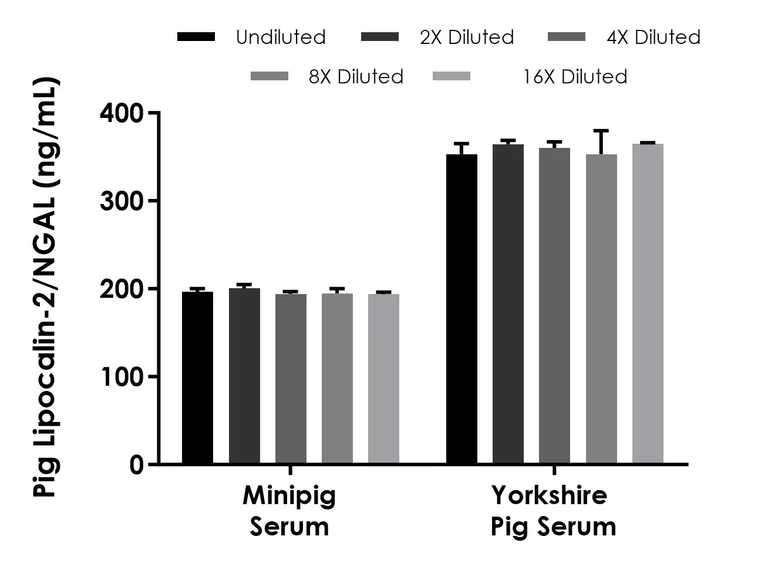

Interpolated concentrations of pig Lipocalin-2/NGAL in Göttingen minipig serum and Yorkshire pig serum. Interpolated concentration of native Lipocalin-2/NGAL was measured in duplicate at different sample concentrations. Undiluted samples are as follows : minipig serum 1 : 400 and Yorkshire pig serum 1 : 1,000.  The interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). Sample dilutions are made in Sample Diluent NS.

Sandwich ELISA - Pig Lipocalin-2/NGAL ELISA Kit (AB318928)
  • sELISA

Supplier Data

Sandwich ELISA - Pig Lipocalin-2/NGAL ELISA Kit (AB318928)

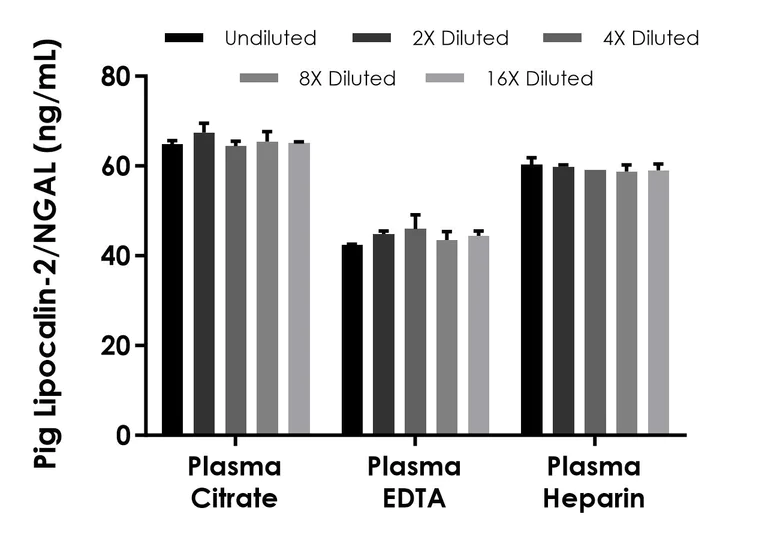

Interpolated concentrations of pig Lipocalin-2/NGAL in minipig plasma (citrate), minipig plasma (EDTA), and minipig plasma (heparin). Interpolated concentration of native Lipocalin-2/NGAL was measured in duplicate at different sample concentrations. Undiluted samples are 1 : 100 minipig plasma (citrate), minipig plasma (EDTA), and minipig plasma (heparin).  The interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). Sample dilutions are made in Sample Diluent NS.

Sandwich ELISA - Pig Lipocalin-2/NGAL ELISA Kit (AB318928)
  • sELISA

Supplier Data

Sandwich ELISA - Pig Lipocalin-2/NGAL ELISA Kit (AB318928)

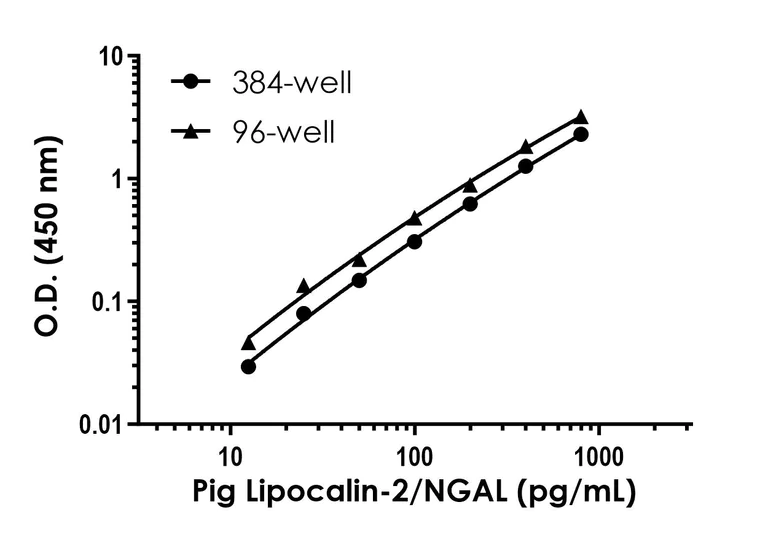

Example of pig Lipocalin-2/NGAL standard curve in Sample Diluent NS in 96-well vs. 384-well plate. Example of pig Lipocalin-2/NGAL standard curve in 96-well vs. 384-well plate. Background-subtracted data values (mean +/- SD) are graphed.

Key facts

Detection method

Colorimetric

Sample types

Serum, EDTA Plasma, Cell culture media, Citrate plasma, Heparin Plasma

Reacts with

Pig

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 4.144 pg/mL

Range

12.5 - 800 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style
left-column

Complementary Products

Assay Kits

AB213477

Mouse TIM 1 ELISA Kit (KIM-1)

Recombinant|SimpleStep

ELISA - Mouse TIM 1 ELISA Kit (KIM-1) (AB213477)

  • 0
  • 0
Secondary Antibodies

AB150077

Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488)

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (AB150077)

  • 5
  • 20
Primary Antibodies

AB8227

Anti-beta Actin antibody - Loading Control

BOND RX™ Validated|Lab Essentials

Western blot - Anti-beta Actin antibody - Loading Control (AB8227)

  • 5
  • 104
Primary Antibodies

AB15580

Anti-Ki67 antibody

BOND RX™ Validated|KO Validated

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Ki67 antibody (AB15580)

  • 5
  • 230
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

Product details

Pig Lipocalin-2/NGAL SimpleStep ELISA® kit is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of Lipocalin-2/NGAL protein in Serum, Cit Plasma, EDTA Plasma, Hep Plasma, Cell culture media. Quantitate Pig Lipocalin-2/NGAL with 4.144 pg/ml sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

-Single-wash protocol reduces assay time to 90 minutes or less
-High sensitivity, specificity and reproducibility from superior antibodies
-Fully validated in biological samples
-96-wells plate breakable into 12 x 8 wells strips, available in 10-pack (10 x 96-well plates)
-Also available in a fully validated 384-well format.

style
left-column

Precision

[ { "reproducibilityType": "Intra", "sample": "Serum", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "3.6" }, { "reproducibilityType": "Inter", "sample": "Serum", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "3.2" } ]
style
left-column

Recovery

[ { "sample": "Serum", "range": "108 - 118 %", "average": "= 112" }, { "sample": "Citrate plasma", "range": "93 - 104 %", "average": "= 97" }, { "sample": "EDTA Plasma", "range": "107 - 114 %", "average": "= 111" }, { "sample": "Heparin Plasma", "range": "94 - 107 %", "average": "= 101" }, { "sample": "Cell culture media", "range": "94 - 96 %", "average": "= 95" } ]
style
left-column

What's included?

{ "values": { "10x96Tests": { "sellingSize": "10 x 96 Tests", "publicAssetCode":"ab318928-10x96Tests", "assetComponentDetails": [ { "size":"1 x 120 mL", "name":"Stop Solution", "number":"AB318928-CMP08" }, { "size":"2 x 250 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB318928-CMP06" }, { "size":"1 x 120 mL", "name":"TMB Development Solution", "number":"AB318928-CMP07" }, { "size":"20 x 1 Vial", "name":"Pig Lipocalin-2/NGAL Lyophilized Recombinant Protein", "number":"AB318928-CMP03" }, { "size":"10 x 6 mL", "name":"Antibody Diluent 4BI", "number":"AB318928-CMP04" }, { "size":"1 x 200 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB318928-CMP05" }, { "size":"10 x 600 µL", "name":"10X Pig Lipocalin-2/NGAL Capture Antibody", "number":"AB318928-CMP01" }, { "size":"10 x 600 µL", "name":"10X Pig Lipocalin-2/NGAL Detector Antibody", "number":"AB318928-CMP02" }, { "size":"10 x 96 Wells", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB318928-CMP09" }, { "size":"10 x 1 Unit", "name":"Plate Seal", "number":"AB318928-CMP10" } ] }, "1x384Tests": { "sellingSize": "1 x 384 Tests", "publicAssetCode":"ab318928-1x384Tests", "assetComponentDetails": [ { "size":"2 x 12 mL", "name":"Stop Solution", "number":"AB318928-CMP08" }, { "size":"2 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB318928-CMP06" }, { "size":"2 x 12 mL", "name":"TMB Development Solution", "number":"AB318928-CMP07" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 4BI", "number":"AB318928-CMP04" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB318928-CMP05" }, { "size":"2 x 1 Vial", "name":"Pig Lipocalin-2/NGAL Lyophilized Recombinant Protein", "number":"AB318928-CMP03" }, { "size":"1 x 600 µL", "name":"10X Pig Lipocalin-2/NGAL Capture Antibody", "number":"AB318928-CMP01" }, { "size":"1 x 600 µL", "name":"10X Pig Lipocalin-2/NGAL Detector Antibody", "number":"AB318928-CMP02" }, { "size":"1 x 384 Wells", "name":"384 well CaptSure™ microplates", "number":"AB318928-CMP11" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB318928-CMP10" } ] }, "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab318928-1x96Tests", "assetComponentDetails": [ { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB318928-CMP08", "productcode":"" }, { "size":"1 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB318928-CMP06", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB318928-CMP07", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Pig Lipocalin-2/NGAL Lyophilized Recombinant Protein", "number":"AB318928-CMP03", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB318928-CMP05", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 4BI", "number":"AB318928-CMP04", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Pig Lipocalin-2/NGAL Capture Antibody", "number":"AB318928-CMP01", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Pig Lipocalin-2/NGAL Detector Antibody", "number":"AB318928-CMP02", "productcode":"" }, { "size":"1 x 96 Wells", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB318928-CMP09", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB318928-CMP10", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C
