AB324924

Protein Disulfide Isomerase/P4HB ELISA Kit - Extracellular

SimpleStep
What is this?

Be the first to review this product! Submit a review

(0 Publication)

Protein Disulfide Isomerase/P4HB ELISA Kit- Extracellular is a single-wash 90-min Simplestep used to quantify Protein Disulfide Isomerase/P4HB with a sensitivity of 50.82pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

-Colormetric sandwich ELISA - 450 nm readout- works on any standard plate reader.

-Different formats for different needs: 10 x 96 plates for bulk orders and 384-well for higher throughput.

View Alternative Names

ERBA2L, PDI, PDIA1, PO4DB, P4HB, Protein disulfide-isomerase, Cellular thyroid hormone-binding protein, Prolyl 4-hydroxylase subunit beta, p55

8 Images

Sandwich ELISA - Protein Disulfide Isomerase/P4HB ELISA Kit - Extracellular (AB324924)

sELISA

Lab

Sandwich ELISA - Protein Disulfide Isomerase/P4HB ELISA Kit - Extracellular (AB324924)

Serum of ten individual healthy human female donors was measured in duplicate. Interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). The mean Protein Disulfide Isomerase/P4HB concentration was determined to be 131.68 ng/mL with a range of 97.34 – 165.30 ng/mL.

sELISA

Lab

Sandwich ELISA - Protein Disulfide Isomerase/P4HB ELISA Kit - Extracellular (AB324924)

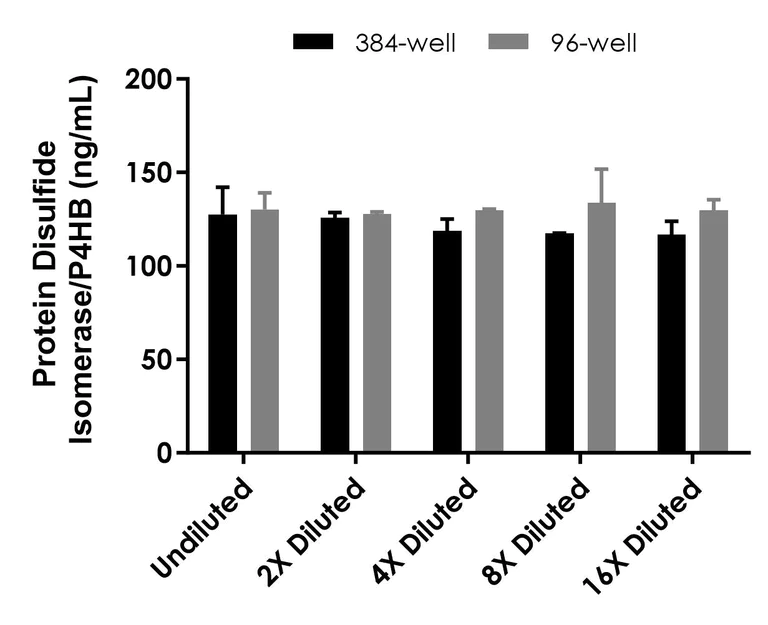

Interpolated concentration of native Protein Disulfide Isomerase/P4HB was measured in duplicate at different sample concentrations in 96-well vs. 384-well plates. Undiluted samples are 5% human serum. The interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). Sample dilutions are made in Sample Diluent NS.

sELISA

Lab

Sandwich ELISA - Protein Disulfide Isomerase/P4HB ELISA Kit - Extracellular (AB324924)

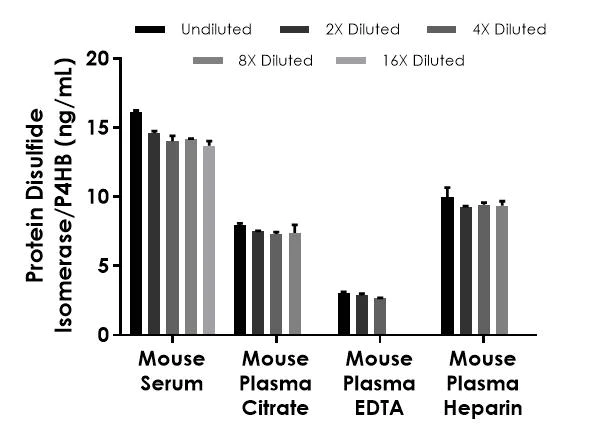

Interpolated concentration of native Protein Disulfide Isomerase/P4HB was measured in duplicate at different sample concentrations. Undiluted samples are 20% mouse serum, 20% mouse plasma (citrate), 25% mouse plasma (EDTA), and 25% mouse plasma (heparin). The interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). Sample dilutions are made in Sample Diluent NS.

sELISA

Lab

Sandwich ELISA - Protein Disulfide Isomerase/P4HB ELISA Kit - Extracellular (AB324924)

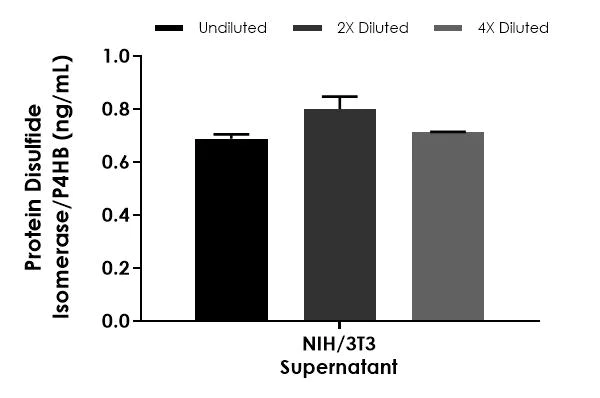

Interpolated concentration of native Protein Disulfide Isomerase/P4HB was measured in duplicate at different sample concentrations. Undiluted samples are 100% mouse NIH/3T3 supernatant. The interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). Sample dilutions are made in Sample Diluent NS.

sELISA

Lab

Sandwich ELISA - Protein Disulfide Isomerase/P4HB ELISA Kit - Extracellular (AB324924)

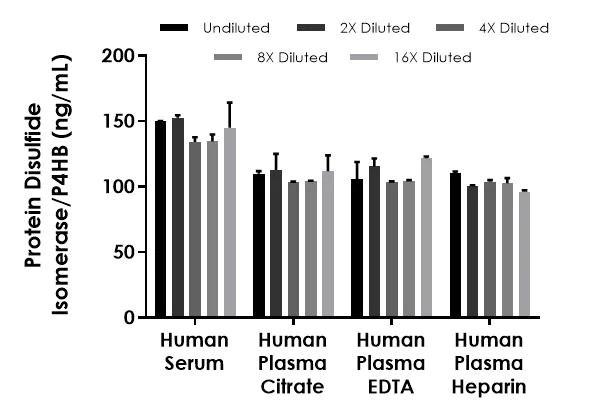

Interpolated concentration of native Protein Disulfide Isomerase/P4HB was measured in duplicate at different sample concentrations. Undiluted samples are 5% human serum, plasma (citrate), plasma (EDTA), and plasma (heparin). The interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). Sample dilutions are made in Sample Diluent NS.

sELISA

Lab

Sandwich ELISA - Protein Disulfide Isomerase/P4HB ELISA Kit - Extracellular (AB324924)

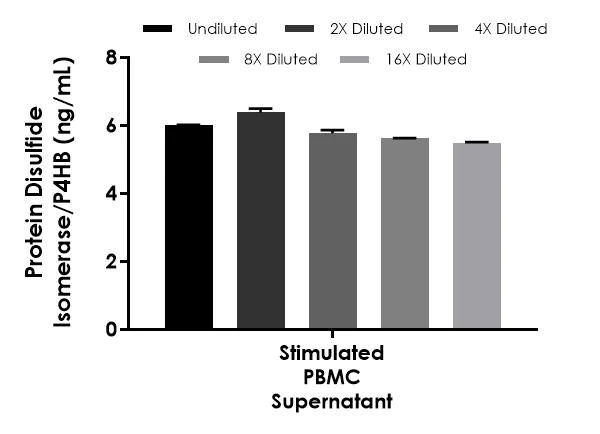

Interpolated concentration of native Protein Disulfide Isomerase/P4HB was measured in duplicate at different sample concentrations. Undiluted samples are 100% human PMBC supernatant (cells treated with 1.5% PHA-M for 46 hrs). The interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). Sample dilutions are made in Sample Diluent NS.

sELISA

Lab

Sandwich ELISA - Protein Disulfide Isomerase/P4HB ELISA Kit - Extracellular (AB324924)

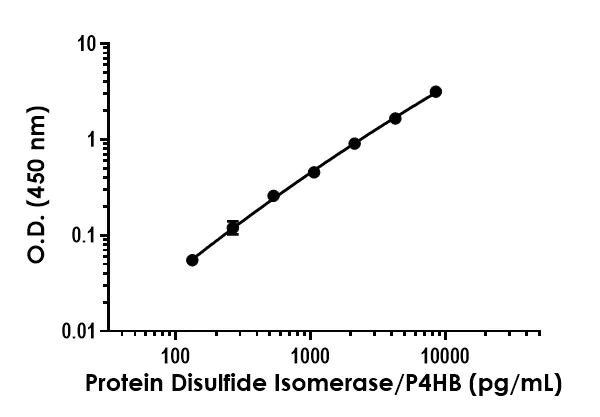

Example of Protein Disulfide Isomerase/P4HB standard curve in Sample Diluent NS. Background-subtracted data values (mean +/- SD) are graphed.

sELISA

Lab

Sandwich ELISA - Protein Disulfide Isomerase/P4HB ELISA Kit - Extracellular (AB324924)

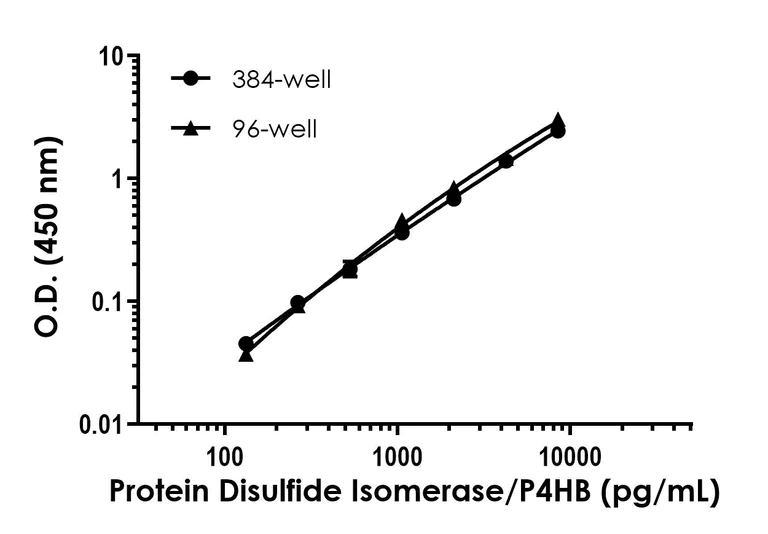

Example of Protein Disulfide Isomerase/P4HB standard curve in 96-well vs. 384-well plate in Sample Diluent NS. Background-subtracted data values (mean +/- SD) are graphed.

Key facts

Detection method

Colorimetric

Sample types

Serum, Citrate plasma, EDTA Plasma, Heparin Plasma, Supernatant

Assay type

Sandwich (quantitative)

Sensitivity

= 50.82 pg/mL

Range

132.813 - 8500 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

style

left-column

Product details

Protein Disulfide Isomerase/P4HB ELISA Kit- Extracellular (ab324924) is a rapid single-wash sandwich 90-min ELISA to measure Protein Disulfide Isomerase/P4HB in Serum, Citrate Plasma, EDTA Plasma, Heparin Plasma, Supernatant. This SimpleStep sensitivity is 50.82 pg/ml.

How the assay works

Protein Disulfide Isomerase/P4HB ELISA Kit- Extracellular (ab324924) SimpleStep ELISA® employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details.

Assay Specificity

Our SimpleStep ELISA® kits use recombinant monoclonal antibodies rigorously validated to ensure the highest level of consistency and reproducibility, improved sensitivity and specificity and ease of scalability and security of supply.
Please refer to our protocol booklet for more details.

Protein Disulfide Isomerase/P4HB (ab324924) protocol summary

1. Mix : add samples / standards to the wells together with the capture and detector antibody cocktail. Incubate 1 hr at room temperature
2. Wash
3. Add TMB development solution - incubate for 10 min
4. Add Stop solution
5. Read the results on a plate reader at 450 nm

Save your precious samples

Our Protein Disulfide Isomerase/P4HB ELISA Kit- Extracellular only requires 12.5µL sample.

style

left-column

Precision

[ { "reproducibilityType": "Intra", "sample": "Serum", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "6" }, { "reproducibilityType": "Inter", "sample": "Serum", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "2.7" } ]

style

left-column

Recovery

[ { "sample": "Serum", "range": "100 - 101 %", "average": "= 101" }, { "sample": "Citrate plasma", "range": "96 - 100 %", "average": "= 98" }, { "sample": "EDTA Plasma", "range": "90 - 98 %", "average": "= 95" }, { "sample": "Heparin Plasma", "range": "90 - 98 %", "average": "= 95" }, { "sample": "Cell culture media", "range": "92 - 113 %", "average": "= 103" } ]

style

left-column

What's included?

{ "values": { "10x96Tests": { "sellingSize": "10 x 96 Tests", "publicAssetCode":"ab324924-10x96Tests", "assetComponentDetails": [ { "size":"10 x 600 µL", "name":"10X Protein Disulfide Isomerase/P4HB Detector Antibody", "number":"AB324924-CMP02" }, { "size":"20 x 1 Vial", "name":"Protein Disulfide Isomerase/P4HB Lyophilized Recombinant Protein", "number":"AB324924-CMP03" }, { "size":"10 x 600 µL", "name":"10X Protein Disulfide Isomerase/P4HB Capture Antibody", "number":"AB324924-CMP01" }, { "size":"2 x 250 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB324924-CMP06" }, { "size":"1 x 200 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB324924-CMP05" }, { "size":"10 x 6 mL", "name":"Antibody Diluent 4BI", "number":"AB324924-CMP04" }, { "size":"1 x 120 mL", "name":"Stop Solution", "number":"AB324924-CMP08" }, { "size":"10 x 1 Unit", "name":"Plate Seal", "number":"AB324924-CMP11" }, { "size":"1 x 120 mL", "name":"TMB Development Solution", "number":"AB324924-CMP07" }, { "size":"10 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB324924-CMP09" } ] }, "1x384Tests": { "sellingSize": "1 x 384 Tests", "publicAssetCode":"ab324924-1x384Tests", "assetComponentDetails": [ { "size":"2 x 1 Vial", "name":"Protein Disulfide Isomerase/P4HB Lyophilized Recombinant Protein", "number":"AB324924-CMP03" }, { "size":"1 x 600 µL", "name":"10X Protein Disulfide Isomerase/P4HB Detector Antibody", "number":"AB324924-CMP02" }, { "size":"1 x 600 µL", "name":"10X Protein Disulfide Isomerase/P4HB Capture Antibody", "number":"AB324924-CMP01" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB324924-CMP05" }, { "size":"1 x 1 Unit", "name":"384 well CaptSure™ microplates", "number":"AB324924-CMP10" }, { "size":"2 x 12 mL", "name":"Stop Solution", "number":"AB324924-CMP08" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 4BI", "number":"AB324924-CMP04" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB324924-CMP11" }, { "size":"2 x 12 mL", "name":"TMB Development Solution", "number":"AB324924-CMP07" }, { "size":"1 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB324924-CMP06" } ] }, "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab324924-1x96Tests", "assetComponentDetails": [ { "size":"1 x 600 µL", "name":"10X Protein Disulfide Isomerase/P4HB Detector Antibody", "number":"AB324924-CMP02", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Protein Disulfide Isomerase/P4HB Lyophilized Recombinant Protein", "number":"AB324924-CMP03", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Protein Disulfide Isomerase/P4HB Capture Antibody", "number":"AB324924-CMP01", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB324924-CMP11", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB324924-CMP07", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB324924-CMP05", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 4BI", "number":"AB324924-CMP04", "productcode":"" }, { "size":"1 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB324924-CMP06", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB324924-CMP09", "productcode":"" }, { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB324924-CMP08", "productcode":"" } ] } } }

style

left-column

Properties and storage information

Shipped at conditions

Blue Ice

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

+4°C

Storage information

+4°C

style

left-column

style

left-column

Product protocols

style

left-column

Target data

This multifunctional protein catalyzes the formation, breakage and rearrangement of disulfide bonds. At the cell surface, seems to act as a reductase that cleaves disulfide bonds of proteins attached to the cell. May therefore cause structural modifications of exofacial proteins. Inside the cell, seems to form/rearrange disulfide bonds of nascent proteins. At high concentrations and following phosphorylation by FAM20C, functions as a chaperone that inhibits aggregation of misfolded proteins (PubMed : 32149426). At low concentrations, facilitates aggregation (anti-chaperone activity). May be involved with other chaperones in the structural modification of the TG precursor in hormone biogenesis. Also acts as a structural subunit of various enzymes such as prolyl 4-hydroxylase and microsomal triacylglycerol transfer protein MTTP. Receptor for LGALS9; the interaction retains P4HB at the cell surface of Th2 T helper cells, increasing disulfide reductase activity at the plasma membrane, altering the plasma membrane redox state and enhancing cell migration (PubMed : 21670307).
