AB324925

Protein Disulfide Isomerase/P4HB ELISA Kit - Intracellular

SimpleStep
What is this?

Be the first to review this product! Submit a review

(0 Publication)

Protein Disulfide Isomerase/P4HB ELISA Kit - Intracellular is a single-wash 90-min Simplestep used to quantify Protein Disulfide Isomerase/P4HB with a sensitivity of 45.9pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

-Colormetric sandwich ELISA - 450 nm readout- works on any standard plate reader.

-Different formats for different needs: 10 x 96 plates for bulk orders and 384-well for higher throughput.

View Alternative Names

ERBA2L, PDI, PDIA1, PO4DB, P4HB, Protein disulfide-isomerase, Cellular thyroid hormone-binding protein, Prolyl 4-hydroxylase subunit beta, p55

5 Images

Sandwich ELISA - Protein Disulfide Isomerase/P4HB ELISA Kit - Intracellular (AB324925)

sELISA

Lab

Sandwich ELISA - Protein Disulfide Isomerase/P4HB ELISA Kit - Intracellular (AB324925)

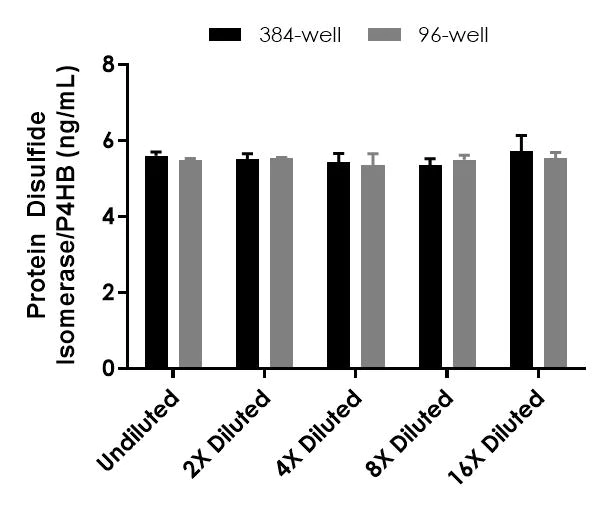

Interpolated concentration of native Protein Disulfide Isomerase/P4HB was measured in duplicate at different sample concentrations in 96-well vs. 384-well plates. Undiluted samples are 1.25 µg/mL MCF7 cell extract. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in 1X Cell Extraction Buffer SSW.

sELISA

Lab

Sandwich ELISA - Protein Disulfide Isomerase/P4HB ELISA Kit - Intracellular (AB324925)

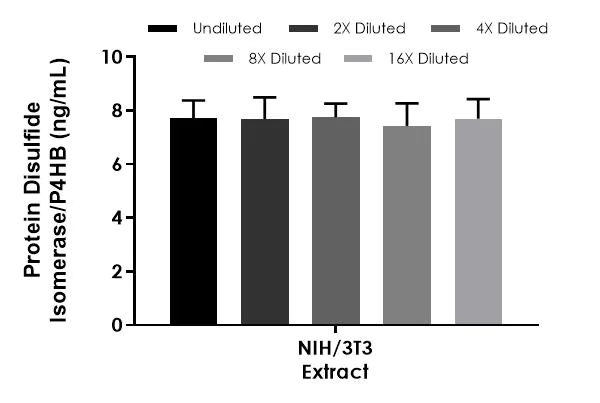

Interpolated concentration of native Protein Disulfide Isomerase/P4HB was measured in duplicate at different sample concentrations. Undiluted samples are 50 µg/mL NIH/3T3 extract. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in 1X Cell Extraction Buffer SSW.

sELISA

Lab

Sandwich ELISA - Protein Disulfide Isomerase/P4HB ELISA Kit - Intracellular (AB324925)

Example of Protein Disulfide Isomerase/P4HB standard curve in 1X Cell Extraction Buffer SSW. Background-subtracted data values (mean +/- SD) are graphed.

sELISA

Lab

Sandwich ELISA - Protein Disulfide Isomerase/P4HB ELISA Kit - Intracellular (AB324925)

Example of Protein Disulfide Isomerase/P4HB standard curve in 96-well vs. 384-well plate in 1X Cell Extraction Buffer SSW. Background-subtracted data values (mean +/- SD) are graphed.

sELISA

Lab

Sandwich ELISA - Protein Disulfide Isomerase/P4HB ELISA Kit - Intracellular (AB324925)

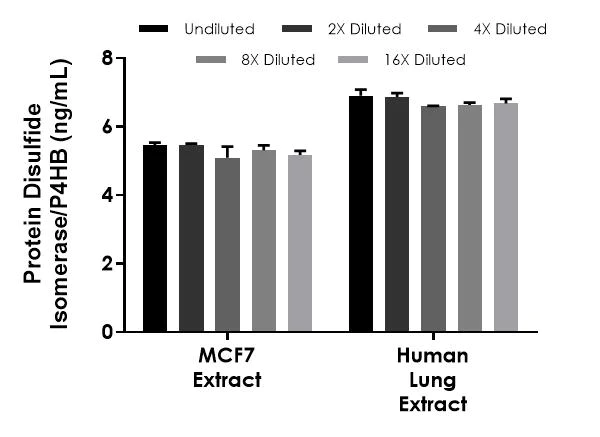

Interpolated concentration of native Protein Disulfide Isomerase/P4HB was measured in duplicate at different sample concentrations. Undiluted samples are as follows : MCF7 cell extract 1.25 µg/mL and human lung tissue extract 5 µg/mL. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in 1X Cell Extraction Buffer SSW.

Key facts

Detection method

Colorimetric

Sample types

Cell Extract, Tissue Extracts

Assay type

Sandwich (quantitative)

Sensitivity

= 45.9 pg/mL

Range

132.813 - 8500 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

style

left-column

Product details

Protein Disulfide Isomerase/P4HB ELISA Kit - Intracellular (ab324925) is a rapid single-wash sandwich 90-min ELISA to measure Protein Disulfide Isomerase/P4HB in Cell Extract, Tissue Extract. This SimpleStep sensitivity is 45.9 pg/ml.

How the assay works

Protein Disulfide Isomerase/P4HB ELISA Kit - Intracellular (ab324925) SimpleStep ELISA® employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details.

Assay Specificity

Our SimpleStep ELISA® kits use recombinant monoclonal antibodies rigorously validated to ensure the highest level of consistency and reproducibility, improved sensitivity and specificity and ease of scalability and security of supply.
Please refer to our protocol booklet for more details.

Protein Disulfide Isomerase/P4HB (ab324925) protocol summary

1. Mix : add samples / standards to the wells together with the capture and detector antibody cocktail. Incubate 1 hr at room temperature
2. Wash
3. Add TMB development solution - incubate for 10 min
4. Add Stop solution
5. Read the results on a plate reader at 450 nm

Save your precious samples

Our Protein Disulfide Isomerase/P4HB ELISA Kit - Intracellular only requires 12.5µL sample.

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

style

left-column

Precision

[ { "reproducibilityType": "Intra", "sample": "Serum", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "6" }, { "reproducibilityType": "Inter", "sample": "Serum", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "2.7" } ]

style

left-column

Recovery

[ { "sample": "Cell Lysate", "range": "100 - 102 %", "average": "= 101" }, { "sample": "Tissue Extracts", "range": "106 - 113 %", "average": "= 108" } ]

style

left-column

What's included?

{ "values": { "10x96Tests": { "sellingSize": "10 x 96 Tests", "publicAssetCode":"ab324925-10x96Tests", "assetComponentDetails": [ { "size":"10 x 600 µL", "name":"10X Protein Disulfide Isomerase/P4HB Capture Antibody", "number":"AB324925-CMP01" }, { "size":"20 x 1 Vial", "name":"Protein Disulfide Isomerase/P4HB Lyophilized Recombinant Protein", "number":"AB324925-CMP03" }, { "size":"10 x 600 µL", "name":"10X Protein Disulfide Isomerase/P4HB Detector Antibody", "number":"AB324925-CMP02" }, { "size":"10 x 1 Unit", "name":"Plate Seal", "number":"AB324925-CMP12" }, { "size":"1 x 120 mL", "name":"Stop Solution", "number":"AB324925-CMP09" }, { "size":"1 x 200 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB324925-CMP06" }, { "size":"2 x 50 mL", "name":"Cell Extraction Buffer SSW", "number":"AB324925-CMP05" }, { "size":"10 x 6 mL", "name":"Antibody Diluent 4BI", "number":"AB324925-CMP04" }, { "size":"10 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB324925-CMP10" }, { "size":"1 x 120 mL", "name":"TMB Development Solution", "number":"AB324925-CMP08" } ] }, "1x384Tests": { "sellingSize": "1 x 384 Tests", "publicAssetCode":"ab324925-1x384Tests", "assetComponentDetails": [ { "size":"1 x 600 µL", "name":"10X Protein Disulfide Isomerase/P4HB Detector Antibody", "number":"AB324925-CMP02" }, { "size":"1 x 600 µL", "name":"10X Protein Disulfide Isomerase/P4HB Capture Antibody", "number":"AB324925-CMP01" }, { "size":"2 x 1 Vial", "name":"Protein Disulfide Isomerase/P4HB Lyophilized Recombinant Protein", "number":"AB324925-CMP03" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB324925-CMP12" }, { "size":"1 x 1 Unit", "name":"384 well CaptSure™ microplates", "number":"AB324925-CMP11" }, { "size":"2 x 12 mL", "name":"TMB Development Solution", "number":"AB324925-CMP08" }, { "size":"2 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB324925-CMP06" }, { "size":"1 x 50 mL", "name":"Cell Extraction Buffer SSW", "number":"AB324925-CMP05" }, { "size":"2 x 12 mL", "name":"Stop Solution", "number":"AB324925-CMP09" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 4BI", "number":"AB324925-CMP04" } ] }, "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab324925-1x96Tests", "assetComponentDetails": [ { "size":"1 x 600 µL", "name":"10X Protein Disulfide Isomerase/P4HB Capture Antibody", "number":"AB324925-CMP01", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Protein Disulfide Isomerase/P4HB Detector Antibody", "number":"AB324925-CMP02", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Protein Disulfide Isomerase/P4HB Lyophilized Recombinant Protein", "number":"AB324925-CMP03", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 4BI", "number":"AB324925-CMP04", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB324925-CMP12", "productcode":"" }, { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB324925-CMP09", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB324925-CMP06", "productcode":"" }, { "size":"1 x 12 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB324925-CMP07", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB324925-CMP10", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB324925-CMP08", "productcode":"" }, { "size":"1 x 10 mL", "name":"Cell Extraction Buffer SSW", "number":"AB324925-CMP05", "productcode":"" } ] } } }

style

left-column

Properties and storage information

Shipped at conditions

Blue Ice

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

+4°C

Storage information

+4°C

style

left-column

style

left-column

Product protocols

style

left-column

Target data

This multifunctional protein catalyzes the formation, breakage and rearrangement of disulfide bonds. At the cell surface, seems to act as a reductase that cleaves disulfide bonds of proteins attached to the cell. May therefore cause structural modifications of exofacial proteins. Inside the cell, seems to form/rearrange disulfide bonds of nascent proteins. At high concentrations and following phosphorylation by FAM20C, functions as a chaperone that inhibits aggregation of misfolded proteins (PubMed : 32149426). At low concentrations, facilitates aggregation (anti-chaperone activity). May be involved with other chaperones in the structural modification of the TG precursor in hormone biogenesis. Also acts as a structural subunit of various enzymes such as prolyl 4-hydroxylase and microsomal triacylglycerol transfer protein MTTP. Receptor for LGALS9; the interaction retains P4HB at the cell surface of Th2 T helper cells, increasing disulfide reductase activity at the plasma membrane, altering the plasma membrane redox state and enhancing cell migration (PubMed : 21670307).

See full target information P4HB

style

left-column

style

left-column

websiteProtocolBooklet

style

right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.

For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.

For licensing inquiries, please contact partnerships@abcam.com
