AB240680

Rat CCL4 ELISA Kit

Be the first to review this product! Submit a review

|

(0 Publication)

Rat CCL4 ELISA Kit is a single-wash 90-min Simplestep used to quantify Rat CCL4 with a sensitivity of 6.9 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Design your own immunoassay: we also offer the conjugation-ready antibody pair

View Alternative Names

Mip1b, Scya4, Ccl4, C-C motif chemokine 4, Macrophage inflammatory protein 1-beta, Small-inducible cytokine A4, MIP-1-beta

3 Images
Sandwich ELISA - Rat CCL4 ELISA Kit (AB240680)
  • sELISA

Unknown

Sandwich ELISA - Rat CCL4 ELISA Kit (AB240680)

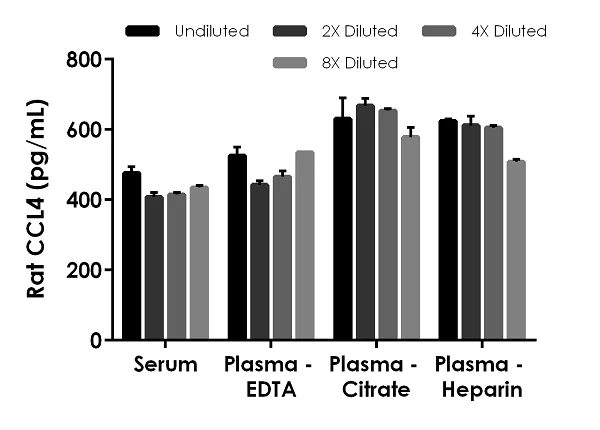

Interpolated concentrations of spiked CCL4 in rat serum and plasma samples. The concentrations of CCL4 were measured in duplicates, interpolated from the CCL4 standard curves and corrected for sample dilution. Undiluted samples are as follows : serum 25%, plasma (citrate) 50%, plasma (heparin) 50% and plasma (EDTA) 25%. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2).

Sandwich ELISA - Rat CCL4 ELISA Kit (AB240680)
  • sELISA

Unknown

Sandwich ELISA - Rat CCL4 ELISA Kit (AB240680)

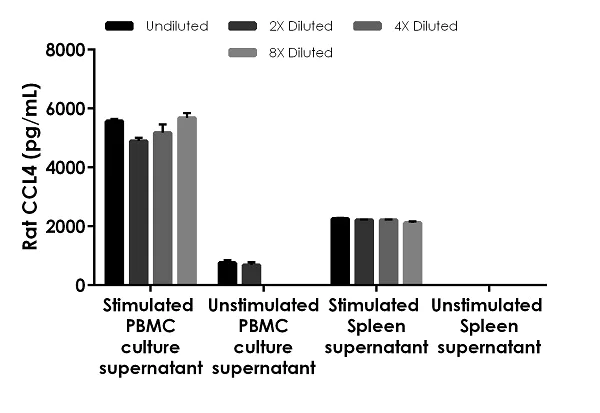

Interpolated concentrations of CCL4 in rat stimulated PBMC and spleen samples. Rat PBMCS were cultured in RPMI supplemented with 10% fetal calf serum. Cells were cultured for days in the presence or absence of PHA. Rat Spleen was cultured in the presence or absence of PHA and rat IL2 for 6 days. The concentrations of CCL4 were measured in duplicate and interpolated from the CCL4 standard curve and corrected for sample dilution. Undiluted samples are as follows : 3% PBMC culture supernatant and 25% spleen culture supernatant. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean CCL4 concentration was determined to be 5,330 pg/mL in stimulated PBMC, 720 pg/mL in unstimulated PBMC, and 2,051 pg/mL in stimulated spleen.

Sandwich ELISA - Rat CCL4 ELISA Kit (AB240680)
  • sELISA

Unknown

Sandwich ELISA - Rat CCL4 ELISA Kit (AB240680)

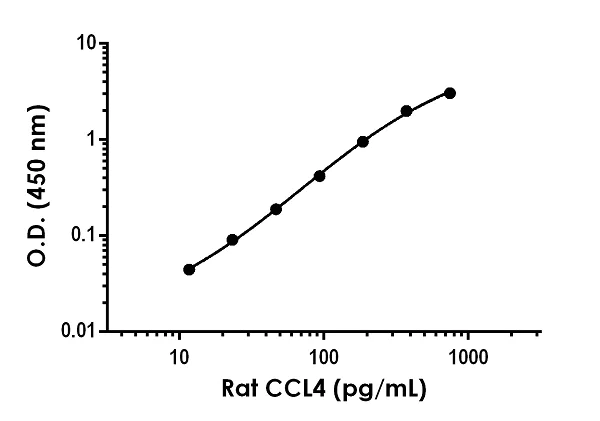

Example of rat CCL4 standard curve in Sample Diluent NS. The CCL4 standard curve was prepared as described in Section 10. Raw data values are shown in the table. Background-subtracted data values (mean +/- SD) are graphed.

Key facts

Detection method

Colorimetric

Sample types

Heparin Plasma, Citrate plasma, Cell culture supernatant, Serum, EDTA Plasma

Reacts with

Rat

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 6.9 pg/mL

Range

11.7 - 750 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style
left-column

Complementary Products

Assay Kits

AB239425

Rat IFN gamma ELISA Kit

Recombinant|SimpleStep

ELISA - Rat IFN gamma ELISA Kit (AB239425)

  • 0
  • 0
Assay Kits

AB270896

Rat CXCL10 ELISA Kit

Recombinant|SimpleStep

Sandwich ELISA - Rat CXCL10 ELISA Kit (AB270896)

  • 0
  • 0
Assay Kits

AB181421

Human TNF alpha ELISA Kit

KO Validated|Recombinant|SimpleStep

Sandwich ELISA - Human TNF alpha ELISA Kit (AB181421)

  • 5
  • 4
Assay Kits

AB178013

Human IL-6 ELISA Kit

KO Validated|Recombinant|SimpleStep

Sandwich ELISA - Human IL-6 ELISA Kit (AB178013)

  • 5
  • 2
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

Product details

Rat CCL4 ELISA Kit (ab240680) is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of CCL4 protein in cell culture supernatant, cit plasma, edta plasma, hep plasma, and serum. It uses our proprietary SimpleStep ELISA® technology. Quantitate Rat CCL4 with 6.9 pg/ml sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

- Single-wash protocol reduces assay time to 90 minutes or less
- High sensitivity, specificity and reproducibility from superior antibodies
- Fully validated in biological samples
- 96-wells plate breakable into 12 x 8 wells strips

A 384-well SimpleStep ELISA® microplate (ab203359) is available to use as an alternative to the 96-well microplate provided with SimpleStep ELISA® kits.

style
left-column

Precision

[ { "reproducibilityType": "Inter", "sample": "Spleen", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "7.1" }, { "reproducibilityType": "Intra", "sample": "Spleen", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "5.8" } ]
style
left-column

Recovery

[ { "sample": "Cell culture supernatant", "range": "95 - 100 %", "average": "= 98" }, { "sample": "Serum", "range": "83 - 94 %", "average": "= 90" }, { "sample": "EDTA Plasma", "range": "88 - 101 %", "average": "= 96" }, { "sample": "Heparin Plasma", "range": "90 - 98 %", "average": "= 94" }, { "sample": "Citrate plasma", "range": "92 - 106 %", "average": "= 99" } ]
style
left-column

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab240680-1x96Tests", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB240680-CMP03", "productcode":"" }, { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB240680-CMP04", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB240680-CMP10", "productcode":"" }, { "size":"1 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB240680-CMP02", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB240680-CMP05", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB240680-CMP09", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Rat CCL4 Lyophilized Recombinant Protein", "number":"AB240680-CMP08", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Rat CCL4 Capture Antibody", "number":"AB240680-CMP06", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 4BR", "number":"AB240680-CMP01", "productcode":"" }, { "size":"2 x 1 Vial", "name":"10X Rat CCL4 Detector Antibody", "number":"AB240680-CMP07", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

CCL4 also known as MIP-1 beta or MIP-1b has a mechanical role as a chemokine involved in immune response regulation. The protein has a mass of about 7.8 kDa. It expresses in various tissues including leukocytes where it mainly functions as a chemoattractant. MIP-1 beta helps recruit immune cells like natural killer cells and monocytes to sites of inflammation or injury. Researchers frequently measure its levels using assays like MIP-1 beta ELISA or CCL4 ELISA.
Biological function summary

CCL4 is critical in immune system modulation. It coordinates leukocyte activation and trafficking contributing to inflammation and immune surveillance. It does not function in isolation but rather interacts with other chemokines and receptors. CCL4 alongside its sibling chemokines forms a dynamic network that ensures a balanced immune response. It connects to receptors such as CCR5 playing substantial roles in its activities.

Pathways

CCL4 participates in essential signaling cascades that mediate immune responses. It is notably part of the chemokine signaling pathway which is instrumental in directing cell movement. CCL4 also engages with proteins like CCR5 in the inflammatory and immune response pathways. This interaction enhances communication between cells required for effective pathogen defense.

CCL4 plays roles in immune-related conditions. It is strongly linked to inflammatory diseases such as rheumatoid arthritis and HIV infection. In rheumatoid arthritis CCL4 levels are often elevated correlating with inflammation severity. During HIV infection CCL4 interacts with proteins like CCR5 a co-receptor the virus uses to enter host cells. This involvement makes MIP-1 beta a target for studies seeking therapeutic interventions in these diseases.
style
left-column

Product protocols

style
left-column

Target data

Monokine with inflammatory and chemokinetic properties.
See full target information Ccl4
