AB239422

Rat Lipocalin-2 ELISA Kit

Be the first to review this product! Submit a review

|

(2 Publications)

Rat Lipocalin-2 ELISA Kit is a single-wash 90-min Simplestep used to quantify Rat Lipocalin-2 with a sensitivity of 1.9 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Design your own immunoassay: we also offer the conjugation-ready antibody pair

View Alternative Names

Neutrophil gelatinase-associated lipocalin, NGAL, Alpha-2-microglobulin-related protein, Alpha-2U globulin-related protein, Lipocalin 24p3, Lipocalin-2, Siderocalin LCN2, p25, Lcn2

3 Images
Sandwich ELISA - Rat Lipocalin-2 ELISA Kit (AB239422)
  • sELISA

Unknown

Sandwich ELISA - Rat Lipocalin-2 ELISA Kit (AB239422)

Interpolated concentrations of native Lipocalin-2 in rat urine and lung supernatant samples. The concentrations of Lipocalin-2 were measured in duplicates, interpolated from the Lipocalin-2 standard curves and corrected for sample dilution. Undiluted samples are as follows : urine 1 : 10,000 and lung cell culture supernatant 1 : 400. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean Lipocalin-2 concentration was determined to be 2,184 ng/mL in urine and 297 ng/mL in lung supernatant.

Sandwich ELISA - Rat Lipocalin-2 ELISA Kit (AB239422)
  • sELISA

Unknown

Sandwich ELISA - Rat Lipocalin-2 ELISA Kit (AB239422)

Example of rat Lipocalin-2 standard curve in Sample Diluent NS. The Lipocalin-2 standard curve was prepared as described in Section 10. Raw data values are shown in the table. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Rat Lipocalin-2 ELISA Kit (AB239422)
  • sELISA

Unknown

Sandwich ELISA - Rat Lipocalin-2 ELISA Kit (AB239422)

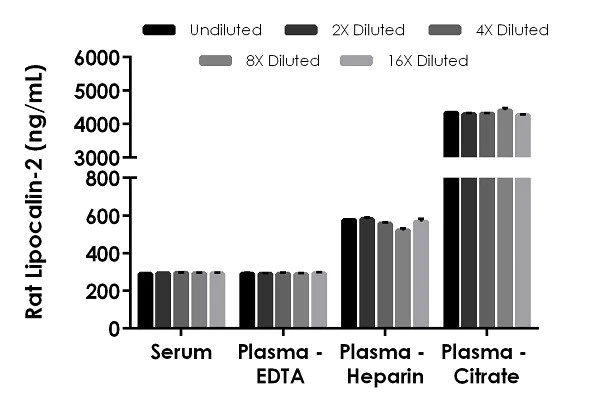

Interpolated concentrations of native Lipocalin-2 in rat serum and plasma samples. The concentrations of Lipocalin-2 were measured in duplicates, interpolated from the Lipocalin-2 standard curves and corrected for sample dilution. Undiluted samples are as follows : serum 1 : 500, plasma (EDTA) 1 : 800, plasma (heparin) 1 : 5,000 and plasma (citrate) 1 : 13,333. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean Lipocalin-2 concentration was determined to be 293 ng/mL in serum, 290 ng/mL in plasma (EDTA), 560 ng/mL in plasma (heparin) and 4,326 ng/mL in plasma (citrate).

Key facts

Detection method

Colorimetric

Sample types

Urine, Heparin Plasma, Citrate plasma, Cell culture supernatant, Serum, EDTA Plasma

Reacts with

Rat

Assay type

Sandwich (quantitative)

Sensitivity

= 1.9 pg/mL

Range

7.81 - 500 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

Product details

Rat Lipocalin-2 ELISA Kit (ab239422) is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of Lipocalin-2 protein in cell culture supernatant, cit plasma, edta plasma, hep plasma, serum, and urine. It uses our proprietary SimpleStep ELISA® technology. Quantitate Rat Lipocalin-2 with 1.9 pg/ml sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

- Single-wash protocol reduces assay time to 90 minutes or less
- High sensitivity, specificity and reproducibility from superior antibodies
- Fully validated in biological samples
- 96-wells plate breakable into 12 x 8 wells strips

A 384-well SimpleStep ELISA® microplate (ab203359) is available to use as an alternative to the 96-well microplate provided with SimpleStep ELISA® kits.

Precision

[ { "reproducibilityType": "Inter", "sample": "Plasma", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "6.8" }, { "reproducibilityType": "Intra", "sample": "Plasma", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "7" } ]

Recovery

[ { "sample": "Cell culture supernatant", "range": "101 - 111 %", "average": "= 106" }, { "sample": "Serum", "range": "91 - 94 %", "average": "= 92" }, { "sample": "EDTA Plasma", "range": "94 - 101 %", "average": "= 97" }, { "sample": "Urine", "range": "99 - 107 %", "average": "= 102" }, { "sample": "Heparin Plasma", "range": "98 - 103 %", "average": "= 101" }, { "sample": "Citrate plasma", "range": "88 - 93 %", "average": "= 91" }, { "sample": "Cell culture media", "range": "87 - 93 %", "average": "= 90" } ]

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab239422-1x96Tests", "assetComponentDetails": [ { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB239422-CMP07", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB239422-CMP10", "productcode":"" }, { "size":"1 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB239422-CMP05", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB239422-CMP08", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB239422-CMP09", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 4BR", "number":"AB239422-CMP01", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Rat Lipocalin-2 Lyophilized Recombinant Protein", "number":"AB239422-CMP04", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Rat Lipocalin-2 Capture Antibody", "number":"AB239422-CMP02", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Rat Lipocalin-2 Detector Antibody", "number":"AB239422-CMP03", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB239422-CMP06", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C

Product protocols

Target data

Iron-trafficking protein involved in multiple processes such as apoptosis, innate immunity and renal development (By similarity). Binds iron through association with 2,3-dihydroxybenzoic acid (2,3-DHBA), a siderophore that shares structural similarities with bacterial enterobactin, and delivers or removes iron from the cell, depending on the context. Iron-bound form (holo-24p3) is internalized following binding to the SLC22A17 (24p3R) receptor, leading to release of iron and subsequent increase of intracellular iron concentration. In contrast, association of the iron-free form (apo-24p3) with the SLC22A17 (24p3R) receptor is followed by association with an intracellular siderophore, iron chelation and iron transfer to the extracellular medium, thereby reducing intracellular iron concentration. Involved in apoptosis due to interleukin-3 (IL3) deprivation : iron-loaded form increases intracellular iron concentration without promoting apoptosis, while iron-free form decreases intracellular iron levels, inducing expression of the proapoptotic protein BCL2L11/BIM, resulting in apoptosis (By similarity). Involved in innate immunity; limits bacterial proliferation by sequestering iron bound to microbial siderophores, such as enterobactin. Can also bind siderophores from M.tuberculosis (By similarity).
See full target information Lcn2

Publications (2)

Recent publications for all applications. Explore the full list and refine your search

The Journal of veterinary medical science 87:301-307 PubMed39909419

2025

Upregulation of lipocalin-2 in the retina of experimental autoimmune uveitis.

Applications

Unspecified application

Species

Unspecified reactive species

Hyeonju Kim,Meejung Ahn,Kyungsook Jung,Sungmoo Hong,Deokho Ko,Taeyoung Kang,Taekyun Shin,Jeongtae Kim

Journal of orthopaedic surgery and research 17:422 PubMed36123728

2022

Tourniquet use following blast-associated complex lower limb injury and traumatic amputation promotes end organ dysfunction and amplified heterotopic ossification formation.

Applications

Unspecified application

Species

Unspecified reactive species

Philip J Spreadborough,Amy L Strong,John Mares,Benjamin Levi,Thomas A Davis
