AB326403

Rat Lipocalin-2 ELISA Kit, Chemiluminescent

SimpleStep Ignite™ ELISA
Recombinant
What is this?

Be the first to review this product! Submit a review

(0 Publication)

Rat Lipocalin-2 ELISA Kit, Chemiluminescent is a 55-min single-wash SimpleStep Ignite™ ELISA for the rapid quantification of Rat Lipocalin-2 with higher sensitivity and broader measuring range.

- Single 30 min incubation and single-wash step for results in less than an hour.
- Chemiluminescent detection allows a broad dynamic range: 1.83 - 4000 pg/ml with a sensitivity of 0.66pg/mL.
- Design your own immunoassay: we also offer the conjugation-ready antibody pair.
-Patent pending

View Alternative Names

Neutrophil gelatinase-associated lipocalin, NGAL, Alpha-2-microglobulin-related protein, Alpha-2U globulin-related protein, Lipocalin 24p3, Lipocalin-2, Siderocalin LCN2, p25, Lcn2

5 Images

Sandwich ELISA - Rat Lipocalin-2 ELISA Kit, Chemiluminescent (AB326403)

sELISA

Lab

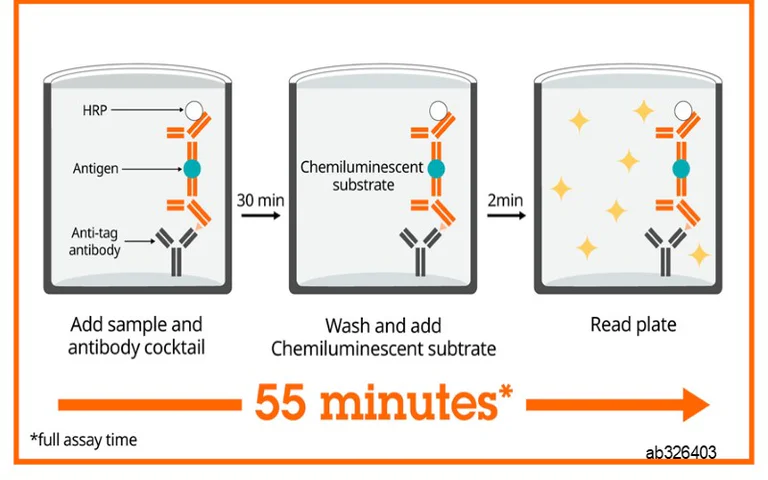

Sandwich ELISA - Rat Lipocalin-2 ELISA Kit, Chemiluminescent (AB326403)

SimpleStep ELISA® Ignite technology allows the formation of the antibody-antigen complex in one single step, reducing assay time to 55 minutes. Add samples or standards and antibody mix to wells all at once, incubate, wash, and add your final substrate. See protocol for a detailed step-by-step guide.

sELISA

Lab

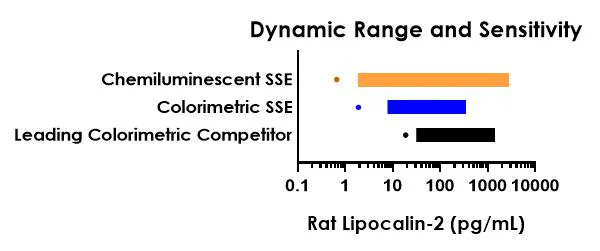

Sandwich ELISA - Rat Lipocalin-2 ELISA Kit, Chemiluminescent (AB326403)

Dynamic range comparison between the Chemiluminescent Rat Lipocalin-2 SimpleStep ELISA, colorimetric Rat Lipocalin-2 SimpleStep ELISA (ab239422), and leading colorimetric competitor. The Chemiluminescent SimpleStep ELISA kit shows increased sensitivity and increased dynamic range.

sELISA

Lab

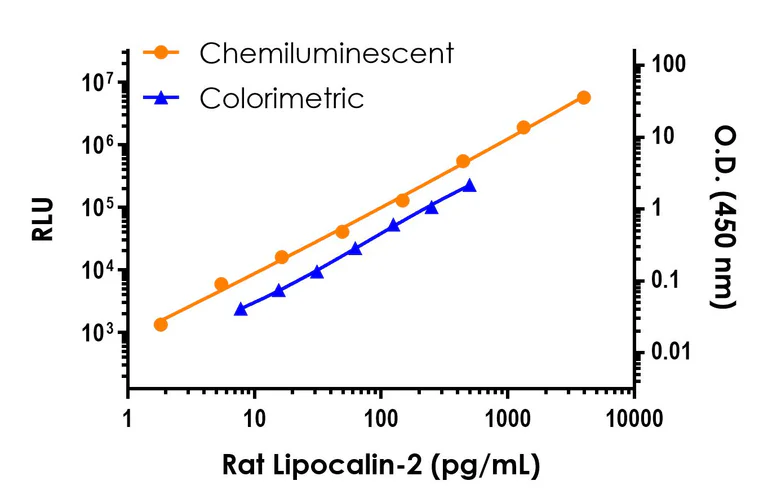

Sandwich ELISA - Rat Lipocalin-2 ELISA Kit, Chemiluminescent (AB326403)

Standard curve comparison between the Chemiluminescent Rat Lipocalin-2 SimpleStep ELISA and colorimetric Rat Lipocalin-2 SimpleStep ELISA (ab239422) in Sample Diluent NS. Background-subtracted data values (mean +/- SD) are graphed.

sELISA

Unknown

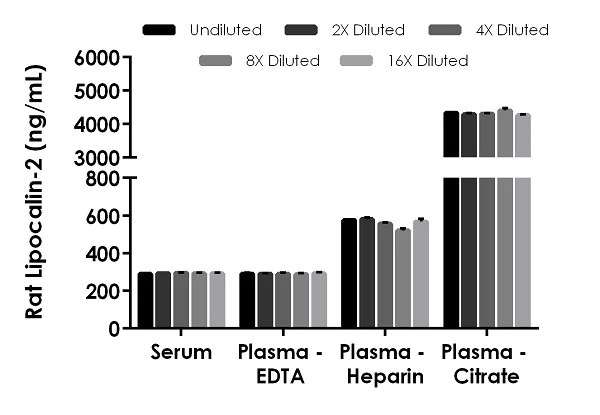

Sandwich ELISA - Rat Lipocalin-2 ELISA Kit, Chemiluminescent (AB326403)

Interpolated concentrations of native Lipocalin-2 in rat serum and plasma samples. The concentrations of Lipocalin-2 were measured in duplicates interpolated from the Lipocalin-2 standard curves and corrected for sample dilution. Undiluted samples are as follows : serum 1 : 500 plasma (EDTA) 1 : 800 plasma (heparin) 1 : 5000 and plasma (citrate) 1 : 13333. The interpolated dilution factor corrected values are plotted (mean +/- SD n=2). The mean Lipocalin-2 concentration was determined to be 293 ng/mL in serum 290 ng/mL in plasma (EDTA) 560 ng/mL in plasma (heparin) and 4326 ng/mL in plasma (citrate).

sELISA

Unknown

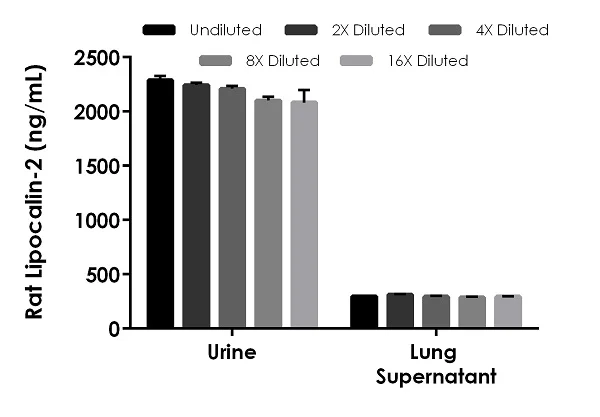

Sandwich ELISA - Rat Lipocalin-2 ELISA Kit, Chemiluminescent (AB326403)

Interpolated concentrations of native Lipocalin-2 in rat urine and lung supernatant samples. The concentrations of Lipocalin-2 were measured in duplicates interpolated from the Lipocalin-2 standard curves and corrected for sample dilution. Undiluted samples are as follows : urine 1 : 10000 and lung cell culture supernatant 1 : 400. The interpolated dilution factor corrected values are plotted (mean +/- SD n=2). The mean Lipocalin-2 concentration was determined to be 2184 ng/mL in urine and 297 ng/mL in lung supernatant.

Key facts

Detection method

Luminescent

Sample types

Cell culture supernatant, Serum, EDTA Plasma, Urine, Heparin Plasma, Citrate plasma, Cell culture media

Reacts with

Rat

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 0.66 pg/mL

Range

1.83 - 4000 pg/mL

Assay time

55m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

style

left-column

Product details

Rat Lipocalin-2 ELISA Kit, Chemiluminescent (ab326403) is a rapid single-wash sandwich 55-min ELISA to measure Rat Lipocalin-2 in Cell culture supernatant, Serum, EDTA Plasma, Urine, Heparin Plasma, Citrate plasma, Cell culture media with a sensitivity of 0.66 pg/mL.

How the assay works

Rat Lipocalin-2 ELISA Kit, Chemiluminescent (ab326403) SimpleStep Ignite™ ELISA employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA^® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step during a 30 min only incubation, significantly reducing assay time. By utilizing a chemiluminscent detection method this improves the sensitivity and dynamic range when compared to traditional colorimetric ELISAs.

Assay Specificity

Our SimpleStep Ignite™ ELISA kits use recombinant monoclonal antibodies rigorously validated to ensure the highest level of consistency and reproducibility, improved sensitivity and specificity and ease of scalability and security of supply.
Please refer to our protocol booklet for more details.

Rat Lipocalin-2 (ab326403) protocol summary

1. Mix : add samples / standards to the wells together with the capture and detector antibody cocktail. Incubate 30 min at room temperature
2. Wash
3. Add ChemiHRP development solution - incubate for 2 min
4. Read the results on a plate reader capable of luminescence detection

Design your own immunoassay

We offer the antibody pair used in this kit in a BSA and Azide-free format, ready for conjugation:

- Anti-Rat Lipocalin 2 (NGAL) antibody [EPR21973-277] - BSA and Aside free (Capture) ab244807
- Anti-Rat Lipocalin 2 (NGAL) antibody [EPR21973-293] - BSA and Aside free (Detector) ab245080

style

left-column

Precision

[ { "reproducibilityType": "Intra", "sample": "Plasma", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 7" }, { "reproducibilityType": "Inter", "sample": "Plasma", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 6.8" } ]

style

left-column

Recovery

[ { "sample": "Cell culture supernatant", "range": "101 - 111 %", "average": "= 106" }, { "sample": "Serum", "range": "91 - 94 %", "average": "= 92" }, { "sample": "EDTA Plasma", "range": "94 - 101 %", "average": "= 97" }, { "sample": "Urine", "range": "99 - 107 %", "average": "= 102" }, { "sample": "Heparin Plasma", "range": "98 - 103 %", "average": "= 101" }, { "sample": "Citrate plasma", "range": "88 - 93 %", "average": "= 91" }, { "sample": "Cell culture media", "range": "87 - 93 %", "average": "= 90" } ]

style

left-column

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab326403-1x96Tests", "assetComponentDetails": [ { "size":"1 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB326403-CMP05", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Rat Lipocalin-2 Capture Antibody", "number":"AB326403-CMP01", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB326403-CMP06", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated Black 96-Well Microplate", "number":"AB326403-CMP09", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB326403-CMP10", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 4BR", "number":"AB326403-CMP04", "productcode":"" }, { "size":"1 x 3 mL", "name":"ChemiHRP Reagent B", "number":"AB326403-CMP08", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Rat Lipocalin-2 Detector Antibody", "number":"AB326403-CMP02", "productcode":"" }, { "size":"1 x 3 mL", "name":"ChemiHRP Reagent A", "number":"AB326403-CMP07", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Rat Lipocalin-2 Lyophilized Recombinant Protein", "number":"AB326403-CMP03", "productcode":"" } ] } } }

style

left-column

Properties and storage information

Shipped at conditions

Blue Ice

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

+4°C

Storage information

+4°C

style

left-column

style

left-column

Product protocols

style

left-column

Target data

Iron-trafficking protein involved in multiple processes such as apoptosis, innate immunity and renal development (By similarity). Binds iron through association with 2,3-dihydroxybenzoic acid (2,3-DHBA), a siderophore that shares structural similarities with bacterial enterobactin, and delivers or removes iron from the cell, depending on the context. Iron-bound form (holo-24p3) is internalized following binding to the SLC22A17 (24p3R) receptor, leading to release of iron and subsequent increase of intracellular iron concentration. In contrast, association of the iron-free form (apo-24p3) with the SLC22A17 (24p3R) receptor is followed by association with an intracellular siderophore, iron chelation and iron transfer to the extracellular medium, thereby reducing intracellular iron concentration. Involved in apoptosis due to interleukin-3 (IL3) deprivation : iron-loaded form increases intracellular iron concentration without promoting apoptosis, while iron-free form decreases intracellular iron levels, inducing expression of the proapoptotic protein BCL2L11/BIM, resulting in apoptosis (By similarity). Involved in innate immunity; limits bacterial proliferation by sequestering iron bound to microbial siderophores, such as enterobactin. Can also bind siderophores from M.tuberculosis (By similarity).

See full target information Lcn2

style

left-column

style

left-column

websiteProtocolBooklet

style

right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.

For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.

For licensing inquiries, please contact partnerships@abcam.com
