AB277086

Rat NLRP3 ELISA Kit

Be the first to review this product! Submit a review

|

(5 Publications)

Rat NLRP3 ELISA Kit is a single-wash 90-min Simplestep used to quantify Rat NLRP3 with a sensitivity of 6.6 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Design your own immunoassay: we also offer the conjugation-ready antibody pair
- Cited in over 5 citations

View Alternative Names

Nlrp3

2 Images
Sandwich ELISA - Rat NLRP3 ELISA Kit (AB277086)
  • sELISA

Supplier Data

Sandwich ELISA - Rat NLRP3 ELISA Kit (AB277086)

Interpolated concentrations of native NLRP3 in rat thymus extract based on a 1,000 μg/mL extract load.

The concentrations of NLRP3 were measured in duplicate and interpolated from the NLRP3 standard curve and corrected for sample dilution. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean NLRP3 concentration was determined to be 51.9 pg/mL in thymus extract.

Sandwich ELISA - Rat NLRP3 ELISA Kit (AB277086)
  • sELISA

Supplier Data

Sandwich ELISA - Rat NLRP3 ELISA Kit (AB277086)

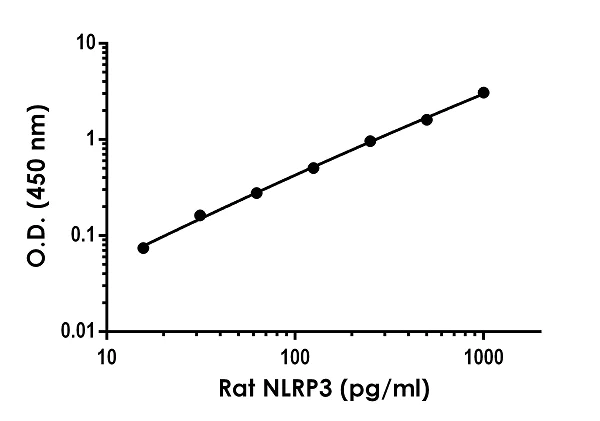

Example of rat NLRP3 standard curve in 1X Cell Extraction Buffer PTR.

The NLRP3 standard curve was prepared as described in Section 10. Raw data values are shown in the table. Background-subtracted data values (mean +/- SD) are graphed.

Key facts

Detection method

Colorimetric

Sample types

Tissue Extracts

Reacts with

Rat

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 6.6 pg/mL

Range

15.63 - 1000 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

Product details

Rat NLRP3 ELISA kit (ab277086) is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of Rat protein in rat cell and tissue extract samples. It uses our proprietary SimpleStep ELISA® technology. Quantitate Rat NLRP3 with 6.6 pg/mL sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

-Single-wash protocol reduces assay time to 90 minutes or less
-High sensitivity, specificity and reproducibility from superior antibodies
-Fully validated in biological samples
-96-wells plate breakable into 12 x 8 wells strips

A 384-well SimpleStep ELISA® microplate (ab203359) is available to use as an alternative to the 96-well microplate provided with SimpleStep ELISA® kits.

NACHT, LRR and PYD domains-containing protein 3 (NLRP3), encoded by the NLRP3 gene, is known to have a vital role in the innate immunity and inflammation. NLRP3 is highly expressed in macrophages and as a component of the inflammasomes in which it functions to detect products of damaged cells and subsequently activates itself to trigger an immune response. Mutations in the NLRP3 has been shown in studies to be associated with a wide spectrum of dominantly inherited autoimmune diseases. This kit has been developed to recognize rat NLRP3.

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

Precision

[ { "reproducibilityType": "Inter", "sample": "Extract", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "8.6" }, { "reproducibilityType": "Intra", "sample": "Extract", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "4.9" } ]

Recovery

[ { "sample": "Tissue Extracts", "range": "104 - 106 %", "average": "= 105" } ]

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab277086-1x96Tests", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB277086-CMP04", "productcode":"" }, { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB277086-CMP05", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB277086-CMP11", "productcode":"" }, { "size":"1 x 12 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB277086-CMP12", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB277086-CMP06", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB277086-CMP10", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Rat NLRP3 Capture Antibody", "number":"AB277086-CMP08", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 4BR", "number":"AB277086-CMP01", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Rat NLRP3 Lyophilized Recombinant Protein", "number":"AB277086-CMP03", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Rat NLRP3 Detector Antibody", "number":"AB277086-CMP09", "productcode":"" }, { "size":"1 x 10 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB277086-CMP07", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

NLRP3 also known as NALP3 or cryopyrin is a protein important for the inflammatory response. It is a component of the inflammasome which senses pathogenic microorganisms and stress. NLRP3 weighs around 118 kDa and is widely expressed in innate immune cells particularly macrophages and dendritic cells. Researchers often use techniques such as 'NLRP3 WB' (Western blot) and 'NLRP3 immunofluorescence' to study NLRP3 expression and localization.
Biological function summary

NLRP3 is central to the body’s defense mechanism by participating in forming the inflammasome complex which activates caspase-1. This activation leads to the cleavage of pro-inflammatory cytokines like IL-1β and IL-18 into their active forms. NLRP3's function is essential for mounting an effective immune response to infections and damage signals. It senses a range of stimuli including crystalline substances and cellular stress triggering an immune response. Its expression is tightly regulated to prevent excessive inflammation.

Pathways

The NLRP3 inflammasome is key in the innate immune response and inflammation pathways. It links cellular stress signals to inflammation through the activation of caspase-1 which is important for the IL-1 signaling pathway. NLRP3 interacts with other proteins like ASC (apoptosis-associated speck-like protein containing a CARD) to form the inflammasome complex which is a core part of the inflammatory signaling pathways and links innate and adaptive immunity.

NLRP3 has a significant role in inflammatory diseases and is linked to conditions like cryopyrin-associated periodic syndromes (CAPS) and gout. Mutations or dysregulation of NLRP3 lead to hyperactivation resulting in autoimmune and autoinflammatory conditions. NLRP3's interaction with IL-1 contributes to the excessive inflammatory response seen in these disorders. Understanding NLRP3's function in these pathways can inform therapeutic approaches targeting chronic inflammatory diseases.

Product protocols

Target data

Sensor component of the NLRP3 inflammasome, which mediates inflammasome activation in response to defects in membrane integrity, leading to secretion of inflammatory cytokines IL1B and IL18 and pyroptosis. In response to pathogens and other damage-associated signals that affect the integrity of membranes, initiates the formation of the inflammasome polymeric complex composed of NLRP3, CASP1 and PYCARD/ASC. Recruitment of pro-caspase-1 (proCASP1) to the NLRP3 inflammasome promotes caspase-1 (CASP1) activation, which subsequently cleaves and activates inflammatory cytokines IL1B and IL18 and gasdermin-D (GSDMD), promoting cytokine secretion and pyroptosis. Activation of NLRP3 inflammasome is also required for HMGB1 secretion; stimulating inflammatory responses (By similarity). Involved in the homeostatic wound healing response to tissue injury, a multistep cascade that guides neutrophil migration to necrotic sites while avoiding collateral damage of healthy tissues. ATP released from necrotic cells triggers activation of NLRP3 inflammasome through P2RX7 signaling leading to neutrophil adhesion to the vascular endothelium close to the injury site (By similarity). Under resting conditions, ADP-bound NLRP3 is autoinhibited (By similarity). NLRP3 activation stimuli include extracellular ATP, nigericin, reactive oxygen species, crystals of monosodium urate or cholesterol, amyloid-beta fibers, environmental or industrial particles and nanoparticles, such as asbestos, silica, aluminum salts, cytosolic dsRNA, etc. Almost all stimuli trigger intracellular K(+) efflux (By similarity). These stimuli lead to membrane perturbation and activation of NLRP3 (By similarity). Upon activation, NLRP3 is transported to microtubule organizing center (MTOC), where it is unlocked by NEK7, leading to its relocalization to dispersed trans-Golgi network (dTGN) vesicle membranes and formation of an active inflammasome complex. Associates with dTGN vesicle membranes by binding to phosphatidylinositol 4-phosphate (PtdIns4P). Shows ATPase activity (By similarity).. Independently of inflammasome activation, regulates the differentiation of T helper 2 (Th2) cells and has a role in Th2 cell-dependent asthma and tumor growth. During Th2 differentiation, required for optimal IRF4 binding to IL4 promoter and for IRF4-dependent IL4 transcription. Binds to the consensus DNA sequence 5'-GRRGGNRGAG-3'. May also participate in the transcription of IL5, IL13, GATA3, CCR3, CCR4 and MAF.
See full target information Nlrp3

Publications (5)

Recent publications for all applications. Explore the full list and refine your search

Scientific reports 14:19171 PubMed39160173

2024

The protective effect of vinpocetine against Estradiol-benzoate induced cervical hyperkeratosis in female rats via modulation of SIRT1/Nrf2, and NLRP3 inflammasome.

Applications

Unspecified application

Species

Unspecified reactive species

Remon R Rofaeil,Reham H Mohyeldin,Ehab E Sharata,Mina Ezzat Attya,Hany Essawy,Osama A Ibrahim,Walaa Yehia Abdelzaher

Theranostics 14:608-621 PubMed38169629

2024

Inactivation of the NLRP3 inflammasome mediates exosome-based prevention of atrial fibrillation.

Applications

Unspecified application

Species

Unspecified reactive species

Sandrine Parent,Ramana Vaka,Jennifer St Amant,Saad Kahn,Sophie Van Remortel,Christina Bi,David Courtman,Duncan John Stewart,Darryl Raymond Davis

Molecular medicine (Cambridge, Mass.) 29:30 PubMed36858954

2023

BMP7 ameliorates intervertebral disc degeneration in type 1 diabetic rats by inhibiting pyroptosis of nucleus pulposus cells and NLRP3 inflammasome activity.

Applications

Unspecified application

Species

Unspecified reactive species

Xiao-Jun Yu,Ying-Guang Wang,Rui Lu,Xin-Zhen Guo,Yun-Kun Qu,Shan-Xi Wang,Hao-Ran Xu,Hao Kang,Hong-Bo You,Yong Xu

Journal of inflammation research 15:3873-3890 PubMed35845091

2022

Benzimidazole Derivatives as New Potential NLRP3 Inflammasome Inhibitors That Provide Neuroprotection in a Rodent Model of Neurodegeneration and Memory Impairment.

Applications

Unspecified application

Species

Unspecified reactive species

Aman Ullah,Lina Tariq Al Kury,Yusuf S Althobaiti,Tahir Ali,Fawad ALi Shah

Journal of inflammation research 15:3643-3660 PubMed35783245

2022

Synthesis, In Silico and Pharmacological Evaluation of New Thiazolidine-4-Carboxylic Acid Derivatives Against Ethanol-Induced Neurodegeneration and Memory Impairment.

Applications

Unspecified application

Species

Unspecified reactive species

Shagufta Naz,Lina Tariq Al Kury,Humaira Nadeem,Fawad Ali Shah,Aman Ullah,Rehan Zafar Paracha,Muhammad Imran,Shupeng Li
View all publications
