AB223858

Rat TIM 1 ELISA Kit (KIM-1)

Be the first to review this product! Submit a review

|

(6 Publications)

Rat TIM 1 ELISA Kit (KIM-1) is a single-wash 90-min Simplestep used to quantify Rat TIM 1 (KIM-1) with a sensitivity of 2.33 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Design your own immunoassay: we also offer the conjugation-ready antibody pair
- Cited in over 5 citations

View Alternative Names

CD365, Kim1, Havcr1, Hepatitis A virus cellular receptor 1 homolog, HAVcr-1, Kidney injury molecule 1, T cell immunoglobulin and mucin domain-containing protein 1, KIM-1, TIMD-1

4 Images
Sandwich ELISA - Rat TIM 1 ELISA Kit (KIM-1) (AB223858)
  • sELISA

Supplier Data

Sandwich ELISA - Rat TIM 1 ELISA Kit (KIM-1) (AB223858)

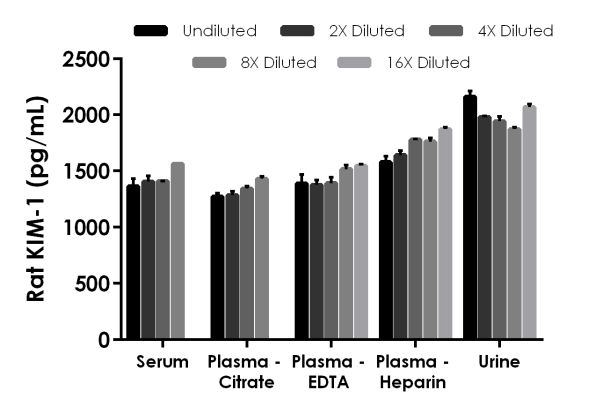

Interpolated concentrations of native KIM-1 in Rat serum, plasma, and urine samples.

The concentrations of KIM-1 were measured in duplicates, interpolated from the KIM-1 standard curves and corrected for sample dilution. Undiluted samples are as follows : serum 25%, plasma (citrate) 25%, plasma (EDTA) 25%, plasma (heparin) 12.5%, and urine 25%. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean KIM-1 concentration was determined to be 1,435 pg/mL in serum, 1,332 pg/mL in plasma (citrate), 1,444 pg/mL in plasma (EDTA), 1,726 pg/mL in plasma (heparin), and 2,005 pg/mL in urine.

Sandwich ELISA - Rat TIM 1 ELISA Kit (KIM-1) (AB223858)
  • sELISA

Supplier Data

Sandwich ELISA - Rat TIM 1 ELISA Kit (KIM-1) (AB223858)

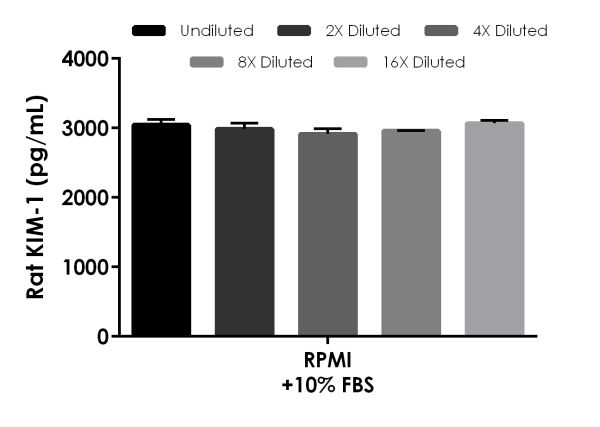

Interpolated concentrations of spiked KIM-1 in cell culture supernatant samples.

The concentrations of KIM-1 were measured in duplicate and interpolated from the KIM-1 standard curve and corrected for sample dilution. Undiluted samples are as follows : RPMI media 50%. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2).

Sandwich ELISA - Rat TIM 1 ELISA Kit (KIM-1) (AB223858)
  • sELISA

Lab

Sandwich ELISA - Rat TIM 1 ELISA Kit (KIM-1) (AB223858)

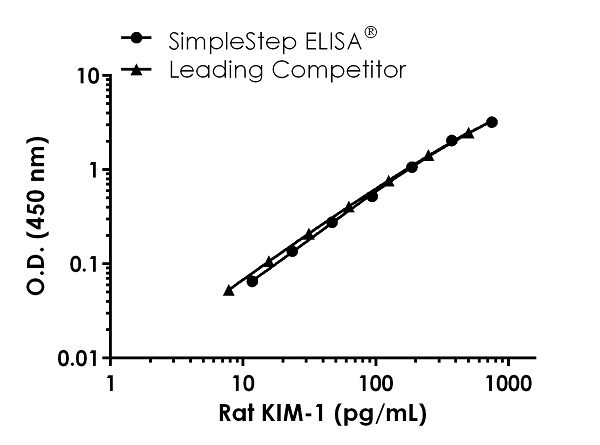

Rat KIM-1 standard curve comparison data.

Standard curve comparison between rat KIM-1 SimpleStep ELISA® kit and traditional ELISA kit from leading competitor. SimpleStep ELISA kit shows comparable sensitivity.

Sandwich ELISA - Rat TIM 1 ELISA Kit (KIM-1) (AB223858)
  • sELISA

Supplier Data

Sandwich ELISA - Rat TIM 1 ELISA Kit (KIM-1) (AB223858)

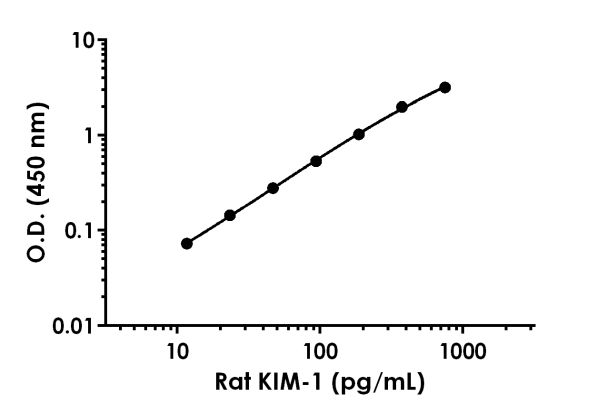

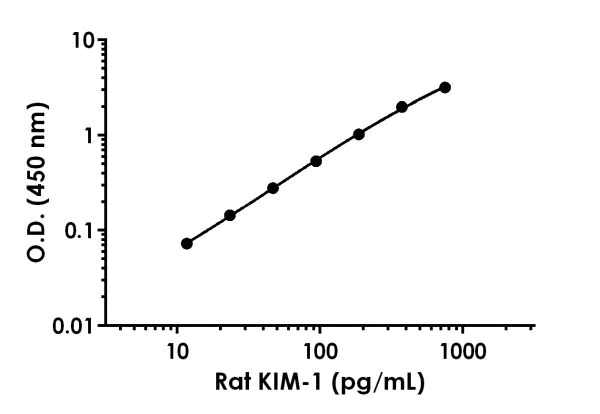

Example of Rat KIM-1 standard curve in Sample Diluent NS.

Background-subtracted data values (mean +/- SD) are graphed.

Key facts

Detection method

Colorimetric

Sample types

Urine, Heparin Plasma, Citrate plasma, Serum, EDTA Plasma

Reacts with

Rat

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 2.33 pg/mL

Range

11.72 - 750 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style
left-column

Complementary Products

Assay Kits

AB239422

Rat Lipocalin-2 ELISA Kit

Recombinant|SimpleStep

Sandwich ELISA - Rat Lipocalin-2 ELISA Kit (AB239422)

  • 0
  • 0
Secondary Antibodies

AB150077

Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488)

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (AB150077)

  • 5
  • 20
Primary Antibodies

AB9485

Anti-GAPDH antibody - Loading Control

BOND RX™ Validated|Lab Essentials

Immunocytochemistry/ Immunofluorescence - Anti-GAPDH antibody - Loading Control (AB9485)

  • 5
  • 88
Primary Antibodies

AB8227

Anti-beta Actin antibody - Loading Control

BOND RX™ Validated|Lab Essentials

Western blot - Anti-beta Actin antibody - Loading Control (AB8227)

  • 5
  • 104
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

Product details

Rat KIM-1 ELISA Kit (ab223858) is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of KIM-1 protein in cit plasma, edta plasma, hep plasma, serum, and urine. It uses our proprietary SimpleStep ELISA® technology. Quantitate Rat KIM-1 with 2.33 pg/ml sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

- Single-wash protocol reduces assay time to 90 minutes or less
- High sensitivity, specificity and reproducibility from superior antibodies
- Fully validated in biological samples
- 96-wells plate breakable into 12 x 8 wells strips

A 384-well SimpleStep ELISA® microplate (ab203359) is available to use as an alternative to the 96-well microplate provided with SimpleStep ELISA® kits.

KIM-1, also known as Kidney Injury Molecule 1 and Hepatitis A virus cellular receptor 1 homolog (HAVcr-1), or T-cell immunoglobulin and mucin domain 1 (TIM-1) is a 283- amino acid protein that contains an N-terminal immunoglobulin-like domain and is encoded by the HAVCR1 gene. KIM-1 is a single-pass type 1 membrane protein has been identified as a receptor for hepatitis A virus. The TIM gene family participates in host immune response. Urinary KIM-1 levels are elevated in nephropathy and is thought to be a biomarker for renal damage.

style
left-column

Precision

[ { "reproducibilityType": "Inter", "sample": "Urine", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "4.3" }, { "reproducibilityType": "Intra", "sample": "Urine", "replicates": 9, "mean": null, "standardDeviation": null, "coefficientOfVariability": "2.4" } ]
style
left-column

Recovery

[ { "sample": "Serum", "range": "95 - 101 %", "average": "= 99" }, { "sample": "EDTA Plasma", "range": "98 - 104 %", "average": "= 101" }, { "sample": "Urine", "range": "102 - 107 %", "average": "= 104" }, { "sample": "Heparin Plasma", "range": "98 - 105 %", "average": "= 102" }, { "sample": "Citrate plasma", "range": "98 - 103 %", "average": "= 100" }, { "sample": "Cell culture media", "range": "100 - 105 %", "average": "= 102" } ]
style
left-column

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab223858-1x96Tests", "assetComponentDetails": [ { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB223858-CMP07", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 5BR", "number":"AB223858-CMP01", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB223858-CMP08", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB223858-CMP10", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB223858-CMP09", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB223858-CMP06", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Rat KIM-1 Detector Antibody", "number":"AB223858-CMP03", "productcode":"" }, { "size":"1 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB223858-CMP05", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Rat KIM-1 Lyophilized Recombinant Protein", "number":"AB223858-CMP04", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Rat KIM-1 Capture Antibody", "number":"AB223858-CMP02", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

TIM 1 also known as T-cell immunoglobulin and mucin domain 1 is a cell surface protein with a molecular mass of approximately 70 to 80 kDa. It is expressed predominantly in activated T cells and some epithelial cells. TIM 1 plays an important role in immune regulation and can be found at the surface of cells in various tissues including the liver and kidney. This protein can interact with other components which can influence immune response in the host.
Biological function summary

The TIM 1 protein functions as a receptor involved in T cell activity modulation and innate immune response regulation. It is known to bind phosphatidylserine on apoptotic cells which fosters communication between dying cells and phagocytes. TIM 1 does not typically exist as part of a larger complex but its interactions with other molecules is important for its role in the immune system. The protein’s activity influences cytokine production and this can affect inflammation processes.

Pathways

TIM 1 is involved in key immune response pathways like the signaling pathways of T cells and the broader adaptive immune response. This protein has been linked with the enhancement of Th2 cytokine production impacting allergic response signaling. It interacts with related proteins like TIM 3 and TIM 4 which together contribute to the fine-tuning of immune responses. Understanding TIM 1 within these pathways helps in grasping its regulatory potential in T-cell mediated immunity.

TIM 1 is implicated in conditions such as asthma and systemic lupus erythematosus (SLE). In asthma improperly regulated Th2 immune responses involve TIM 1 which can exacerbate allergic inflammations. This protein also plays a role in the pathogenesis of SLE a systemic autoimmune disease where TIM 1's regulation of immune tolerance and inflammation is critical. TIM 1’s involvement with other proteins like IL-4 and IL-13 in these disorders further highlights its significance in immune dysregulation processes.
style
left-column

Product protocols

style
left-column

Target data

Phosphatidylserine receptor that plays an important functional role in regulatory B-cell homeostasis including generation, expansion and suppressor functions (By similarity). As P-selectin/SELPLG ligand, plays a specialized role in activated but not naive T-cell trafficking during inflammatory responses. Controls thereby T-cell accumulation in the inflamed central nervous system (CNS) and the induction of autoimmune disease (By similarity). Also regulates expression of various anti-inflammatory cytokines and co-inhibitory ligands including IL10. Acts as a regulator of T-cell proliferation (By similarity). Confers phagocytic ability on injured kidney epithelial cells, allowing them to bind to and internalize apoptotic bodies and necrotic debris following kidney injury (PubMed : 18414680). The ectodomain binds to the surface of apoptotic kidney epithelial cells via phosphatidylserine and oxidized phospholipids exposed on the cell membrane of the apoptotic cells (By similarity). HAVCR1-expressing cells are also capable of phagocytosing Gram-negative and Gram-positive bacteria (By similarity).
See full target information Havcr1
style
left-column

Publications (6)

Recent publications for all applications. Explore the full list and refine your search

International journal of molecular sciences 26: PubMed40243677

2025

Apixaban Inhibits Progression of Experimental Diabetic Nephropathy by Blocking Advanced Glycation End Product-Receptor Axis.

Applications

Unspecified application

Species

Unspecified reactive species

Takanori Matsui,Ami Sotokawauchi,Yuri Nishino,Yoshinori Koga,Sho-Ichi Yamagishi

Biology 13: PubMed39765652

2025

Isoliquiritigenin Prevents the Development of Nephropathy by an HFD in Rats Through the Induction of Antioxidant Production and Inhibition of the MD-2/TLR4/NF-κB Pathway.

Applications

Unspecified application

Species

Unspecified reactive species

Mohammed Abdo Yahya,Ghedeir M Alshammari,Magdi A Osman,Laila Naif Al-Harbi,Setah Naif Alotaibi

Pharmacology research & perspectives 11:e01079 PubMed36971089

2023

Tetrahydrocurcumin Add-On therapy to losartan in a rat model of diabetic nephropathy decreases blood pressure and markers of kidney injury.

Applications

Unspecified application

Species

Unspecified reactive species

Mahyar Khazaeli,Ane C F Nunes,Yitong Zhao,Mahziar Khazaali,John Prudente,Nosratola D Vaziri,Bhupinder Singh,Wei Ling Lau

Scientific reports 11:15625 PubMed34341389

2021

Protective effect of glycyrrhizin, a direct HMGB1 inhibitor, on post-contrast acute kidney injury.

Applications

Unspecified application

Species

Unspecified reactive species

Hyewon Oh,Arom Choi,Nieun Seo,Joon Seok Lim,Je Sung You,Yong Eun Chung

Biomedicine & pharmacotherapy = Biomedecine & pharmacotherapie 139:111683 PubMed34243631

2021

Effect of suramin on urinary excretion of diabetes-induced glomerular and tubular injury parameters in rats.

Applications

Unspecified application

Species

Unspecified reactive species

K Sałaga-Zaleska,P Pikul,E Kreft,S Herman,G Chyła,K Dąbkowski,A Kuchta,M Lenartowicz,M Jankowski

IUBMB life 72:2121-2132 PubMed32710811

2020

Oleuropein protects against lipopolysaccharide-induced sepsis and alleviates inflammatory responses in mice.

Applications

Unspecified application

Species

Unspecified reactive species

Khalaf F Alsharif,Abdulraheem A Almalki,Osama Al-Amer,Ahmad H Mufti,Abdulrahman Theyab,Maha S Lokman,Shimaa S Ramadan,Rafa S Almeer,Mohamed M Hafez,Rami B Kassab,Ahmed E Abdel Moneim
View all publications
