AB326300

Rat TIM 1 (KIM-1) ELISA Kit, Chemiluminescent

Be the first to review this product! Submit a review

|

(0 Publication)

Rat TIM 1 (KIM-1) ELISA Kit, Chemiluminescent is a 55-min single-wash SimpleStep Ignite™ ELISA for the rapid quantification of Rat TIM 1 (KIM-1) with higher sensitivity and broader measuring range.

- Single 30 min incubation and single-wash step for results in less than an hour.
- Chemiluminescent detection allows a broad dynamic range: 2.29 - 5000 pg/ml with a sensitivity of 0.56pg/mL.
- Design your own immunoassay: we also offer the conjugation-ready antibody pair.
-Patent pending

View Alternative Names

CD365, Kim1, Havcr1, Hepatitis A virus cellular receptor 1 homolog, HAVcr-1, Kidney injury molecule 1, T cell immunoglobulin and mucin domain-containing protein 1, KIM-1, TIMD-1

5 Images
Sandwich ELISA - Rat TIM 1 (KIM-1) ELISA Kit, Chemiluminescent (AB326300)
  • sELISA

Lab

Sandwich ELISA - Rat TIM 1 (KIM-1) ELISA Kit, Chemiluminescent (AB326300)

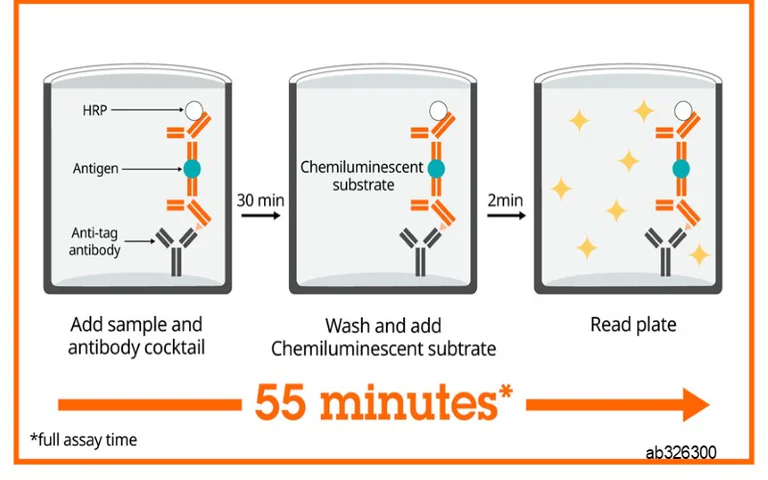

SimpleStep ELISA® Ignite technology allows the formation of the antibody-antigen complex in one single step, reducing assay time to 55 minutes. Add samples or standards and antibody mix to wells all at once, incubate, wash, and add your final substrate. See protocol for a detailed step-by-step guide.

Sandwich ELISA - Rat TIM 1 (KIM-1) ELISA Kit, Chemiluminescent (AB326300)
  • sELISA

Lab

Sandwich ELISA - Rat TIM 1 (KIM-1) ELISA Kit, Chemiluminescent (AB326300)

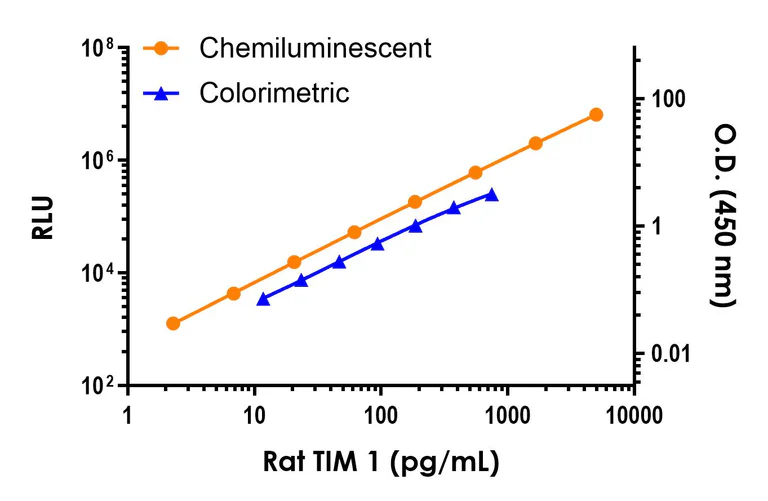

Standard curve comparison between the Chemiluminescent Rat TIM 1 SimpleStep ELISA and colorimetric Rat TIM 1 SimpleStep ELISA (ab223858) in Sample Diluent NS. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Rat TIM 1 (KIM-1) ELISA Kit, Chemiluminescent (AB326300)
  • sELISA

Lab

Sandwich ELISA - Rat TIM 1 (KIM-1) ELISA Kit, Chemiluminescent (AB326300)

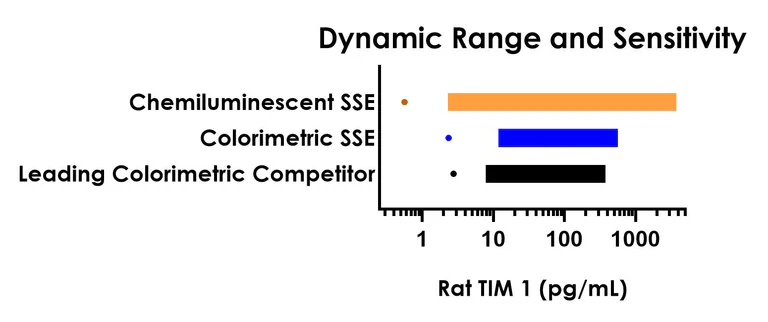

Dynamic range comparison between the Chemiluminescent Rat TIM 1 SimpleStep ELISA, colorimetric Rat TIM 1 SimpleStep ELISA (ab223858), and leading colorimetric competitor. The Chemiluminescent SimpleStep ELISA kit shows increased sensitivity and increased dynamic range.

Sandwich ELISA - Rat TIM 1 (KIM-1) ELISA Kit, Chemiluminescent (AB326300)
  • sELISA

Supplier Data

Sandwich ELISA - Rat TIM 1 (KIM-1) ELISA Kit, Chemiluminescent (AB326300)

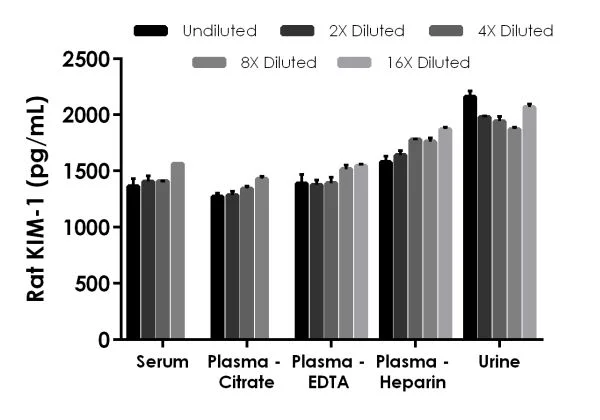

Interpolated concentrations of native KIM-1 in Rat serum plasma and urine samples.

The concentrations of KIM-1 were measured in duplicates interpolated from the KIM-1 standard curves and corrected for sample dilution. Undiluted samples are as follows : serum 25% plasma (citrate) 25% plasma (EDTA) 25% plasma (heparin) 12.5% and urine 25%. The interpolated dilution factor corrected values are plotted (mean +/- SD n=2). The mean KIM-1 concentration was determined to be 1435 pg/mL in serum 1332 pg/mL in plasma (citrate) 1444 pg/mL in plasma (EDTA) 1726 pg/mL in plasma (heparin) and 2005 pg/mL in urine.

Sandwich ELISA - Rat TIM 1 (KIM-1) ELISA Kit, Chemiluminescent (AB326300)
  • sELISA

Supplier Data

Sandwich ELISA - Rat TIM 1 (KIM-1) ELISA Kit, Chemiluminescent (AB326300)

Interpolated concentrations of spiked KIM-1 in cell culture supernatant samples.

The concentrations of KIM-1 were measured in duplicate and interpolated from the KIM-1 standard curve and corrected for sample dilution. Undiluted samples are as follows : RPMI media 50%. The interpolated dilution factor corrected values are plotted (mean +/- SD n=2).

Key facts

Detection method

Luminescent

Sample types

Serum, Citrate plasma, EDTA Plasma, Heparin Plasma, Cell culture media, Urine

Reacts with

Rat

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 0.56 pg/mL

Range

2.29 - 5000 pg/mL

Assay time

55m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

Product details

Rat TIM 1 (KIM-1) ELISA Kit, Chemiluminescent (ab326300) is a rapid single-wash sandwich 55-min ELISA to measure Rat TIM 1 (KIM-1) in Serum, Plasma – Citrate, Plasma – EDTA, Plasma – Heparin, Cell Culture Media, Urine with a sensitivity of 0.56 pg/mL.

How the assay works

Rat TIM 1 (KIM-1) ELISA Kit, Chemiluminescent (ab326300) SimpleStep Ignite™ ELISA employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step during a 30 min only incubation, significantly reducing assay time. By utilizing a chemiluminscent detection method this improves the sensitivity and dynamic range when compared to traditional colorimetric ELISAs.

Assay Specificity

Our SimpleStep Ignite™ ELISA kits use recombinant monoclonal antibodies rigorously validated to ensure the highest level of consistency and reproducibility, improved sensitivity and specificity and ease of scalability and security of supply.
Please refer to our protocol booklet for more details.

Rat TIM 1 (KIM-1) (ab326300) protocol summary

1. Mix : add samples / standards to the wells together with the capture and detector antibody cocktail. Incubate 30 min at room temperature
2. Wash
3. Add ChemiHRP development solution - incubate for 2 min
4. Read the results on a plate reader capable of luminescence detection

Design your own immunoassay

We offer the antibody pair used in this kit in a BSA and Azide-free format, ready for conjugation:

- Anti-TIM-1/KIM-1/HAVCR antibody [EPR20700-62_1] - BSA and Aside free (Capture) ab244664
- Anti-TIM-1/KIM-1/HAVCR antibody [EPR20700-70] - BSA and Aside free (Detector) ab244929
style
left-column

Precision

[ { "reproducibilityType": "Intra", "sample": "Urine", "replicates": 9, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 2.4" }, { "reproducibilityType": "Inter", "sample": "Urine", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 4.3" } ]
style
left-column

Recovery

[ { "sample": "Serum", "range": "95 - 101 %", "average": "= 99" }, { "sample": "EDTA Plasma", "range": "98 - 104 %", "average": "= 101" }, { "sample": "Citrate plasma", "range": "98 - 103 %", "average": "= 100" }, { "sample": "Heparin Plasma", "range": "98 - 105 %", "average": "= 102" }, { "sample": "Urine", "range": "102 - 107 %", "average": "= 104" }, { "sample": "Cell culture media", "range": "100 - 105 %", "average": "= 102" } ]
style
left-column

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab326300-1x96Tests", "assetComponentDetails": [ { "size":"1 x 600 µL", "name":"10X Rat KIM-1 Detector Antibody", "number":"AB326300-CMP02", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB326300-CMP10", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 5BR", "number":"AB326300-CMP04", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Rat KIM-1 Capture Antibody", "number":"AB326300-CMP01", "productcode":"" }, { "size":"1 x 3 mL", "name":"ChemiHRP Reagent B", "number":"AB326300-CMP08", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB326300-CMP06", "productcode":"" }, { "size":"1 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB326300-CMP05", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated Black 96-Well Microplate", "number":"AB326300-CMP09", "productcode":"" }, { "size":"1 x 3 mL", "name":"ChemiHRP Reagent A", "number":"AB326300-CMP07", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Rat KIM-1 Lyophilized Recombinant Protein", "number":"AB326300-CMP03", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C
style
left-column
style
left-column

Product protocols

style
left-column

Target data

Phosphatidylserine receptor that plays an important functional role in regulatory B-cell homeostasis including generation, expansion and suppressor functions (By similarity). As P-selectin/SELPLG ligand, plays a specialized role in activated but not naive T-cell trafficking during inflammatory responses. Controls thereby T-cell accumulation in the inflamed central nervous system (CNS) and the induction of autoimmune disease (By similarity). Also regulates expression of various anti-inflammatory cytokines and co-inhibitory ligands including IL10. Acts as a regulator of T-cell proliferation (By similarity). Confers phagocytic ability on injured kidney epithelial cells, allowing them to bind to and internalize apoptotic bodies and necrotic debris following kidney injury (PubMed : 18414680). The ectodomain binds to the surface of apoptotic kidney epithelial cells via phosphatidylserine and oxidized phospholipids exposed on the cell membrane of the apoptotic cells (By similarity). HAVCR1-expressing cells are also capable of phagocytosing Gram-negative and Gram-positive bacteria (By similarity).
See full target information Havcr1
