Human CD94 Antibody Pair - BSA and Azide free is a kit containing recombinant capture and detector antibodies in a carrier-free formulation for the measurement of Human CD94.

Be the first to review this product! Submit a review

Images

Sandwich ELISA - Human CD94 Antibody Pair - BSA and Azide free (AB307328), expandable thumbnail

Key facts

Assay type
ELISA set
Reactive species
Human
Range
3.9 - 500 pg/mL

Reactivity data

Application
sELISA
Reactivity
Reacts
Dilution info
-
Notes

-

Target data

Function

Immune receptor involved in self-nonself discrimination. In complex with KLRC1 or KLRC2 on cytotoxic and regulatory lymphocyte subsets, recognizes non-classical major histocompatibility (MHC) class Ib molecule HLA-E loaded with self-peptides derived from the signal sequence of classical MHC class Ia and non-classical MHC class Ib molecules (PubMed:10023772, PubMed:18064301, PubMed:18083576, PubMed:37264229, PubMed:9486650, PubMed:9754572). Enables cytotoxic cells to monitor the expression of MHC class I molecules in healthy cells and to tolerate self (PubMed:12387742, PubMed:18064301, PubMed:9430220). Primarily functions as a ligand binding subunit as it lacks the capacity to signal. KLRD1-KLRC1 acts as an immune inhibitory receptor. Key inhibitory receptor on natural killer (NK) cells that regulates their activation and effector functions (PubMed:30860984, PubMed:9430220, PubMed:9485206, PubMed:9486650). Dominantly counteracts T cell receptor signaling on a subset of memory/effector CD8-positive T cells as part of an antigen-driven response to avoid autoimmunity (PubMed:12387742). On intraepithelial CD8-positive gamma-delta regulatory T cells triggers TGFB1 secretion, which in turn limits the cytotoxic programming of intraepithelial CD8-positive alpha-beta T cells, distinguishing harmless from pathogenic antigens (PubMed:18064301). In HLA-E-rich tumor microenvironment, acts as an immune inhibitory checkpoint and may contribute to progressive loss of effector functions of NK cells and tumor-specific T cells, a state known as cell exhaustion (PubMed:30503213, PubMed:30860984). Upon HLA-E-peptide binding, transmits intracellular signals through KLRC1 immunoreceptor tyrosine-based inhibition motifs (ITIMs) by recruiting INPP5D/SHIP-1 and INPPL1/SHIP-2 tyrosine phosphatases to ITIMs, and ultimately opposing signals transmitted by activating receptors through dephosphorylation of proximal signaling molecules (PubMed:12165520, PubMed:9485206). KLRD1-KLRC2 acts as an immune activating receptor (PubMed:15940674, PubMed:9655483). On cytotoxic lymphocyte subsets recognizes HLA-E loaded with signal sequence-derived peptides from non-classical MHC class Ib HLA-G molecules, likely playing a role in the generation and effector functions of adaptive NK cells and in maternal-fetal tolerance during pregnancy (PubMed:30134159, PubMed:9754572). Regulates the effector functions of terminally differentiated cytotoxic lymphocyte subsets, and in particular may play a role in adaptive NK cell response to viral infection (PubMed:20952657, PubMed:21825173). Upon HLA-E-peptide binding, transmits intracellular signals via the adapter protein TYROBP/DAP12, triggering the phosphorylation of proximal signaling molecules and cell activation (PubMed:15940674, PubMed:9655483). (Microbial infection) Viruses like human cytomegalovirus have evolved an escape mechanism whereby virus-induced down-regulation of host MHC class I molecules is coupled to the binding of viral peptides to HLA-E, restoring HLA-E expression and inducing HLA-E-dependent NK cell immune tolerance to infected cells. Recognizes HLA-E in complex with human cytomegalovirus UL40-derived peptide (VMAPRTLIL) and inhibits NK cell cytotoxicity. (Microbial infection) May recognize HLA-E in complex with HIV-1 gag/Capsid protein p24-derived peptide (AISPRTLNA) on infected cells and may inhibit NK cell cytotoxicity, a mechanism that allows HIV-1 to escape immune recognition. (Microbial infection) Upon SARS-CoV-2 infection, may contribute to functional exhaustion of cytotoxic NK cells and CD8-positive T cells (PubMed:32859121). On NK cells, may recognize HLA-E in complex with SARS-CoV-2 S/Spike protein S1-derived peptide (LQPRTFLL) expressed on the surface of lung epithelial cells, inducing NK cell exhaustion and dampening antiviral immune surveillance (PubMed:32859121).

Alternative names

Recommended products

Human CD94 Antibody Pair - BSA and Azide free is a kit containing recombinant capture and detector antibodies in a carrier-free formulation for the measurement of Human CD94.

Key facts

Assay type
ELISA set
Reactive species
Human
Range
3.9 - 500 pg/mL
Assay Platform
Reagents

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C

Notes

Human CD94 Antibody Pair - BSA and Azide free (ab307328) is a matched pair of unconjugated recombinant rabbit monoclonal capture and detection antibodies used to (quantify human CD94) in sandwich ELISAs and many other pair-based applications.

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with <1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

The pair can be used in variety of assays and platforms including but not limited to:

  • Sandwich ELISA
  • FRET/TR-FRET/HTRF
  • Meso Scale Discovery® (MSD®)
  • Bead-based assays
  • AlphaLISA®/AlphaScreen®
  • DELFIA® immunoassays
  • Simoa® and Single Molecule Counting (SMC™) immunoassays
  • Multiplex

Our antibody pairs are supplied in a carrier-free format that is conjugation-ready:

  • Buffer free of BSA, sodium azide, and glycerol for higher conjugation efficiency.
  • Concentration of ~1 mg/ml as measured by the protein A280 method.

We can label antibodies for you: get in touch today to discuss how we can help accelerate your assay development with custom conjugation services.

Pairs are screened in biological samples, including plasma and serum, to ensure specificity in complex samples.

Please note:

The recommended antibody orientation is based on internal optimization in sandwich ELISA. Antibody orientation is assay dependent and needs to be optimized for each assay type.

The range provided for this antibody pair is based on initial sandwich ELISA validation data using recombinant protein. Performance and range of the antibody pair will depend on the specific characteristics of your assay, including standard protein selection.

We guarantee the product works in sandwich ELISA, but we do not guarantee the sensitivity or dynamic range of the antibodies in other assays.

Antibody properties:

Capture antibody: recombinant rabbit monoclonal (unconjugated) – 100 µg

Detector antibody: recombinant rabbit monoclonal (unconjugated) - 100 µg

Concentration: ~1 mg/ml

Storage buffer: 100% PBS

Form: Liquid

Isotype: IgG

Recombinant monoclonal antibodies offer several advantages including:

- High batch-to-batch consistency and reproducibility

- Improved sensitivity and specificity

- Long-term security of supply

- Animal-free production

Meso Scale Discovery and MSD are registered trademarks of Meso Scale Diagnostics, LLC.

AlphaLISA, AlphaScreen, and DELFIA are registered trademarks of PerkinElmer, Inc.

Simoa is a registered trademark of Quanterix, Inc.

SMC is a registered trademark of Merck KGaA, Darmstadt, Germany.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

CD94 also known as killer cell lectin-like receptor subfamily D member 1 (KLRD1) plays a significant mechanical role in the immune system. This protein forms part of a receptor family involved in natural killer (NK) cell function. CD94 typically assembles on the cell surface as a heterodimer often pairing with NKG2 proteins. Weighing approximately 30 kDa CD94 mainly exhibits expression on NK cells and a subset of T cells where it contributes to immune regulation.

Biological function summary

CD94 is essential in recognizing and binding to non-classical MHC class I molecules when it pairs with NKG2 molecules such as NKG2A or NKG2C. This dimer forms a complex receptor which plays an important role in modulating NK cell activity. Through this receptor complex CD94 influences the immune response by either inhibiting or activating NK cells depending on its NKG2 partner. This regulation helps maintain a balanced immune response preventing excessive activation and autoimmunity.

Pathways

CD94 interacts with the signaling pathways related to the immune response. In particular it is involved in the natural killer cell lectin-like receptor signaling pathway. This pathway manages the activation and inhibition of NK cells integrating signals received through various receptors including CD94/NKG2 dimers. Associated proteins like DAP12 may amplify these signals which ultimately influence cytotoxic activities and cytokine production.

Associated diseases and disorders

CD94 has notable connections with conditions such as cancer and viral infections. For example certain tumors manipulate CD94 expression on NK cells to evade immune surveillance. Additionally alterations in CD94 and its partner molecules like NKG2A have been observed in viral infections possibly affecting how the immune system responds. Understanding CD94's relationship with these diseases can offer insights into potential therapeutic strategies targeting immune regulation.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

1 product image

  • Sandwich ELISA - Human CD94 Antibody Pair - BSA and Azide free (ab307328), expandable thumbnail

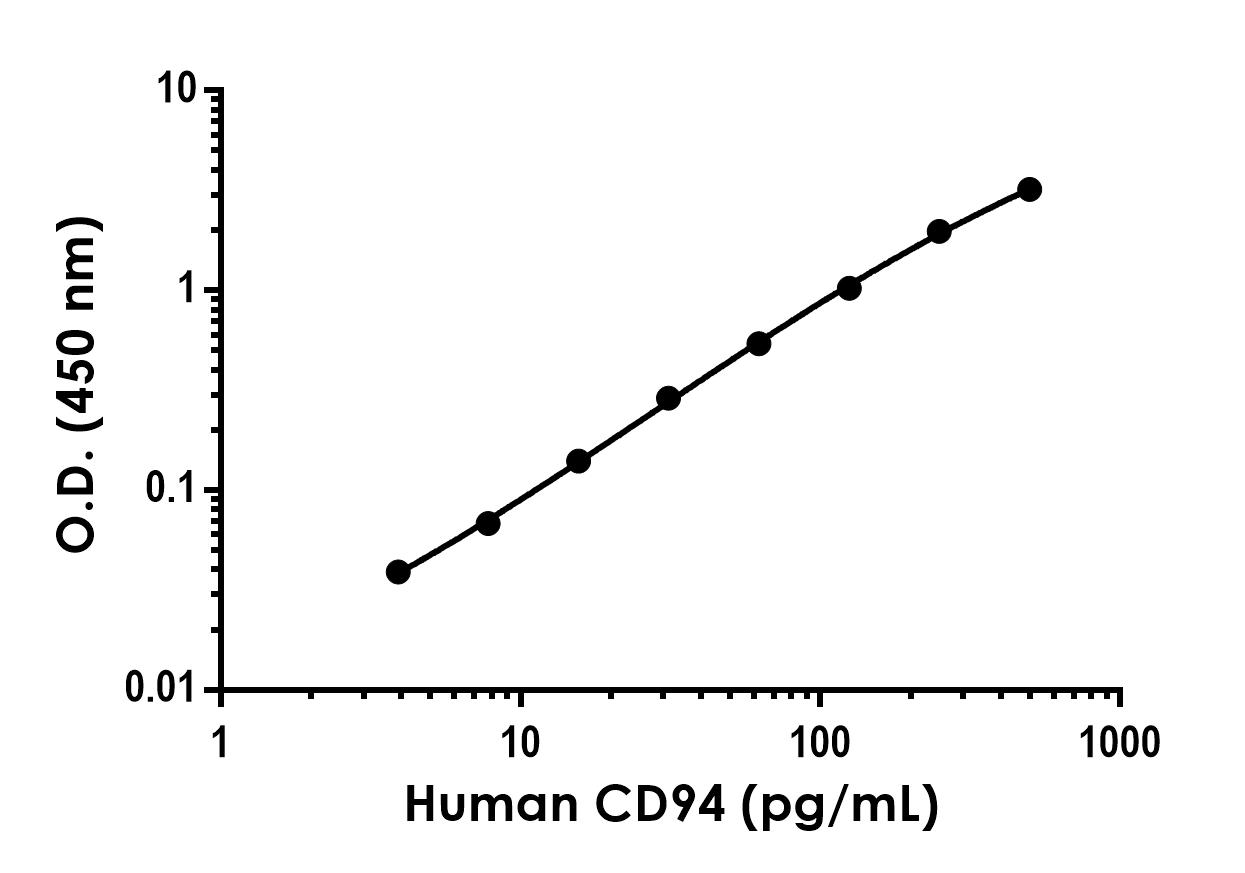

    Sandwich ELISA - Human CD94 Antibody Pair - BSA and Azide free (ab307328)

    Sandwich ELISA of ab307328 with the capture antibody dilution at 2μg/mL and detector antibody dilution at 0.5 μg/mL.
