Anti-Aconitase 2 antibody [6F12BD9]

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-Aconitase 2 antibody [6F12BD9] (AB110321)

ab110321 at 1μg/ml staining Aconitase 2 in HDFn cells by Immunocytochemistry (4% paraformaldehyde fixed and 0.1% Triton X-100 permeabilized) followed by Alexa Fluor® 594 goat anti-mouse IgG (H+L) used at a 1/1000 dilution for 1 hour (red).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Aconitase 2 antibody [6F12BD9] (AB110321)

IHC image of Aconitase 2 staining in Human normal colon formalin fixed paraffin embedded tissue section, performed on a Leica BondTM system using the standard protocol F. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20 mins. The section was then incubated with ab110321, 5μg/ml, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX.

For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

• Flow Cyt

Unknown

Flow Cytometry - Anti-Aconitase 2 antibody [6F12BD9] (AB110321)

ab110321 at 1µg/ml staining Aconitase 2 in HeLa cells by Flow Cytometry (blue). Isotype control antibody (red).

• WB

Lab

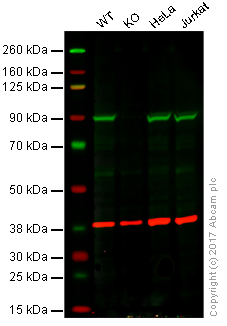

Western blot - Anti-Aconitase 2 antibody [6F12BD9] (AB110321)

Lane 1 : Wild-type HAP1 whole cell lysate (20 μg)
Lane 2 : Aconitase 2 knockout HAP1 whole cell lysate (20 μg)
Lane 3 : HeLa whole cell lysate (20 μg)

Lane 4 : Jurkat whole cell lysate (20 μg)

Lanes 1 - 4 : Merged signal (red and green). Green - ab110321 observed at 90 kDa. Red - loading control, ab181602, observed at 37 kDa.

ab110321 was shown to specifically react with Aconitase 2 in wild-type HAP1 cells as signal was lost in Aconitase 2 knockout cells. Wild-type and Aconitase 2 knockout samples were subjected to SDS-PAGE. ab110321 and ab181602 (Rabbit anti-GAPDH loading control) were incubated overnight at 4°C at 1 μg/ml and 1/20000 dilution respectively. Blots were developed with Goat anti-Mouse IgG H&L (IRDye^® 800CW) preabsorbed ab216772 and Goat anti-Rabbit IgG H&L (IRDye^® 680RD) preabsorbed ab216777 secondary antibodies at 1/20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-Aconitase 2 antibody [6F12BD9] (ab110321)

Predicted band size: 85 kDa

false

• WB

Unknown

Western blot - Anti-Aconitase 2 antibody [6F12BD9] (AB110321)

All lanes:

Western blot - Anti-Aconitase 2 antibody [6F12BD9] (ab110321) at 1 µg/mL

Lane 1:

HepG2 (human) at 20 µg

Lane 2:

HeLa (human) at 20 µg

Lane 3:

H9C2 (rat cardiomyocyte) at 20 µg

Lane 4:

MEF (mouse fibroblast) at 20 µg

Predicted band size: 85 kDa

false
