Anti-active YAP1 antibody [EPR19812] - BSA and Azide free

• IHC

Lab

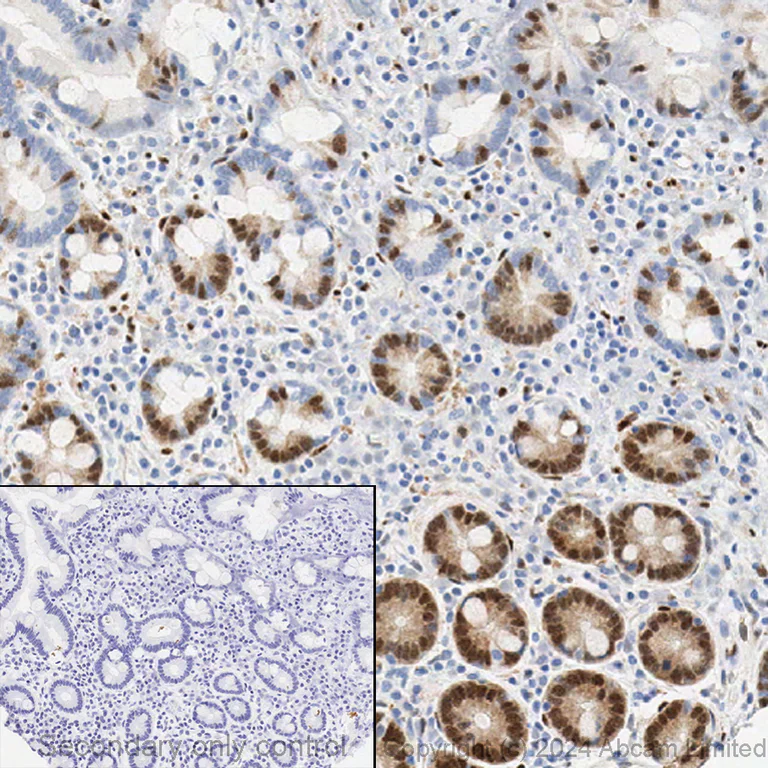

Immunohistochemistry - Anti-active YAP1 antibody [EPR19812] - BSA and Azide free (AB223126)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab205270).

Immunohistochemical analysis of formalin fixed paraffin embedded human colon labelling active YAP1 with ab205270 at a concentration of 0.09 µg/ml. The immunostaining was performed on a Ventana DISCOVERY ULTRA (Roche Tissue Diagnostics) instrument with a OptiView DAB IHC Detection Kit. Heat mediated antigen retrieval was performed with DISCOVERY cell conditioning solution (CC1) 100°C, pH 8.5 for 32 mins.

ab205270 Anti-active YAP1 antibody [EPR19812] was incubated for 16 mins at 37°C. Sections were counterstained with Hematoxylin II. Image inset shows absence of staining in secondary antibody only control.

Customers are encouraged to optimise antigen retrieval conditions, antibody concentration, incubation times and temperature for best results in their own IHC assay workflow (automated and manual).

• ICC/IF

Lab

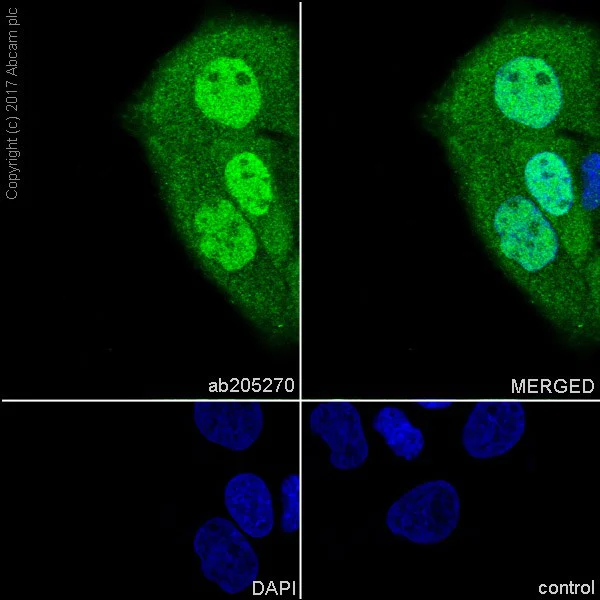

Immunocytochemistry/ Immunofluorescence - Anti-active YAP1 antibody [EPR19812] - BSA and Azide free (AB223126)

ab205270 staining active YAP1 in HUVEC (human umbilical vein endothelial cell) cells by Immunocytochemistry/Immunofluorescence (ICC/IF). The cells were fixed 4% Paraformaldehyde and permeabilized with 0.1% TritonX-100. Samples were incubated with primary antibody at 1 : 500 dilution. An Alexa Fluor^® 488 Goat anti-Rabbit was used as a secondary antibody at 1 : 1000 dilution. DAPI was used as a nuclear counter stain. Confocal image showing nuclear and cytoplasmic staining in HUVEC cells.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab205270).

• IHC-P

Supplier Data

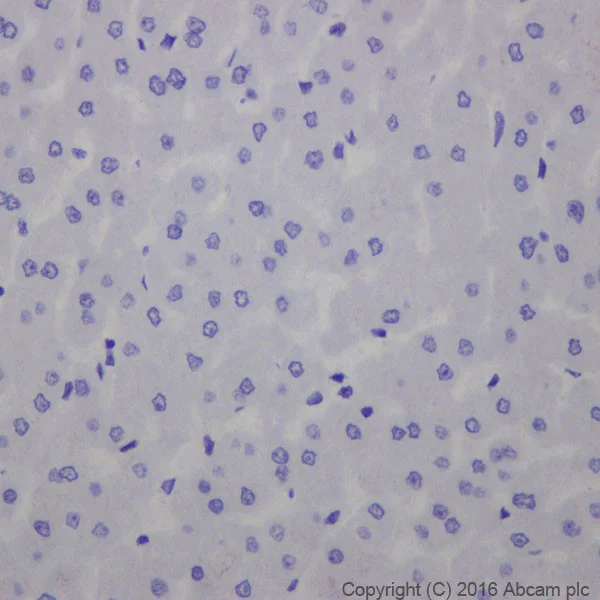

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-active YAP1 antibody [EPR19812] - BSA and Azide free (AB223126)

Immunohistochemical analysis of paraffin-embedded human liver tissue labeling active YAP1 with ab205270 at 1/2000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Negative control : no staining on human liver [PMID : 17974916].

Counter stained with Hematoxylin.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab205270).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-active YAP1 antibody [EPR19812] - BSA and Azide free (AB223126)

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton/PBS permeabilized (RT, 5 mins) 293A (Human epithelial cell line from embryonic kidney transformed with sheared human adenovirus type 5 DNA) cells labeling active YAP1 with ab205270 at 1/500 dilution, followed by Goat anti-rabbit IgG (Alexa Fluor^® 594) secondary antibody at 1/1000 dilution.

The images showed nuclear staining on 293A cells, and background staining on YAP/TAZ knockout 293A cells.

The data was kindly provided by our collaborator Dr. Bin Zhao (Zhejiang University).

The nuclear counterstain is DAPI (blue). Counterstained with Phalloidin-technology^® Alexa Fluor 488 at 1/1000 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab205270).

• ICC/IF

Supplier Data

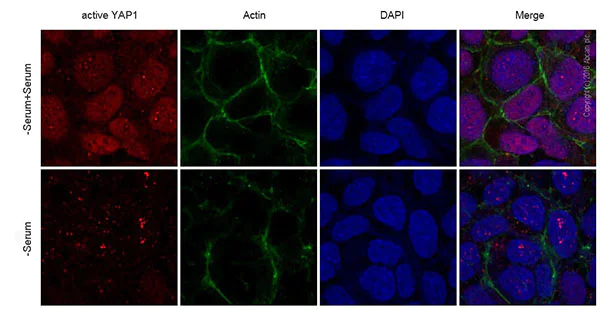

Immunocytochemistry/ Immunofluorescence - Anti-active YAP1 antibody [EPR19812] - BSA and Azide free (AB223126)

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton/PBS permeabilized (RT, 5 mins) 293A (Human epithelial cell line from embryonic kidney transformed with sheared human adenovirus type 5 DNA) cells labeling active YAP1 with ab205270 at 1/500 dilution, followed by Goat anti-rabbit IgG (Alexa Fluor^® 594) secondary antibody at 1/1000 dilution.

The images showed weak staining on 293A cells under serum starvation overnight. After 10% FBS was added to the medium for 1h, the nuclear staining was increased.

The data was kindly provided by our collaborator Dr. Bin Zhao (Zhejiang University).

The nuclear counterstain is DAPI (blue). Counterstained with Phalloidin-technology^® Alexa Fluor 488 at 1/1000 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab205270).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-active YAP1 antibody [EPR19812] - BSA and Azide free (AB223126)

Immunohistochemical analysis of paraffin-embedded human breast cancer tissue labeling active YAP1 with ab205270 at 1/2000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Nuclear and cytoplasmic staining on human breast cancer is observed [PMID : 24559095].

Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab205270).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-active YAP1 antibody [EPR19812] - BSA and Azide free (AB223126)

Immunohistochemical analysis of paraffin-embedded human breast tissue labeling active YAP1 with ab205270 at 1/2000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Mainly nuclear staining on human breast is observed [PMID : 18617895].

Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab205270).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

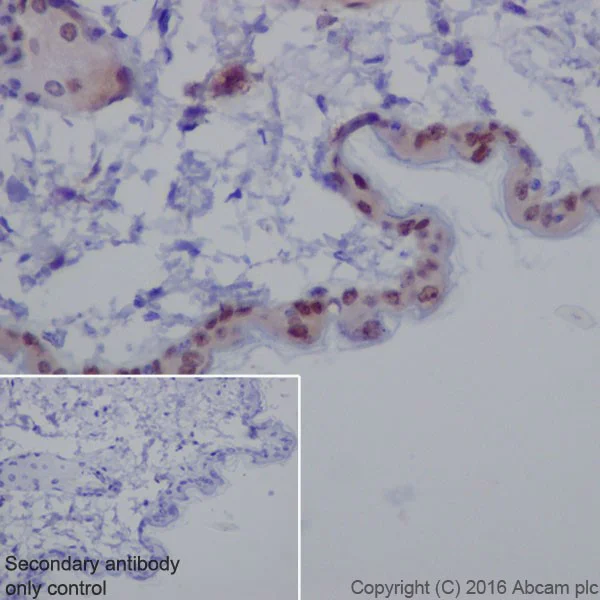

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-active YAP1 antibody [EPR19812] - BSA and Azide free (AB223126)

Immunohistochemical analysis of paraffin-embedded mouse skin tissue labeling active YAP1 with ab205270 at 1/2000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Mainly nuclear staining on mouse skin is observed [PMID : 21610251].

Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab205270).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• WB

Lab

Western blot - Anti-active YAP1 antibody [EPR19812] - BSA and Azide free (AB223126)

Lanes 1 - 3 : Merged signal (red and green). Green - ab205270 observed at 54 kDa. Red - loading control, ab9484, observed at 37 kDa.

ab205270 was shown to recognize YAP1 in wild-type HAP1 cells as signal was lost at the expected MW in YAP1 knockout cells. Additional cross-reactive bands were observed in the wild-type and knockout cells. Wild-type and YAP1 knockout samples were subjected to SDS-PAGE. ab205270 and ab9484 (Mouse anti-GAPDH loading control) were incubated overnight at 4°C at 1 μg/ml and 1/20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preabsorbed ab216773 and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preabsorbed ab216776 secondary antibodies at 1/20000 dilution for 1 hour at room temperature before imaging.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab205270).

All lanes:

Western blot - Anti-active YAP1 antibody [EPR19812] (<a href='/en-us/products/primary-antibodies/active-yap1-antibody-epr19812-ab205270'>ab205270</a>) at 1 µg/mL

Lane 1:

Wild-type HAP1 whole cell lysate at 20 µg

Lane 2:

YAP1 knockout HAP1 whole cell lysate at 20 µg

Lane 3:

HeLa whole cell lysate at 20 µg

Predicted band size: 54 kDa
