AB316852

Anti-Adenovirus Type 5 Hexon antibody [EPR28237-57]

BOND RX™ Validated
20ul selling size
Recombinant
RabMAb
What is this?

Be the first to review this product! Submit a review

(1 Publication)

Rabbit Recombinant Monoclonal CAPSH antibody. Suitable for WB, IHC-P, ICC/IF, Flow Cyt (Intra), IP, I-ELISA and reacts with Transfected cell lysate - Human adenovirus 5, Transfected cell line - Human adenovirus 5, Synthetic peptide - Human adenovirus 5 samples. Cited in 1 publication.

View Alternative Names

Hexon protein, CP-H, Protein II, L3

10 Images

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Adenovirus Type 5 Hexon antibody [EPR28237-57] (AB316852)

IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Adenovirus Type 5 Hexon antibody [EPR28237-57] (AB316852)

Immunohistochemical analysis of paraffin-embedded (A) HEK-293T (human embryonic kidney epithelial cell) transfected with a Adenovirus Type 5 Hexon expression vector containing a myc-His-tag®. (B) HEK-293T transfected with empty vector containing a myc-His-tag®. tissue labeling Adenovirus Type 5 Hexon with ab316852 at 1/500 (0.998 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Positive staining on (A) HEK-293T transfected with a Adenovirus Type 5 Hexon vector containing a myc-His-tag®. No staining on (B) HEK-293T transfected with empty vector containing a myc-His-tag®.
The section was incubated with ab316852 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

Immunocytochemistry/ Immunofluorescence - Anti-Adenovirus Type 5 Hexon antibody [EPR28237-57] (AB316852)

ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-Adenovirus Type 5 Hexon antibody [EPR28237-57] (AB316852)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized 293T (human embryonic kidney epithelial cell) transfected with an Adenovirus Type 5 Hexon vector containing a myc-His-tag®. cells labelling Adenovirus Type 5 Hexon with ab316852 at 1/4000 (0.125 ug/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 (2 ug/ml) dilution (Green).

Confocal image showing positive staining in 293T cells transfected with an Adenovirus Type 5 Hexon vector containing a myc-His-tag®.
Image was taken with a confocal microscope(Leica-Microsystems, TCS SP8).

ab223894 Anti-Myc tag mouse monoclonal antibody (Alexa Fluor® 594) was used to counterstain at 1/100 (5ug/ml) dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Secondary antibody is ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 (2 ug/ml) dilution.

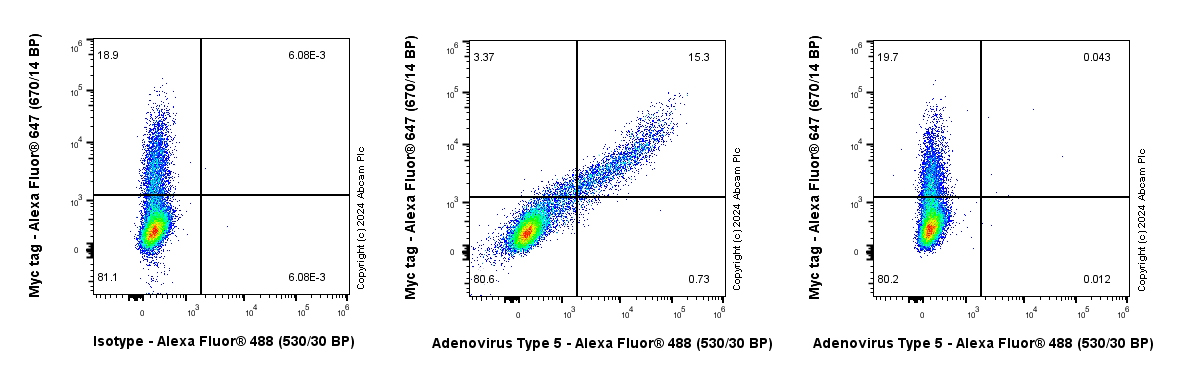

Flow Cytometry (Intracellular) - Anti-Adenovirus Type 5 Hexon antibody [EPR28237-57] (AB316852)

Flow Cyt (Intra)

Supplier Data

Flow Cytometry (Intracellular) - Anti-Adenovirus Type 5 Hexon antibody [EPR28237-57] (AB316852)

Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized Isotype (Left) / 293T cells transfected with HAdV-5 Hexon vector containing a myc-His-tag® (Middle) / 293T cells transfected with an epmty vector containing a myc-His-tag® (Right) cells labelling Adenovirus Type 5 Hexon with ab316852 at 1/5000 dilution (0.01 ug)/Middle and Right compared with a Rabbit monoclonal IgG (ab172730) / Left isotype control.

Goat Anti-Rabbit IgG (Alexa Fluor® 488, ab150081) at 1/5000 dilution was used as the secondary antibody.

Cells were stained with anti-myc tag conjugated to Alexa Fluor®647.

IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Adenovirus Type 5 Hexon antibody [EPR28237-57] (AB316852)

Immunohistochemical analysis of paraffin-embedded Human pancreas tissue labeling Adenovirus Type 5 Hexon with ab316852 at 1/500 (0.998 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

No staining on human pancreas.
The section was incubated with ab316852 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with citrate buffer (pH 9.0, epitope retrieval solution 2) for 20 mins

IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Adenovirus Type 5 Hexon antibody [EPR28237-57] (AB316852)

Immunohistochemical analysis of paraffin-embedded Mouse pancreas tissue labeling Adenovirus Type 5 Hexon with ab316852 at 1/500 (0.998 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

No staining on mouse pancreas.
The section was incubated with ab316852 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Adenovirus Type 5 Hexon antibody [EPR28237-57] (AB316852)

Immunohistochemical analysis of paraffin-embedded Rat pancreas tissue labeling Adenovirus Type 5 Hexon with ab316852 at 1/500 (0.998 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

No staining on rat pancreas.
The section was incubated with ab316852 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

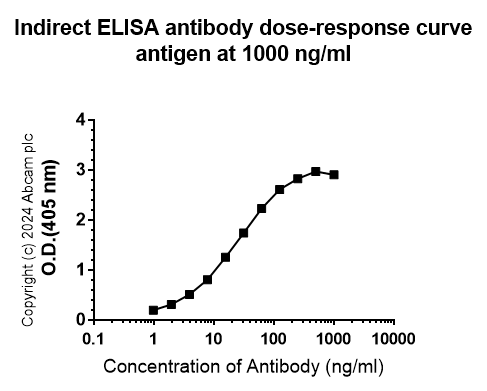

Indirect ELISA - Anti-Adenovirus Type 5 Hexon antibody [EPR28237-57] (AB316852)

I-ELISA

Supplier Data

Indirect ELISA - Anti-Adenovirus Type 5 Hexon antibody [EPR28237-57] (AB316852)

Indirect ELISA analysis of ab316852 at 1000-0 ng/ml. The Secondary antibody used was Alkaline Phosphatase-conjugated AffiniPure Goat Anti-Rabbit IgG (H+L) at 1 : 2500 dilution.

Antigen : Adenovirus Type 5 Hexon.

Antigen concentration : 1000 ng/ml

Supplier Data

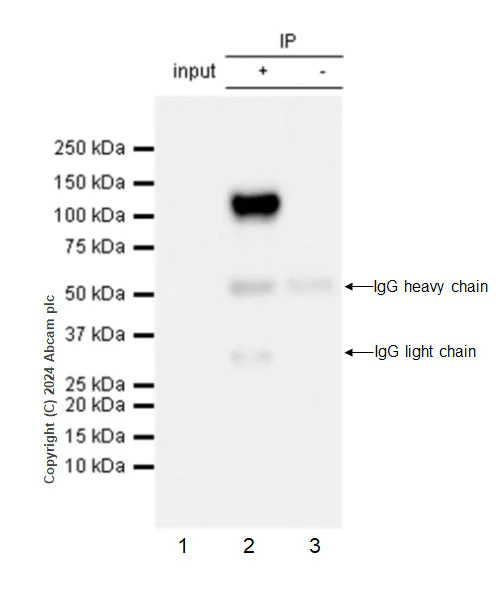

Immunoprecipitation - Anti-Adenovirus Type 5 Hexon antibody [EPR28237-57] (AB316852)

Adenovirus Type 5 Hexon was immunoprecipitated from 0.35 mg 293T (human embryonic kidney epithelial cell) cells transfected with a Adenovirus Type 5 Hexon expression vector containing a myc-His-tag®, whole cell lysate with ab316852 at 1/30 dilution (2ug in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab316852 at 1/1000 dilution. VeriBlot for IP secondary antibody(HRP)(ab131366) was used at 1/5000 dilution.

Lane 1 : 293T (human embryonic kidney epithelial cell) cells transfected with a Adenovirus Type 5 Hexon expression vector containing a myc-His-tag®, whole cell lysate
Lane 2 : ab316852 IP in 293T (human embryonic kidney epithelial cell) cells transfected with a Adenovirus Type 5 Hexon expression vector containing a myc-His-tag®, whole cell lysate
Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab316852 in 293T cells transfected with a Adenovirus Type 5 Hexon expression vector containing a myc-His-tag®, whole cell lysate

All lanes:

Immunoprecipitation - Anti-Adenovirus Type 5 Hexon antibody [EPR28237-57] (ab316852) at 1/30 dilution

All lanes:

293T (human embryonic kidney epithelial cell) cells transfected with a Adenovirus Type 5 Hexon expression vector containing a myc-His-tag®, whole cell lysate

Secondary

All lanes:

Immunoprecipitation - VeriBlot for IP Detection Reagent (HRP) (<a href='/en-us/products/reagents/veriblot-for-ip-detection-reagent-hrp-ab131366'>ab131366</a>) at 1/5000 dilution

false

Exposure time: 10s

Supplier Data

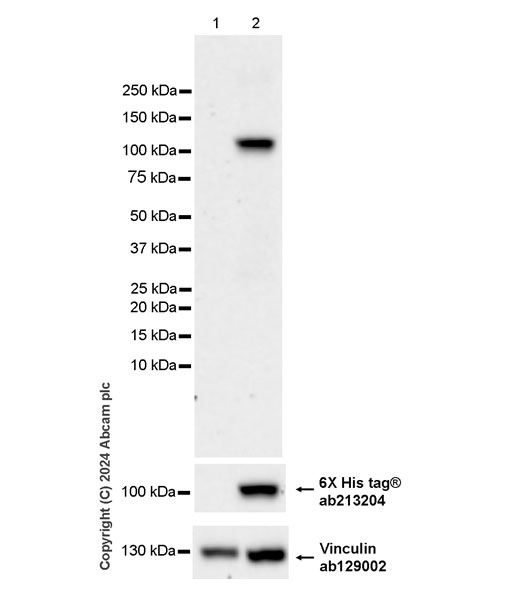

Western blot - Anti-Adenovirus Type 5 Hexon antibody [EPR28237-57] (AB316852)

In Western blot, Anti-Vinculin antibody [EPR8185] (ab129002) staining at 1/10000 dilution.

In Western blot, Anti-6X His tag® antibody [EPR20547] - ChIP Grade (ab213204) staining at 1/5000 dilution.

All lanes:

Western blot - Anti-Adenovirus Type 5 Hexon antibody [EPR28237-57] (ab316852) at 1/1000 dilution

Lane 1:

293T cells (human embryonic kidney epithelial cell) transfected with an empty vector containing a myc-His-tag®, whole cell lysate at 20 µg

Lane 2:

293T cells transfected with a Adenovirus Type 5 Hexon expression vector containing a myc-His-tag®, whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 108 kDa,104 kDa

false

Exposure time: 81s

Supplier Data

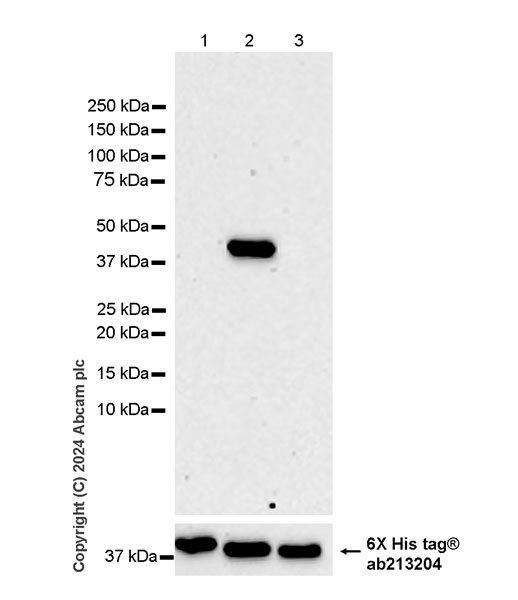

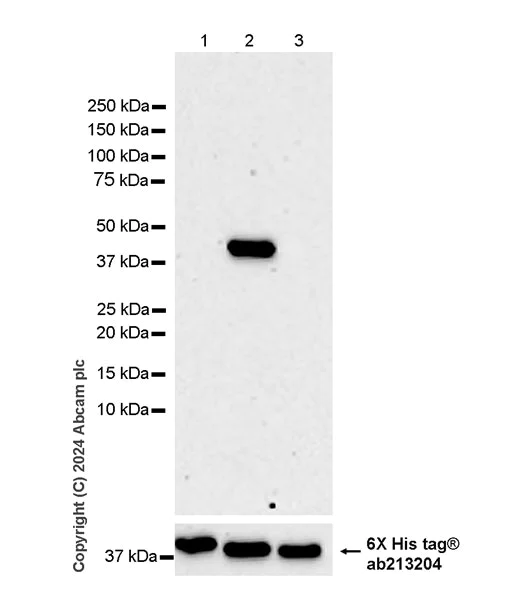

Western blot - Anti-Adenovirus Type 5 Hexon antibody [EPR28237-57] (AB316852)

This antibody does not cross-react with Adenovirus Type 2 Hexon and Adenovirus Type 4 Hexon.

In Western blot, Anti-6X His tag® antibody [EPR20547] - ChIP Grade (ab213204) staining at 1/5000 dilution.

All lanes:

Western blot - Anti-Adenovirus Type 5 Hexon antibody [EPR28237-57] (ab316852) at 1/1000 dilution

Lane 1:

His-tagged Adenovirus Type 2 Hexon protein at 10 ng

Lane 2:

His-tagged Adenovirus Type 5 Hexon protein at 10 ng

Lane 3:

His-tagged Adenovirus Type 4 Hexon protein at 10 ng

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 36 kDa

false

Exposure time: 180s

Carrier free

Anti-Adenovirus Type 5 Hexon antibody [EPR28237-57] - BSA and Azide free

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR28237-57

Isotype

IgG

Carrier free

Reacts with

Human adenovirus 5

Applications

I-ELISA, ICC/IF, Flow Cyt (Intra), IHC-P, IP, WB

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style

left-column

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "FlowCytIntra" : {"fullname" : "Flow Cytometry (Intracellular)", "shortname":"Flow Cyt (Intra)"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"}, "IELISA" : {"fullname" : "Indirect ELISA", "shortname":"I-ELISA"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human adenovirus 5": { "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "", "IHCP-species-checked": "predicted", "IHCP-species-dilution-info": "", "IHCP-species-notes": "", "ICCIF-species-checked": "predicted", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "FlowCytIntra-species-checked": "predicted", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "IP-species-checked": "predicted", "IP-species-dilution-info": "", "IP-species-notes": "", "IELISA-species-checked": "predicted", "IELISA-species-dilution-info": "", "IELISA-species-notes": "" }, "Synthetic peptide - Human adenovirus 5": { "WB-species-checked": "notRecommended", "WB-species-dilution-info": "", "WB-species-notes": "", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "FlowCytIntra-species-checked": "notRecommended", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "", "IELISA-species-checked": "testedAndGuaranteed", "IELISA-species-dilution-info": "1 µg/mL", "IELISA-species-notes": "" }, "Transfected cell line - Human adenovirus 5": { "WB-species-checked": "notRecommended", "WB-species-dilution-info": "", "WB-species-notes": "", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "1/500", "IHCP-species-notes": " Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.", "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "1/4000", "ICCIF-species-notes": "", "FlowCytIntra-species-checked": "testedAndGuaranteed", "FlowCytIntra-species-dilution-info": "1/5000", "FlowCytIntra-species-notes": "", "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "", "IELISA-species-checked": "notRecommended", "IELISA-species-dilution-info": "", "IELISA-species-notes": "" }, "Transfected cell lysate - Human adenovirus 5": { "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/1000", "WB-species-notes": "", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "FlowCytIntra-species-checked": "notRecommended", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "IP-species-checked": "testedAndGuaranteed", "IP-species-dilution-info": "1/30", "IP-species-notes": "", "IELISA-species-checked": "notRecommended", "IELISA-species-dilution-info": "", "IELISA-species-notes": "" } } }

style

left-column

Product details

Patented technology
Our RabMAb^® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb^® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

For more information, read more on recombinant antibodies.

style

left-column

Properties and storage information

Form

Liquid

Purification technique

Affinity purification Protein A

Storage buffer

pH: 7.2 - 7.4 Preservative: 0.01% Sodium azide Constituents: PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA

Shipped at conditions

Blue Ice

Appropriate short-term storage duration

1-2 weeks

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

-20°C

Aliquoting information

Upon delivery aliquot

Storage information

Avoid freeze / thaw cycle

style

left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

The Adenovirus Type 5 hexon also known as hexon protein or 5 protein is a major structural component of adenovirus capsid with a mass of approximately 960 kDa. Hexon proteins form the outer shell of the virus giving it stability and shape. These proteins are heavily expressed on the surface of human adenovirus serotype 5 a common virus strain used in therapeutic vector development. Hexon comprises three regions: the hypervariable regions conserved regions and the base that interacts with other capsid proteins.

Biological function summary

Adenovirus hexon proteins participate in the assembly and stability of the virus capsid complex. The hexon proteins interact with other components like penton base and fiber proteins to form a robust and protective viral coat. Their function involves binding to cell surface receptors such as the coxsackievirus and adenovirus receptor (CAR) allowing the virus to attach to and enter host cells. This interaction is key in viral infections and also in viral vector efficiency.

Pathways

The adenovirus Type 5 hexon protein plays important roles in immune evasion and viral entry pathways. The hexon protein helps the virus escape host immune detection by eluding neutralizing antibodies. The internal pathways also involve interactions with proteins like E1A which modulates host cell cycle pathways for viral replication. These interactions integrate hexon proteins into the broader adenoviral life cycle and infection processes.

Infections involving adenovirus Type 5 relate to respiratory illnesses and conjunctivitis. Respiratory infections often occur in crowded environments such as schools and military barracks and the hexon protein's interaction with the immune system can exacerbate symptoms. Additionally due to its prevalent role in viral vector design research on hexon relates to gene therapy contexts scrutinizing how hexon modifications impact disease treatment and host immune response. Hemagglutinin might connect to respiratory disorders linked to adenovirus making it also relevant in developing therapies.

style

left-column

style

left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Visit the General protocols
Visit the Troubleshooting

style

left-column

Target data

Major capsid protein that self-associates to form 240 hexon trimers, each in the shape of a hexagon, building most of the pseudo T=25 capsid. Assembled into trimeric units with the help of the chaperone shutoff protein. Transported by pre-protein VI to the nucleus where it associates with other structural proteins to form an empty capsid. Might be involved, through its interaction with host dyneins, in the intracellular microtubule-dependent transport of incoming viral capsid to the nucleus.

See full target information L3

style

left-column

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

Cancer immunology research 12:1640-1654 PubMed39093821

2024

An Engineered Self-biomineralized Oncolytic Adenovirus Induces Effective Antitumor Immunity and Synergizes With Immune Checkpoint Blockade.

Applications

Unspecified application

Species

Unspecified reactive species

Shibing Wang,Xue Yang,Ying-Yu Ma,Junjie Wu,Ketao Jin,Ruibo Zhao,Hai Zou,Xiaozhou Mou
