AB249293

Anti-ADRM1/ARM-1 antibody [EPR11449(B)] - BSA and Azide free

  • BOND RX™ Validated
  • RabMAb
  • Recombinant
  • KO Validated
  • What is this?

Be the first to review this product! Submit a review

|

(0 Publication)

Rabbit Recombinant Monoclonal ADRM1/ARM-1 antibody. Carrier free. Suitable for IHC-P, IP, Flow Cyt, WB, ICC/IF and reacts with Human samples.

View Alternative Names

GP110, ADRM1, Proteasomal ubiquitin receptor ADRM1, 110 kDa cell membrane glycoprotein, Adhesion-regulating molecule 1, Proteasome regulatory particle non-ATPase 13, Rpn13 homolog, Gp110, ARM-1, hRpn13

8 Images
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ADRM1/ARM-1 antibody [EPR11449(B)] - BSA and Azide free (AB249293)
  • IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ADRM1/ARM-1 antibody [EPR11449(B)] - BSA and Azide free (AB249293)

This data was developed using ab157185, the same antibody clone in a different buffer formulation.
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human gastric cancer tissue sections labeling ADRM1/ARM-1 with Purified ab157185 at 1 : 9000 (0.07 μg/ml). Heat mediated antigen retrieval was performed using Heat mediated antigen retrieval using Bond™ Epitope Retrieval Solution 2 (pH 9.0) . Tissue was counterstained with Hematoxylin. Rabbit specific IHC polymer detection kit HRP/DAB (ab209101) secondary antibody was used at 1 : 0 dilution. PBS instead of the primary antibody was used as the negative control.

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ADRM1/ARM-1 antibody [EPR11449(B)] - BSA and Azide free (AB249293)
  • IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ADRM1/ARM-1 antibody [EPR11449(B)] - BSA and Azide free (AB249293)

This data was developed using ab157185, the same antibody clone in a different buffer formulation.
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human liver tissue sections labeling ADRM1/ARM-1 with Purified ab157185 at 1 : 9000 (0.07 μg/ml). Heat mediated antigen retrieval was performed using Heat mediated antigen retrieval using Bond™ Epitope Retrieval Solution 2 (pH 9.0) . Tissue was counterstained with Hematoxylin. Rabbit specific IHC polymer detection kit HRP/DAB (ab209101) secondary antibody was used at 1 : 0 dilution. PBS instead of the primary antibody was used as the negative control.

Immunocytochemistry/ Immunofluorescence - Anti-ADRM1/ARM-1 antibody [EPR11449(B)] - BSA and Azide free (AB249293)
  • ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-ADRM1/ARM-1 antibody [EPR11449(B)] - BSA and Azide free (AB249293)

This data was developed using ab249293, the same antibody clone in a different buffer formulation.
Immunocytochemistry analysis of K-562 (Human chronic myelogenous leukemia lymphoblast) cells labeling ADRM1/ARM-1 with Purified ab249293 at 1 : 1000 dilution (0.6 μg/ml). Cells were fixed in 100% Methanol and permeabilized with 0.1% tritonX-100. Cells were counterstained with ab195889 Anti-alpha Tubulin antibody [DM1A]+H21 : L21 - Microtubule Marker (Alexa Fluor® 594) 1 : 200 (2.5 μg/ml). Goat anti rabbit IgG (Alexa Fluor® 488, ab150077) was used as the secondary antibody at 1 : 1000 (2 μg/ml) dilution. DAPI (blue) was used as nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.

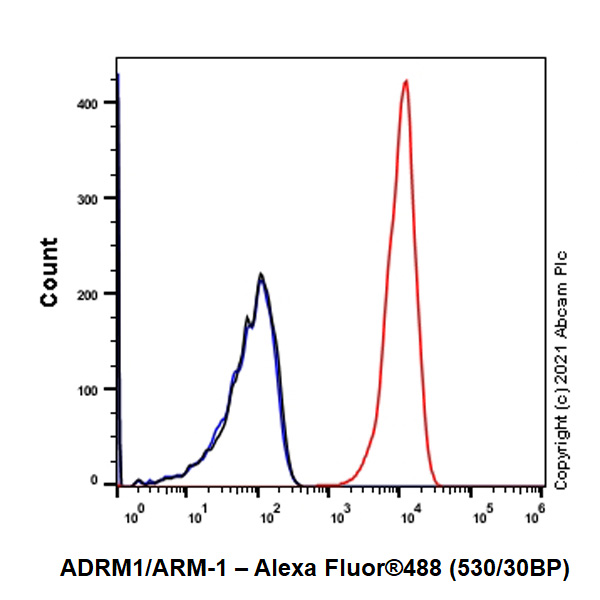

Flow Cytometry - Anti-ADRM1/ARM-1 antibody [EPR11449(B)] - BSA and Azide free (AB249293)
  • Flow Cyt

Lab

Flow Cytometry - Anti-ADRM1/ARM-1 antibody [EPR11449(B)] - BSA and Azide free (AB249293)

This data was developed using ab249293, the same antibody clone in a different buffer formulation.
Flow Cytometry analysis of K-562 (Human chronic myelogenous leukemia lymphoblast) cells labelling ADRM1/ARM-1 with Purified ab249293 at 1 : 60 dilution (10 μg/ml) (Red). Cells were fixed with 4% Paraformaldehyde and permeabilised with 90% Methanol. A Goat anti rabbit IgG (Alexa Fluor® 488, ab150081) secondary antibody was used at 1 : 2000. Isotype control - Rabbit monoclonal IgG (Black). Unlabelled control - Cell without incubation with primary antibody and secondary antibody (Blue).

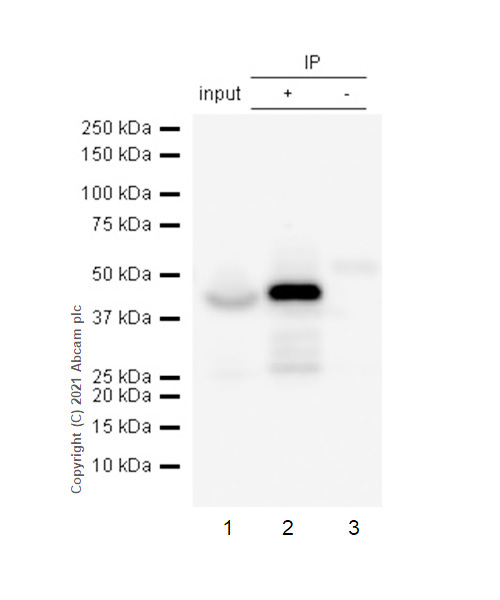

Immunoprecipitation - Anti-ADRM1/ARM-1 antibody [EPR11449(B)] - BSA and Azide free (AB249293)
  • IP

Lab

Immunoprecipitation - Anti-ADRM1/ARM-1 antibody [EPR11449(B)] - BSA and Azide free (AB249293)

This data was developed using ab157185, the same antibody clone in a different buffer formulation.ADRM1/ARM-1 was immunoprecipitated from 0.35 mg Raji (Human Burkitt's lymphoma B lymphocyte) whole cell lysate 10 µg with ab157185 at 1/100 dilution (2µg). VeriBlot for IP Detection Reagent (HRP)(ab131366) was used at 1/5000 dilution.

Lane 1 : Raji (Human Burkitt's lymphoma B lymphocyte) whole cell lysate 10 µg

Lane 2 : abab157185 IP in Raji whole cell lysate

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab157185 in Raji whole cell lysate

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

All lanes:

Immunoprecipitation - Anti-ADRM1/ARM-1 antibody [EPR11449(B)] (<a href='/en-us/products/primary-antibodies/adrm1-arm-1-antibody-epr11449b-ab157185'>ab157185</a>)

Predicted band size: 42 kDa

Observed band size: 42 kDa

false

Western blot - Anti-ADRM1/ARM-1 antibody [EPR11449(B)] - BSA and Azide free (AB249293)
  • WB

Lab

Western blot - Anti-ADRM1/ARM-1 antibody [EPR11449(B)] - BSA and Azide free (AB249293)

This data was developed using ab157185, the same antibody clone in a different buffer formulation.

Lanes 1-4 : Merged signal (red and green). Green - ab157185 observed at 42 kDa. Red - loading control ab8245 observed at 36 kDa.

ab157185 Anti-ADRM1/ARM-1 antibody [EPR11449(B)] was shown to specifically react with ADRM1/ARM-1 in wild-type HEK293T cells. Loss of signal was observed when knockout cell line ab266765 (knockout cell lysate ab257816) was used. Wild-type and ADRM1/ARM-1 knockout samples were subjected to SDS-PAGE. ab157185 and Anti-GAPDH antibody [6C5] - Loading Control (ab8245) were incubated overnight at 4°C at 1 in 1000 dilution and 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed (ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-ADRM1/ARM-1 antibody [EPR11449(B)] (<a href='/en-us/products/primary-antibodies/adrm1-arm-1-antibody-epr11449b-ab157185'>ab157185</a>) at 1/1000 dilution

Lane 1:

Wild-type HEK293T cell lysate at 20 µg

Lane 2:

ADRM1 knockout HEK293T cell lysate at 20 µg

Lane 2:

Western blot - Human ADRM1 (ARM-1) knockout HEK-293T cell line (<a href='/en-us/products/cell-lines/human-adrm1-arm-1-knockout-hek-293t-cell-line-ab266765'>ab266765</a>)

Lane 3:

K-562 cell lysate at 20 µg

Lane 4:

Raji cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-irdye-800cw-preadsorbed-ab216773'>ab216773</a>) at 1/10000 dilution

Predicted band size: 42 kDa

Observed band size: 42 kDa

false

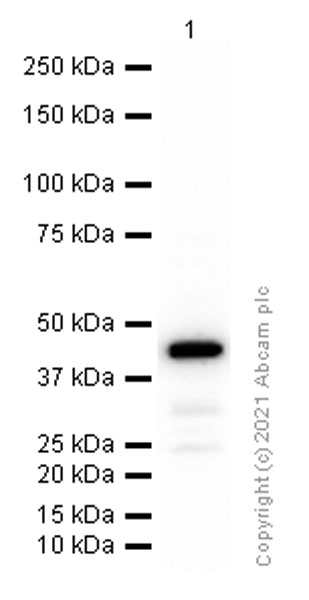

Western blot - Anti-ADRM1/ARM-1 antibody [EPR11449(B)] - BSA and Azide free (AB249293)
  • WB

Unknown

Western blot - Anti-ADRM1/ARM-1 antibody [EPR11449(B)] - BSA and Azide free (AB249293)

All lanes:

Western blot - Anti-ADRM1/ARM-1 antibody [EPR11449(B)] (<a href='/en-us/products/primary-antibodies/adrm1-arm-1-antibody-epr11449b-ab157185'>ab157185</a>) at 1/1000 dilution

All lanes:

Raji (Human Burkitt's lymphoma B lymphocyte) whole cell lysate

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 42 kDa

false

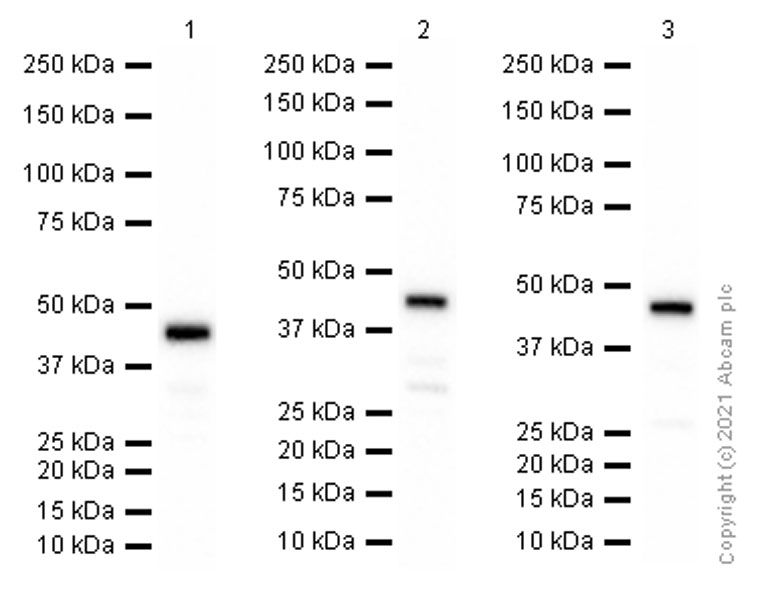

Western blot - Anti-ADRM1/ARM-1 antibody [EPR11449(B)] - BSA and Azide free (AB249293)
  • WB

Unknown

Western blot - Anti-ADRM1/ARM-1 antibody [EPR11449(B)] - BSA and Azide free (AB249293)

All lanes:

Western blot - Anti-ADRM1/ARM-1 antibody [EPR11449(B)] (<a href='/en-us/products/primary-antibodies/adrm1-arm-1-antibody-epr11449b-ab157185'>ab157185</a>) at 1/10000 dilution

Lane 1:

Ramos (Human Burkitt's lymphoma B lymphocyte) whole cell lysate at 15 µg

Lane 2:

HeLa (Human cervix adenocarcinoma epithelial cell) whole cell lysate at 15 µg

Lane 3:

K-562 (Human chronic myelogenous leukemia lymphoblast) whole cell lysate at 15 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 42 kDa

false

  • Unconjugated

    Anti-ADRM1/ARM-1 antibody [EPR11449(B)]

  • 519 Alexa Fluor® 488

    Alexa Fluor® 488 Anti-ADRM1/ARM-1 antibody [EPR11449(B)]

  • 565 Alexa Fluor® 555

    Alexa Fluor® 555 Anti-ADRM1/ARM-1 antibody [EPR11449(B)]

  • 617 Alexa Fluor® 594

    Alexa Fluor® 594 Anti-ADRM1/ARM-1 antibody [EPR11449(B)]

  • 660 APC

    APC Anti-ADRM1/ARM-1 antibody [EPR11449(B)]

  • 775 Alexa Fluor® 750

    Alexa Fluor® 750 Anti-ADRM1/ARM-1 antibody [EPR11449(B)]

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR11449(B)

Isotype

IgG

Carrier free

Yes

Reacts with

Human

Applications

IP, ICC/IF, IHC-P, Flow Cyt, WB

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

Specificity

The mouse and rat recommendation is based on the WB results. We do not guarantee IHC-P for mouse and rat.

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"}, "FlowCyt" : {"fullname" : "Flow Cytometry", "shortname":"Flow Cyt"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p>The mouse and rat recommendation is based on the WB results. We do not guarantee IHC-P for mouse and rat.</p> Perform heat-mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.", "IP-species-checked": "testedAndGuaranteed", "IP-species-dilution-info": "", "IP-species-notes": "<p></p>", "FlowCyt-species-checked": "testedAndGuaranteed", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "<p></p>", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "ICCIF-species-checked": "guaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "<p></p>" } } }
style
left-column
style
left-column

Product details

ab249293 is the carrier-free version of ab157185.

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Conjugation ready
Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

Compatibility
This product is compatible with the Maxpar® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar® is a trademark of Fluidigm Canada Inc.

style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.2 - 7.4 Constituents: PBS
Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
Do Not Freeze
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

ADRM1 known also as ARM-1 or arm protein is an essential component of the proteasome system playing an important role in ubiquitin-proteasome pathway. Its molecular mass is about 42-46 kDa. ADRM1 protein is expressed across various tissues with significant presence in tissues requiring active protein degradation such as liver muscle and neurons. This protein interacts with other subunits in large protein complexes contributing to the regulation of protein turnover.
Biological function summary

The ADRM1/ARM-1 protein binds ubiquitinated substrates and shuttles them to the 26S proteasome for degradation. It acts as a receptor on the regulatory particle of the proteasome complex where it recruits deubiquitinating enzymes. This positions ADRM1 as an integral part of the protein degradation machinery ensuring removal of damaged misfolded or unnecessary proteins and maintaining cellular protein homeostasis.

Pathways

ADRM1 plays a significant role within the ubiquitin-proteasome pathway which is important for protein catabolism. It partners with regulatory proteins like Rpn13 to mediate the recognition and processing of polyubiquitinated substrates. The efficient functioning of this pathway highlights its importance in regulating the cell cycle and various signaling pathways including NF-kB signaling which affects immune response and apoptosis.

Dysfunction of ADRM1 can lead to pathological consequences. Its aberrant activity links to cancer particularly in solid tumors due to its role in controlling the degradation of cell cycle proteins. Additionally alterations in ADRM1 functionality can affect Alzheimer's disease as proper protein turnover is important in preventing accumulation of protein aggregates. Interactions with proteins like USP14 and UCHL5 further illustrate ADRM1's involvement in these pathologies marking it as a potential therapeutic target.
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Component of the 26S proteasome, a multiprotein complex involved in the ATP-dependent degradation of ubiquitinated proteins (PubMed : 16815440, PubMed : 16906146, PubMed : 16990800, PubMed : 17139257, PubMed : 18497817, PubMed : 24752541, PubMed : 25702870, PubMed : 25702872). This complex plays a key role in the maintenance of protein homeostasis by removing misfolded or damaged proteins, which could impair cellular functions, and by removing proteins whose functions are no longer required (PubMed : 16815440, PubMed : 16906146, PubMed : 16990800, PubMed : 17139257, PubMed : 18497817, PubMed : 24752541, PubMed : 25702870, PubMed : 25702872). Therefore, the proteasome participates in numerous cellular processes, including cell cycle progression, apoptosis, or DNA damage repair (PubMed : 16815440, PubMed : 16906146, PubMed : 16990800, PubMed : 17139257, PubMed : 18497817, PubMed : 24752541, PubMed : 25702870, PubMed : 25702872). Within the complex, functions as a proteasomal ubiquitin receptor (PubMed : 18497817). Engages and activates 19S-associated deubiquitinases UCHL5 and PSMD14 during protein degradation (PubMed : 16906146, PubMed : 16990800, PubMed : 17139257, PubMed : 24752541). UCHL5 reversibly associate with the 19S regulatory particle whereas PSMD14 is an intrinsic subunit of the proteasome lid subcomplex (PubMed : 16906146, PubMed : 16990800, PubMed : 17139257, PubMed : 24752541).
