AB247613

Anti-ADX antibody [EPR4629] - BSA and Azide free

Be the first to review this product! Submit a review

|

(0 Publication)

Rabbit Recombinant Monoclonal ADX antibody. Carrier free. Suitable for WB, ICC/IF and reacts with Human, Mouse, Rat samples.

View Alternative Names

ADX, FDX1, Adrenal ferredoxin, Ferredoxin-1, Hepatoredoxin

2 Images
Immunocytochemistry/ Immunofluorescence - Anti-ADX antibody [EPR4629] - BSA and Azide free (AB247613)
  • ICC/IF

Lab

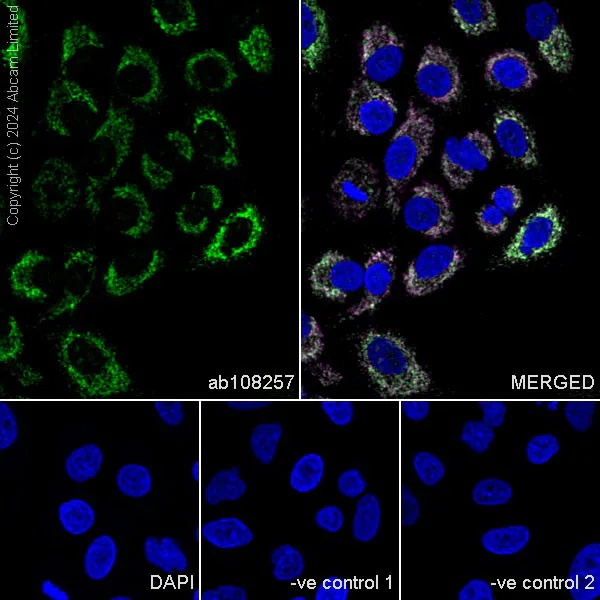

Immunocytochemistry/ Immunofluorescence - Anti-ADX antibody [EPR4629] - BSA and Azide free (AB247613)

Immunocytochemistry/Immunofluorescence analysis of A549 (human lung carcinoma epithelial) cells with ab108257 at a 1/100 dilution followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at a 1/1000 dilution. Cells were fixed with 4% paraformaldehyde and permeabilized with 0.1% Triton X-100. Mouse anti-COX IV monoclonal antibody - Mitochondrial Marker was used as a counterstain at a 1/50 dilution followed by ab150115 Alexa Fluor® 647 Goat anti-Mouse secondary antibody used at a 1/1000 dilution.

The negative controls are shown in bottom middle and right hand panels - for negative control 1, ab108257 was used at a dilution of 1/100 followed by Alexa Fluor® 647 Goat anti-Mouse secondary ab150115 at a dilution of 1/1000. For negative control 2, Mouse anti-COX IV monoclonal antibody - Mitochondrial Marker was used at a dilution of 1/50 followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 at a dilution of 1/1000.

Confocal image showing cytoplasmic staining in A549 cells (shown in green). The counterstain was observed in magenta. Nuclear DNA was labeled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

This data was developed using ab108257, the same antibody clone in a different buffer formulation.

Western blot - Anti-ADX antibody [EPR4629] - BSA and Azide free (AB247613)
  • WB

Unknown

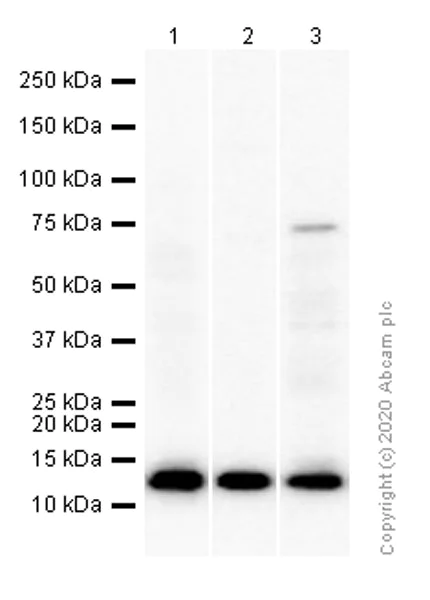

Western blot - Anti-ADX antibody [EPR4629] - BSA and Azide free (AB247613)

All lanes:

Western blot - Anti-ADX antibody [EPR4629] (<a href='/en-us/products/primary-antibodies/adx-antibody-epr4629-ab108257'>ab108257</a>) at 1/1000 dilution

Lane 1:

A549 (Human lung carcinoma epithelial cell) whole cell lysate

Lane 2:

Mouse kidney lysate

Lane 3:

Rat kidney lysate

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 19 kDa

false

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR4629

Isotype

IgG

Carrier free

Yes

Reacts with

Mouse, Rat, Human

Applications

ICC/IF, WB

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "FlowCyt" : {"fullname" : "Flow Cytometry", "shortname":"Flow Cyt"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "FlowCyt-species-checked": "notRecommended", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "<p></p>", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p>Antigen retrieval is recommended.</p>", "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "<p></p>" }, "Mouse": { "FlowCyt-species-checked": "notRecommended", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "<p></p>", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p>Antigen retrieval is recommended.</p>", "ICCIF-species-checked": "guaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "" }, "Rat": { "FlowCyt-species-checked": "notRecommended", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "<p></p>", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p>Antigen retrieval is recommended.</p>", "ICCIF-species-checked": "guaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "" } } }
style
left-column

You may be interested in:

AB239702

Bile Acid Assay Kit (Colorimetric)

0

0 Reviews

View product

We recommend this product because it’s often used in the same experiment or related research.

We advise that you always check the datasheet to ensure it fits your experiments, or contact ourtechnical teamfor help.

style
left-column

Product details

ab247613 is the carrier-free version of ab108257.

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Conjugation ready
Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

Compatibility
This product is compatible with the Maxpar® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar® is a trademark of Fluidigm Canada Inc.

style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.2 - 7.4 Constituents: PBS
Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
Do Not Freeze
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

Alternate names for ADX include ADX mouse and FDX1. This target is a protein with a mass of approximately 54 kDa. ADX is expressed in various tissues with a high presence in adrenal cortex and testes. Mechanically it functions as an adrenodoxin which transfers electrons in the adrenal gland mitochondria. As a small iron-sulfur protein ADX interacts with cytochrome P450 enzymes to facilitate steroidogenic reactions.
Biological function summary

ADX plays a significant role in enabling steroid biosynthesis and metabolism acting as an electron donor. ADX is an essential component of the mitochondrial cholesterol side-chain cleavage complex. This complex helps in converting cholesterol into pregnenolone initiating steroid hormone production. It is necessary for producing corticosteroids androgens and estrogens.

Pathways

ADX holds critical functions in the cholesterol and steroid biosynthesis pathways. ADX interacts with the cholesterol transport protein StAR and cytochrome P450scc both essential for initiating the conversion of cholesterol to pregnenolone. Additionally it supports the electron transfer processes necessary for the final conversion steps of various steroid hormones.

Abnormal ADX functioning connects to disorders like congenital adrenal hyperplasia and Addison's disease. These conditions are often linked with insufficient steroid hormone production. Furthermore defects or imbalances in the ADX pathway may involve related proteins such as cytochrome P450 enzymes which could lead to disrupted steroidogenesis and further complications in adrenal gland function.
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Essential for the synthesis of various steroid hormones (PubMed : 20547883, PubMed : 21636783). Participates in the reduction of mitochondrial cytochrome P450 for steroidogenesis (PubMed : 20547883, PubMed : 21636783). Transfers electrons from adrenodoxin reductase to CYP11A1, a cytochrome P450 that catalyzes cholesterol side-chain cleavage (PubMed : 20547883, PubMed : 21636783). Does not form a ternary complex with adrenodoxin reductase and CYP11A1 but shuttles between the two enzymes to transfer electrons (By similarity).
