Anti-AGL/Alpha-glucosidase antibody [EPR8880] (ab133720)

Rabbit Recombinant Monoclonal AGL/Alpha-glucosidase antibody. Suitable for IHC-P, WB, ICC/IF, Flow Cyt (Intra) and reacts with Human, Mouse, Rat samples. Cited in 3 publications.

Be the first to review this product! Submit a review

Related conjugates and formulations

ab217078
Conjugated
Alexa Fluor® 647 Anti-AGL/Alpha-glucosidase antibody [EPR8880]
ab230798
Carrier free
Anti-AGL/Alpha-glucosidase antibody [EPR8880] - BSA and Azide free
ab305705
Conjugated
APC Anti-AGL antibody [EPR8880]
ab305706
Conjugated
HRP Anti-AGL antibody [EPR8880]
ab308813
Conjugated
Alkaline Phosphatase Anti-AGL antibody [EPR8880]
ab310544
Conjugated
Alexa Fluor® 594 Anti-AGL antibody [EPR8880]
ab309761
Conjugated
Alexa Fluor® 488 Anti-AGL antibody [EPR8880]
ab312551
Conjugated
Alexa Fluor® 568 Anti-AGL/Alpha-glucosidase antibody [EPR8880]
ab305704
Conjugated
PE Anti-AGL antibody [EPR8880]
ab312074
Conjugated
Alexa Fluor® 555 Anti-AGL antibody [EPR8880]
ab321065
Conjugated
Alexa Fluor® 750 Anti-AGL/Alpha-glucosidase antibody [EPR8880]

Images

Flow Cytometry (Intracellular) - Anti-AGL/Alpha-glucosidase antibody [EPR8880] (AB133720), expandable thumbnail

Publications

Key facts

Isotype: IgG
Host species: Rabbit
Storage buffer: pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: 59% PBS, 40% Glycerol (glycerin, glycerine), 0.21% BSA
Form: Liquid
Clonality: Monoclonal

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

Abcam Recommends

Reactivity data

Select an application

Product promiseTestedExpectedPredictedNot recommended

	IHC-P	WB	ICC/IF	Flow Cyt (Intra)
Human	Tested	Tested	Tested	Tested
Mouse	Expected	Tested	Expected	Expected
Rat	Expected	Tested	Expected	Expected

Tested
Tested

Species	Dilution info	Notes
Species Human	Dilution info 1/2000	Notes The mouse and rat recommendation is based on the WB results. We do not guarantee IHC-P for mouse and rat. For unpurified use at 1/100 - 1/250. Perform heat-mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

Expected
Expected

Species	Dilution info	Notes
Species Mouse, Rat	Dilution info Use at an assay dependent concentration.	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Mouse	Dilution info 1/1000 - 1/10000	Notes -
Species Rat	Dilution info 1/1000 - 1/10000	Notes -
Species Human	Dilution info 1/1000 - 1/10000	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Human	Dilution info 1/100 - 1/250	Notes -

Expected
Expected

Species	Dilution info	Notes
Species Mouse, Rat	Dilution info Use at an assay dependent concentration.	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Human	Dilution info 1/80	Notes ab172730 - Rabbit monoclonal IgG, is suitable for use as an isotype control with this antibody. For unpurified use at 1/100-1/500.

Expected
Expected

Species	Dilution info	Notes
Species Mouse, Rat	Dilution info Use at an assay dependent concentration.	Notes -

Target data

See full target information AGL

Function

Multifunctional enzyme acting as 1,4-alpha-D-glucan:1,4-alpha-D-glucan 4-alpha-D-glycosyltransferase and amylo-1,6-glucosidase in glycogen degradation.

Alternative names

GDE, AGL, Glycogen debranching enzyme, Glycogen debrancher

Recommended products

Rabbit Recombinant Monoclonal AGL/Alpha-glucosidase antibody. Suitable for IHC-P, WB, ICC/IF, Flow Cyt (Intra) and reacts with Human, Mouse, Rat samples. Cited in 3 publications.

Key facts

Isotype: IgG
Host species: Rabbit
Storage buffer: pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: 59% PBS, 40% Glycerol (glycerin, glycerine), 0.21% BSA
Form: Liquid
Clonality: Monoclonal
Immunogen: The exact immunogen used to generate this antibody is proprietary information.
Clone number: EPR8880
Purification technique: Affinity purification Protein A
Specificity: The mouse and rat recommendation is based on the WB results. We do not guarantee IHC-P for mouse and rat.
Dissociation constant: 6.9 x 10^-11 M
Concentration

Storage

Shipped at conditions: Blue Ice
Appropriate short-term storage duration: 1-2 weeks
Appropriate short-term storage conditions: +4°C
Appropriate long-term storage conditions: -20°C
Aliquoting information: Upon delivery aliquot
Storage information: Avoid freeze / thaw cycle, Stable for 12 months at -20°C

Notes

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

For more information, read more on recombinant antibodies.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.

Activity summary

Alpha-glucosidase also known as AGL is an enzyme that breaks down carbohydrates by hydrolyzing alpha-14 glycosidic bonds in glycogen converting them into glucose molecules. This enzyme is important for the body's ability to derive glucose from stored glycogen a necessary process for maintaining energy levels. AGL is predominantly expressed in liver tissue where it plays an important role in glycogen metabolism. The AGL enzyme has an approximate mass of around 104 kDa. Additionally AGL can be referred to as alpha-16-glucosidase due to its specific hydrolytic capabilities on branching points in glycogen.

Biological function summary

AGL functions as part of the glycogen debranching enzyme complex which is important for glycogen catabolism. It cooperates with other enzymes to effectively mobilize glucose from glycogen stores. AGL's debranching activity ensures the smooth continuation of glycogenolysis providing glucose to meet energy demands during fasting or intense physical activity. This highlights the enzyme's importance in glucose homeostasis and metabolic processes that require rapid energy availability.

Pathways

AGL participates in the glycogenolysis and gluconeogenesis pathways. It partners with phosphorylase to release glucose-1-phosphate from glycogen ensuring energy supply during fasting conditions. The glycogenolysis pathway relies significantly on AGL for breaking down glycogen's branched structures while glucose-6-phosphatase assists in converting glucose-6-phosphate into free glucose. AGL's role in these pathways illustrates its importance in energy metabolism and glucose regulation.

Associated diseases and disorders

AGL's dysfunction is linked to glycogen storage disease type III known as Cori disease. This genetic disorder results from mutations in the AGL gene causing a build-up of abnormally structured glycogen in the liver and muscles leading to symptoms such as hepatomegaly muscular weakness and hypoglycemia. AGL along with other enzymes involved in glycogen metabolism like phosphorylase kinase is a target for therapeutic interventions aimed at managing such glycogen storage diseases.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

11 product images

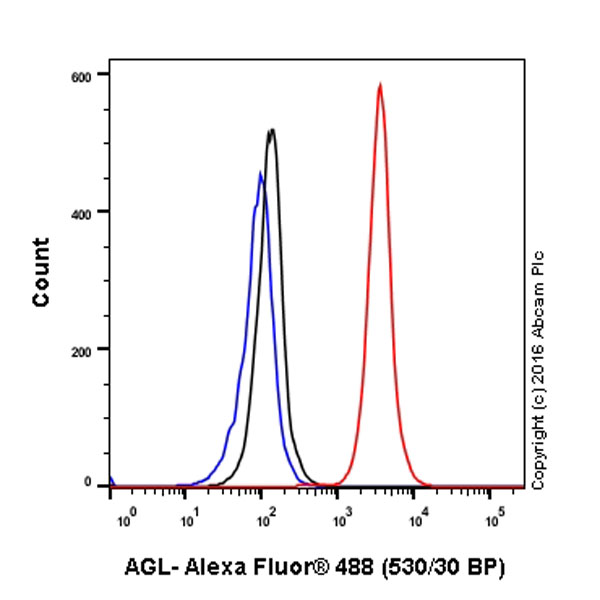

Flow Cytometry (Intracellular) - Anti-AGL/Alpha-glucosidase antibody [EPR8880] (ab133720)
Intracellular Flow Cytometry analysis of K-562 (Human chronic myelogenous leukemia lymphoblast) cells labeling AGL/Alpha-glucosidase with purified ab133720 at 1/80 dilution (10μg/ml) (red). Cells were fixed with 4% Paraformaldehyde and permeabilised with 90% methanol. A Goat anti rabbit IgG (Alexa Fluor^® 488) secondary antibody was used at 1/2000 dilution. Isotype control - Rabbit monoclonal IgG (Black). Unlabeled control - Cell without incubation with primary antibody and secondary antibody (Blue).

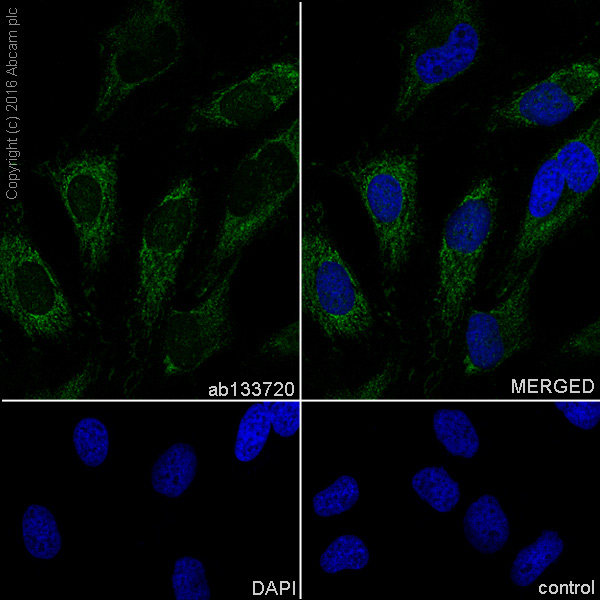

Immunocytochemistry/ Immunofluorescence - Anti-AGL/Alpha-glucosidase antibody [EPR8880] (ab133720)
Immunocytochemistry/ Immunofluorescence analysis of HeLa (Human cervix adenocarcinoma epithelial cell) cells labeling AGL/Alpha-glucosidase with Purified ab133720 at 1:100 dilution. Cells were fixed in 4% Paraformaldehyde and permeabilized with 0.1% tritonX-100. Cells were counterstained with Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594) 1:200. Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077 Goat anti rabbit IgG(Alexa Fluor^® 488) was used as the secondary antibody at 1:1000 dilution. DAPI nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.

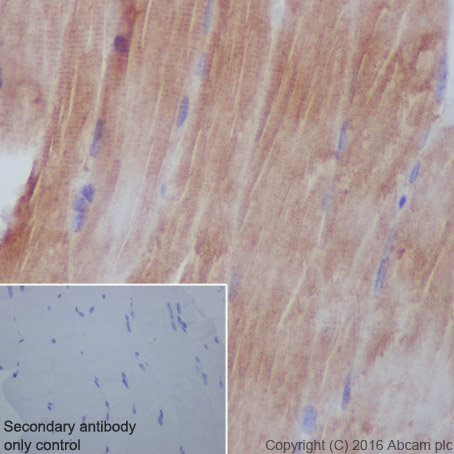

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-AGL/Alpha-glucosidase antibody [EPR8880] (ab133720)
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of Human skeletal muscle tissue sections labeling AGL/Alpha-glucosidase with Purified ab133720 at 1:2000 dilution (0.4 μg/ml). Heat mediated antigen retrieval was performed using Antigen Retrieval Buffer (100X Tris-EDTA Buffer, pH 9.0) ab93684 (Tris/EDTA buffer, pH 9.0). Tissue was counterstained with Hematoxylin. Goat Anti-Rabbit IgG H&L (HRP) ab97051 Goat Anti-Rabbit IgG H&L (HRP)
secondary antibody was used at 1:500 dilution. PBS instead of the primary antibody was used as the negative control.

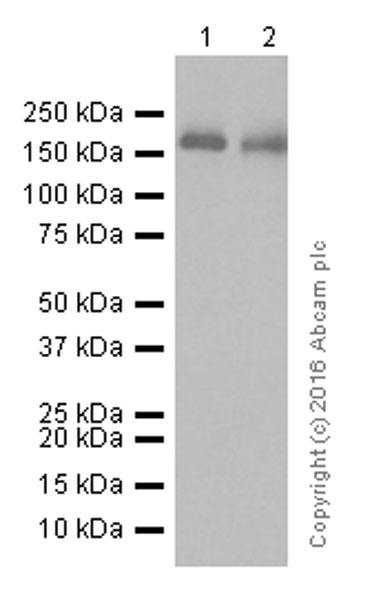

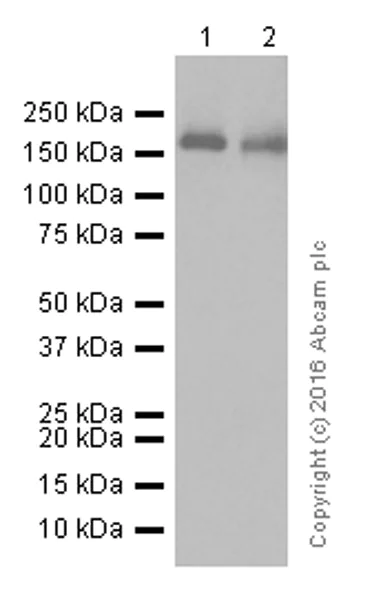

Western blot - Anti-AGL/Alpha-glucosidase antibody [EPR8880] (ab133720)
Blocking and diluting buffer: 5% NFDM/TBST
All lanes: Western blot - Anti-AGL/Alpha-glucosidase antibody [EPR8880] (ab133720) at 1/1000 dilution
Lane 1: K-562 (Human chronic myelogenous leukemia lymphoblast) whole cell lysates at 20 µg
Lane 2: HEK-293 (Human embryonic kidney epithelial cell) whole cell lysates at 20 µg
Secondary
All lanes: Anti-Rabbit IgG (HRP), specific to the non-reduced form of IgG at 1/2000 dilution
Predicted band size: 175 kDa

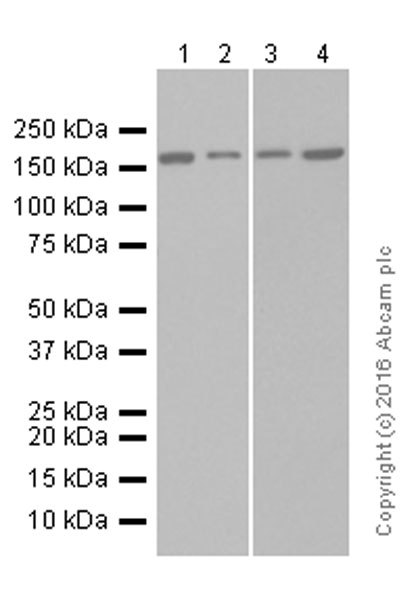

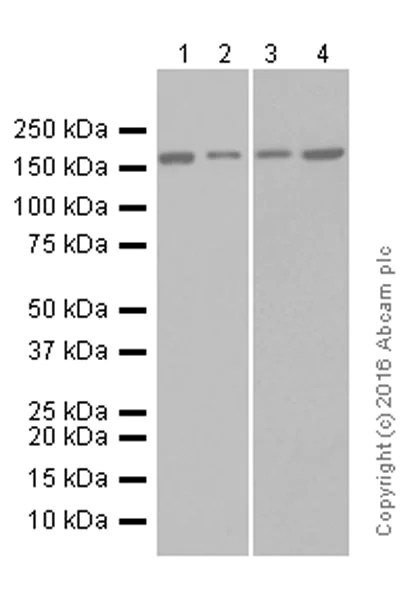

Western blot - Anti-AGL/Alpha-glucosidase antibody [EPR8880] (ab133720)
Blocking and diluting buffer: 5% NFDM/TBST
All lanes: Western blot - Anti-AGL/Alpha-glucosidase antibody [EPR8880] (ab133720) at 1/5000 dilution
Lane 1: Human fetal muscle lysates at 20 µg
Lane 2: Human fetal heart lysates at 20 µg
Lane 3: Mouse muscle lysates at 20 µg
Lane 4: Rat muscle lysates at 20 µg
Secondary
All lanes: Anti-Rabbit IgG (HRP), specific to the non-reduced form of IgG at 1/2000 dilution
Predicted band size: 175 kDa
Observed band size: 175 kDa

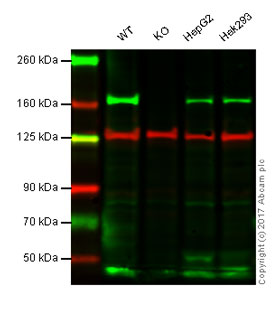

Western blot - Anti-AGL/Alpha-glucosidase antibody [EPR8880] (ab133720)
Lane 1: Wild type HAP1 whole cell lysate (20 μg)
Lane 2: AGL/Alpha-glucosidase knockout HAP1 whole cell lysate (20 μg)
Lane 3: HepG2 whole cell lysate (20 μg)
Lane 4: Hek293 whole cell lysate (20 μg
Lanes 1 - 4: Merged signal (red and green). Green - ab133720 observed at 170 kDa. Red - loading control, ab18058, observed at 130 kDa.

Unpurified ab133720 was shown to specifically react with AGL/Alpha-glucosidase when AGL/Alpha-glucosidase knockout samples were used. Wild-type and AGL/Alpha-glucosidase knockout samples were subjected to SDS-PAGE.
Unpurified ab133720 and ab18058 (Mouse anti Vinculin loading control) were incubated overnight at 4°C at 1/1000 dilution and 1/10000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preabsorbed Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773 and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preabsorbed Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776 secondary antibodies at 1/10000 dilution for 1 hour at room temperature before imaging.
All lanes: Western blot - Anti-AGL/Alpha-glucosidase antibody [EPR8880] (ab133720)
Predicted band size: 175 kDa
Observed band size: 170 kDa

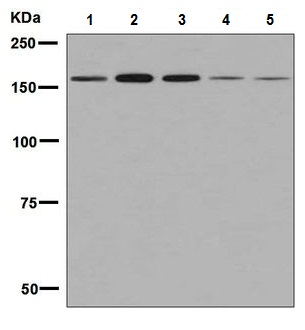

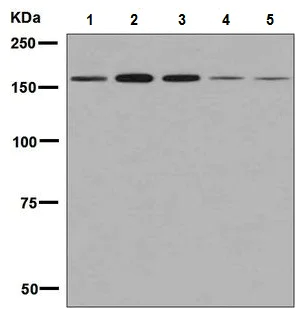

Western blot - Anti-AGL/Alpha-glucosidase antibody [EPR8880] (ab133720)
All lanes: Western blot - Anti-AGL/Alpha-glucosidase antibody [EPR8880] (ab133720) at 1/1000 dilution
Lane 1: Human fetal muscle lysate at 10 µg
Lane 2: Mouse muscle lysate at 10 µg
Lane 3: Human fetal heart lysate at 10 µg
Lane 4: K562 cell lysate at 10 µg
Lane 5: 293T cell lysate at 10 µg
Secondary
All lanes: HRP labelled goat anti-rabbit at 1/2000 dilution
Predicted band size: 175 kDa

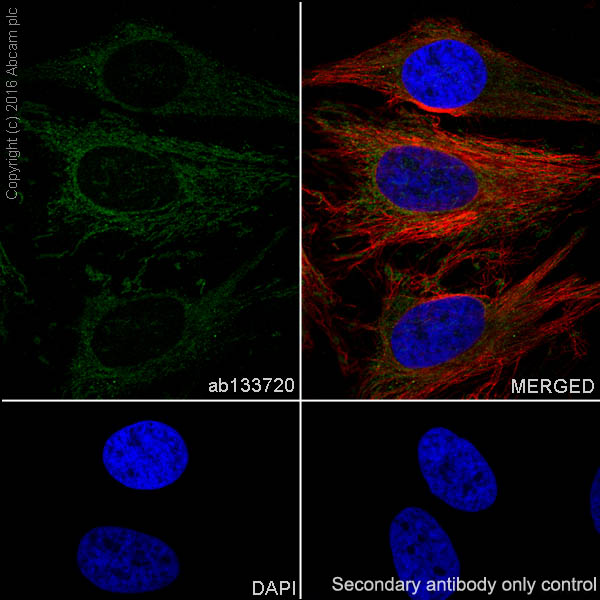

Immunocytochemistry/ Immunofluorescence - Anti-AGL/Alpha-glucosidase antibody [EPR8880] (ab133720)
Immunocytochemistry/Immunofluorescence analysis of HeLa (Human epithelial cell line from cervix adenocarcinoma) labeling AGL/Alpha-glucosidase with purified ab133720 at 1/250 dilution. Cells were fixed with 4% PFA and permeabilized with 0.1% tritonX-100. Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077 Goat anti rabbit IgG (Alexa Fluor^®488) at 1/1000 was used as the secondary antibody. Nuclei were counterstained with DAPI. PBS was used instead of the primary antibody as the negative control.
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-AGL/Alpha-glucosidase antibody [EPR8880] (ab133720)
Immunohistochemical analysis of paraffin-embedded Human liver tissue labelled with unpurified ab133720 at 1/100 dilution.
Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-AGL/Alpha-glucosidase antibody [EPR8880] (ab133720)
Immunohistochemical analysis of paraffin-embedded Human muscle tissue labelled with unpurified ab133720 at 1/100 dilution.
Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

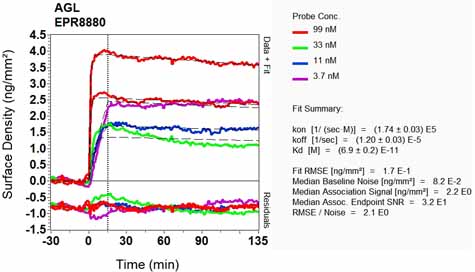

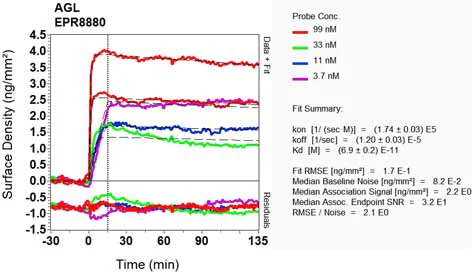

OI-RD Scanning - Anti-AGL/Alpha-glucosidase antibody [EPR8880] (ab133720)
We have systematically measured KD (the equilibrium dissociation constant between the antibody and its antigen), of more than 840 recombinant antibodies to assess not only their individual KD values but also to see the average affinity of antibody.
Based on the comparison with published literature values for mouse monoclonal antibodies, Recombinant antibodies appear to be on average 1-2 order of magnitude higher affinity.
