Anti-AIF antibody [E20] - Mitochondrial Marker

7 product images

•

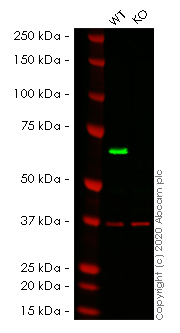

  Western blot - Anti-AIF antibody [E20] - Mitochondrial Marker (ab32516)

  Lanes 1- 2: Merged signal (red and green). Green - ab32516 observed at 67 kDa. Red - Anti-GAPDH antibody [6C5] - Loading Control (Anti-GAPDH antibody [6C5] - Loading Control ab8245) observed at 37 kDa.


  ab32516 was shown to react with AIF in wild-type HEK-293T cells in western blot. Loss of signal was observed when knockout cell line Human AIFM1 (AIF) knockout HEK-293T cell line ab266347 (knockout cell lysate Human AIFM1 (AIF) knockout HEK-293T cell lysate ab256834) was used. Wild-type HEK-293T and AIFM1 knockout HEK-293T cell lysates were subjected to SDS-PAGE. Membrane was blocked for 1 hour at room temperature in 0.1% TBST with 3% non-fat dried milk. ab32516 and Anti-GAPDH antibody [6C5] - Loading Control (Anti-GAPDH antibody [6C5] - Loading Control ab8245) overnight at 4°C at a 1 in 1000 dilution and a 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^®800CW) preadsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) and Goat anti-Mouse IgG H&L (IRDye^®680RD) preadsorbed (Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

  All lanes: Western blot - Anti-AIF antibody [E20] - Mitochondrial Marker (ab32516) at 1/1000 dilution

  Lane 1: Wild-type HEK-293T cell lysate at 20 µg

  Lane 2: AIFM1 knockout HEK-293T cell lysate at 20 µg

  Lane 2: Western blot - Human AIFM1 (AIF) knockout HEK-293T cell line (Human AIFM1 (AIF) knockout HEK-293T cell line ab266347)

  Performed under reducing conditions.

  Predicted band size: 67 kDa

  Observed band size: 67 kDa

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-AIF antibody [E20] - Mitochondrial Marker (ab32516)

  ab32516, at a 1/500 dilution, staining AIF in paraffin embedded human cervical carcinoma tissue by Immunohistochemistry.


  Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

•

  Immunocytochemistry/ Immunofluorescence - Anti-AIF antibody [E20] - Mitochondrial Marker (ab32516)

  ICC/IF image of ab32516 stained HeLa cells. The cells were 4% PFA fixed (10 min) and then incubated in 1%BSA / 10% normal goat serum / 0.3M glycine in 0.1% PBS-Tween for 1h to permeabilise the cells and block non-specific protein-protein interactions. The cells were then incubated with the antibody (ab32516, 1µg/ml) overnight at +4°C. The secondary antibody (green) was Alexa Fluor® 488 goat anti-rabbit IgG (H+L) used at a 1/1000 dilution for 1h. Alexa Fluor® 594 WGA was used to label plasma membranes (red) at a 1/200 dilution for 1h. DAPI was used to stain the cell nuclei (blue) at a concentration of 1.43µM.



•

  Immunoprecipitation - Anti-AIF antibody [E20] - Mitochondrial Marker (ab32516)

  AIF was immunoprecipitated using 0.5mg K562 whole cell extract, 5µg of Rabbit monoclonal to AIF and 50µl of protein G magnetic beads (+). No antibody was added to the control (-).
  The antibody was incubated under agitation with Protein G beads for 10min, K562 whole cell extract lysate diluted in RIPA buffer was added to each sample and incubated for a further 10min under agitation.
  Proteins were eluted by addition of 40µl SDS loading buffer and incubated for 10min at 70^oC; 10µl of each sample was separated on a SDS PAGE gel, transferred to a nitrocellulose membrane, blocked with 5% BSA and probed with ab32516.
  Secondary: Mouse monoclonal [SB62a] Secondary Antibody to Rabbit IgG light chain (HRP) (Mouse monoclonal [SB62a] Anti-Rabbit IgG light chain (HRP) ab99697).
  Band: 67kDa: AIF

  All lanes: Immunoprecipitation - Anti-AIF antibody [E20] - Mitochondrial Marker (ab32516)

  Predicted band size: 67 kDa

•

  Western blot - Anti-AIF antibody [E20] - Mitochondrial Marker (ab32516)

  All lanes: Western blot - Anti-AIF antibody [E20] - Mitochondrial Marker (ab32516) at 1/1000 dilution

  All lanes: K562 cell lysate

  Predicted band size: 67 kDa

  Observed band size: 67 kDa

•

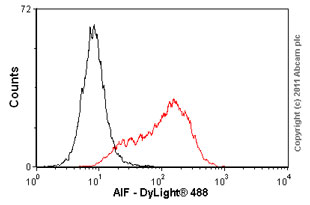

  Flow Cytometry (Intracellular) - Anti-AIF antibody [E20] - Mitochondrial Marker (ab32516)

  Overlay histogram showing K562 cells stained with ab32516 (red line). The cells were fixed with 4% paraformaldehyde (10 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab32516, 1/50 dilution) for 30 min at 22°C. The secondary antibody used was DyLight® 488 goat anti-rabbit IgG (H+L) (Goat Anti-Rabbit IgG H&L (DyLight® 488) preadsorbed ab96899) at 1/500 dilution for 30 min at 22°C. Isotype control antibody (black line) was rabbit monoclonal IgG (1μg/1x10⁶ cells) used under the same conditions. Acquisition of >5,000 events was performed. This antibody gave a positive signal in K562 cells fixed with methanol (5 min)/permeabilized with 0.1% PBS-Tween used under the same conditions.

•

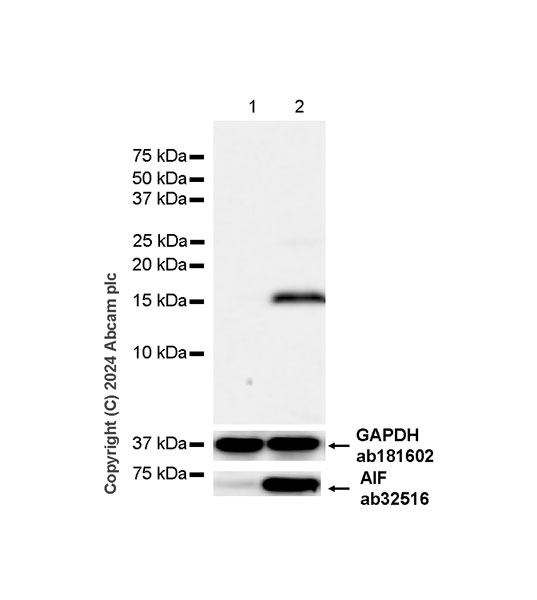

  Western blot - Anti-AIF antibody [E20] - Mitochondrial Marker (ab32516)

  In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (Anti-GAPDH antibody [EPR16891] - Loading Control ab181602) staining at 1/200000 dilution.

  In Western blot, Anti-AIF antibody [E20] (ab32516) staining at 1/1000 dilution.

  All lanes: Western blot - Anti-CISD1/MitoNEET antibody [EPR29116-27] (Anti-CISD1/MitoNEET antibody [EPR29116-27] ab318199) at 1/1000 dilution

  Lane 1: HeLa (human cervical adenocarcinoma epithelial cell) cytoplasmic fraction at 20 µg with NFDM/TBST

  Lane 2: HeLa mitochondrial fraction at 20 µg with NFDM/TBST

  Secondary

  All lanes: Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/2000 dilution

  Observed band size: 15 kDa, 36 kDa, 67 kDa

  Exposure time: 10s
