AB206873

Alexa Fluor® 405 Anti-PDGFR alpha + PDGFR beta antibody [Y92]

Be the first to review this product! Submit a review

|

(1 Publication)

Rabbit Recombinant Monoclonal PDGFR alpha antibody - conjugated to Alexa Fluor® 405. Suitable for Flow Cyt (Intra) and reacts with Mouse samples. Cited in 1 publication.

View Alternative Names

CD140a, Platelet-derived growth factor receptor alpha, PDGF-R-alpha, PDGFR-alpha, Alpha platelet-derived growth factor receptor, Alpha-type platelet-derived growth factor receptor, CD140 antigen-like family member A, Platelet-derived growth factor alpha receptor, Pdgfra

1 Images
Flow Cytometry (Intracellular) - Alexa Fluor® 405 Anti-PDGFR alpha + PDGFR beta antibody [Y92] (AB206873)
  • Flow Cyt (Intra)

Lab

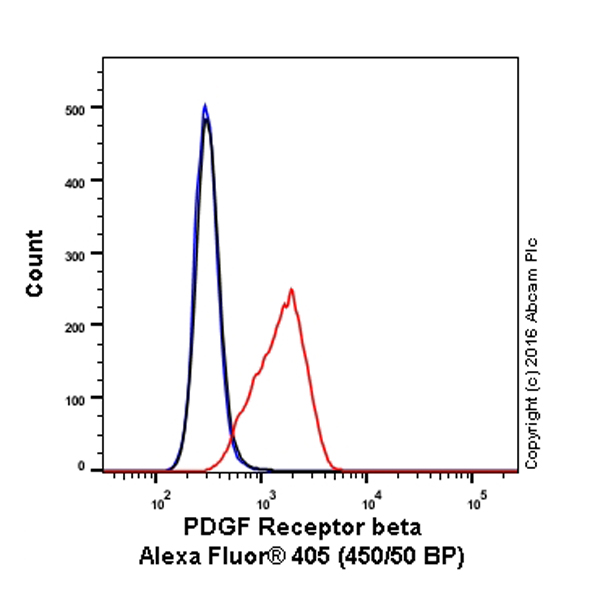

Flow Cytometry (Intracellular) - Alexa Fluor® 405 Anti-PDGFR alpha + PDGFR beta antibody [Y92] (AB206873)

Overlay histogram showing NIH3T3 cells stained with ab206873 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Triton X-100 for 15 min, blocked with Image-iT® FX Signal Enhancer for 30 min at 22°C and then blocked with 1x PBS / 10% normal goat serum for 1 hr at 22°C. Cells were then incubated with the antibody (ab206873, 1/50 dilution) for 30 min at 22°C.

Isotype control antibody (black line) was Rabbit IgG (monoclonal) Alexa Fluor® 405 (ab208150) used at the same concentration and conditions as the primary antibody. Unlabelled sample (blue line) was also used as a control.

Acquisition of >5,000 events were collected using a 50 mW Violet laser (405nm) and 450/50 bandpass filter.

  • 617 Alexa Fluor® 594

    Alexa Fluor® 594 Anti-PDGFR alpha + PDGFR beta antibody [Y92]

  • 519 Alexa Fluor® 488

    Alexa Fluor® 488 Anti-PDGFR alpha + PDGFR beta antibody [Y92]

  • HRP

    HRP Anti-PDGFR alpha + PDGFR beta antibody [Y92]

  • 578 PE

    PE Anti-PDGFR alpha + PDGFR beta antibody [Y92] (C-terminal)

  • 660 APC

    APC Anti-PDGFR alpha + PDGFR beta antibody [Y92] - C-terminal

  • Unconjugated

    Anti-PDGFR alpha + PDGFR beta antibody [Y92] - C-terminal

  • Carrier free

    Anti-PDGFR alpha + PDGFR beta antibody [Y92] - BSA and Azide free

  • Carrier free

    Anti-PDGFR alpha + PDGFR beta antibody [Y92] - Low endotoxin, Azide free

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

Y92

Isotype

IgG

Conjugation

Alexa Fluor® 405

Excitation/Emission

Ex: 401nm, Em: 421nm

Carrier free

No

Reacts with

Mouse

Applications

Flow Cyt (Intra)

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "FlowCytIntra" : {"fullname" : "Flow Cytometry (Intracellular)", "shortname":"Flow Cyt (Intra)"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "FlowCytIntra-species-checked": "predicted", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "" }, "Mouse": { "FlowCytIntra-species-checked": "testedAndGuaranteed", "FlowCytIntra-species-dilution-info": "1/50", "FlowCytIntra-species-notes": "<p>The cellular localisation of this product has been verified in ICC/IF.</p>" }, "Rat": { "FlowCytIntra-species-checked": "predicted", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "" } } }

Product details

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

Alexa Fluor® is a registered trademark of Molecular Probes, Inc, a Thermo Fisher Scientific Company. The Alexa Fluor® dye included in this product is provided under an intellectual property license from Life Technologies Corporation. As this product contains the Alexa Fluor® dye, the purchase of this product conveys to the buyer the non-transferable right to use the purchased product and components of the product only in research conducted by the buyer (whether the buyer is an academic or for-profit entity). As this product contains the Alexa Fluor® dye the sale of this product is expressly conditioned on the buyer not using the product or its components, or any materials made using the product or its components, in any activity to generate revenue, which may include, but is not limited to use of the product or its components: in manufacturing; (ii) to provide a service, information, or data in return for payment (iii) for therapeutic, diagnostic or prophylactic purposes; or (iv) for resale, regardless of whether they are sold for use in research. For information on purchasing a license to this product for purposes other than research, contact Life Technologies Corporation, 5781 Van Allen Way, Carlsbad, CA 92008 USA or outlicensing@thermofisher.com.

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.4 Preservative: 0.02% Sodium azide Constituents: PBS, 30% Glycerol (glycerin, glycerine), 1% BSA
Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle|Store in the dark

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

PDGFR alpha and PDGFR beta are receptor tyrosine kinases also known as CD140a and CD140b. Both receptors have a molecular mass of about 180 kDa. PDGFR alpha is expressed in a variety of tissues including placenta astrocytes and vascular smooth muscle cells. PDGFR beta is more specific to fibroblasts smooth muscle cells and in the vascular system. These receptors bind platelet-derived growth factors (PDGFs) and become activated through dimerization and autophosphorylation.
Biological function summary

These receptors drive cellular processes like proliferation differentiation and migration. PDGFR alpha and beta operate as a significant part of a receptor complex. They modulate responses in mesenchymal cells and influence developmental pathways. In the vasculature system these receptors play roles in maintaining structure and function of blood vessels. Alterations in receptor activities can affect development of tissues and organs.

Pathways

PDGFR alpha and beta are key players in the PI3K-Akt signaling pathway and MAPK pathway. The activation of these pathways leads to cellular processes like survival and growth. PDGFR activity often interacts with other proteins such as SHP-2 RAS and Akt. These interactions contribute to the regulation of cellular responses to external growth signals embedding PDGFR in a web of intracellular cascade systems.

PDGFRs have linkage to conditions like cancer and fibrotic diseases. Aberrant PDGFR alpha activity has connections to glioblastoma while PDGFR beta alterations often relate to systemic sclerosis. These receptors can work alongside proteins like VEGF and TGF-beta within these diseases. Their dysregulation leads to pathological angiogenesis and abnormal cell proliferation making them targets for therapeutic intervention.

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Target data

Tyrosine-protein kinase that acts as a cell-surface receptor for PDGFA, PDGFB and PDGFC and plays an essential role in the regulation of embryonic development, cell proliferation, survival and chemotaxis. Depending on the context, promotes or inhibits cell proliferation and cell migration. Plays an important role in the differentiation of bone marrow-derived mesenchymal stem cells. Required for normal skeleton development and cephalic closure during embryonic development. Required for normal development of the mucosa lining the gastrointestinal tract, and for recruitment of mesenchymal cells and normal development of intestinal villi. Plays a role in cell migration and chemotaxis in wound healing. Plays a role in platelet activation, secretion of agonists from platelet granules, and in thrombin-induced platelet aggregation. Binding of its cognate ligands - homodimeric PDGFA, homodimeric PDGFB, heterodimers formed by PDGFA and PDGFB or homodimeric PDGFC -leads to the activation of several signaling cascades; the response depends on the nature of the bound ligand and is modulated by the formation of heterodimers between PDGFRA and PDGFRB. Phosphorylates PIK3R1, PLCG1, and PTPN11. Activation of PLCG1 leads to the production of the cellular signaling molecules diacylglycerol and inositol 1,4,5-trisphosphate, mobilization of cytosolic Ca(2+) and the activation of protein kinase C. Phosphorylates PIK3R1, the regulatory subunit of phosphatidylinositol 3-kinase, and thereby mediates activation of the AKT1 signaling pathway. Mediates activation of HRAS and of the MAP kinases MAPK1/ERK2 and/or MAPK3/ERK1. Promotes activation of STAT family members STAT1, STAT3 and STAT5A and/or STAT5B. Receptor signaling is down-regulated by protein phosphatases that dephosphorylate the receptor and its down-stream effectors, and by rapid internalization of the activated receptor.
See full target information Pdgfra

Additional targets

Pdgfrb

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

Neurobiology of aging 96:128-136 PubMed33002766

2020

A subtype of cerebrovascular pericytes is associated with blood-brain barrier disruption that develops during normal aging and simian immunodeficiency virus infection.

Applications

Unspecified application

Species

Unspecified reactive species

Diana G Bohannon,Hamid R Okhravi,Jayoung Kim,Marcelo J Kuroda,Elizabeth S Didier,Woong-Ki Kim
View all publications

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
