Alexa Fluor® 488 Anti-Calreticulin antibody [EPR3924] - ER Marker

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-Calreticulin antibody [EPR3924] - ER Marker (AB196158)

ab196158 staining Calreticulin (shown in green) in wild-type HAP1 cells (top panel) and CALR knockout HAP1 cells (bottom panel).

The cells were fixed with 100% methanol (5 minutes), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1 hour. The cells were then incubated with ab196158 at 1/500 dilution (shown in green) and ab195889 at 1/250 dilution (shown in pseudo colour red) overnight at +4°C. Nuclear DNA was labeled in blue with DAPI.

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Alexa Fluor® 488 Anti-Calreticulin antibody [EPR3924] - ER Marker (AB196158)

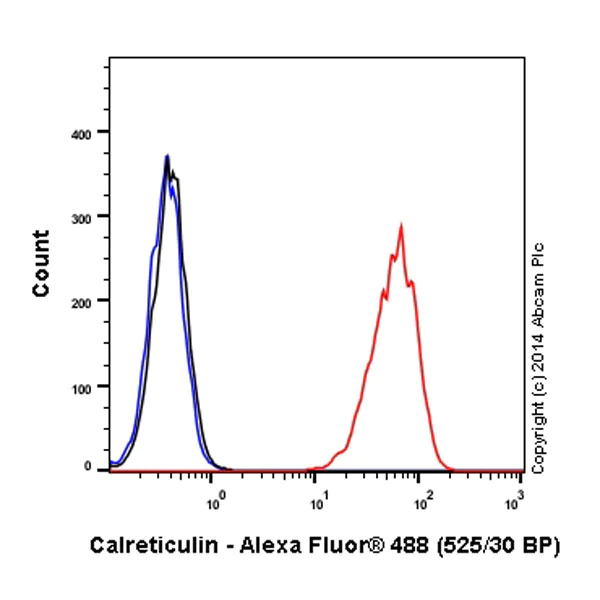

Overlay histogram showing HeLa cells (Human epithelial cell line from cervix adenocarcinoma) stained with ab196158 (red line).

The cells were fixed with 80% methanol (5 minutes) and then permeabilized with 0.1% PBS-Tween for 20 minutes. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab196158, 1/50 dilution) for 30 minutes at 22°C. Isotype control antibody (black line) was rabbit IgG (monoclonal) Alexa Fluor^® 488 used at the same concentration and conditions as the primary antibody. Unlabeled sample (blue line) was also used as a control.

Acquisition of >5,000 events were collected using a 20mW Argon ion laser (488nm) and 525/30 bandpass filter.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-Calreticulin antibody [EPR3924] - ER Marker (AB196158)

ab196158 staining Calreticulin in HeLa (Human epithelial cell line from cervix adenocarcinoma) cells.

The cells were fixed with 100% methanol (5 minutes), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1 hour. The cells were then incubated overnight at +4°C with ab196158 at 1/1000 dilution (shown in green) and ab195889, Mouse monoclonal to alpha Tubulin (Alexa Fluor^® 594), at 1/250 dilution (shown in red). Nuclear DNA was labeled with DAPI (shown in blue).

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Alexa Fluor® 488 Anti-Calreticulin antibody [EPR3924] - ER Marker (AB196158)

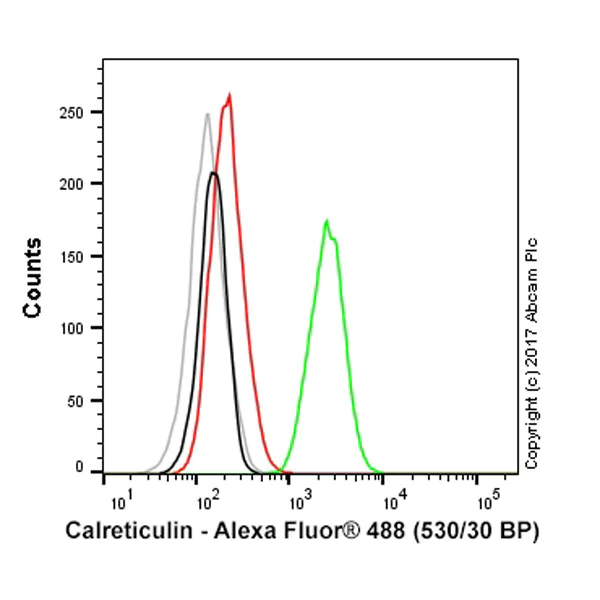

Overlay histogram showing HAP1 wildtype (green line) and HAP1-CALR knockout cells (red line) stained with ab196158.

The cells were fixed with 80% methanol (5 minutes) and then permeabilized with 0.1% PBS-Triton X-100 for 15 minutes. The cells were then incubated in 1x PBS / 10% normal goat serum to block non-specific protein-protein interactions followed by the antibody (ab196158, 0.1 μg/ml dilution) for 30 minutes at 22°C.

A rabbit IgG isotype control antibody (ab199091) was used at the same concentration and conditions as the primary antibody (HAP1 wildtype - black line, HAP1-CALR knockout - grey line). Unlabeled sample was also used as a control (this line is not shown for the purpose of simplicity).

Acquisition of >5,000 events were collected using a 50 mW Blue laser (488nm) and 530/30 bandpass filter.
