AB307622

Alexa Fluor® 488 Anti-CD16+CD32 antibody [EPR23501-203]

Be the first to review this product! Submit a review

|

(0 Publication)

Rabbit Recombinant Monoclonal FCGR2 antibody - conjugated to Alexa Fluor® 488. Suitable for Flow Cyt, ICC/IF and reacts with Mouse samples.

View Alternative Names

CD32, Fcgr2b, Ly-17, Fcgr2, Low affinity immunoglobulin gamma Fc region receptor II, Fc gamma receptor IIB, IgG Fc receptor II beta, Lymphocyte antigen 17, Fc-gamma RII, Fc-gamma-RIIB, FcRII

2 Images
Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-CD16+CD32 antibody [EPR23501-203] (AB307622)
  • ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-CD16+CD32 antibody [EPR23501-203] (AB307622)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized J774A.1 (mouse reticulum cell sarcoma monocyte/macrophage) cells labelling CD16+CD32 with ab307622 at 1/50 (10.0 μg/ml) dilution. Confocal image showing strong membranous and weak cytoplasmic staining in J774A.1 cells. Negative control : bEnd.3 cell (PMID : 23911392). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8). ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 2.5ug/ml dilution (Red). The Nuclear counterstain was DAPI (Blue).

Flow Cytometry - Alexa Fluor® 488 Anti-CD16+CD32 antibody [EPR23501-203] (AB307622)
  • Flow Cyt

Supplier Data

Flow Cytometry - Alexa Fluor® 488 Anti-CD16+CD32 antibody [EPR23501-203] (AB307622)

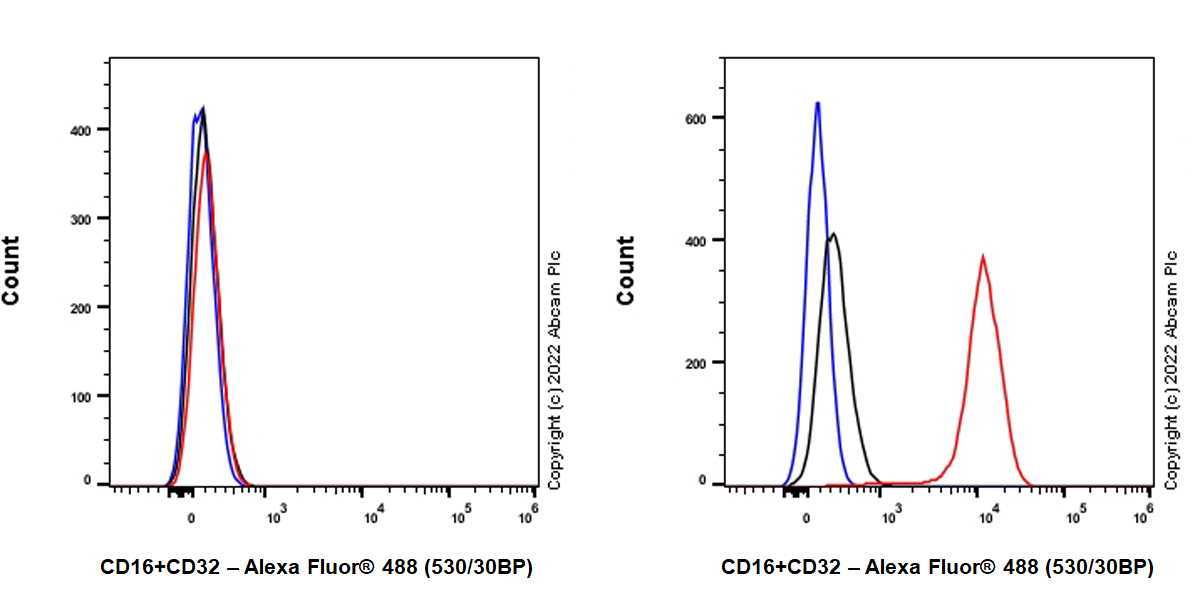

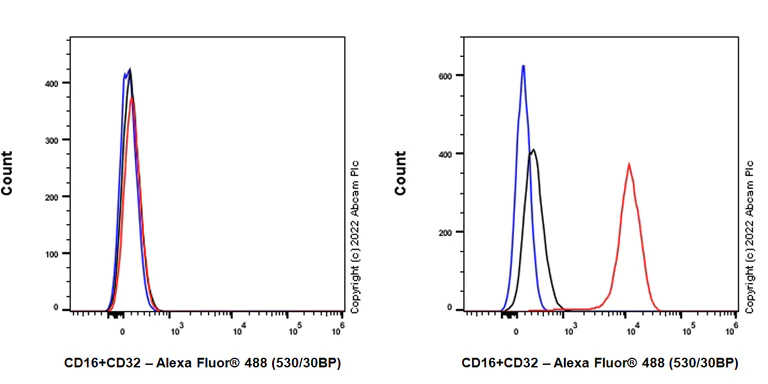

Flow cytometric analysis of bEnd.3 (mouse brain endothelioma, Left) / J774A.1 (mouse reticulum cell sarcoma monocyte macrophage, Right) cells labelling CD16+CD32 with ab307622 at 1/500 dilution (0.1μg) (Red) compared with a Rabbit IgG monoclonal [EPR25A] - Isotype Control (Alexa Fluor® 647) (ab199093) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). Negative control : bEnd.3 (PMID : 23911392). Gated on viable cells.

  • 665 Alexa Fluor® 647

    Alexa Fluor® 647 Anti-CD16+CD32 antibody [EPR23501-203]

  • Unconjugated

    Anti-CD16+CD32 antibody [EPR23501-203]

  • Carrier free

    Anti-CD16+CD32 antibody [EPR23501-203] - BSA and Azide free

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR23501-203

Isotype

IgG

Conjugation

Alexa Fluor® 488

Excitation/Emission

Ex: 495nm, Em: 519nm

Carrier free

No

Reacts with

Mouse

Applications

Flow Cyt, ICC/IF

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "FlowCyt" : {"fullname" : "Flow Cytometry", "shortname":"Flow Cyt"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Mouse": { "FlowCyt-species-checked": "testedAndGuaranteed", "FlowCyt-species-dilution-info": "1/500", "FlowCyt-species-notes": "<p></p>", "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "1/50", "ICCIF-species-notes": "<p></p>" } } }
style
left-column

Product details

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Alexa Fluor® is a registered trademark of Molecular Probes, Inc, a Thermo Fisher Scientific Company. The Alexa Fluor® dye included in this product is provided under an intellectual property license from Life Technologies Corporation. As this product contains the Alexa Fluor® dye, the purchase of this product conveys to the buyer the non-transferable right to use the purchased product and components of the product only in research conducted by the buyer (whether the buyer is an academic or for-profit entity). As this product contains the Alexa Fluor® dye the sale of this product is expressly conditioned on the buyer not using the product or its components, or any materials made using the product or its components, in any activity to generate revenue, which may include, but is not limited to use of the product or its components: in manufacturing; (ii) to provide a service, information, or data in return for payment (iii) for therapeutic, diagnostic or prophylactic purposes; or (iv) for resale, regardless of whether they are sold for use in research. For information on purchasing a license to this product for purposes other than research, contact Life Technologies Corporation, 5781 Van Allen Way, Carlsbad, CA 92008 USA or outlicensing@thermofisher.com.

style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.4 Preservative: 0.02% Sodium azide Constituents: PBS, 30% Glycerol (glycerin, glycerine), 1% BSA
Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle|Store in the dark
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

CD16 and CD32 also referred to as FCγRIII and FCγRII are proteins expressed on the surface of various immune cells like natural killer cells macrophages and some subsets of T cells. CD16 has a mass ranging between 50-80 kDa while CD32 exhibits variability in size between 32-40 kDa due to different isoforms. These proteins play pivotal roles in immune response by binding to the Fc region of immunoglobulins influencing cell activation and signaling.
Biological function summary

CD16 and CD32 serve important roles in mediating immune cell interactions. They work as part of immune synapses facilitating antibody-dependent cellular cytotoxicity (ADCC) and phagocytosis processes. Due to their involvement in these complex activities they are included in immunological synapse formation and modulation extending their influence over overall immune regulation and response. These proteins are known to contribute to both innate and adaptive immune mechanisms as receptors for the Fc portion of immunoglobulin G.

Pathways

CD16 and CD32 interact within signaling pathways like the Fc gamma receptor-mediated phagocytosis pathway and the immune response-regulating signaling pathway. These receptors work in coordination with other immunoglobulin family members to initiate targeted cellular reactions necessary for immune challenge responses. CD32 often partners with CD19 and CD21 within pathways to modulate B cell receptor-mediated signaling.

CD16 and CD32 have connections to autoimmune diseases and infectious diseases. Aberrant expression or dysfunction in these proteins can contribute to the development of conditions such as systemic lupus erythematosus where improper immune complex clearance occurs and chronic inflammation results. CD16's involvement with NK cells can also play a role in viral infection control highlighting their importance in pathogen defense mechanisms.
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Receptor for the Fc region of complexed immunoglobulins gamma. Low affinity receptor. Involved in a variety of effector and regulatory functions such as phagocytosis of antigen-antibody complexes from the circulation and modulation of antibody production by B-cells. Isoform IIB1 and isoform IIB1' form caps but fail to mediate endocytosis or phagocytosis. Isoform IIB2 can mediate the endocytosis of soluble immune complexes via clathrin-coated pits. Isoform IIB1 and isoform IIB2 can down-regulate B-cell, T-cell, and mast cell activation when coaggregated to B-cell receptors for AG (BCR), T-cell receptors for AG (TCR), and Fc receptors, respectively.
See full target information Fcgr2
