AB198935

Alexa Fluor® 488 Anti-CD3D antibody [EP4426]

Be the first to review this product! Submit a review

|

(0 Publication)

Rabbit Recombinant Monoclonal CD3d antibody - conjugated to Alexa Fluor® 488. Suitable for Flow Cyt (Intra), IHC-P, ICC/IF, Flow Cyt and reacts with Human samples.

View Alternative Names

CD3d, T3D, CD3D, T-cell surface glycoprotein CD3 delta chain, T-cell receptor T3 delta chain

2 Images
Flow Cytometry (Intracellular) - Alexa Fluor® 488 Anti-CD3D antibody [EP4426] (AB198935)
  • Flow Cyt (Intra)

Lab

Flow Cytometry (Intracellular) - Alexa Fluor® 488 Anti-CD3D antibody [EP4426] (AB198935)

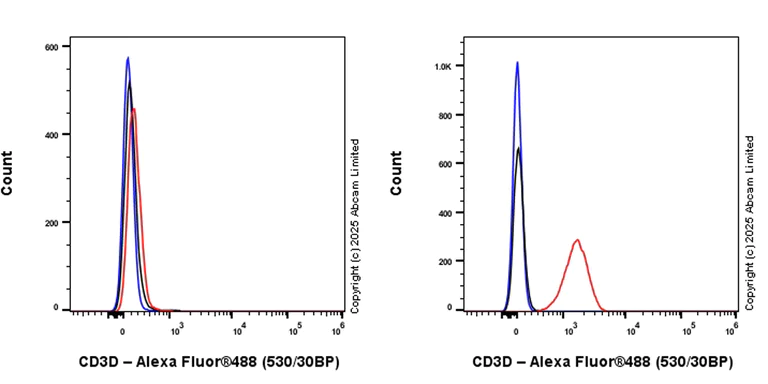

Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized THP-1 (human monocytic leukemia monocyte, Left) and Jurkat (human T cell leukemia T lymphocyte from peripheral blood, Right) cells labelling CD3D with ab198935 at 1/5000 dilution (0.01ug) / Red compared with a Rabbit IgG monoclonal [EPR25A] - Isotype Control (Alexa Fluor® 488) (ab199091) / Black isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody).

Negative control : THP-1.

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-CD3D antibody [EP4426] (AB198935)
  • ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-CD3D antibody [EP4426] (AB198935)

ab198935 staining CD3 in Jurkat cells. The cells were fixed with 100% methanol (5min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with ab198935 at 1/50 dilution (shown in green). Nuclear DNA was labelled with DAPI (shown in blue).
Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

  • 665 Alexa Fluor® 647

    Alexa Fluor® 647 Anti-CD3D antibody [EP4426]

  • 565 Alexa Fluor® 555

    Alexa Fluor® 555 Anti-CD3D antibody [EP4426]

  • 578 PE

    PE Anti-CD3D antibody [EP4426]

  • 660 APC

    APC Anti-CD3D antibody [EP4426]

  • HRP

    HRP Anti-CD3D antibody [EP4426]

  • Unconjugated

    Anti-CD3D antibody [EP4426]

  • Carrier free

    Anti-CD3D antibody [EP4426] - Low endotoxin, Azide free

  • Carrier free

    Anti-CD3D antibody [EP4426] - BSA and Azide free

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EP4426

Isotype

IgG

Conjugation

Alexa Fluor® 488

Excitation/Emission

Ex: 495nm, Em: 519nm

Carrier free

No

Reacts with

Human, Human

Applications

Flow Cyt, ICC/IF, Flow Cyt (Intra), IHC-P

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style
left-column

Alternative Products

Primary Antibodies

AB213362

Anti-CD3D antibody [EPR20544]

RabMAb|Recombinant

Immunohistochemistry (Frozen sections) - Anti-CD3D antibody [EPR20544] (AB213362)

  • 0
  • 0
Primary Antibodies

AB103573

Anti-CD3D antibody

Immunocytochemistry/ Immunofluorescence - Anti-CD3D antibody (AB103573)

  • 0
  • 0

Complementary Products

Primary Antibodies

AB201825

Alexa Fluor® 647 Anti-PD1 antibody [EPR4877(2)]

RabMAb|Recombinant

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 647 Anti-PD1 antibody [EPR4877(2)] (AB201825)

  • 5
  • 1
Primary Antibodies

AB196147

Alexa Fluor® 647 Anti-CD4 antibody [EPR6855]

RabMAb|Recombinant

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 647 Anti-CD4 antibody [EPR6855] (AB196147)

  • 5
  • 1
Primary Antibodies

AB282114

Alexa Fluor® 594 Anti-CD163 antibody [EPR19518]

RabMAb|Recombinant

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 594 Anti-CD163 antibody [EPR19518] (AB282114)

  • 1
  • 1
Primary Antibodies

AB199837

Alexa Fluor® 647 Anti-HLA A antibody [EP1395Y]

RabMAb|Recombinant

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 647 Anti-HLA A antibody [EP1395Y] (AB199837)

  • 5
  • 1
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "FlowCytIntra" : {"fullname" : "Flow Cytometry (Intracellular)", "shortname":"Flow Cyt (Intra)"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "FlowCyt" : {"fullname" : "Flow Cytometry", "shortname":"Flow Cyt"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "FlowCytIntra-species-checked": "testedAndGuaranteed", "FlowCytIntra-species-dilution-info": "1/5000", "FlowCytIntra-species-notes": "<p></p>", "IHCP-species-checked": "guaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>", "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "1/50", "ICCIF-species-notes": "<p>This product gave a positive signal in Jurkat cells fixed with 100% methanol (5 min).</p>", "FlowCyt-species-checked": "guaranteed", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "<p></p>" } } }
style
left-column

Product details

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

Alexa Fluor® is a registered trademark of Molecular Probes, Inc, a Thermo Fisher Scientific Company. The Alexa Fluor® dye included in this product is provided under an intellectual property license from Life Technologies Corporation. As this product contains the Alexa Fluor® dye, the purchase of this product conveys to the buyer the non-transferable right to use the purchased product and components of the product only in research conducted by the buyer (whether the buyer is an academic or for-profit entity). As this product contains the Alexa Fluor® dye the sale of this product is expressly conditioned on the buyer not using the product or its components, or any materials made using the product or its components, in any activity to generate revenue, which may include, but is not limited to use of the product or its components: in manufacturing; (ii) to provide a service, information, or data in return for payment (iii) for therapeutic, diagnostic or prophylactic purposes; or (iv) for resale, regardless of whether they are sold for use in research. For information on purchasing a license to this product for purposes other than research, contact Life Technologies Corporation, 5781 Van Allen Way, Carlsbad, CA 92008 USA or outlicensing@thermofisher.com.

style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.4 Preservative: 0.02% Sodium azide Constituents: PBS, 30% Glycerol (glycerin, glycerine), 1% BSA
Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle|Store in the dark
style
left-column
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Part of the TCR-CD3 complex present on T-lymphocyte cell surface that plays an essential role in adaptive immune response. When antigen presenting cells (APCs) activate T-cell receptor (TCR), TCR-mediated signals are transmitted across the cell membrane by the CD3 chains CD3D, CD3E, CD3G and CD247/CD3Z. All CD3 chains contain immunoreceptor tyrosine-based activation motifs (ITAMs) in their cytoplasmic domain. Upon TCR engagement, these motifs become phosphorylated by Src family protein tyrosine kinases LCK and FYN, resulting in the activation of downstream signaling pathways (PubMed : 2470098). In addition of this role of signal transduction in T-cell activation, CD3D plays an essential role in thymocyte differentiation. Indeed, participates in correct intracellular TCR-CD3 complex assembly and surface expression. In absence of a functional TCR-CD3 complex, thymocytes are unable to differentiate properly. Interacts with CD4 and CD8 and thus serves to establish a functional link between the TCR and coreceptors CD4 and CD8, which is needed for activation and positive selection of CD4 or CD8 T-cells (PubMed : 12215456).
