AB200315

Alexa Fluor® 488 Anti-CD45 antibody [EP322Y]

Be the first to review this product! Submit a review

|

(2 Publications)

Anti-CD45 antibody [EP322Y] - Alexa Fluor® 488 conjugated (ab200315) is a rabbit recombinant monoclonal antibody detecting CD45 in Flow Cytometry (Intracellular), ICC/IF. Suitable for Human.

- Biophysical QC for unrivalled batch-batch consistency

View Alternative Names

CD45, PTPRC, Receptor-type tyrosine-protein phosphatase C, Leukocyte common antigen, T200, L-CA

2 Images
Flow Cytometry (Intracellular) - Alexa Fluor® 488 Anti-CD45 antibody [EP322Y] (AB200315)
  • Flow Cyt (Intra)

Lab

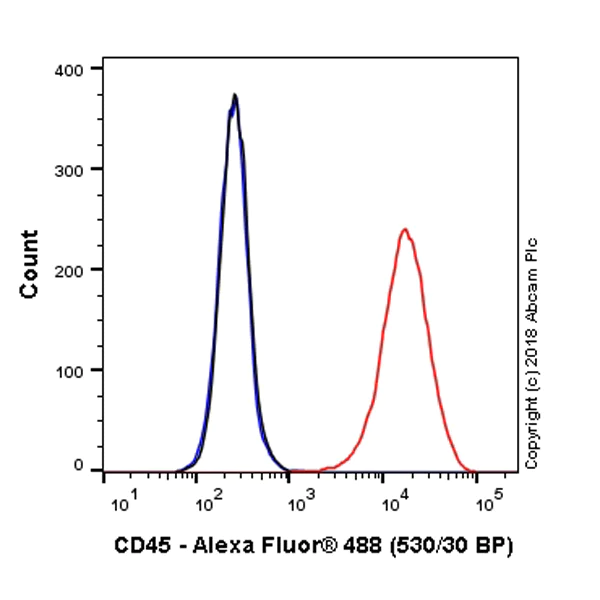

Flow Cytometry (Intracellular) - Alexa Fluor® 488 Anti-CD45 antibody [EP322Y] (AB200315)

Overlay histogram showing Jurkat cells stained with ab200315 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Triton X-100 for 15 min. The cells were then incubated in 1x PBS / 10% normal goat serum to block non-specific protein-protein interactions followed by the antibody (ab200315, 1/500 dilution) for 30 min at 22°C.

Isotype control antibody (black line) was Rabbit IgG (monoclonal) Alexa Fluor® 488 (ab199091) used at the same concentration and conditions as the primary antibody. Unlabelled sample (blue line) was also used as a control.

Acquisition of >5,000 events were collected using a 50 mW Blue laser (488nm) and 530/30 bandpass filter.

This antibody gave a positive signal in Jurkat cells fixed with 4% formaldehyde (10 min)/permeabilized with 0.1% PBS-Triton X-100 for 15 min used under the same conditions.

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-CD45 antibody [EP322Y] (AB200315)
  • ICC/IF

Lab

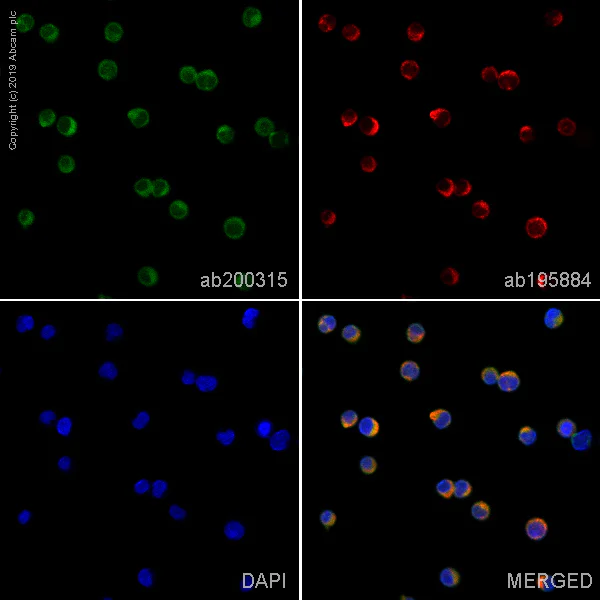

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-CD45 antibody [EP322Y] (AB200315)

ab200315 staining CD45 in Daudi cells. The cells were fixed with 80% methanol (5 min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with ab200315 at 1/250 dilution (shown in green) and ab195884, Rat monoclonal to Tubulin (Alexa Fluor® 647), at 1/250 dilution (shown in red). Nuclear DNA was labeled with DAPI (shown in blue).

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

This product also gave a positive signal under the same testing conditions in Daudi cells fixed with 4% formaldehyde (10 min).

  • Unconjugated

    Anti-CD45 antibody [EP322Y]

  • 578 PE

    PE Anti-CD45 antibody [EP322Y]

  • 660 APC

    APC Anti-CD45 antibody [EP322Y]

  • 665 Alexa Fluor® 647

    Alexa Fluor® 647 Anti-CD45 antibody [EP322Y]

  • Carrier free

    Anti-CD45 antibody [EP322Y] - BSA and Azide free

  • 617 Alexa Fluor® 594

    Alexa Fluor® 594 Anti-CD45 antibody [EP322Y]

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EP322Y

Isotype

IgG

Conjugation

Alexa Fluor® 488

Excitation/Emission

Ex: 495nm, Em: 519nm

Carrier free

No

Reacts with

Human

Applications

ICC/IF, Flow Cyt (Intra)

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "FlowCytIntra" : {"fullname" : "Flow Cytometry (Intracellular)", "shortname":"Flow Cyt (Intra)"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "FlowCytIntra-species-checked": "testedAndGuaranteed", "FlowCytIntra-species-dilution-info": "1/500", "FlowCytIntra-species-notes": "<p></p>", "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "1/50", "ICCIF-species-notes": "<p></p>" } } }
style
left-column

Product details

What is this antibody validated in?
Alexa Fluor® 488 Anti-CD45 antibody [EP322Y] (ab200315) is a rabbit recombinant monoclonal antibody and is validated for use in Flow Cytometry (Flow Cyt), Immunocytochemistry/immunofluorescence (ICC/IF) in Human samples.

Related products
Antibody clone EP322Y is also available pre-conjugated to a variety of labels for your convenience – Anti-CD45 Alexa Fluor® 488 [EP322Y] (ab200315).

Other related products
We have a range of other formats of antibody clone [EP322Y] also available for your convenience: ab40763, Alexa Fluor® 488 - ab200315, Alexa Fluor® 647 - ab200317, Carrier free - ab214437, PE - ab214501, APC - ab221245, Alexa Fluor® 594 - ab303598

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

Alexa Fluor® is a registered trademark of Molecular Probes, Inc, a Thermo Fisher Scientific Company. The Alexa Fluor® dye included in this product is provided under an intellectual property license from Life Technologies Corporation. As this product contains the Alexa Fluor® dye, the purchase of this product conveys to the buyer the non-transferable right to use the purchased product and components of the product only in research conducted by the buyer (whether the buyer is an academic or for-profit entity). As this product contains the Alexa Fluor® dye the sale of this product is expressly conditioned on the buyer not using the product or its components, or any materials made using the product or its components, in any activity to generate revenue, which may include, but is not limited to use of the product or its components: in manufacturing; (ii) to provide a service, information, or data in return for payment (iii) for therapeutic, diagnostic or prophylactic purposes; or (iv) for resale, regardless of whether they are sold for use in research. For information on purchasing a license to this product for purposes other than research, contact Life Technologies Corporation, 5781 Van Allen Way, Carlsbad, CA 92008 USA or outlicensing@thermofisher.com.

style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.4 Preservative: 0.02% Sodium azide Constituents: PBS, 30% Glycerol (glycerin, glycerine), 1% BSA
Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle|Store in the dark
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

CD45 also known as Protein tyrosine phosphatase receptor type C (PTPRC) is a transmembrane glycoprotein with a molecular mass ranging between 180-240 kDa depending on its isoform. It is expressed on the surface of almost all hematopoietic cells except for mature erythrocytes and platelets. CD45 has a critical role in regulating antigen receptor signaling by modifying kinases involved in signal transduction and it is essential in lymphocyte development and activation. Because of its broad expression on immune cells CD45 is a valuable marker for differentiating various immune cell types in assays like flow cytometry and immunohistochemistry (IHC) often referred to as CD45 stain.
Biological function summary

CD45 acts by regulating tyrosine phosphorylation in the immune cell signaling context participating directly in signal transduction. It functions by dephosphorylating specific phosphotyrosine residues on various proteins modulating the signaling threshold required for lymphocyte activation. Although not known to be part of a protein complex CD45 itself shows isoform variation that associates with specific immune cell types impacting their function. Importantly CD45 interacts with multiple signaling molecules to affect cell growth and differentiation.

Pathways

Scientists associate CD45 with signaling pathways such as the T-cell receptor (TCR) and B-cell receptor (BCR) signaling. CD45 modulates the activity of Src family kinases important elements in these pathways making it essential for effective immune response and tolerance. Furthermore interactions between CD45 and proteins like Lck in T-cells or Lyn in B-cells highlight its pivotal role in executing its signaling functions.

Scientists often link CD45 to immune-related conditions including autoimmunity and leukemia. In autoimmune diseases altered CD45 expression or activity can disrupt normal immune function contributing to pathogenesis. In leukemia CD45 expression levels can assist in disease classification and prognosis as it interacts with proteins involved in cell cycle regulation. The anti-CD45 antibodies can provide diagnostic and therapeutic avenues highlighting their utility in disease management.
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Protein tyrosine-protein phosphatase required for T-cell activation through the antigen receptor (PubMed : 35767951). Acts as a positive regulator of T-cell coactivation upon binding to DPP4. The first PTPase domain has enzymatic activity, while the second one seems to affect the substrate specificity of the first one. Upon T-cell activation, recruits and dephosphorylates SKAP1 and FYN. Dephosphorylates LYN, and thereby modulates LYN activity (By similarity).. (Microbial infection) Acts as a receptor for human cytomegalovirus protein UL11 and mediates binding of UL11 to T-cells, leading to reduced induction of tyrosine phosphorylation of multiple signaling proteins upon T-cell receptor stimulation and impaired T-cell proliferation.
See full target information PTPRC
style
left-column

Publications (2)

Recent publications for all applications. Explore the full list and refine your search

Stem cell research & therapy 14:344 PubMed38031182

2023

The effect of TLR3 priming conditions on MSC immunosuppressive properties.

Applications

Unspecified application

Species

Unspecified reactive species

Tatiana Tolstova,Ekaterina Dotsenko,Peter Kozhin,Svetlana Novikova,Victor Zgoda,Alexander Rusanov,Nataliya Luzgina

Frontiers in oncology 10:1217 PubMed32850358

2020

Mefloquine Inhibits Esophageal Squamous Cell Carcinoma Tumor Growth by Inducing Mitochondrial Autophagy.

Applications

Unspecified application

Species

Unspecified reactive species

Yifei Xie,Jing Zhang,Bingbing Lu,Zhuo Bao,Jimin Zhao,Xianyu Lu,Yaxing Wei,Ke Yao,Yanan Jiang,Qiang Yuan,Xiaofan Zhang,Bo Li,Xinhuan Chen,Zigang Dong,Kangdong Liu
View all publications
style
left-column
style
left-column
style
right-column

Alternative Products

Primary Antibodies

AB154885

Anti-CD45 antibody

Flow Cytometry - Anti-CD45 antibody (AB154885)

  • 0
  • 0
Primary Antibodies

AB218503

Anti-CD45 antibody [PTPRC/1461]

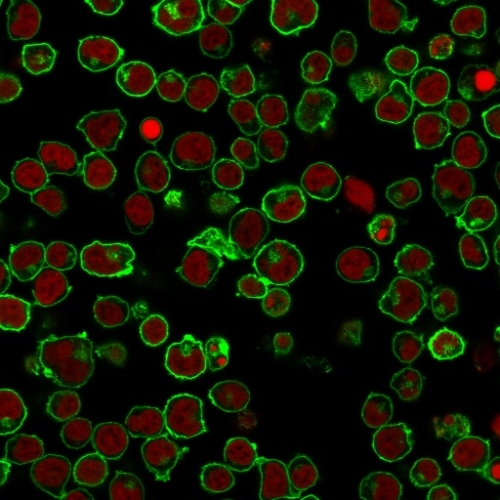

Immunocytochemistry - Anti-CD45 antibody [PTPRC/1461] (AB218503)

  • 0
  • 0
Primary Antibodies

AB239276

Alexa Fluor® 647 Anti-CD45 antibody [MEM-28]

Flow Cytometry - Alexa Fluor® 647 Anti-CD45 antibody [MEM-28] (AB239276)

  • 0
  • 0
Primary Antibodies

AB28107

Biotin Anti-CD45 antibody [MEM-28]

Flow Cytometry - Biotin Anti-CD45 antibody [MEM-28] (AB28107)

  • 0
  • 0
Primary Antibodies

AB65952

PerCP Anti-CD45 antibody [MEM-28]

Flow Cytometry - PerCP Anti-CD45 antibody [MEM-28] (AB65952)

  • 0
  • 0
Primary Antibodies

AB239317

PE/Cy7® Anti-CD45 antibody [MEM-28]

Flow Cytometry - PE/Cy7® Anti-CD45 antibody [MEM-28] (AB239317)

  • 0
  • 0
Primary Antibodies

AB269346

PE Anti-CD45 antibody [EM-05]

Flow Cytometry - PE Anti-CD45 antibody [EM-05] (AB269346)

  • 0
  • 0
Primary Antibodies

AB269347

Anti-CD45 antibody [HI30]

Western blot - Anti-CD45 antibody [HI30] (AB269347)

  • 0
  • 0
Primary Antibodies

AB197130

APC/Cy7® Anti-CD45 antibody [MEM-28]

Flow Cytometry - APC/Cy7® Anti-CD45 antibody [MEM-28] (AB197130)

  • 0
  • 0
Primary Antibodies

AB223183

PE/DyLight™ 594 Anti-CD45 antibody [MEM-28]

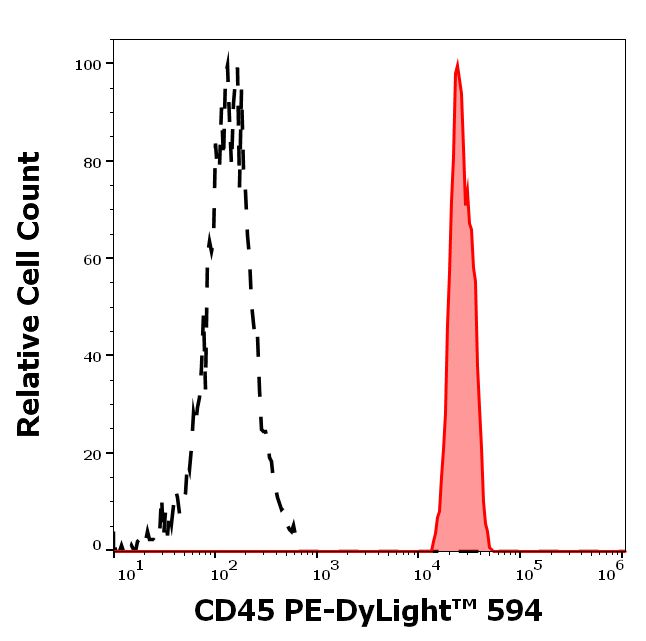

Flow Cytometry - PE/DyLight™ 594 Anti-CD45 antibody [MEM-28] (AB223183)

  • 0
  • 0
Primary Antibodies

AB134199

FITC Anti-CD45 antibody [MEM-28]

Flow Cytometry - FITC Anti-CD45 antibody [MEM-28] (AB134199)

  • 0
  • 0
Primary Antibodies

AB157309

PerCP/Cy5.5® Anti-CD45 antibody [MEM-28]

Flow Cytometry - PerCP/Cy5.5® Anti-CD45 antibody [MEM-28] (AB157309)

  • 5
  • 1
Primary Antibodies

AB269297

PE Anti-CD45 antibody [2D1]

Flow Cytometry - PE Anti-CD45 antibody [2D1] (AB269297)

  • 0
  • 0
Primary Antibodies

AB242257

redFluor™ 710 Anti-CD45 antibody [HI30]

Flow Cytometry - redFluor™ 710 Anti-CD45 antibody [HI30] (AB242257)

  • 0
  • 0
Primary Antibodies

AB242264

redFluor™ 710 Anti-CD45R antibody [RA3-6B2]

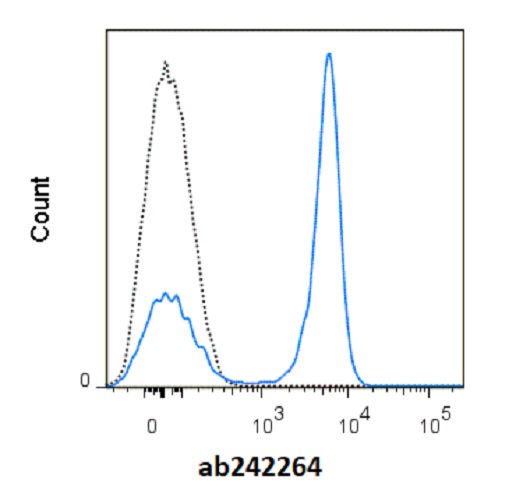

Flow Cytometry - redFluor™ 710 Anti-CD45R antibody [RA3-6B2] (AB242264)
