Alexa Fluor® 488 Anti-Choline Acetyltransferase antibody [EPR13024(B)]

• ICC/IF

Lab

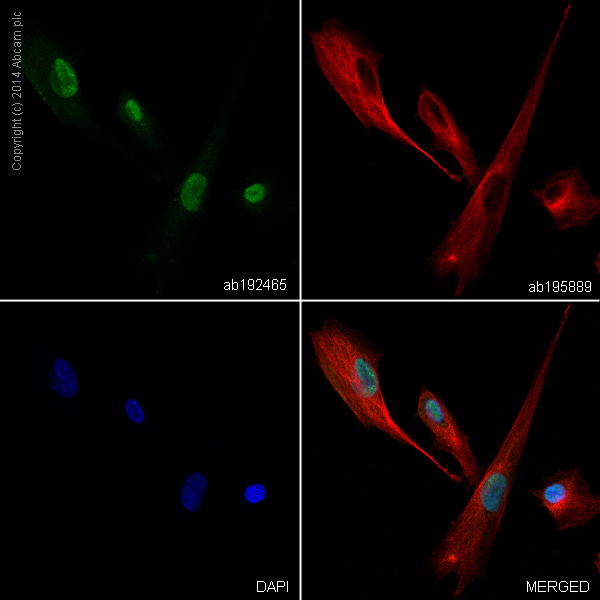

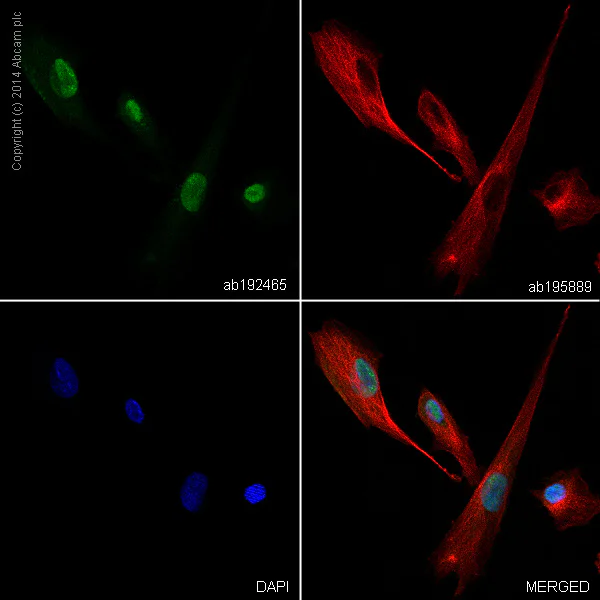

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-Choline Acetyltransferase antibody [EPR13024(B)] (AB192465)

ab192465 staining Choline Acetyltransferase in SKNSH cells. The cells were fixed with 4% formaldehyde (10 min), permeabilised in 0.1% Triton X-100 for 5 minutes and then blocked in 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated with ab192465 at a working dilution of 1 in 100 (shown in green) and ab195889, Mouse monoclonal [DM1A] to alpha Tubulin (Alexa Fluor^® 594, shown in red) at 2μg/ml overnight at +4°C. Nuclear DNA was labelled in blue with DAPI.

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

• IHC-Fr

Lab

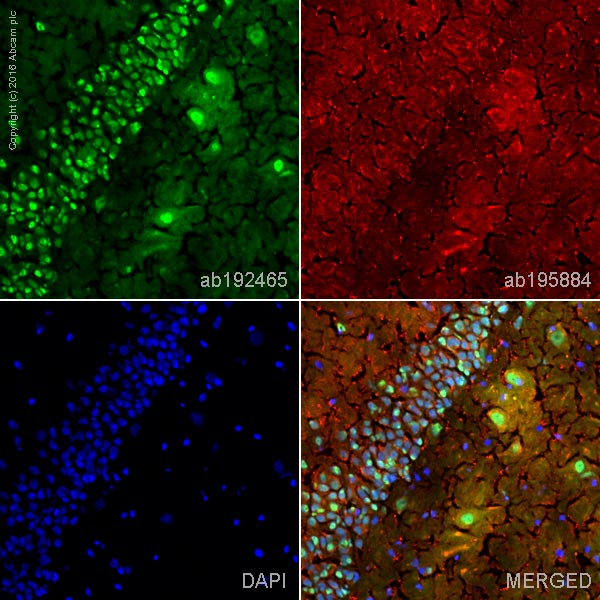

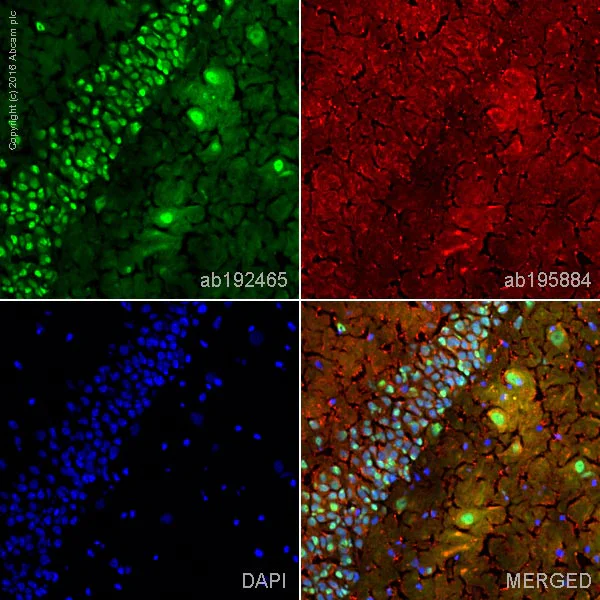

Immunohistochemistry (Frozen sections) - Alexa Fluor® 488 Anti-Choline Acetyltransferase antibody [EPR13024(B)] (AB192465)

IHC image of Choline Acetyltransferase staining in a section of frozen normal rat dentate gyrus.

The section was fixed using 10% formaldehyde in 1XPBS for 10 minutes. No antigen retrieval step was performed prior to staining. Non-specific protein-protein interactions were then blocked in TBS containing 0.025% (v/v) Triton X-100, 0.3M (w/v) glycine and 1% (w/v) BSA for 1h at room temperature. The section was then incubated overnight at +4°C in TBS containing 0.025% (v/v) Triton X-100 and 1% (w/v) BSA with ab192465 at 1/100 (shown in green) and counterstained using ab195884, Rat monoclonal to Tubulin (Alexa Fluor^® 647), at 1/250 dilution (shown in red). Nuclear DNA was labelled with DAPI (shown in blue). The section was then mounted using Fluoromount^®.

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

For other IHC staining systems (automated and non-automated), customers should optimize variable parameters such as antigen retrieval conditions, antibody concentrations and incubation times.
