Alexa Fluor® 488 Anti-Cortactin antibody [EP1922Y]

3 product images

•

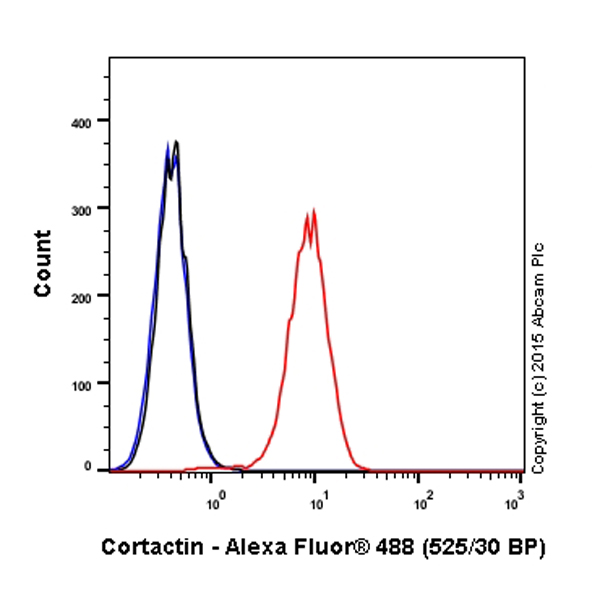

  Flow Cytometry (Intracellular) - Alexa Fluor® 488 Anti-Cortactin antibody [EP1922Y] (ab202648)

  Overlay histogram showing HeLa cells stained with ab202648 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab202648, 1/500 dilution) for 30 min at 22°C. Isotype control antibody (black line) was rabbit monoclonal IgG [EPR25A] Alexa Fluor® 488 (Alexa Fluor® 488 Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab199091) used at the same concentration and conditions as the primary antibody. Unlabelled sample (blue line) was also used as a control. Acquisition of >5,000 events were collected using a 20mW Argon ion laser (488nm) and 525/30 bandpass filter. This antibody gave a positive signal in HeLa cells fixed with 4% formaldehyde (10 min)/permeabilized with 0.1% PBS-Tween for 20 min used under the same conditions.

•

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-Cortactin antibody [EP1922Y] (ab202648)

  ab202648 staining Cortactin in wild-type HAP1 cells (top panel) and Cortactin knockout HAP1 cells (bottom panel). The cells were fixed with 4% formaldehyde (10min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated with ab202648 at 1/100 dilution (shown in green) and Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 at 1/250 dilution (shown in pseudo colour red) overnight at +4°C. Nuclear DNA was labelled in blue with DAPI.


  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

•

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-Cortactin antibody [EP1922Y] (ab202648)

  ab202648 staining Cortactin in HeLa cells. The cells were fixed with 100% methanol (5min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with ab202648 at 1/200 dilution (shown in green) and Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889, Mouse monoclonal to alpha Tubulin (Alexa Fluor^® 594), at 1/250 dilution (shown in red). Nuclear DNA was labelled with DAPI (shown in blue).

  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).
