Alexa Fluor® 488 Anti-Cytokeratin 19 antibody [EP1580Y]

3 product images

•

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-Cytokeratin 19 antibody [EP1580Y] (ab192643)

  Immunofluorescence staining of Cytokeratin 19 in wild-type MCF7 cells (top panel) and KRT19 knockout MCF7 cells (bottom panel) using ab192643. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated with ab192643 at 1/500 dilution (shown in green) and Alexa Fluor® 647 Anti-Tubulin antibody [YOL1/34] - Microtubule Marker ab195884 (Rat monoclonal to Tubulin - Alexa Fluor® 647) at 1/100 dilution (shown in red) overnight at +4°C. Nuclear DNA was labelled in blue with DAPI.
  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

•

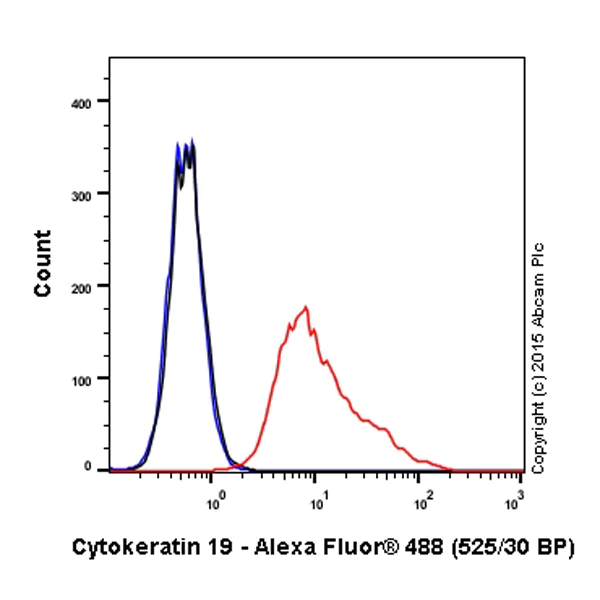

  Flow Cytometry (Intracellular) - Alexa Fluor® 488 Anti-Cytokeratin 19 antibody [EP1580Y] (ab192643)

  Flow Cytometry analysis of Cytokeratin-19 in HeLa (Human epithelial cell line from cervix adenocarcinoma) cells stained with ab192643 (red line).


  The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab192643, 1/500 dilution) for 30 min at 22°C.

  Isotype control antibody (black line) was rabbit monoclonal IgG [EPR25A] Alexa Fluor^® 488 (Alexa Fluor® 488 Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab199091) used at the same concentration and conditions as the primary antibody. Unlabeled sample (blue line) was also used as a control.

  Acquisition of >5,000 events were collected using a 20mW Argon ion laser (488nm) and 525/30 bandpass filter.

•

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-Cytokeratin 19 antibody [EP1580Y] (ab192643)

  Immunofluorescence staining of Cytokeratin 19 in HeLa (Human epithelial cell line from cervix adenocarcinoma) cells using ab192643. The cells were fixed with 4% formaldehyde (10 min) and then blocked in 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Triton X-100 for 1hr. The cells were then incubated with ab192643 at a working dilution of 1 in 100 (shown in green) and Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291 (Mouse monoclonal [DM1A] to alpha Tubulin) at 1 μg/ml overnight at +4°C, followed by a further incubation at room temperature for 1hr with an AlexaFluor® 594 Goat anti-mouse IgG (H&L - preadsorbed) secondary (Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120) at 2 μg/ml (shown in pseudo-color red).


  Nuclear DNA was labeled in blue with DAPI.

  This product gave a positive signal in 100% methanol (5 min) fixed HeLa cells under the same testing conditions.

  Image was taken with a Confocal microscope (Leica-microsystems, TCS SP8)
