AB193244

Alexa Fluor® 488 Anti-EGFR antibody [EP38Y]

Be the first to review this product! Submit a review

|

(3 Publications)

Rabbit Recombinant Monoclonal EGFR antibody - conjugated to Alexa Fluor® 488. Suitable for ICC/IF, Flow Cyt (Intra), IHC-P and reacts with Human, Mouse, Rat samples. Cited in 3 publications.

View Alternative Names

ERBB, ERBB1, HER1, EGFR, Epidermal growth factor receptor, Proto-oncogene c-ErbB-1, Receptor tyrosine-protein kinase erbB-1

2 Images
Flow Cytometry (Intracellular) - Alexa Fluor® 488 Anti-EGFR antibody [EP38Y] (AB193244)
  • Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Alexa Fluor® 488 Anti-EGFR antibody [EP38Y] (AB193244)

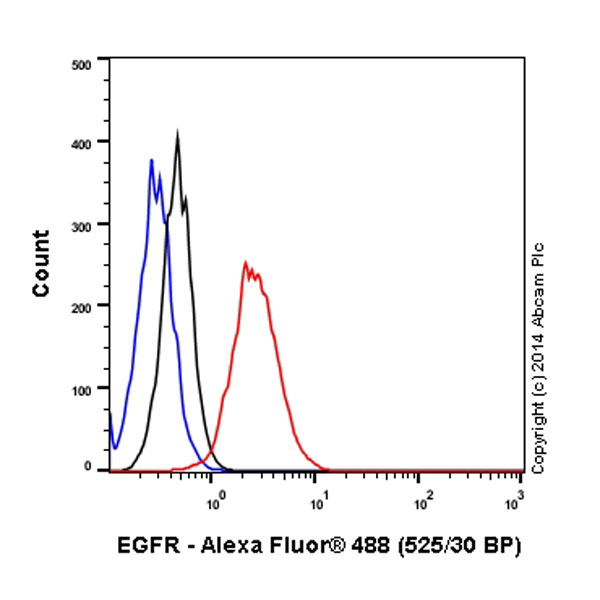

Overlay histogram showing HeLa cells stained with ab193244 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab193244, 1/50 dilution) for 30 min at 22°C. Isotype control antibody (black line) was rabbit IgG (monoclonal) Alexa Fluor® 488 used at the same concentration and conditions as the primary antibody. Unlabelled sample (blue line) was also used as a control.

Acquisition of >5,000 events were collected using a 20mW Argon ion laser (488nm) and 525/30 bandpass filter.

This antibody gave a positive signal in HeLa fixed with 4% formaldehyde (10 min)/permeabilized with 0.1% PBS-Tween for 20 min used under the same conditions.

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-EGFR antibody [EP38Y] (AB193244)
  • ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-EGFR antibody [EP38Y] (AB193244)

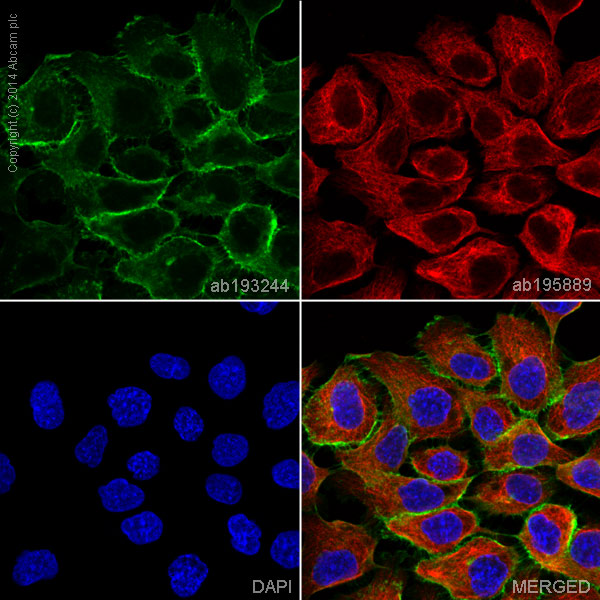

ab193244 staining EGFR in A431 cells. The cells were fixed with 100% methanol (5 min), permeabilised in 0.1% Triton X-100 for 5 minutes and then blocked in 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated with ab193244 at 1/100 dilution (shown in green) and ab195889, Mouse monoclonal [DM1A] to alpha Tubulin (Alexa Fluor® 594, shown in red) at 1/167 dilution overnight at +4°C. Nuclear DNA was labelled in blue with DAPI.

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EP38Y

Isotype

IgG

Conjugation

Alexa Fluor® 488

Excitation/Emission

Ex: 495nm, Em: 519nm

Carrier free

No

Reacts with

Human, Human, Mouse, Rat

Applications

Flow Cyt (Intra), ICC/IF, IHC-P

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style
left-column

Alternative Products

Primary Antibodies

AB32578

Anti-EGFR (phospho Y1173) antibody [E124]

RabMAb|Recombinant|Lab Essentials|20ul selling size

Immunocytochemistry/ Immunofluorescence - Anti-EGFR (phospho Y1173) antibody [E124] (AB32578)

  • 0
  • 0
Primary Antibodies

AB40815

Anti-EGFR (phospho Y1068) antibody [EP774Y]

RabMAb|Recombinant|Lab Essentials|20ul selling size

Western blot - Anti-EGFR (phospho Y1068) antibody [EP774Y] (AB40815)

  • 4
  • 14
Primary Antibodies

AB76153

Anti-EGFR antibody [EPR39Y]

RabMAb|Recombinant|Lab Essentials|20ul selling size

Immunocytochemistry/ Immunofluorescence - Anti-EGFR antibody [EPR39Y] (AB76153)

  • 0
  • 0
Primary Antibodies

AB32430

Anti-EGFR (phospho Y1068) antibody [Y38]

RabMAb|Recombinant|Lab Essentials|20ul selling size

Immunocytochemistry/ Immunofluorescence - Anti-EGFR (phospho Y1068) antibody [Y38] (AB32430)

  • 0
  • 0
Primary Antibodies

AB32077

Anti-EGFR antibody [E235]

BOND RX™ Validated|KO Validated|RabMAb|Recombinant|Lab Essentials|20ul selling size

Flow Cytometry (Intracellular) - Anti-EGFR antibody [E235] (AB32077)

  • 5
  • 4
Primary Antibodies

AB32562

Anti-EGFR antibody [E114]

BOND RX™ Validated|RabMAb|Recombinant|Lab Essentials|20ul selling size

Flow Cytometry (Intracellular) - Anti-EGFR antibody [E114] (AB32562)

  • 0
  • 0
Primary Antibodies

AB227737

Anti-EGFR (deleted E746 + L747 + R748 + E749 + A750) antibody [SP111]

RabMAb|Recombinant|Lab Essentials|20ul selling size

Flow Cytometry - Anti-EGFR (deleted E746 + L747 + R748 + E749 + A750) antibody [SP111] (AB227737)

  • 0
  • 0

Complementary Products

Assay Kits

AB269558

Human soluble EGFR ELISA Kit

Recombinant|SimpleStep

ELISA - Human soluble EGFR ELISA Kit (AB269558)

  • 0
  • 0
Primary Antibodies

AB225510

Alexa Fluor® 647 Anti-ErbB2 / HER2 antibody [EPR19547-12]

RabMAb|Recombinant

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 647 Anti-ErbB2 / HER2 antibody [EPR19547-12] (AB225510)

  • 0
  • 0
Secondary Antibodies

AB150077

Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488)

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (AB150077)

  • 5
  • 20
Primary Antibodies

AB237396

Alexa Fluor® 647 Anti-EpCAM antibody [EPR20532-225]

RabMAb|Recombinant

Flow Cytometry - Alexa Fluor® 647 Anti-EpCAM antibody [EPR20532-225] (AB237396)

  • 0
  • 0
Primary Antibodies

AB15580

Anti-Ki67 antibody

BOND RX™ Validated|KO Validated

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Ki67 antibody (AB15580)

  • 5
  • 230
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "FlowCytIntra" : {"fullname" : "Flow Cytometry (Intracellular)", "shortname":"Flow Cyt (Intra)"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "1/100", "ICCIF-species-notes": "<p></p>", "FlowCytIntra-species-checked": "testedAndGuaranteed", "FlowCytIntra-species-dilution-info": "1/50", "FlowCytIntra-species-notes": "<p><a href='/en-us/products/primary-antibodies/alexa-fluor-488-rabbit-igg-monoclonal-epr25a-isotype-control-ab199091'>ab199091</a> - Rabbit monoclonal IgG (Alexa Fluor® 488), is suitable for use as an isotype control with this antibody.</p>", "IHCP-species-checked": "guaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>" }, "Mouse": { "ICCIF-species-checked": "guaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "<p></p>", "FlowCytIntra-species-checked": "guaranteed", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "<p></p>", "IHCP-species-checked": "guaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>" }, "Rat": { "ICCIF-species-checked": "guaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "<p></p>", "FlowCytIntra-species-checked": "guaranteed", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "<p></p>", "IHCP-species-checked": "guaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>" } } }
style
left-column

Product details

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

Alexa Fluor® is a registered trademark of Molecular Probes, Inc, a Thermo Fisher Scientific Company. The Alexa Fluor® dye included in this product is provided under an intellectual property license from Life Technologies Corporation. As this product contains the Alexa Fluor® dye, the purchase of this product conveys to the buyer the non-transferable right to use the purchased product and components of the product only in research conducted by the buyer (whether the buyer is an academic or for-profit entity). As this product contains the Alexa Fluor® dye the sale of this product is expressly conditioned on the buyer not using the product or its components, or any materials made using the product or its components, in any activity to generate revenue, which may include, but is not limited to use of the product or its components: in manufacturing; (ii) to provide a service, information, or data in return for payment (iii) for therapeutic, diagnostic or prophylactic purposes; or (iv) for resale, regardless of whether they are sold for use in research. For information on purchasing a license to this product for purposes other than research, contact Life Technologies Corporation, 5781 Van Allen Way, Carlsbad, CA 92008 USA or outlicensing@thermofisher.com.

style
left-column

Properties and storage information

Form
Liquid
Purity
Tissue culture supernatant
Storage buffer
pH: 7.4 Preservative: 0.02% Sodium azide Constituents: PBS, 30% Glycerol (glycerin, glycerine), 1% BSA
Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle|Store in the dark
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

EGFR or Epidermal Growth Factor Receptor is a transmembrane glycoprotein that acts as a receptor for members of the epidermal growth factor family. Known alternatively as ErbB1 or HER1 this receptor has an approximate molecular weight of 170 kDa. EGFR is expressed in various cell types notably on epithelial cells and can influence multiple cellular processes through its kinase activity. It participates in the regulation of cell growth multiplication and survival by activating its kinase domain upon ligand binding.
Biological function summary

The EGFR protein plays an important role in cellular communication and signaling processes. EGFR pairs with other receptor family members to form active dimers or even higher-order complexes which in turn initiate intracellular signaling cascades. Through these complexes EGFR influences many processes including cell differentiation and repair. This function of EGFR makes it an integral part of mammalian biology affecting how cells respond to their environment by mediating changes in gene expression.

Pathways

EGFR is a central player in the MAPK and PI3K/Akt signaling pathways. Alongside other protein partners like KRAS and PI3 kinase it contributes to transmitting signals from the cell surface to the nucleus affecting gene transcription and cell behavior. These pathways are important for normal cell growth and division and aberrations in these pathways can lead to excessive or insufficient cell proliferation.

EGFR is pertinent to cancer biology including non-small cell lung cancer and glioblastoma where mutations or overexpression of the receptor frequently occur. It connects to proteins such as PTEN and BRAF which influence tumor progression and response to targeted therapies. EGFR's involvement in these disorders highlights its significance as a therapeutic target since it can be manipulated to alter disease progression.
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Receptor tyrosine kinase binding ligands of the EGF family and activating several signaling cascades to convert extracellular cues into appropriate cellular responses (PubMed : 10805725, PubMed : 27153536, PubMed : 2790960, PubMed : 35538033). Known ligands include EGF, TGFA/TGF-alpha, AREG, epigen/EPGN, BTC/betacellulin, epiregulin/EREG and HBEGF/heparin-binding EGF (PubMed : 12297049, PubMed : 15611079, PubMed : 17909029, PubMed : 20837704, PubMed : 27153536, PubMed : 2790960, PubMed : 7679104, PubMed : 8144591, PubMed : 9419975). Ligand binding triggers receptor homo- and/or heterodimerization and autophosphorylation on key cytoplasmic residues. The phosphorylated receptor recruits adapter proteins like GRB2 which in turn activates complex downstream signaling cascades. Activates at least 4 major downstream signaling cascades including the RAS-RAF-MEK-ERK, PI3 kinase-AKT, PLCgamma-PKC and STATs modules (PubMed : 27153536). May also activate the NF-kappa-B signaling cascade (PubMed : 11116146). Also directly phosphorylates other proteins like RGS16, activating its GTPase activity and probably coupling the EGF receptor signaling to the G protein-coupled receptor signaling (PubMed : 11602604). Also phosphorylates MUC1 and increases its interaction with SRC and CTNNB1/beta-catenin (PubMed : 11483589). Positively regulates cell migration via interaction with CCDC88A/GIV which retains EGFR at the cell membrane following ligand stimulation, promoting EGFR signaling which triggers cell migration (PubMed : 20462955). Plays a role in enhancing learning and memory performance (By similarity). Plays a role in mammalian pain signaling (long-lasting hypersensitivity) (By similarity).. Isoform 2 may act as an antagonist of EGF action.. (Microbial infection) Acts as a receptor for hepatitis C virus (HCV) in hepatocytes and facilitates its cell entry. Mediates HCV entry by promoting the formation of the CD81-CLDN1 receptor complexes that are essential for HCV entry and by enhancing membrane fusion of cells expressing HCV envelope glycoproteins.
See full target information EGFR
style
left-column

Publications (3)

Recent publications for all applications. Explore the full list and refine your search

The journal of histochemistry and cytochemistry : official journal of the Histochemistry Society 73:223-236 PubMed40552463

2025

Comparison of Gold Nanoparticle and Fluorophore-conjugated Antibodies for Labeling Epitopes in Permeabilized Cells.

Applications

Unspecified application

Species

Unspecified reactive species

Ryan N Baugher,George Nehmetallah,Christopher B Raub

Nanomaterials (Basel, Switzerland) 14: PubMed39453005

2024

Peptide-Conjugated Vascular Endothelial Extracellular Vesicles Encapsulating Vinorelbine for Lung Cancer Targeted Therapeutics.

Applications

Unspecified application

Species

Unspecified reactive species

Isha Gaurav,Abhimanyu Thakur,Kui Zhang,Sudha Thakur,Xin Hu,Zhijie Xu,Gaurav Kumar,Ravindran Jaganathan,Ashok Iyaswamy,Min Li,Ge Zhang,Zhijun Yang

European journal of nuclear medicine and molecular imaging 46:948-956 PubMed30069577

2018

PET imaging of EGFR expression using an F-labeled RNA aptamer.

Applications

Unspecified application

Species

Unspecified reactive species

Siyuan Cheng,Orit Jacobson,Guizhi Zhu,Zhen Chen,Steve H Liang,Rui Tian,Zhen Yang,Gang Niu,Xiaohua Zhu,Xiaoyuan Chen
