AB326534

Alexa Fluor® 488 Anti-HLA-DRA antibody [L243]

Be the first to review this product! Submit a review

|

(0 Publication)

Mouse Monoclonal HLA-DRA antibody - conjugated to Alexa Fluor® 488. Suitable for Flow Cyt and reacts with Human samples.

View Alternative Names

HLA-DRA1, HLA-DRA, MHC class II antigen DRA

2 Images
Flow Cytometry - Alexa Fluor® 488 Anti-HLA-DRA antibody [L243] (AB326534)
  • Flow Cyt

Supplier Data

Flow Cytometry - Alexa Fluor® 488 Anti-HLA-DRA antibody [L243] (AB326534)

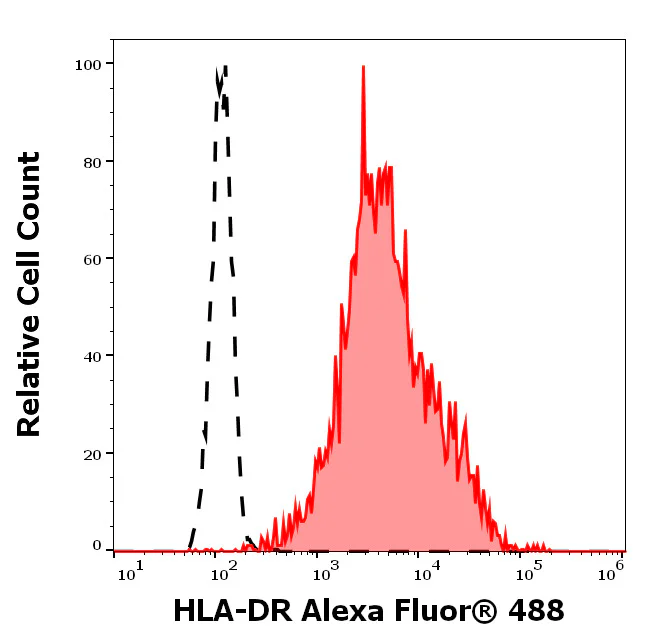

Separation of human monocytes (red-filled) from HLA-DR negative lymphocytes (black-dashed) in flow cytometry analysis (surface staining) of human peripheral whole blood stained using ab326534 (4 μl reagent / 100 μl of peripheral whole blood).

Flow Cytometry - Alexa Fluor® 488 Anti-HLA-DRA antibody [L243] (AB326534)
  • Flow Cyt

Supplier Data

Flow Cytometry - Alexa Fluor® 488 Anti-HLA-DRA antibody [L243] (AB326534)

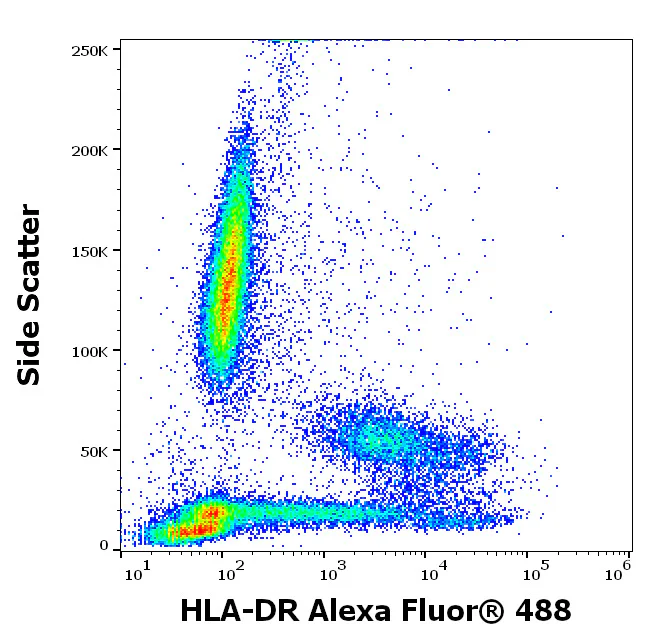

Flow cytometry surface staining pattern of human peripheral whole blood stained using ab326534 (4 μl reagent / 100 μl of peripheral whole blood).

  • Unconjugated

    Anti-HLA-DR antibody [L243]

  • 660 APC

    APC Anti-HLA-DRA antibody [L243]

  • 785 APC/Cy7®

    APC/Cy7® Anti-HLA-DR antibody [L243]

  • 665 Alexa Fluor® 647

    Alexa Fluor® 647 Anti-HLA-DR antibody [L243]

  • 519 FITC

    FITC Anti-HLA-DR antibody [L243]

  • 578 PE

    PE Anti-HLA-DRA antibody [L243]

  • 667 PE/Cy5®

    PE/Cy5® Anti-HLA-DR antibody [L243]

  • 778 PE/Cy7®

    PE/Cy7® Anti-HLA-DR antibody [L243]

  • 618 PE/DyLight™ 594

    PE/DyLight™ 594 Anti-HLA-DR antibody [L243]

  • 695 PerCP/Cy5.5®

    PerCP/Cy5.5® Anti-HLA-DR antibody [L243]

  • 704 redFluor™ 710

    redFluor™ 710 Anti-HLA-DR antibody [L243]

Key facts

Host species

Mouse

Clonality

Monoclonal

Clone number

L243

Isotype

IgG2a

Light chain type

kappa

Conjugation

Alexa Fluor® 488

Excitation/Emission

Ex: 495nm, Em: 519nm

Carrier free

No

Reacts with

Human

Applications

Flow Cyt

applications

Specificity

The mouse monoclonal antibody L243 recognizes specifically an extracellular epitope on HLA-DR molecules, both peptide-loaded and empty.

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "FlowCyt" : {"fullname" : "Flow Cytometry", "shortname":"Flow Cyt"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "FlowCyt-species-checked": "testedAndGuaranteed", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "<p>Flow cytometry: The reagent is designed for analysis of human blood cells using 4 μl reagent / 100 μl of whole blood or 10^6 cells in a suspension. The content of a vial (0.4 ml) is sufficient for 100 tests.</p>" } } }

Properties and storage information

Form
Liquid
Purification technique
Size-exclusion chromatography
Purification notes
Purified antibody is conjugated with Alexa Fluor® 488 NHS ester under optimum conditions and unconjugated antibody and free fluorochrome are removed by size-exclusion chromatography.
Storage buffer
pH: 7.4 Preservative: 0.098% Sodium azide Constituents: PBS, 0.2% BSA
Shipped at conditions
Ambient - Can Ship with Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
Do Not Freeze|Store in the dark

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Target data

An alpha chain of antigen-presenting major histocompatibility complex class II (MHCII) molecule. In complex with the beta chain HLA-DRB, displays antigenic peptides on professional antigen presenting cells (APCs) for recognition by alpha-beta T cell receptor (TCR) on HLA-DR-restricted CD4-positive T cells. This guides antigen-specific T-helper effector functions, both antibody-mediated immune response and macrophage activation, to ultimately eliminate the infectious agents and transformed cells (PubMed : 15265931, PubMed : 15322540, PubMed : 17334368, PubMed : 22327072, PubMed : 24190431, PubMed : 27591323, PubMed : 29884618, PubMed : 31495665, PubMed : 8145819, PubMed : 9075930). Typically presents extracellular peptide antigens of 10 to 30 amino acids that arise from proteolysis of endocytosed antigens in lysosomes (PubMed : 8145819). In the tumor microenvironment, presents antigenic peptides that are primarily generated in tumor-resident APCs likely via phagocytosis of apoptotic tumor cells or macropinocytosis of secreted tumor proteins (PubMed : 31495665). Presents peptides derived from intracellular proteins that are trapped in autolysosomes after macroautophagy, a mechanism especially relevant for T cell selection in the thymus and central immune tolerance (PubMed : 17182262, PubMed : 23783831). The selection of the immunodominant epitopes follows two processing modes : 'bind first, cut/trim later' for pathogen-derived antigenic peptides and 'cut first, bind later' for autoantigens/self-peptides (PubMed : 25413013). The anchor residue at position 1 of the peptide N-terminus, usually a large hydrophobic residue, is essential for high affinity interaction with MHCII molecules (PubMed : 8145819).
See full target information HLA-DRA

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
