AB284641

Alexa Fluor® 488 Anti-Hsp60 antibody [EPR18245-93] - Mitochondrial Marker

Be the first to review this product! Submit a review

|

(0 Publication)

Rabbit Recombinant Monoclonal Hsp60 antibody - conjugated to Alexa Fluor® 488. Suitable for ICC/IF, Flow Cyt (Intra), IHC-P and reacts with Mouse, Human, Rat samples.

View Alternative Names

HSP60, HSPD1, 60 kDa chaperonin, Chaperonin 60, Heat shock protein 60, Heat shock protein family D member 1, HuCHA60, Mitochondrial matrix protein P1, P60 lymphocyte protein, CPN60, HSP-60, Hsp60

4 Images
Flow Cytometry (Intracellular) - Alexa Fluor® 488 Anti-Hsp60 antibody [EPR18245-93] - Mitochondrial Marker (AB284641)
  • Flow Cyt (Intra)

Lab

Flow Cytometry (Intracellular) - Alexa Fluor® 488 Anti-Hsp60 antibody [EPR18245-93] - Mitochondrial Marker (AB284641)

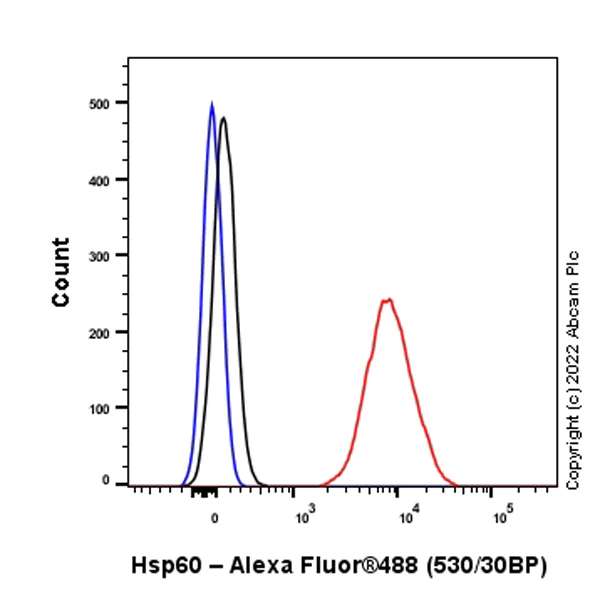

Flow cytometric overlay histogram of 4% paraformaldehyde fixed HeLa (Human cervix adenocarcinoma epithelial cells) permeabilized with 90% methanol labelling Hsp60 with ab284641 at 1/500 dilution (Red). Isotype control : Rabbit monoclonal isotype control - Alexa Fluor® 488 (Black). Unlabelled control : Cells without incubation with primary antibody and secondary antibody (Blue). Gated on viable cells.

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-Hsp60 antibody [EPR18245-93] - Mitochondrial Marker (AB284641)
  • ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-Hsp60 antibody [EPR18245-93] - Mitochondrial Marker (AB284641)

Immunofluorescent analysis of 4% Paraformaldehyde fixed HeLa (human cervix adenocarcinoma epithelial cells) permeabilized with 0.1% TritonX-100 labelling Hsp60 with ab284641 at 1/500 dilution, (Green). Confocal image showing cytoplasmic staining in HeLa cells. ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) (shown in Red) was used to counterstain tubulin at 1/200 dilution. The nuclear counterstain was DAPI (Blue).

Flow Cytometry (Intracellular) - Alexa Fluor® 488 Anti-Hsp60 antibody [EPR18245-93] - Mitochondrial Marker (AB284641)
  • Flow Cyt (Intra)

Lab

Flow Cytometry (Intracellular) - Alexa Fluor® 488 Anti-Hsp60 antibody [EPR18245-93] - Mitochondrial Marker (AB284641)

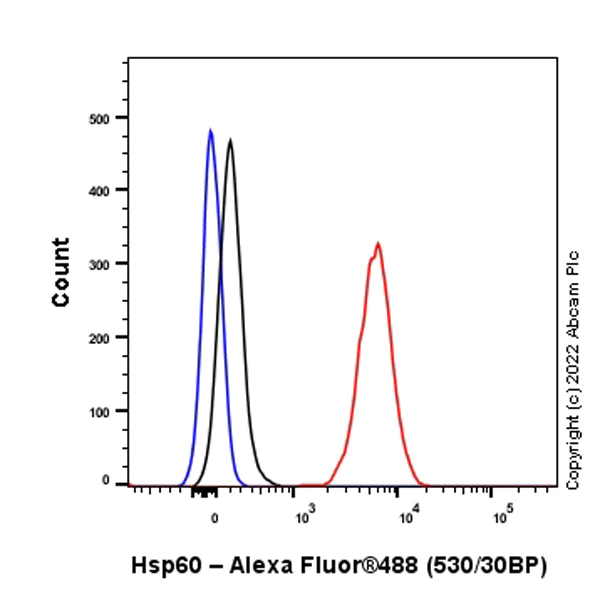

Flow cytometric overlay histogram of 4% paraformaldehyde fixed NIH/3T3 (Mouse embryonic fibroblast) permeabilized with 90% methanol labelling Hsp60 with ab284641 at 1/500 dilution (Red). Isotype control : Rabbit monoclonal isotype control - Alexa Fluor® 488 (Black). Unlabelled control : Cells without incubation with primary antibody and secondary antibody (Blue).

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-Hsp60 antibody [EPR18245-93] - Mitochondrial Marker (AB284641)
  • ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-Hsp60 antibody [EPR18245-93] - Mitochondrial Marker (AB284641)

Immunofluorescent analysis of 4% Paraformaldehyde fixed NIH/3T3 (mouse embryonic fibroblasts) permeabilized with 0.1% TritonX-100 labelling Hsp60 with ab284641 at 1/500 dilution, (Green). Confocal image showing cytoplasmic staining in NIH/3T3 cells. ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) (shown in Red) was used to counterstain tubulin at 1/200 dilution. The nuclear counterstain was DAPI (Blue).

  • Carrier free

    Anti-Hsp60 antibody [EPR18245-93] - BSA and Azide free (Capture)

  • Carrier free

    Anti-Hsp60 antibody [EPR18245-93] - BSA and Azide free

  • Unconjugated

    Anti-Hsp60 antibody [EPR18245-93] - Mitochondrial Marker

  • 665 Alexa Fluor® 647

    Alexa Fluor® 647 Anti-Hsp60 antibody [EPR18245-93] - Mitochondrial Marker

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR18245-93

Isotype

IgG

Conjugation

Alexa Fluor® 488

Excitation/Emission

Ex: 495nm, Em: 519nm

Carrier free

No

Reacts with

Human, Mouse, Human, Mouse, Rat

Applications

Flow Cyt (Intra), ICC/IF, IHC-P

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style
left-column

Complementary Products

Primary Antibodies

AB186735

Anti-TOMM20 antibody [EPR15581-54] - Mitochondrial Marker

RabMAb|Recombinant|Lab Essentials|20ul selling size

Western blot - Anti-TOMM20 antibody [EPR15581-54] - Mitochondrial Marker (AB186735)

  • 5
  • 16
Primary Antibodies

AB16056

Anti-COX IV antibody - Mitochondrial Loading Control

BOND RX™ Validated|Lab Essentials

Immunocytochemistry/ Immunofluorescence - Anti-COX IV antibody - Mitochondrial Loading Control (AB16056)

  • 5
  • 33
Primary Antibodies

AB14715

Anti-SDHA antibody [2E3GC12FB2AE2]

KO Validated

Western blot - Anti-SDHA antibody [2E3GC12FB2AE2] (AB14715)

  • 5
  • 25
Secondary Antibodies

AB150077

Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488)

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (AB150077)

  • 5
  • 20
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "FlowCytIntra" : {"fullname" : "Flow Cytometry (Intracellular)", "shortname":"Flow Cyt (Intra)"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "1/500", "ICCIF-species-notes": "<p></p>", "FlowCytIntra-species-checked": "testedAndGuaranteed", "FlowCytIntra-species-dilution-info": "1/500", "FlowCytIntra-species-notes": "<p></p>", "IHCP-species-checked": "guaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>" }, "Mouse": { "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "1/500", "ICCIF-species-notes": "<p></p>", "FlowCytIntra-species-checked": "testedAndGuaranteed", "FlowCytIntra-species-dilution-info": "1/500", "FlowCytIntra-species-notes": "<p></p>", "IHCP-species-checked": "guaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>" }, "Rat": { "ICCIF-species-checked": "guaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "<p></p>", "FlowCytIntra-species-checked": "guaranteed", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "<p></p>", "IHCP-species-checked": "guaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>" } } }
style
left-column

Product details

This antibody clone is manufactured by Abcam. If you require a custom buffer formulation or conjugation for your experiments, please contact orders@abcam.com.

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Alexa Fluor® is a registered trademark of Molecular Probes, Inc, a Thermo Fisher Scientific Company. The Alexa Fluor® dye included in this product is provided under an intellectual property license from Life Technologies Corporation. As this product contains the Alexa Fluor® dye, the purchase of this product conveys to the buyer the non-transferable right to use the purchased product and components of the product only in research conducted by the buyer (whether the buyer is an academic or for-profit entity). As this product contains the Alexa Fluor® dye the sale of this product is expressly conditioned on the buyer not using the product or its components, or any materials made using the product or its components, in any activity to generate revenue, which may include, but is not limited to use of the product or its components: in manufacturing; (ii) to provide a service, information, or data in return for payment (iii) for therapeutic, diagnostic or prophylactic purposes; or (iv) for resale, regardless of whether they are sold for use in research. For information on purchasing a license to this product for purposes other than research, contact Life Technologies Corporation, 5781 Van Allen Way, Carlsbad, CA 92008 USA or outlicensing@thermofisher.com.

style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.2 - 7.4 Preservative: 0.02% Sodium azide Constituents: PBS, 30% Glycerol (glycerin, glycerine), 1% BSA
Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle|Store in the dark
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

Hsp60 also known as HSPD1 and heat shock protein 60 is a significant chaperonin with a molecular weight of approximately 60 kDa. It resides predominantly in the mitochondria and functions to assist in the proper folding of proteins preventing their aggregation. Hsp60 is expressed mainly in cells with high metabolic activity. Its presence as a mitochondrial marker highlights its essential role in maintaining cellular homeostasis and function.
Biological function summary

The protein ensures mitochondrial protein stability by facilitating the refolding of misfolded proteins and cooperating with other chaperonins like Hsp10. Hsp60 participates in forming a complex with these proteins to create a conducive environment for protein folding. It plays a part in regulating mitochondrial homeostasis impacting cell survival and apoptosis processes.

Pathways

Hsp60 links to the ATP synthesis and apoptosis pathways showcasing its importance as a mitochondrial marker. It interacts with proteins like caspase-3 to modulate cell death mechanisms highlighting its influence beyond simple protein folding. In the ATP synthesis pathway it contributes indirectly to energy production by maintaining mitochondrial function.

Hsp60 shows a connection to neurodegenerative diseases and cancer. Altered Hsp60 levels correlate with increased apoptosis in neurodegenerative conditions like Alzheimer's disease. Additionally in cancer interactions with proteins such as AKT suggest its potential role in cell proliferation and survival. Understanding its role could aid in the development of therapeutic interventions targeting mitochondrial dysfunction.
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Chaperonin implicated in mitochondrial protein import and macromolecular assembly. Together with Hsp10, facilitates the correct folding of imported proteins. May also prevent misfolding and promote the refolding and proper assembly of unfolded polypeptides generated under stress conditions in the mitochondrial matrix (PubMed : 11422376, PubMed : 1346131). The functional units of these chaperonins consist of heptameric rings of the large subunit Hsp60, which function as a back-to-back double ring. In a cyclic reaction, Hsp60 ring complexes bind one unfolded substrate protein per ring, followed by the binding of ATP and association with 2 heptameric rings of the co-chaperonin Hsp10. This leads to sequestration of the substrate protein in the inner cavity of Hsp60 where, for a certain period of time, it can fold undisturbed by other cell components. Synchronous hydrolysis of ATP in all Hsp60 subunits results in the dissociation of the chaperonin rings and the release of ADP and the folded substrate protein (Probable).
