Rabbit Recombinant Monoclonal Lamin B1 antibody - conjugated to Alexa Fluor® 488. Suitable for ICC/IF, Flow Cyt (Intra) and reacts with Human samples.

Be the first to review this product! Submit a review

Images

Flow Cytometry (Intracellular) - Alexa Fluor® 488 Anti-Lamin A + Lamin B1 + Lamin C antibody [EPR4068] - Nuclear Envelope Marker (AB223942), expandable thumbnail
  • Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-Lamin A + Lamin B1 + Lamin C antibody [EPR4068] (AB223942), expandable thumbnail

Key facts

Isotype
IgG
Host species
Rabbit
Conjugation
Alexa Fluor® 488
Excitation/Emission
Ex: 495nm, Em: 519nm
Storage buffer

pH: 7.4
Preservative: 0.02% Sodium azide
Constituents: PBS, 30% Glycerol (glycerin, glycerine), 1% BSA

Form
Liquid
Clonality
Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
ICC/IFFlow Cyt (Intra)
Human
Tested
Tested
Mouse
Predicted
Predicted
Rat
Predicted
Predicted

Tested
Tested

Species
Human
Dilution info
1/1000
Notes

This product gave a positive signal in HeLa cells fixed with 4% formaldehyde (10 min)

Predicted
Predicted

Species
Mouse, Rat
Dilution info
-
Notes

-

Tested
Tested

Species
Human
Dilution info
1/500
Notes

-

Predicted
Predicted

Species
Mouse, Rat
Dilution info
-
Notes

-

Associated Products

Select an associated product type

2 products for Alternative Version

6 products for Alternative Product

Target data

Function

Lamins are intermediate filament proteins that assemble into a filamentous meshwork, and which constitute the major components of the nuclear lamina, a fibrous layer on the nucleoplasmic side of the inner nuclear membrane (PubMed:28716252, PubMed:32910914). Lamins provide a framework for the nuclear envelope, bridging the nuclear envelope and chromatin, thereby playing an important role in nuclear assembly, chromatin organization, nuclear membrane and telomere dynamics (PubMed:28716252, PubMed:32910914). The structural integrity of the lamina is strictly controlled by the cell cycle, as seen by the disintegration and formation of the nuclear envelope in prophase and telophase, respectively (PubMed:28716252, PubMed:32910914).

Additional Targets

LMNA, LMNA

Alternative names

Recommended products

Rabbit Recombinant Monoclonal Lamin B1 antibody - conjugated to Alexa Fluor® 488. Suitable for ICC/IF, Flow Cyt (Intra) and reacts with Human samples.

Key facts

Isotype
IgG
Conjugation
Alexa Fluor® 488
Excitation/Emission
Ex: 495nm, Em: 519nm
Form
Liquid
Clonality
Monoclonal
Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Clone number
EPR4068
Purification technique
Affinity purification Protein A
Specificity

The antibody recognizes full length Lamin A/B1/C and the cleaved small unit.

Concentration
Loading...

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle, Store in the dark

Notes

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Alexa Fluor® is a registered trademark of Molecular Probes, Inc, a Thermo Fisher Scientific Company. The Alexa Fluor® dye included in this product is provided under an intellectual property license from Life Technologies Corporation. As this product contains the Alexa Fluor® dye, the purchase of this product conveys to the buyer the non-transferable right to use the purchased product and components of the product only in research conducted by the buyer (whether the buyer is an academic or for-profit entity). As this product contains the Alexa Fluor® dye the sale of this product is expressly conditioned on the buyer not using the product or its components, or any materials made using the product or its components, in any activity to generate revenue, which may include, but is not limited to use of the product or its components: in manufacturing; (ii) to provide a service, information, or data in return for payment (iii) for therapeutic, diagnostic or prophylactic purposes; or (iv) for resale, regardless of whether they are sold for use in research. For information on purchasing a license to this product for purposes other than research, contact Life Technologies Corporation, 5781 Van Allen Way, Carlsbad, CA 92008 USA or outlicensing@thermofisher.com.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

Lamin A Lamin B1 and Lamin C are nuclear envelope proteins each representing different forms of lamin molecules. These proteins are important components of the nuclear lamina. Lamin A and Lamin C are encoded by the LMNA gene and result from alternative splicing. Lamin A has a molecular weight of approximately 74 kDa while Lamin C weighs around 65 kDa. Lamin B1 with a molecular weight of about 66 kDa is a product of the LMNB1 gene. These proteins express largely in various tissues and are central to maintaining nuclear structure and integrity.

Biological function summary

Lamin proteins regulate nuclear architecture and maintain chromatin organization. They participate in forming the nuclear lamina a dense fibrillar network inside the nucleus. The lamina provides structural support to the nuclear envelope and plays roles in DNA replication and transcription. Lamin molecules also interact with nuclear pore complexes therefore contributing to molecular transport across the nuclear envelope. Lamin A/C and Lamin B1 function together with other proteins like emerin and lamin associated polypeptides in forming multi-protein complexes that influence cell cycle regulation and differentiation.

Pathways

Lamin proteins integrate into pathways governing the cell cycle and DNA repair. They contribute to the mitotic pathway assisting in the disassembly and reassembly of the nuclear envelope during cell division. Lamin molecules also engage in the DNA damage response pathway cooperating with repair proteins such as p53 and BRCA1. Through these pathways lamin proteins ensure proper progression through the cell cycle and maintain genomic stability by aiding in the repair of DNA damage.

Associated diseases and disorders

Lamins associate with a variety of nuclear envelopathies and arepsponsible for rare genetic disorders like Hutchinson-Gilford Progeria Syndrome (HGPS) and Emery-Dreifuss Muscular Dystrophy (EDMD). Mutations in the LMNA gene affect nuclear mechanics leading to accelerated aging in HGPS. Similarly disruptions in lamin A/C's interactions with emerin result in EDMD characterized by muscular dystrophy and cardiac issues. These connections highlight the role of lamin proteins in nuclear stability and their impact on disease development.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

2 product images

  • Flow Cytometry (Intracellular) - Alexa Fluor® 488 Anti-Lamin A + Lamin B1 + Lamin C antibody [EPR4068] - Nuclear Envelope Marker (ab223942), expandable thumbnail

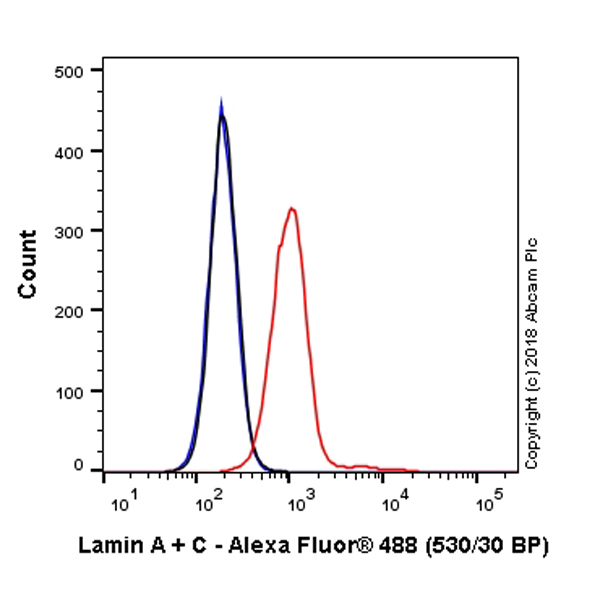

    Flow Cytometry (Intracellular) - Alexa Fluor® 488 Anti-Lamin A + Lamin B1 + Lamin C antibody [EPR4068] - Nuclear Envelope Marker (ab223942)

    Lamin A + Lamin B1 + Lamin C Flow Cytometry (Intracellular) staining using rabbit Anti-Lamin A + Lamin B1 + Lamin C antibody

    Overlay histogram showing HeLa cells stained with ab223942 (red line). The cells were fixed with 4% formaldehyde (10 min) and then permeabilized with 0.1% PBS-Triton X-100 for 15 min. The cells were then incubated in 1x PBS / 10% normal goat serum to block non-specific protein-protein interactions followed by the antibody (ab223942, 1/500 dilution) for 30 min at 22°C.

    Isotype control antibody (black line) was Rabbit IgG (monoclonal) Alexa Fluor® 488 (Alexa Fluor® 488 Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab199091) used at the same concentration and conditions as the primary antibody. Unlabelled sample (blue line) was also used as a control.

    Acquisition of >5,000 events were collected using a 50 mW Blue laser (488nm) and 530/30 bandpass filter.

  • Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-Lamin A + Lamin B1 + Lamin C antibody [EPR4068] (ab223942), expandable thumbnail

    Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-Lamin A + Lamin B1 + Lamin C antibody [EPR4068] (ab223942)

    ab223942 staining Lamin A + B1 + C in HeLa cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with ab223942 at 1/1000 dilution (shown in Green) and Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889, Mouse monoclonal to alpha Tubulin (Alexa Fluor® 594), at 1/250 dilution (shown in red). Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

Downloads

Product protocols

For this product, it's our understanding that no specific protocols are required. You can:

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
