Alexa Fluor® 488 Anti-MFN2 antibody [EPR19796]

• Flow Cyt (Intra)

Lab

Flow Cytometry (Intracellular) - Alexa Fluor® 488 Anti-MFN2 antibody [EPR19796] (AB326161)

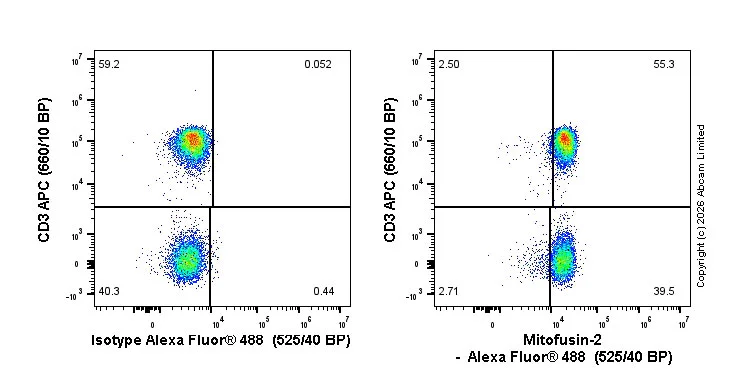

Flow cytometry scatter plots showing human peripheral mononuclear cells (PBMCs), either stained with ab326161 (right) or isotype control (left). The cells were fixed and permeabilised using BD CytoFix/CytoPerm™ (20 min). The cells were incubated in 1x PBS containing 10 μg/ml human IgG and 10% normal goat serum to block FC receptors and non-specific protein-protein interaction followed by the antibody (ab326161) (1x 10⁶ in 100μl at 0.2 μg/ml (1/2500)) for 30min on ice. Isotype control antibody was Recombinant Alexa Fluor® 488 Rabbit IgG, monoclonal [EPR25A] - Isotype Control. The cells were simultaneously stained with CD3.

Acquisition of >30000 events were collected using a 50 mW Blue laser (488nm) and 525/40 bandpass filter.

This data was acquired using a Beckman Coulter CytoFlexLX flow cytometer.

• Flow Cyt (Intra)

Lab

Flow Cytometry (Intracellular) - Alexa Fluor® 488 Anti-MFN2 antibody [EPR19796] (AB326161)

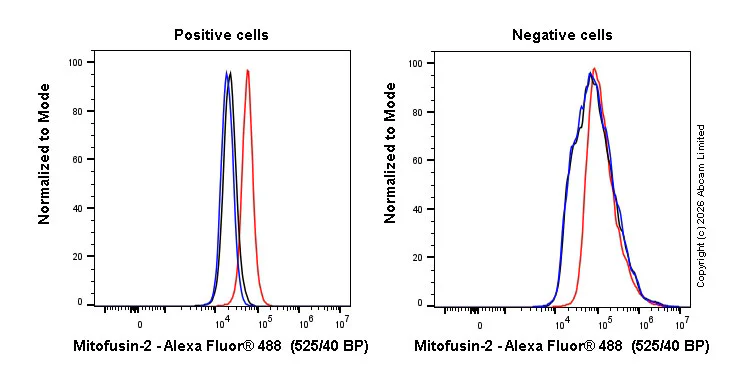

Flow cytometry overlay histogram showing left wild-type HEK293T positive cells and right negative MFN2 knockout HEK293T stained with ab326161 (red line). The cells were fixed with 4% formaldehyde (10 min) and then permeabilised with 0.1% PBS-Triton X-100 for 15 min. The cells were then incubated in 1x PBS containing 10% normal goat serum to block non-specific protein-protein interaction followed by the antibody (ab326161) (1x 106 in 100μl at 0.04 μg/ml (1/12500)) for 30min at 22°C. Isotype control antibody was Alexa Fluor® 488 Rabbit IgG, monoclonal [EPR25A] - Isotype Control (black line) used at the same concentration and conditions as the primary antibody. Unlabelled sample (blue line) was also used as a control. Acquisition of >5000 events were collected using a 50 mW Blue laser (488nm) and 525/40 bandpass filter. This data was acquired using a Beckman Coulter CytoFlexLX flow cytometer.
