AB201672

Alexa Fluor® 488 Anti-PCNA antibody [PC10]

Be the first to review this product! Submit a review

|

(7 Publications)

Mouse Monoclonal PCNA antibody - conjugated to Alexa Fluor® 488. Suitable for Flow Cyt (Intra), ICC/IF and reacts with Human samples. Cited in 7 publications.

View Alternative Names

Proliferating cell nuclear antigen, PCNA, Cyclin

2 Images
Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-PCNA antibody [PC10] (AB201672)
  • ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-PCNA antibody [PC10] (AB201672)

ab201672 staining PCNA in HeLa cells. The cells were fixed with 100% methanol (5min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with ab201672 at 1/200 dilution (shown in green) and ab195889, Mouse monoclonal to alpha Tubulin (Alexa Fluor® 594), at 1/250 dilution (shown in red). Nuclear DNA was labelled with DAPI (shown in blue).
Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

Flow Cytometry (Intracellular) - Alexa Fluor® 488 Anti-PCNA antibody [PC10] (AB201672)
  • Flow Cyt (Intra)

Unknown

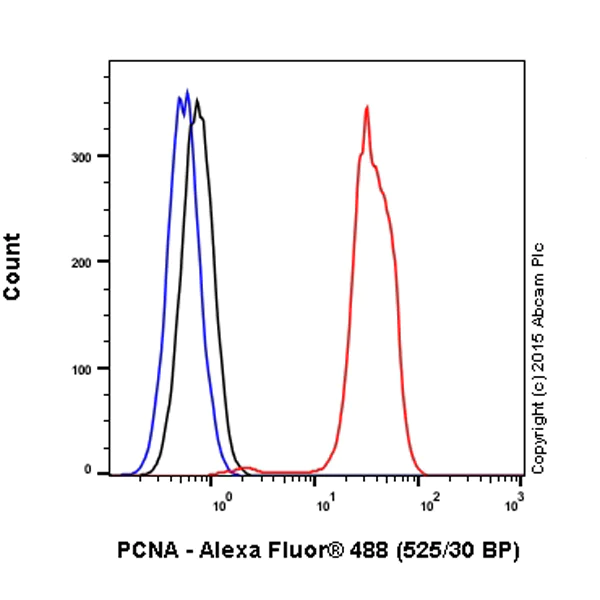

Flow Cytometry (Intracellular) - Alexa Fluor® 488 Anti-PCNA antibody [PC10] (AB201672)

Overlay histogram showing HeLa cells stained with ab201672 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab201672, 1/500 dilution) for 30 min at 22°C. Isotype control antibody (black line) was mouse IgG2a (monoclonal) Alexa Fluor® 488 (ab171464) used at the same concentration and conditions as the primary antibody. Unlabelled sample (blue line) was also used as a control. Acquisition of >5,000 events were collected using a 20mW Argon ion laser (488nm) and 525/30 bandpass filter.

  • Unconjugated

    Anti-PCNA antibody [PC10]

  • Carrier free

    Anti-PCNA antibody [PC10] - BSA and Azide free

  • 578 PE

    PE Anti-PCNA antibody [PC10]

  • HRP

    HRP Anti-PCNA antibody [PC10]

  • 665 Alexa Fluor® 647

    Alexa Fluor® 647 Anti-PCNA antibody [PC10]

Key facts

Host species

Mouse

Clonality

Monoclonal

Clone number

PC10

Isotype

IgG2a

Light chain type

kappa

Conjugation

Alexa Fluor® 488

Excitation/Emission

Ex: 495nm, Em: 519nm

Carrier free

No

Reacts with

Human

Applications

Flow Cyt (Intra), ICC/IF

applications

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "FlowCytIntra" : {"fullname" : "Flow Cytometry (Intracellular)", "shortname":"Flow Cyt (Intra)"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "FlowCytIntra-species-checked": "testedAndGuaranteed", "FlowCytIntra-species-dilution-info": "1/500", "FlowCytIntra-species-notes": "<p></p>", "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "1/200", "ICCIF-species-notes": "<p></p>" }, "Mouse": { "FlowCytIntra-species-checked": "predicted", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "ICCIF-species-checked": "predicted", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "" }, "Rat": { "FlowCytIntra-species-checked": "predicted", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "ICCIF-species-checked": "predicted", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "" }, "Catshark": { "FlowCytIntra-species-checked": "predicted", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "ICCIF-species-checked": "predicted", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "" }, "Chicken": { "FlowCytIntra-species-checked": "predicted", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "ICCIF-species-checked": "predicted", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "" }, "Cow": { "FlowCytIntra-species-checked": "predicted", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "ICCIF-species-checked": "predicted", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "" }, "Dogfish": { "FlowCytIntra-species-checked": "predicted", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "ICCIF-species-checked": "predicted", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "" }, "Drosophila melanogaster": { "FlowCytIntra-species-checked": "predicted", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "ICCIF-species-checked": "predicted", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "" }, "Monkey": { "FlowCytIntra-species-checked": "predicted", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "ICCIF-species-checked": "predicted", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "" }, "Pig": { "FlowCytIntra-species-checked": "predicted", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "ICCIF-species-checked": "predicted", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "" }, "Pigeon": { "FlowCytIntra-species-checked": "predicted", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "ICCIF-species-checked": "predicted", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "" }, "Thornback ray": { "FlowCytIntra-species-checked": "predicted", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "ICCIF-species-checked": "predicted", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "" }, "Zebrafish": { "FlowCytIntra-species-checked": "predicted", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "ICCIF-species-checked": "predicted", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "" } } }
style
left-column

Product details

Alexa Fluor® is a registered trademark of Molecular Probes, Inc, a Thermo Fisher Scientific Company. The Alexa Fluor® dye included in this product is provided under an intellectual property license from Life Technologies Corporation. As this product contains the Alexa Fluor® dye, the purchase of this product conveys to the buyer the non-transferable right to use the purchased product and components of the product only in research conducted by the buyer (whether the buyer is an academic or for-profit entity). As this product contains the Alexa Fluor® dye the sale of this product is expressly conditioned on the buyer not using the product or its components, or any materials made using the product or its components, in any activity to generate revenue, which may include, but is not limited to use of the product or its components: in manufacturing; (ii) to provide a service, information, or data in return for payment (iii) for therapeutic, diagnostic or prophylactic purposes; or (iv) for resale, regardless of whether they are sold for use in research. For information on purchasing a license to this product for purposes other than research, contact Life Technologies Corporation, 5781 Van Allen Way, Carlsbad, CA 92008 USA or outlicensing@thermofisher.com.
style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification
Storage buffer
pH: 7.4 Preservative: 0.02% Sodium azide Constituents: PBS, 30% Glycerol (glycerin, glycerine), 1% BSA
Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle|Store in the dark
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

PCNA or Proliferating Cell Nuclear Antigen functions as a sliding clamp for DNA polymerases during DNA replication. This important role enables it to coordinate the orderly duplication of the genome by increasing the processivity of DNA polymerase δ. PCNA weighs approximately 29 kDa and forms a homotrimeric ring structure. It is expressed in the nucleus of cells often found abundantly in proliferating cells. Aside from its main name some people also refer to it as PC10.
Biological function summary

This protein serves a core function in cell cycle regulation and DNA repair. PCNA acts as a scaffold for the assembly of numerous proteins involved in DNA processing forming part of the replication fork complex. It interacts with cyclins and cyclin-dependent kinases (CDKs) linking DNA synthesis to cell cycle progression. Furthermore PCNA partners with proteins involved in DNA mismatch repair base excision repair and nucleotide excision repair.

Pathways

PCNA is integral in the DNA replication and repair pathways. It closely associates with the p21 protein which regulates the cell cycle by inhibiting cyclin-CDK complexes upon DNA damage. PCNA also plays a part in the ubiquitin-proteasome pathway where its modification by ubiquitin impacts how cells respond to DNA damage. This modification recruits specific proteins for DNA repair highlighting its central role in maintaining genomic stability.

PCNA is linked to cancer and autoimmune diseases. Its overexpression is common in various cancers reflecting its role in cell proliferation and the cell cycle. PCNA antibodies are sometimes found in the serum of patients with systemic lupus erythematosus (SLE) a connection also related to alterations in the p21 protein pathway. The interaction between PCNA and disease-specific proteins emphasizes its importance in both cell proliferation and immune system disorders.
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Auxiliary protein of DNA polymerase delta and epsilon, is involved in the control of eukaryotic DNA replication by increasing the polymerase's processibility during elongation of the leading strand (PubMed : 35585232). Induces a robust stimulatory effect on the 3'-5' exonuclease and 3'-phosphodiesterase, but not apurinic-apyrimidinic (AP) endonuclease, APEX2 activities. Has to be loaded onto DNA in order to be able to stimulate APEX2. Plays a key role in DNA damage response (DDR) by being conveniently positioned at the replication fork to coordinate DNA replication with DNA repair and DNA damage tolerance pathways (PubMed : 24939902). Acts as a loading platform to recruit DDR proteins that allow completion of DNA replication after DNA damage and promote postreplication repair : Monoubiquitinated PCNA leads to recruitment of translesion (TLS) polymerases, while 'Lys-63'-linked polyubiquitination of PCNA is involved in error-free pathway and employs recombination mechanisms to synthesize across the lesion (PubMed : 24695737).
See full target information PCNA
style
left-column

Publications (7)

Recent publications for all applications. Explore the full list and refine your search

Frontiers in immunology 13:865273 PubMed35799795

2022

Milk Fat Globule Membrane Attenuates Acute Colitis and Secondary Liver Injury by Improving the Mucus Barrier and Regulating the Gut Microbiota.

Applications

Unspecified application

Species

Unspecified reactive species

Zhenhua Wu,Xiaoyi Liu,Shimeng Huang,Tiantian Li,Xiangyu Zhang,Jiaman Pang,Junying Zhao,Lijun Chen,Bing Zhang,Junjun Wang,Dandan Han

The FEBS journal 289:1625-1649 PubMed34694685

2021

Cytosolic localization and in vitro assembly of human de novo thymidylate synthesis complex.

Applications

Unspecified application

Species

Unspecified reactive species

Sharon Spizzichino,Dalila Boi,Giovanna Boumis,Roberta Lucchi,Francesca Romana Liberati,Davide Capelli,Roberta Montanari,Giorgio Pochetti,Roberta Piacentini,Giacomo Parisi,Alessio Paone,Serena Rinaldo,Roberto Contestabile,Angela Tramonti,Alessandro Paiardini,Giorgio Giardina,Francesca Cutruzzolà

EMBO reports 21:e48389 PubMed32147946

2020

Homeobox A4 suppresses vascular remodeling by repressing YAP/TEAD transcriptional activity.

Applications

Unspecified application

Species

Unspecified reactive species

Masahiro Kimura,Takahiro Horie,Osamu Baba,Yuya Ide,Shuhei Tsuji,Randolph Ruiz Rodriguez,Toshimitsu Watanabe,Tomohiro Yamasaki,Chiharu Otani,Sijia Xu,Yui Miyasaka,Yasuhiro Nakashima,Takeshi Kimura,Koh Ono

Cell reports 27:1794-1808.e5 PubMed31067464

2019

Remodeling of Interstrand Crosslink Proximal Replisomes Is Dependent on ATR, FANCM, and FANCD2.

Applications

Unspecified application

Species

Unspecified reactive species

Jing Huang,Jing Zhang,Marina A Bellani,Durga Pokharel,Julia Gichimu,Ryan C James,Himabindu Gali,Chen Ling,Zhijiang Yan,Dongyi Xu,Junjie Chen,Amom Ruhikanta Meetei,Lei Li,Weidong Wang,Michael M Seidman

Nature communications 10:119 PubMed30631072

2019

Ultrafast data mining of molecular assemblies in multiplexed high-density super-resolution images.

Applications

Unspecified application

Species

Unspecified reactive species

Yandong Yin,Wei Ting Chelsea Lee,Eli Rothenberg

International journal of oncology 53:1713-1720 PubMed30085337

2018

Anaplastic transition within the cancer microenvironment in early-stage oral tongue squamous cell carcinoma is associated with local recurrence.

Applications

Unspecified application

Species

Unspecified reactive species

Kohei Okuyama,Keiji Suzuki,Souichi Yanamoto,Tomofumi Naruse,Hiroki Tsuchihashi,Shunichi Yamashita,Masahiro Umeda

Oncotarget 7:26979-91 PubMed27105504

2016

Characterization of cytoplasmic cyclin D1 as a marker of invasiveness in cancer.

Applications

Unspecified application

Species

Unspecified reactive species

Noel P Fusté,Esmeralda Castelblanco,Isidre Felip,Maria Santacana,Rita Fernández-Hernández,Sònia Gatius,Neus Pedraza,Judit Pallarés,Tània Cemeli,Joan Valls,Marc Tarres,Francisco Ferrezuelo,Xavier Dolcet,Xavier Matias-Guiu,Eloi Garí
