AB214958

Alexa Fluor® 488 Anti-PD-L1 antibody [EPR19759]

Be the first to review this product! Submit a review

|

(3 Publications)

Rabbit Recombinant Monoclonal PD-L1 antibody - conjugated to Alexa Fluor® 488. Suitable for ICC/IF, Flow Cyt (Intra), IHC-P and reacts with Human samples. Cited in 3 publications.

View Alternative Names

CD274, B7H1, PDCD1L1, PDCD1LG1, PDL1, Programmed cell death 1 ligand 1, PD-L1, PDCD1 ligand 1, Programmed death ligand 1, hPD-L1, B7 homolog 1, B7-H1

2 Images
Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-PD-L1 antibody [EPR19759] (AB214958)
  • ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-PD-L1 antibody [EPR19759] (AB214958)

ab214958 staining PDL1 in CHO-PDL1 cells. The lower panels demonstrate that ab214958 does not cross react with un-transfected CHO cells.

The cells were fixed with 4% formaldehyde (10 min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with ab214958 at 1/200 dilution (shown in green) and ab195889, Mouse monoclonal to alpha Tubulin (Alexa Fluor® 594), at 1/250 dilution (shown in red). Nuclear DNA was labelled with DAPI (shown in blue).

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

Flow Cytometry (Intracellular) - Alexa Fluor® 488 Anti-PD-L1 antibody [EPR19759] (AB214958)
  • Flow Cyt (Intra)

Supplier Data

Flow Cytometry (Intracellular) - Alexa Fluor® 488 Anti-PD-L1 antibody [EPR19759] (AB214958)

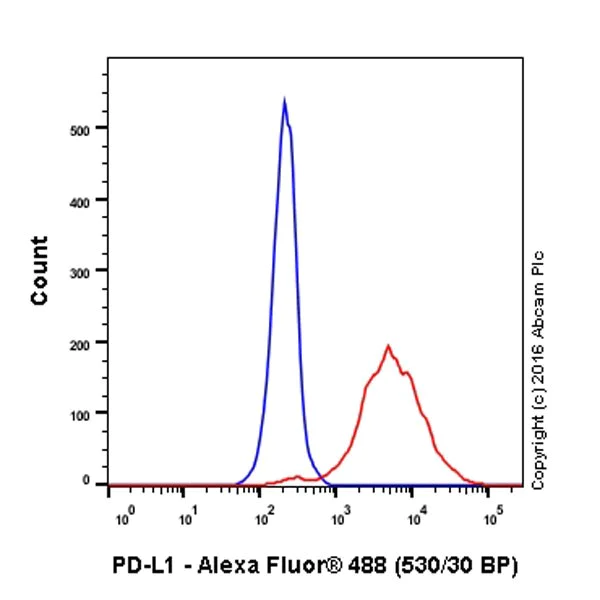

Flow Cytometry analysis of CHO-PD-L1 cells (red) and CHO-S (blue) labelling PD-L1 with ab214958 at 1/500. Cells were fixed with 4% paraformaldehyde, permeabilized with 0.1% Tween-20-PBS and blocked with 10% goat serum.

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR19759

Isotype

IgG

Conjugation

Alexa Fluor® 488

Excitation/Emission

Ex: 495nm, Em: 519nm

Carrier free

No

Reacts with

Human, Human

Applications

Flow Cyt (Intra), IHC-P, ICC/IF

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style
left-column

Alternative Products

Primary Antibodies

AB209960

Alexa Fluor® 647 Anti-PD-L1 antibody [28-8] - Extracellular domain

RabMAb|Recombinant

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 647 Anti-PD-L1 antibody [28-8] - Extracellular domain (AB209960)

  • 0
  • 0
Primary Antibodies

AB209959

Alexa Fluor® 488 Anti-PD-L1 antibody [28-8]

RabMAb|Recombinant

Flow Cytometry - Alexa Fluor® 488 Anti-PD-L1 antibody [28-8] (AB209959)

  • 5
  • 1
Primary Antibodies

AB213480

Anti-PD-L1 antibody [EPR20529]

RabMAb|Recombinant|KO Validated|20ul selling size

Immunocytochemistry/ Immunofluorescence - Anti-PD-L1 antibody [EPR20529] (AB213480)

  • 5
  • 5
Primary Antibodies

AB205921

Anti-PD-L1 antibody [28-8]

BOND RX™ Validated|20ul selling size|Recombinant|KO Validated|Advanced Validation|RabMAb

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PD-L1 antibody [28-8] (AB205921)

  • 4
  • 15
Primary Antibodies

AB228415

Anti-PD-L1 antibody [73-10]

BOND RX™ Validated|KO Validated|RabMAb|Recombinant

Immunohistochemistry (Frozen sections) - Anti-PD-L1 antibody [73-10] (AB228415)

  • 5
  • 1
Primary Antibodies

AB274896

Alexa Fluor® 555 Anti-PD-L1 antibody [73-10]

BOND RX™ Validated|RabMAb|Recombinant|Trial Size

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 555 Anti-PD-L1 antibody [73-10] (AB274896)

  • 4
  • 1
Primary Antibodies

AB228462

Anti-PD-L1 antibody [SP142] - C-terminal

BOND RX™ Validated|20ul selling size|RabMAb|Advanced Validation|Recombinant

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PD-L1 antibody [SP142] - C-terminal (AB228462)

  • 5
  • 2

Complementary Products

Assay Kits

AB277712

Human PD-L1 ELISA Kit [28-8]

Recombinant|SimpleStep

ELISA - Human PD-L1 ELISA Kit [28-8] (AB277712)

  • 0
  • 0
Primary Antibodies

AB201825

Alexa Fluor® 647 Anti-PD1 antibody [EPR4877(2)]

RabMAb|Recombinant

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 647 Anti-PD1 antibody [EPR4877(2)] (AB201825)

  • 5
  • 1
Secondary Antibodies

AB150077

Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488)

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (AB150077)

  • 5
  • 20
Primary Antibodies

AB282114

Alexa Fluor® 594 Anti-CD163 antibody [EPR19518]

RabMAb|Recombinant

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 594 Anti-CD163 antibody [EPR19518] (AB282114)

  • 1
  • 1
Primary Antibodies

AB196147

Alexa Fluor® 647 Anti-CD4 antibody [EPR6855]

RabMAb|Recombinant

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 647 Anti-CD4 antibody [EPR6855] (AB196147)

  • 5
  • 1
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "FlowCytIntra" : {"fullname" : "Flow Cytometry (Intracellular)", "shortname":"Flow Cyt (Intra)"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "1/200", "ICCIF-species-notes": "<p>This product gave a positive signal in CHO cells transfected with PD-L1 fixed with 4% formaldehyde (10 min)</p>", "FlowCytIntra-species-checked": "testedAndGuaranteed", "FlowCytIntra-species-dilution-info": "1/500", "FlowCytIntra-species-notes": "<p></p>", "IHCP-species-checked": "guaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>" } } }
style
left-column

Product details

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Alexa Fluor® is a registered trademark of Molecular Probes, Inc, a Thermo Fisher Scientific Company. The Alexa Fluor® dye included in this product is provided under an intellectual property license from Life Technologies Corporation. As this product contains the Alexa Fluor® dye, the purchase of this product conveys to the buyer the non-transferable right to use the purchased product and components of the product only in research conducted by the buyer (whether the buyer is an academic or for-profit entity). As this product contains the Alexa Fluor® dye the sale of this product is expressly conditioned on the buyer not using the product or its components, or any materials made using the product or its components, in any activity to generate revenue, which may include, but is not limited to use of the product or its components: in manufacturing; (ii) to provide a service, information, or data in return for payment (iii) for therapeutic, diagnostic or prophylactic purposes; or (iv) for resale, regardless of whether they are sold for use in research. For information on purchasing a license to this product for purposes other than research, contact Life Technologies Corporation, 5781 Van Allen Way, Carlsbad, CA 92008 USA or outlicensing@thermofisher.com.

style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.4 Preservative: 0.02% Sodium azide Constituents: PBS, 30% Glycerol (glycerin, glycerine), 1% BSA
Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle|Store in the dark
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

PD-L1 also known as Programmed Death-Ligand 1 or CD274 is a protein involved in immune modulation. Mechanically PD-L1 interacts with its receptors particularly PD-1 to regulate cellular immune responses. This transmembrane protein has a calculated molecular weight of approximately 33 kDa. PD-L1 is expressed on various cell types including tumor cells and immune cells such as dendritic cells macrophages and B cells. Its expression is often upregulated in response to inflammatory cytokines.
Biological function summary

PD-L1 plays a central role in immune evasion mechanisms utilized by tumors. It is not part of a larger protein complex but directly interacts with PD-1 and CD80. When PD-L1 binds to PD-1 it sends inhibitory signals leading to decreased T cell activation and proliferation allowing cancer cells to avoid immune destruction. PD-L1 expression provides a mechanism for tumors to suppress immune surveillance facilitating tumor progression.

Pathways

PD-L1 is integral to the immune checkpoint pathway which is an important regulator of immune response. The interaction between PD-L1 and PD-1 provides a mechanism for immune tolerance which is part of the broader adaptive immune system pathway. PD-L1 is related to other immune checkpoint proteins such as CTLA-4 in its function to limit autoreactivity and promote immune homeostasis.

PD-L1 is most associated with cancer particularly in tumors such as melanoma and non-small cell lung cancer. PD-L1 expression on tumor cells often correlates with poor prognosis. PD-L1 directly interacts with PD-1 in these cancers a target for immunotherapies such as checkpoint inhibitors which aim to block this interaction and restore immune activity against tumors. PD-L1 involvement extends to autoimmune disorders where altered expression can impact tolerance and lead to immune-related tissue damage.
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Plays a critical role in induction and maintenance of immune tolerance to self (PubMed : 11015443, PubMed : 28813410, PubMed : 28813417, PubMed : 31399419). As a ligand for the inhibitory receptor PDCD1/PD-1, modulates the activation threshold of T-cells and limits T-cell effector response (PubMed : 11015443, PubMed : 28813410, PubMed : 28813417, PubMed : 36727298). Through a yet unknown activating receptor, may costimulate T-cell subsets that predominantly produce interleukin-10 (IL10) (PubMed : 10581077). Can also act as a transcription coactivator : in response to hypoxia, translocates into the nucleus via its interaction with phosphorylated STAT3 and promotes transcription of GSDMC, leading to pyroptosis (PubMed : 32929201).. The PDCD1-mediated inhibitory pathway is exploited by tumors to attenuate anti-tumor immunity and escape destruction by the immune system, thereby facilitating tumor survival (PubMed : 28813410, PubMed : 28813417). The interaction with PDCD1/PD-1 inhibits cytotoxic T lymphocytes (CTLs) effector function (By similarity). The blockage of the PDCD1-mediated pathway results in the reversal of the exhausted T-cell phenotype and the normalization of the anti-tumor response, providing a rationale for cancer immunotherapy (By similarity).
See full target information CD274
style
left-column

Publications (3)

Recent publications for all applications. Explore the full list and refine your search

Journal of cellular physiology 236:3918-3928 PubMed33145762

2020

Mesenchymal stem cells induce PD-L1 expression through the secretion of CCL5 in breast cancer cells.

Applications

Unspecified application

Species

Unspecified reactive species

Hamidreza Aboulkheyr Es,Bahareh Bigdeli,Sareh Zhand,Amir R Aref,Jean P Thiery,Majid E Warkiani

Integrative biology : quantitative biosciences from nano to macro 12:188-197 PubMed32638026

2020

Pirfenidone reduces immune-suppressive capacity of cancer-associated fibroblasts through targeting CCL17 and TNF-beta.

Applications

Unspecified application

Species

Unspecified reactive species

Hamidreza Aboulkheyr Es,Sareh Zhand,Jean Paul Thiery,Majid Ebrahimi Warkiani

Scientific reports 9:11334 PubMed31383876

2019

Constraints to counting bioluminescence producing cells by a commonly used transgene promoter and its implications for experimental design.

Applications

Unspecified application

Species

Unspecified reactive species

E O Mosaad,K Futrega,I Seim,B Gloss,K F Chambers,J A Clements,M R Doran
View all publications
style
left-column
style
left-column
style
right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.

For licensing inquiries, please contact partnerships@abcam.com
