AB316873

Alexa Fluor® 488 Anti-Pin1 antibody [EPR18546-317]

Be the first to review this product! Submit a review

|

(0 Publication)

Rabbit Recombinant Monoclonal PIN1 antibody - conjugated to Alexa Fluor® 488. Suitable for ICC/IF and reacts with Human, Mouse samples.

View Alternative Names

Peptidyl-prolyl cis-trans isomerase NIMA-interacting 1, Peptidyl-prolyl cis-trans isomerase Pin1, PPIase Pin1, Pin1

2 Images
Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-Pin1 antibody [EPR18546-317] (AB316873)
  • ICC/IF

Supplier Data

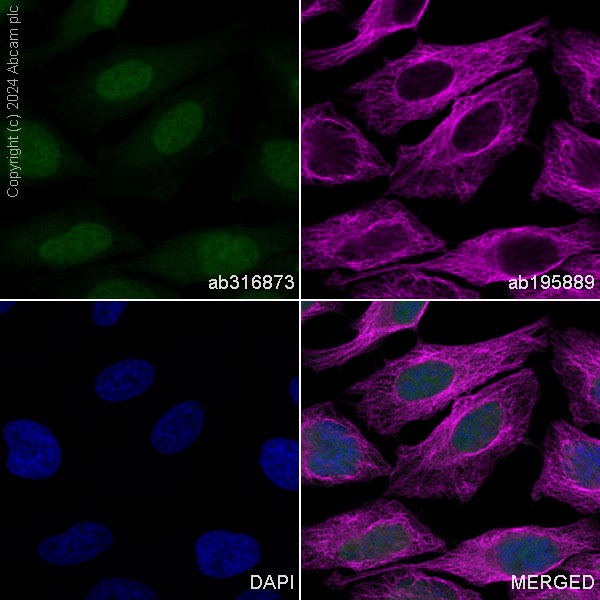

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-Pin1 antibody [EPR18546-317] (AB316873)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HeLa (human cervical adenocarcinoma epithelial cell) cells labelling Pin1 with ab316873 at 1/50 (10.0 ug/ml) dilution.

ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 (2.5ug/ml) dilution.

Confocal image showing nuclear and weak cytoplasmic staining in HeLa cell line (shown in green) and the counterstain Tubulin was observed in magenta. The Nuclear counterstain was DAPI (Blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-Pin1 antibody [EPR18546-317] (AB316873)
  • ICC/IF

Supplier Data

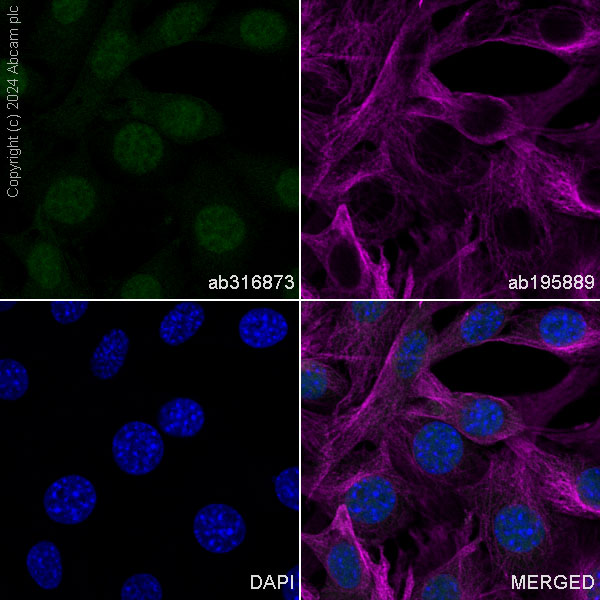

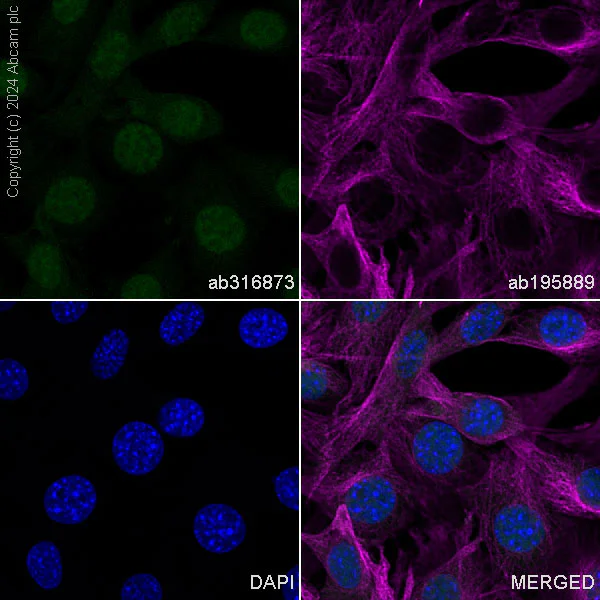

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-Pin1 antibody [EPR18546-317] (AB316873)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized NIH/3T3 (mouse embryonic fibroblast) cells labelling Pin1 with ab316873 at 1/50 (10.0 ug/ml) dilution.

ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 (2.5ug/ml) dilution.

Confocal image showing nuclear and weak cytoplasmic staining in NIH/3T3 cell line (shown in green) and the counterstain Tubulin was observed in magenta. The Nuclear counterstain was DAPI (Blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

  • 665 Alexa Fluor® 647

    Alexa Fluor® 647 Anti-Pin1 antibody [EPR18546-317]

  • Unconjugated

    Anti-Pin1 antibody [EPR18546-317]

  • Carrier free

    Anti-Pin1 antibody [EPR18546-317] - BSA and Azide free

  • Carrier free

    Anti-Pin1 antibody [EPR18546-317] - BSA and Azide free (Detector)

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR18546-317

Isotype

IgG

Conjugation

Alexa Fluor® 488

Excitation/Emission

Ex: 495nm, Em: 519nm

Carrier free

No

Reacts with

Human, Mouse

Applications

ICC/IF

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "1/50", "ICCIF-species-notes": "<p></p>" }, "Mouse": { "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "1/50", "ICCIF-species-notes": "<p></p>" } } }
style
left-column

Product details

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Alexa Fluor® is a registered trademark of Molecular Probes, Inc, a Thermo Fisher Scientific Company. The Alexa Fluor® dye included in this product is provided under an intellectual property license from Life Technologies Corporation. As this product contains the Alexa Fluor® dye, the purchase of this product conveys to the buyer the non-transferable right to use the purchased product and components of the product only in research conducted by the buyer (whether the buyer is an academic or for-profit entity). As this product contains the Alexa Fluor® dye the sale of this product is expressly conditioned on the buyer not using the product or its components, or any materials made using the product or its components, in any activity to generate revenue, which may include, but is not limited to use of the product or its components: in manufacturing; (ii) to provide a service, information, or data in return for payment (iii) for therapeutic, diagnostic or prophylactic purposes; or (iv) for resale, regardless of whether they are sold for use in research. For information on purchasing a license to this product for purposes other than research, contact Life Technologies Corporation, 5781 Van Allen Way, Carlsbad, CA 92008 USA or outlicensing@thermofisher.com.

style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.4 Preservative: 0.02% Sodium azide Constituents: PBS, 30% Glycerol (glycerin, glycerine), 1% BSA
Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle|Store in the dark
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

Pin1 also known as Peptidyl-prolyl cis-trans isomerase NIMA-interacting 1 is a small isomerase enzyme with a molecular weight of approximately 18 kDa. This protein is unique because of its specificity for phosphorylated serine/threonine-proline bonds. Pin1 catalyzes the cis-trans isomerization of these bonds with high efficiency. Expression of the Pin1 protein occurs widely across various tissues such as the brain heart and liver. It predominantly functions in the cytoplasm and nucleus where it modulates the activity of its target proteins by inducing conformational changes.
Biological function summary

Pin1 is essential in regulating cell cycle progression and cellular signaling. It influences a variety of cellular processes including cell proliferation transcriptional regulation and apoptosis. By altering the conformation of specific phosphorylated proteins Pin1 ensures the precise control of cell cycle checkpoints impacting the stability of many proteins such as cyclin D1 and p53. Despite not being part of a large protein complex Pin1 interacts with numerous other proteins thereby coordinating complex regulatory networks essential for maintaining normal cell function.

Pathways

Pin1 plays an important role in both the Wnt signaling pathway and the MAPK signaling pathway. In the Wnt pathway Pin1 maintains stability and the accumulation of β-catenin which affects transcription of target genes critical for cell proliferation. Within the MAPK pathway Pin1 regulates the activity of proteins like c-Jun and ERK1/2 which are vital for transmitting extracellular signals to cellular responses. Through these pathways Pin1 helps modulate responses to external stimuli and maintains cellular homeostasis by adjusting protein function dynamically in response to changes in phosphorylation status.

Changes in Pin1 activity have been linked to cancer and Alzheimer's disease. In cancer increased Pin1 expression accelerates the degradation of tumor suppressor proteins like p53 contributing to uncontrolled cell proliferation and reduced apoptosis. In Alzheimer's disease Pin1 dysfunction leads to the accumulation of phosphorylated tau protein which forms neurofibrillary tangles and disrupts normal neuronal function. Through these connections Pin1 represents a potential therapeutic target for developing treatments aimed at restoring balance in these pathways and alleviating disease symptoms.
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Peptidyl-prolyl cis/trans isomerase (PPIase) that binds to and isomerizes specific phosphorylated Ser/Thr-Pro (pSer/Thr-Pro) motifs (PubMed : 29686383). By inducing conformational changes in a subset of phosphorylated proteins, acts as a molecular switch in multiple cellular processes. Displays a preference for an acidic residue N-terminal to the isomerized proline bond. Regulates mitosis presumably by interacting with NIMA and attenuating its mitosis-promoting activity. Down-regulates kinase activity of BTK. Can transactivate multiple oncogenes and induce centrosome amplification, chromosome instability and cell transformation. Required for the efficient dephosphorylation and recycling of RAF1 after mitogen activation (By similarity). Binds and targets PML and BCL6 for degradation in a phosphorylation-dependent manner (PubMed : 17828269). Acts as a regulator of JNK cascade by binding to phosphorylated FBXW7, disrupting FBXW7 dimerization and promoting FBXW7 autoubiquitination and degradation : degradation of FBXW7 leads to subsequent stabilization of JUN (By similarity). May facilitate the ubiquitination and proteasomal degradation of RBBP8/CtIP through CUL3/KLHL15 E3 ubiquitin-protein ligase complex, hence favors DNA double-strand repair through error-prone non-homologous end joining (NHEJ) over error-free, RBBP8-mediated homologous recombination (HR) (By similarity). Upon IL33-induced lung inflammation, catalyzes cis-trans isomerization of phosphorylated IRAK3/IRAK-M, inducing IRAK3 stabilization, nuclear translocation and expression of pro-inflammatory genes in dendritic cells (PubMed : 29686383).
See full target information Pin1
