Rat Recombinant Monoclonal TOMM20 antibody - conjugated to Alexa Fluor® 488. Suitable for ICC/IF, IHC-Fr and reacts with Human, Mouse, Rat samples.

Be the first to review this product! Submit a review

Images

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-TOMM20 antibody [EPR15581-39] - Rat IgG2a (Chimeric) (AB309083), expandable thumbnail
  • Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-TOMM20 antibody [EPR15581-39] - Rat IgG2a (Chimeric) (AB309083), expandable thumbnail
  • Immunohistochemistry (Frozen sections) - Alexa Fluor® 488 Anti-TOMM20 antibody [EPR15581-39] - Rat IgG2a (Chimeric) (AB309083), expandable thumbnail
  • Immunohistochemistry (Frozen sections) - Alexa Fluor® 488 Anti-TOMM20 antibody [EPR15581-39] - Rat IgG2a (Chimeric) (AB309083), expandable thumbnail

Key facts

Isotype

IgG2a

Host species

Rat

Conjugation

Alexa Fluor® 488

Excitation/Emission

Ex: 495nm, Em: 519nm

Storage buffer

pH: 7.2 - 7.4
Preservative: 0.02% Sodium azide
Constituents: 68% PBS, 30% Glycerol (glycerin, glycerine), 1% BSA

Form

Liquid

Clonality

Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
ICC/IFIHC-Fr
Human
Tested
Expected
Mouse
Tested
Tested
Rat
Not recommended
Tested

Tested
Tested

Species

Human

Dilution info

1/50

Notes

-

Species

Mouse

Dilution info

1/50

Notes

-

Not recommended
Not recommended

Species

Rat

Dilution info

-

Notes

-

Tested
Tested

Species

Mouse

Dilution info

1/50

Notes

Heat mediated antigen retrieval using sodium citrate buffer (10mM citrate pH 6.0 + 0.05% Tween-20)

Species

Rat

Dilution info

1/50

Notes

Heat mediated antigen retrieval using sodium citrate buffer (10mM citrate pH 6.0 + 0.05% Tween-20)

Expected
Expected

Species

Human

Dilution info

Use at an assay dependent concentration.

Notes

-

Associated Products

Select an associated product type

10 products for Alternative Version

Target data

Function

Central component of the receptor complex responsible for the recognition and translocation of cytosolically synthesized mitochondrial preproteins. Together with TOM22 functions as the transit peptide receptor at the surface of the mitochondrion outer membrane and facilitates the movement of preproteins into the TOM40 translocation pore (By similarity). Required for the translocation across the mitochondrial outer membrane of cytochrome P450 monooxygenases.

Alternative names

KIAA0016, TOMM20, KIAA0016, Mitochondrial import receptor subunit TOM20 homolog, Mitochondrial 20 kDa outer membrane protein, Outer mitochondrial membrane receptor Tom20

Recommended products

Rat Recombinant Monoclonal TOMM20 antibody - conjugated to Alexa Fluor® 488. Suitable for ICC/IF, IHC-Fr and reacts with Human, Mouse, Rat samples.

Key facts

Isotype

IgG2a

Conjugation

Alexa Fluor® 488

Excitation/Emission

Ex: 495nm, Em: 519nm

Form

Liquid

Clonality

Monoclonal

Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Clone number

EPR15581-39

Purification technique

Affinity purification Protein A

Concentration
Loading...

Storage

Shipped at conditions

Blue Ice

Appropriate short-term storage duration

1-2 weeks

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

-20°C

Aliquoting information

Upon delivery aliquot

Storage information

Avoid freeze / thaw cycle, Store in the dark

Notes

This antibody clone is manufactured by Abcam. If you require a custom buffer formulation or conjugation for your experiments, please contact orders@abcam.com

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Alexa Fluor® is a registered trademark of Molecular Probes, Inc, a Thermo Fisher Scientific Company. The Alexa Fluor® dye included in this product is provided under an intellectual property license from Life Technologies Corporation. As this product contains the Alexa Fluor® dye, the purchase of this product conveys to the buyer the non-transferable right to use the purchased product and components of the product only in research conducted by the buyer (whether the buyer is an academic or for-profit entity). As this product contains the Alexa Fluor® dye the sale of this product is expressly conditioned on the buyer not using the product or its components, or any materials made using the product or its components, in any activity to generate revenue, which may include, but is not limited to use of the product or its components: in manufacturing; (ii) to provide a service, information, or data in return for payment (iii) for therapeutic, diagnostic or prophylactic purposes; or (iv) for resale, regardless of whether they are sold for use in research. For information on purchasing a license to this product for purposes other than research, contact Life Technologies Corporation, 5781 Van Allen Way, Carlsbad, CA 92008 USA or outlicensing@thermofisher.com.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

4 product images

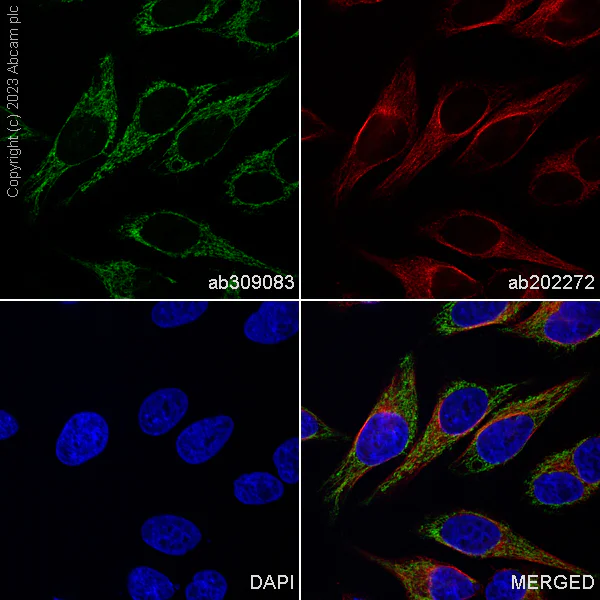

  • Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-TOMM20 antibody [EPR15581-39] - Rat IgG2a (Chimeric) (ab309083), expandable thumbnail

    Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-TOMM20 antibody [EPR15581-39] - Rat IgG2a (Chimeric) (ab309083)

    Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HeLa (human cervical adenocarcinoma epithelial cell) cells labelling TOMM20 with ab309083 at 1/50 (10.0 ug/ml) dilution.

    Confocal image showing cytoplasmic staining in HeLa cells.

    Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8). Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker ab202272 Recombinant Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker ab202272) was used to counterstain tubulin at 1/100 5ug/ml dilution (Red). The Nuclear counterstain was DAPI (Blue).

  • Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-TOMM20 antibody [EPR15581-39] - Rat IgG2a (Chimeric) (ab309083), expandable thumbnail

    Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-TOMM20 antibody [EPR15581-39] - Rat IgG2a (Chimeric) (ab309083)

    Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized NIH/3T3 (mouse embryonic fibroblast) cells labelling TOMM20 with ab309083 at 1/50 (10.0 ug/ml) dilution.

    Confocal image showing cytoplasmic staining in NIH/3T3 cells.

    Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8). Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker ab202272 Recombinant Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker ab202272) was used to counterstain tubulin at 1/100 5ug/ml dilution (Red). The Nuclear counterstain was DAPI (Blue).

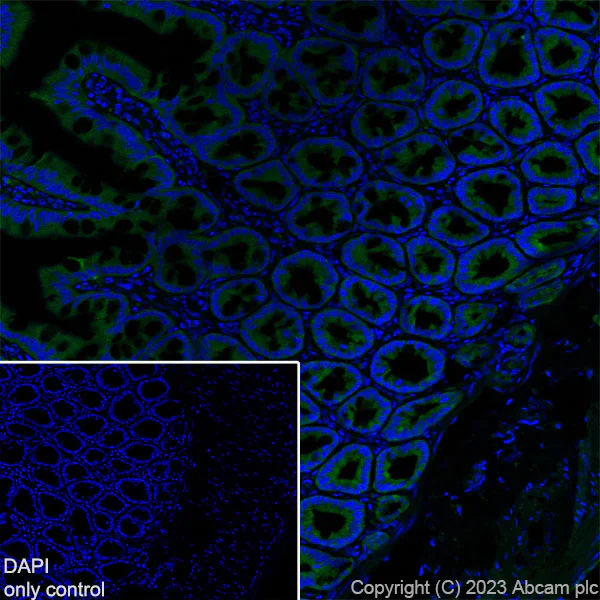

  • Immunohistochemistry (Frozen sections) - Alexa Fluor® 488 Anti-TOMM20 antibody [EPR15581-39] - Rat IgG2a (Chimeric) (ab309083), expandable thumbnail

    Immunohistochemistry (Frozen sections) - Alexa Fluor® 488 Anti-TOMM20 antibody [EPR15581-39] - Rat IgG2a (Chimeric) (ab309083)

    Immunohistochemical analysis of 4% PFA-fixed, 0.2% Triton X-100 permeabilized frozen Mouse intestine tissue labeling TOMM20 with ab309083 at 1/50 (10.0 ug/ml) dilution (green).

    Confocal image showing positive staining on mouse intestine.

    The nuclear counterstain was DAPI (Blue).

    The section was incubated with ab309083 for 60 mins at room temperature. The section was then mounted using Fluoromount®.The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8). The nuclear counterstain was DAPI (Blue).

    Heat mediated antigen retrieval using sodium citrate buffer (10mM citrate pH 6.0 + 0.05% Tween-20).

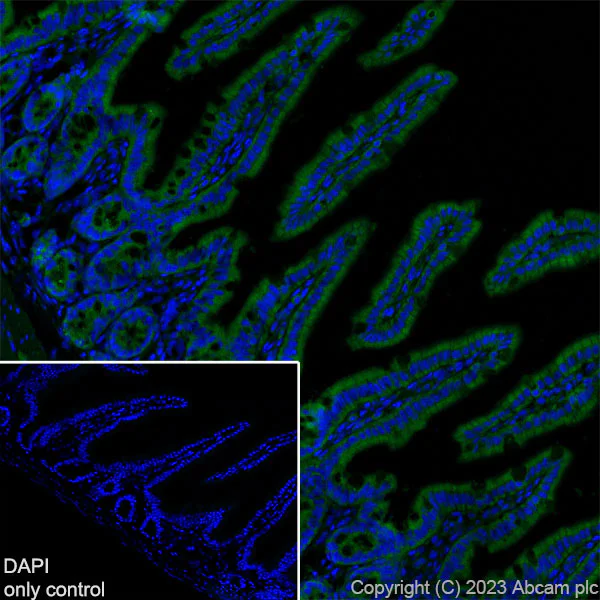

  • Immunohistochemistry (Frozen sections) - Alexa Fluor® 488 Anti-TOMM20 antibody [EPR15581-39] - Rat IgG2a (Chimeric) (ab309083), expandable thumbnail

    Immunohistochemistry (Frozen sections) - Alexa Fluor® 488 Anti-TOMM20 antibody [EPR15581-39] - Rat IgG2a (Chimeric) (ab309083)

    Immunohistochemical analysis of 4% PFA-fixed, 0.2% Triton X-100 permeabilized frozen Rat intestine tissue labeling TOMM20 with ab309083 at 1/50 (10.0 ug/ml) dilution (Green).

    Confocal image showing positive staining on rat intestine.

    The nuclear counterstain was DAPI (Blue). The section was incubated with ab309083 for 60 mins at room temperature. The section was then mounted using Fluoromount®. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

    The nuclear counterstain was DAPI (Blue).

    Heat mediated antigen retrieval using sodium citrate buffer (10mM citrate pH 6.0 + 0.05% Tween-20).
