Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker

39 product images

•

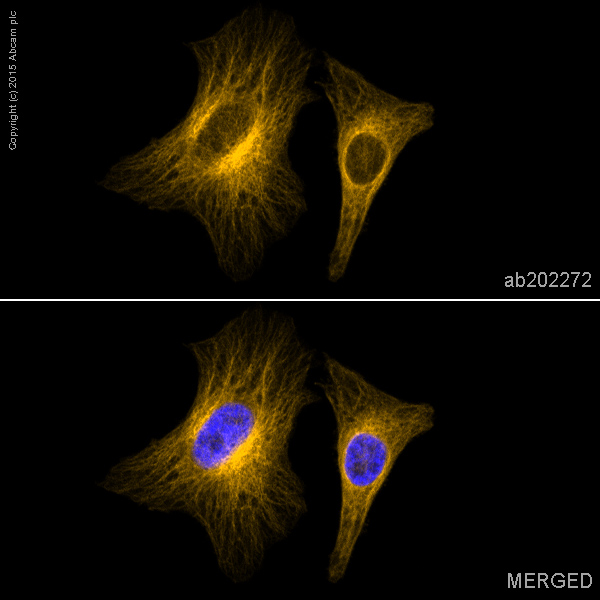

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272)

  ab202272 staining alpha Tubulin in HeLa cells. The cells were fixed with 4% formaldehyde (10 min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with ab202272 at 1/200 dilution (shown in orange). Nuclear DNA was labelled with DAPI (shown in blue).

  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

  This product also gave a positive signal under the same testing conditions in HeLa cells fixed with 100% methanol (5min).

•

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272)

  Alpha Tubulin Immunocytochemistry/ Immunofluorescence staining using rabbit Anti-alpha Tubulin antibody

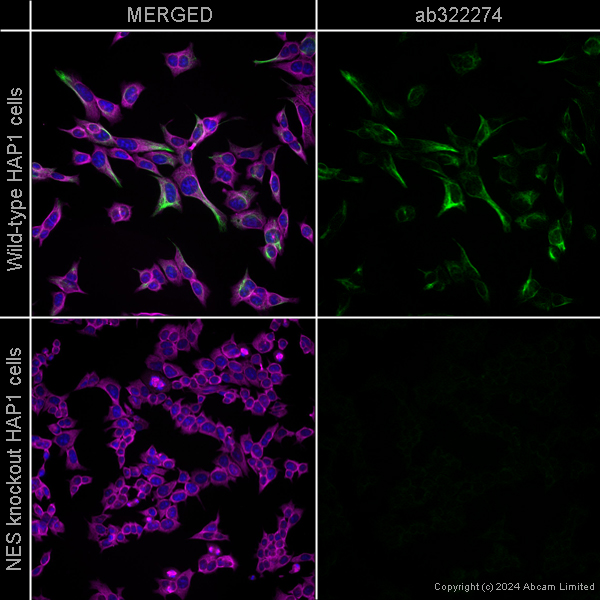

  Anti-Nestin antibody [SP103] – Mouse IgG1 (Chimeric) - Neural Stem Cell Marker ab322274 staining Glucagon in Hap1 (positive) and Hap1-NES (negative) cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with Anti-Nestin antibody [SP103] – Mouse IgG1 (Chimeric) - Neural Stem Cell Marker ab322274 at 1µg/ml (shown in green) and ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117, Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue).

  Also suitable in cells fixed with 4% paraformaldehyde (10 min).

  Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272)

  Alpha Tubulin Immunocytochemistry/ Immunofluorescence staining using rabbit Anti-alpha Tubulin antibody

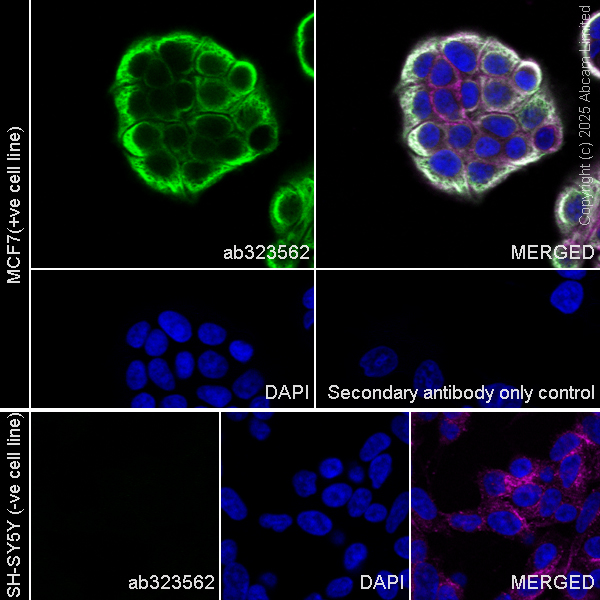

  Immunofluorescent analysis of 100% methanol-fixed, 0.1% TritonX-100 permeabilized MCF7 (human breast adenocarcinoma epithelial cell) cells labelling Cytokeration 19 with Anti-Cytokeratin 19 antibody [EP1580Y] - Mouse IgG2a (Chimeric) ab323562 at 1/800 (1.096 ug/ml) dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117 Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

  Confocal image showing cytoplasmic staining in MCF7 cell line (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue).

  Negative control: SH-SY5Y.

  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

  ab202272 Recombinant Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272) was used to counterstain tubulin at 1/200 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

  Secondary antibody only control: Secondary antibody is Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117 Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution.

•

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272)

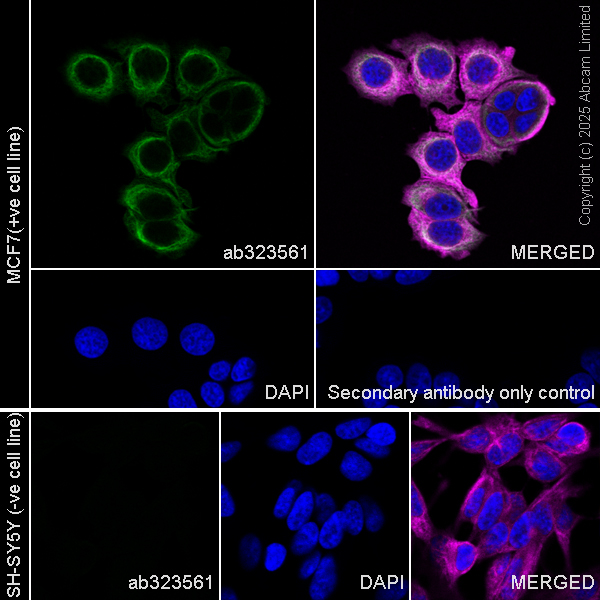

  Immunofluorescent analysis of 100% methanol-fixed, 0.1% TritonX-100 permeabilized MCF7 (human breast adenocarcinoma epithelial cell) cells labelling Cytokeration 19 with Anti-Cytokeratin 19 antibody [EP1580Y] - Rat IgG2a (Chimeric) ab323561 at 1/4000 ( 0.2495 ug/ml) dilution, followed by Goat Anti-Rat IgG H&L (Alexa Fluor® 488) ab150157 Goat Anti-Rat IgG H&L (Alexa Fluor® 488) antibody at 1/1000 2ug/ml dilution (Green).

  Confocal image showing cytoplasmic staining in MCF7 cell line (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue).

  Negative control: SH-SY5Y.

  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

  ab202272 Recombinant Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272) was used to counterstain tubulin at 1/200 10ug/ml dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

  Secondary antibody only control: Secondary antibody is Goat Anti-Rat IgG H&L (Alexa Fluor® 488) ab150157 Goat Anti-Rat IgG H&L (Alexa Fluor® 488) at 1/1000 2ug/ml dilution.

•

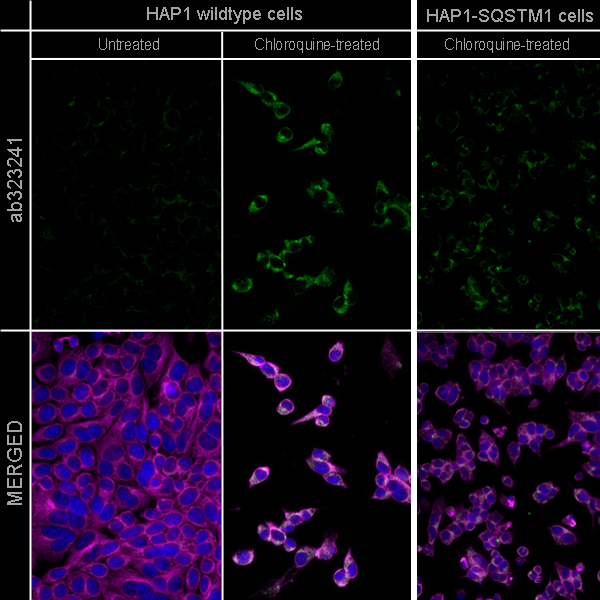

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272)

  Anti-SQSTM1 / p62 antibody [EPR4844] - Autophagosome Marker – Goat IgG (Chimeric) ab323241 staining SQSTM1 in wild-type Hap1 cells and SQSTM1 knockout Hap1 cells +/- Chloroquine (50uM, 24 hours) cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal donkey serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4° C with Anti-SQSTM1 / p62 antibody [EPR4844] - Autophagosome Marker – Goat IgG (Chimeric) ab323241 at 5ug/ml (shown in green) and ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with Donkey Anti-Goat IgG H&L (Alexa Fluor® 488) preadsorbed ab150133, Donkey Anti-Goat IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue).

  Also suitable in cells fixed with 4% paraformaldehyde (10 min).

  Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272)

  Anti-SQSTM1 / p62 antibody [EPR4844] - Autophagosome Marker – Goat IgG (Chimeric) ab323241 staining SQSTM1 in NIH/3T3 +/- chloroquine (50uM, 24 hours) cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal donkey serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4° C with Anti-SQSTM1 / p62 antibody [EPR4844] - Autophagosome Marker – Goat IgG (Chimeric) ab323241 at 1ug/ml (shown in green) and ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with Donkey Anti-Goat IgG H&L (Alexa Fluor® 488) preadsorbed ab150133, Donkey Anti-Goat IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue).

  Also suitable in cells fixed with 4% paraformaldehyde (10 min).

  Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272)

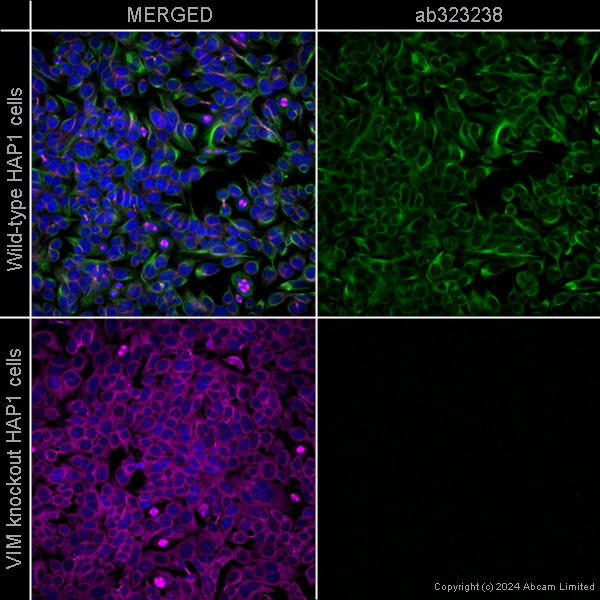

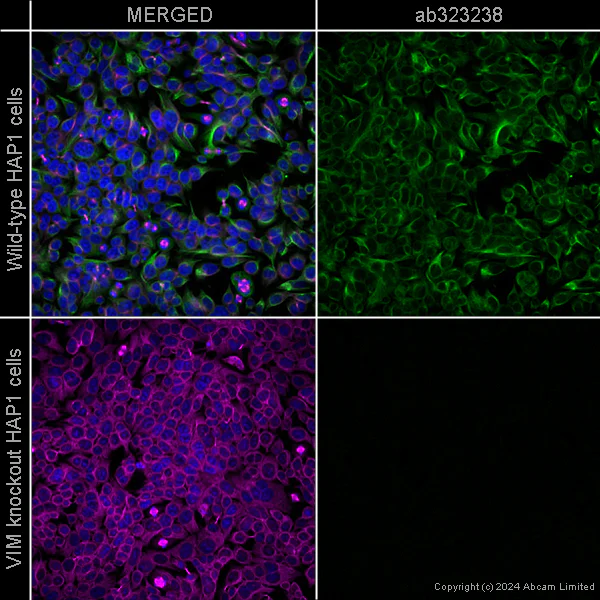

  Anti-Vimentin antibody [EPR3776] - Cytoskeleton Marker – Chicken IgY (Chimeric) ab323238 staining VIM in Hap1 (positive) and Hap1-VIM KO (negative) cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4° C with Anti-Vimentin antibody [EPR3776] - Cytoskeleton Marker – Chicken IgY (Chimeric) ab323238 at 1ug/ml (shown in green) and ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed ab150173, Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue).

  Also suitable in cells fixed with 4% paraformaldehyde (10 min).

  Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272)

  Anti-IL-1 beta antibody [EPR23851-127] – Chicken IgY (Chimeric) ab323240 staining IL1B in NR8383 +/- 100ng/ml LPS 7h, with 1ug/ml Brefeldin A for last 3h cells. The cells were fixed with 4% paraformaldehyde (10 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4° C with Anti-IL-1 beta antibody [EPR23851-127] – Chicken IgY (Chimeric) ab323240 at 5ug/ml (shown in green) and ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed ab150173, Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue).

  Also suitable in cells fixed with 100% methanol (5 min).

  Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272)

  Anti-IL-1 beta antibody [EPR23851-127] – Chicken IgY (Chimeric) ab323240 staining IL1B in Raw264.7 +/- 100ng/ml LPS 7h, with 1ug/ml Brefeldin A for last 3h cells. The cells were fixed with 4% paraformaldehyde (10 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4° C with Anti-IL-1 beta antibody [EPR23851-127] – Chicken IgY (Chimeric) ab323240 at 5ug/ml (shown in green) and ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed ab150173, Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue).

  Also suitable in cells fixed with 100% methanol (5 min).

  Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272)

  Anti-IL-1 beta antibody [EPR23851-127] – Chicken IgY (Chimeric) ab323240 staining IL1B in wild-type THP-1 cells and IL1B knockout THP-1 cells +/- TPA (80nM overnight) and LPS (100ng/ml, 6h) cells. The cells were fixed with 4% paraformaldehyde (10 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4° C with Anti-IL-1 beta antibody [EPR23851-127] – Chicken IgY (Chimeric) ab323240 at 1ug/ml (shown in green) and ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed ab150173, Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue).

  Also suitable in cells fixed with 100% methanol (5 min).

  Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

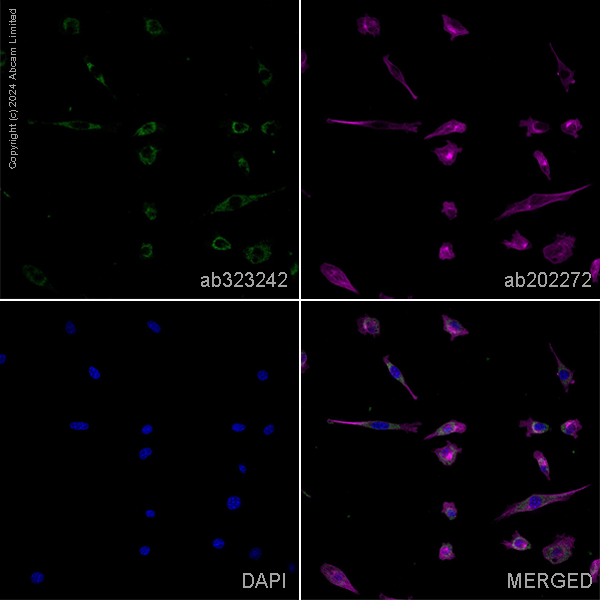

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272)

  Anti-Hexokinase II antibody [EPR20839] – Mouse IgG1 (Chimeric) ab323242 staining HK2 in NIH/3T3 cells. The cells were fixed with 4% paraformaldehyde (10 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4° C with Anti-Hexokinase II antibody [EPR20839] – Mouse IgG1 (Chimeric) ab323242 at 5ug/ml (shown in green) and ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117, Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue). Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

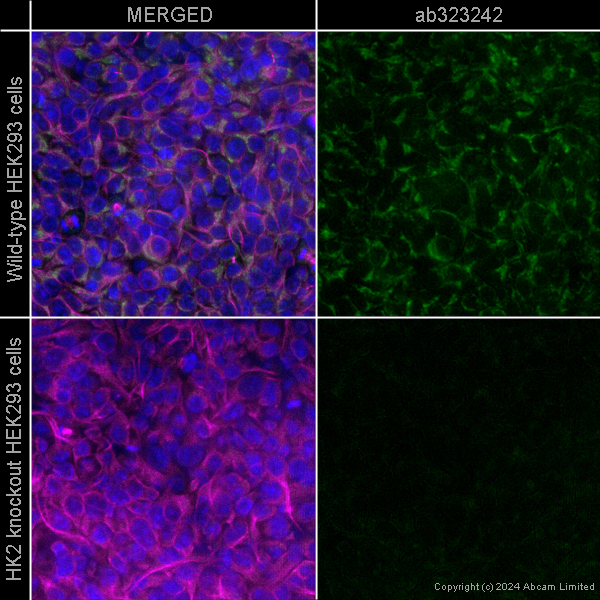

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272)

  Anti-Hexokinase II antibody [EPR20839] – Mouse IgG1 (Chimeric) ab323242 staining HK2 in HEK293 (positive) and HEK293-HK2 KO (negative) cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4° C with Anti-Hexokinase II antibody [EPR20839] – Mouse IgG1 (Chimeric) ab323242 at 5ug/ml (shown in green) and ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117, Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue). Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272)

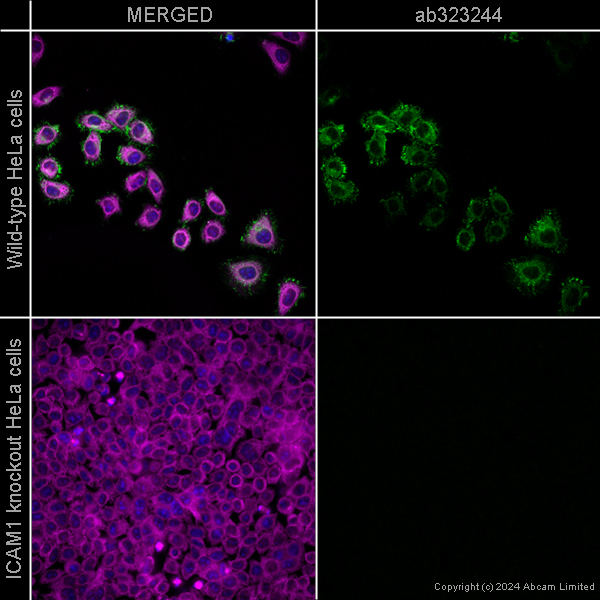

  Anti-ICAM1 antibody [EPR24639-3] – Mouse IgG1 (Chimeric) ab323244 staining ICAM1 in HeLa (positive) and HeLa-ICAM1 KO (negative) cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4° C with Anti-ICAM1 antibody [EPR24639-3] – Mouse IgG1 (Chimeric) ab323244 at 1ug/ml (shown in green) and ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117, Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue). Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

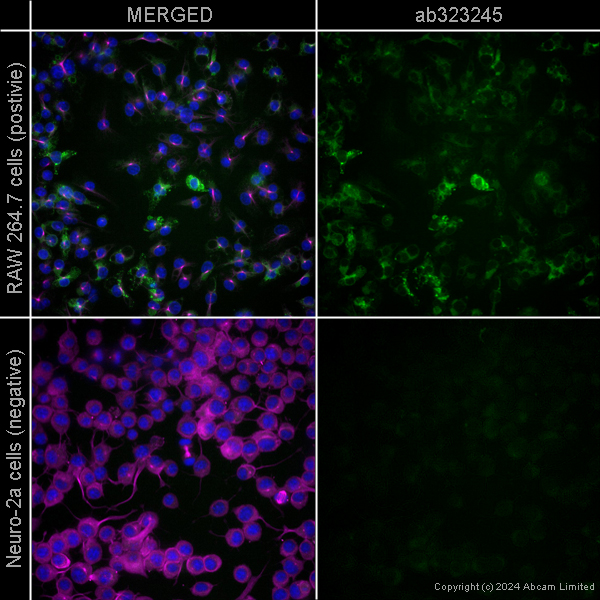

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272)

  Anti-CD74 antibody [EPR25399-94] – Human IgG (Chimeric) ab323245 staining CD74 in Raw264.7 (positive) and Neuro-2a (negative) cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal rabbit serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4° C with Anti-CD74 antibody [EPR25399-94] – Human IgG (Chimeric) ab323245 at 5ug/ml (shown in green) and ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with Rabbit monoclonal [H26-10] Anti-Human IgG1 H&L (Alexa Fluor® 488) ab200622 Rabbit monoclonal [H26-10] Anti-Human IgG1 H&L (Alexa Fluor® 488) at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue). Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

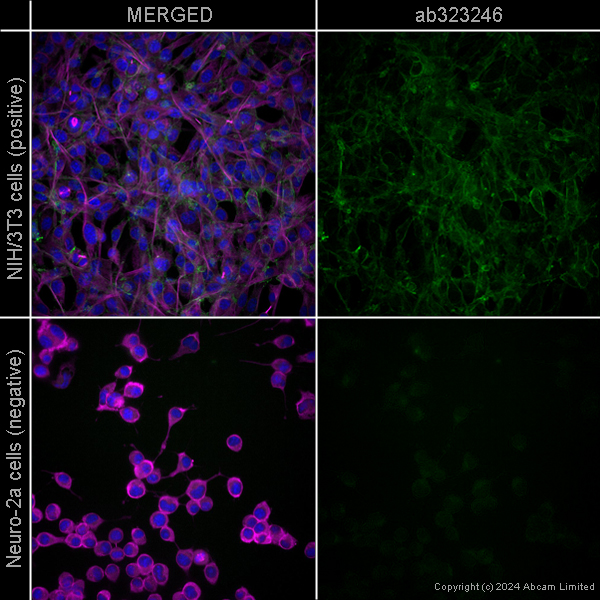

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272)

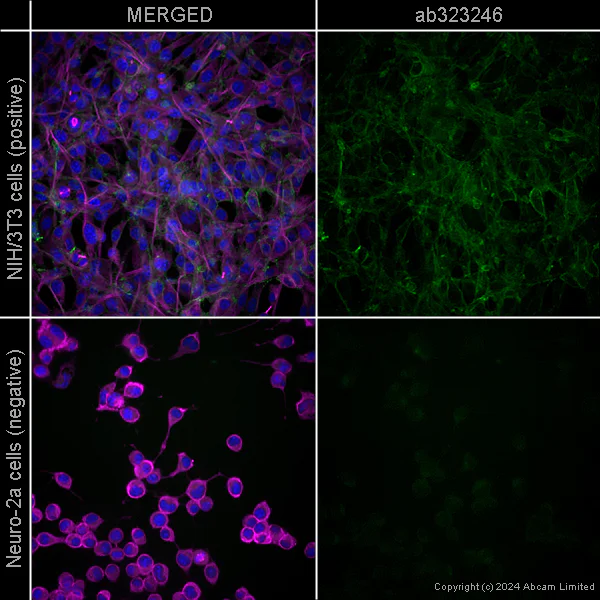

  Anti-CD34 antibody [EPR27431-71] – Human IgG (Chimeric) ab323246 staining CD34 in NIH/3T3 (positive) and Neuro-2a (negative) cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal rabbit serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4° C with Anti-CD34 antibody [EPR27431-71] – Human IgG (Chimeric) ab323246 at 5ug/ml (shown in green) and ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with Rabbit monoclonal [H26-10] Anti-Human IgG1 H&L (Alexa Fluor® 488) ab200622 Rabbit monoclonal [H26-10] Anti-Human IgG1 H&L (Alexa Fluor® 488) at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue). Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

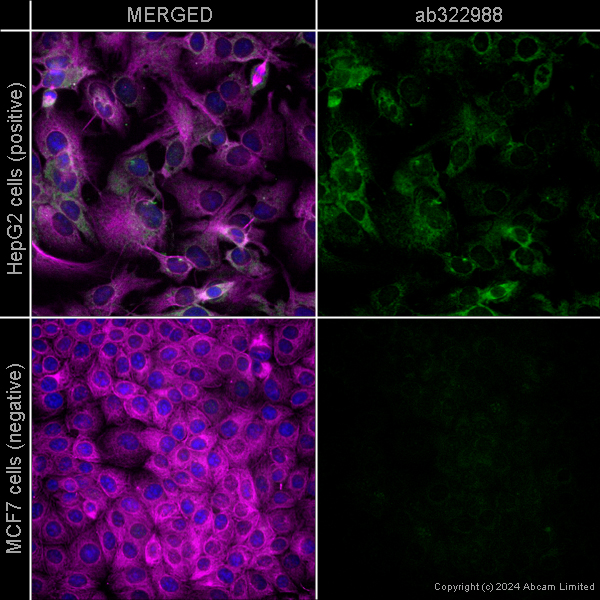

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272)

  Anti-FACL4 antibody [EPR8640] - Mouse IgG1 (Chimeric) ab322988 staining FACL4 in Hep G2 (positive) and MCF-7 (negative) cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with Anti-FACL4 antibody [EPR8640] - Mouse IgG1 (Chimeric) ab322988 at 1µg/ml (shown in green) and ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117, Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue). Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272)

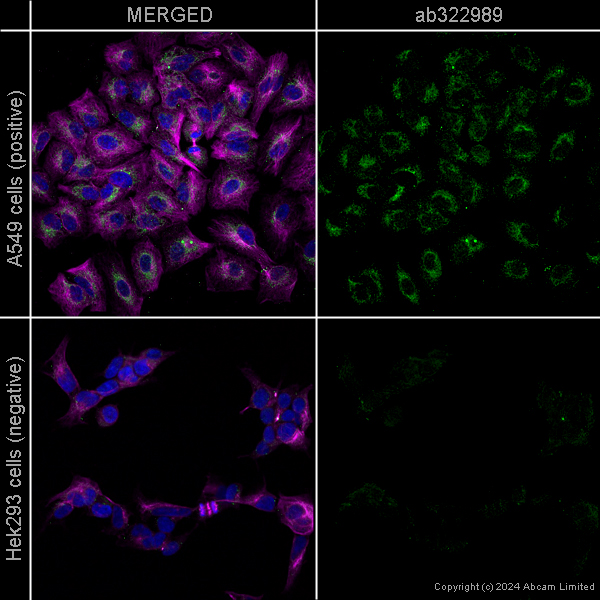

  Anti-Glucose 6 Phosphate Dehydrogenase antibody [EPR20668] - Mouse IgG1 (Chimeric) ab322989 staining G6PD in A-549 (positive) and Hek 293 (negative) cells. The cells were fixed with 4% paraformaldehyde (10 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with Anti-Glucose 6 Phosphate Dehydrogenase antibody [EPR20668] - Mouse IgG1 (Chimeric) ab322989 at 1µg/ml (shown in green) and ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117, Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue). Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272)

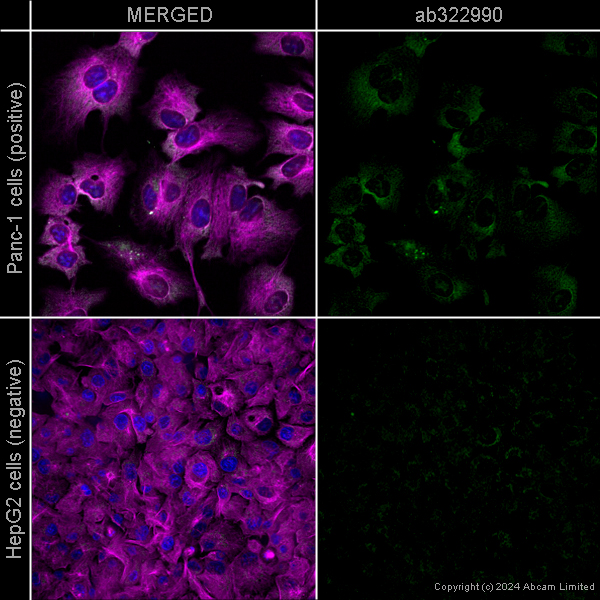

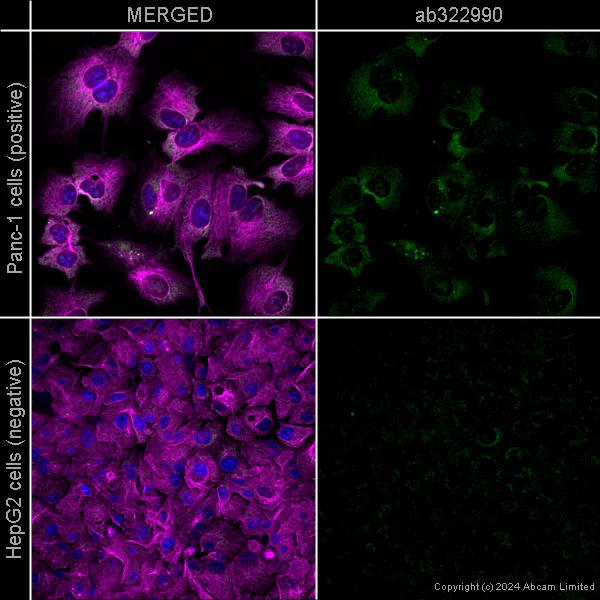

  Anti-GLP-1 antibody [EPR4042-1] - Mouse IgG1 (Chimeric) ab322990 staining GLP-1 in Panc-1 (positive) and Hep G2 (negative) cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with Anti-GLP-1 antibody [EPR4042-1] - Mouse IgG1 (Chimeric) ab322990 at 1µg/ml (shown in green) and ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117, Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue). Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272)

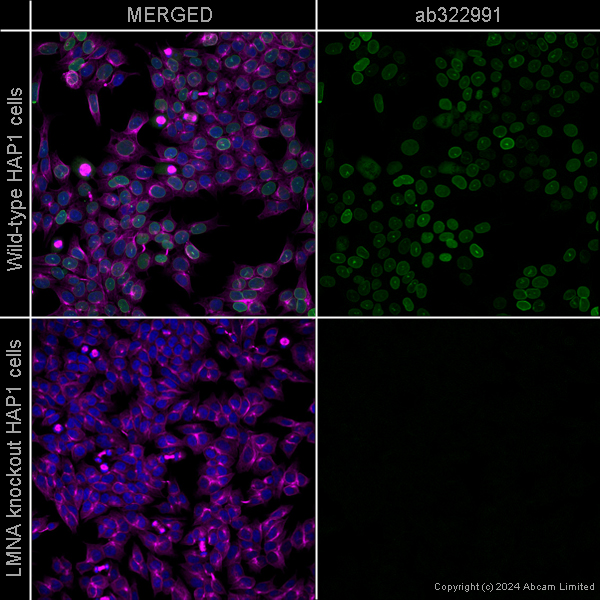

  Anti-Lamin A + Lamin C antibody [EPR4100] - Nuclear Envelope Marker - Mouse IgG2a (Chimeric) ab322991 staining LMNA in Hap1 (positive) and Hap1-LMNA KO (negative) cells. The cells were fixed with 4% paraformaldehyde (10 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with Anti-Lamin A + Lamin C antibody [EPR4100] - Nuclear Envelope Marker - Mouse IgG2a (Chimeric) ab322991 at 1µg/ml (shown in green) and ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117, Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue).

  Also suitable in cells fixed with 100% methanol (5 min).

  Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272)

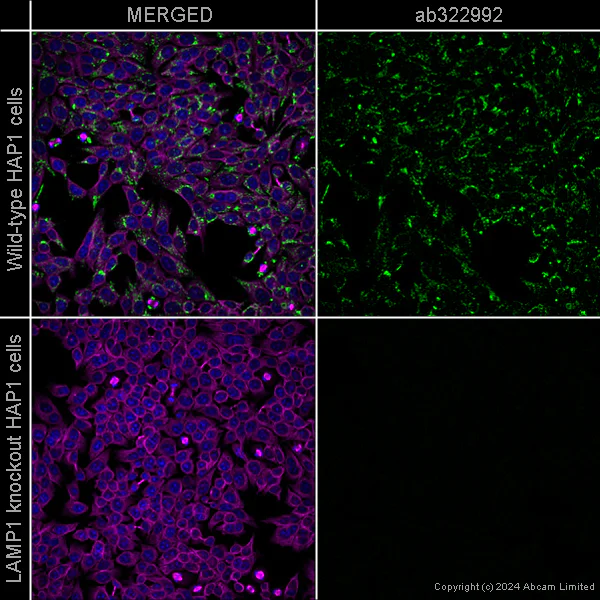

  Anti-LAMP1 antibody [EPR24395-31] - Mouse IgG1 (Chimeric) ab322992 staining LAMP1 in Hap1 (positive) and Hap1-LAMP1 KO (negative) cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with Anti-LAMP1 antibody [EPR24395-31] - Mouse IgG1 (Chimeric) ab322992 at 1µg/ml (shown in green) and ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117, Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue).

  Also suitable in cells fixed with 4% paraformaldehyde (10 min).

  Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272)

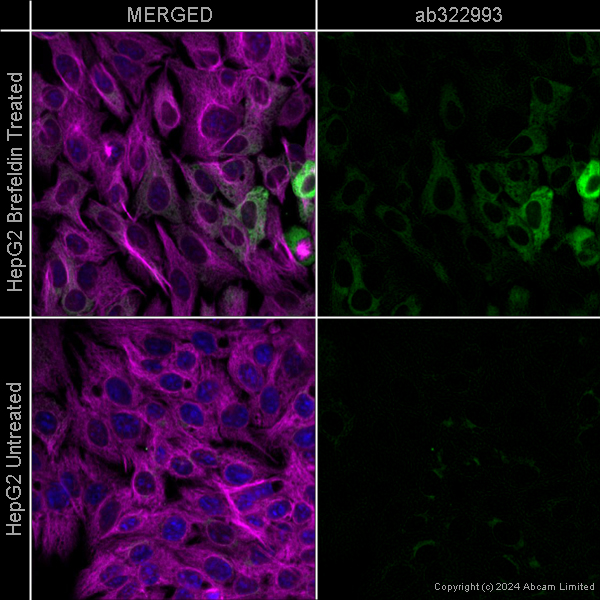

  Anti-Osteopontin antibody [EPR21139-316] - Rat IgG2a (Chimeric) ab322993 staining SPP1 in Hep G2 +/- Brefeldin (300ng/ml, 3 hours) cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with Anti-Osteopontin antibody [EPR21139-316] - Rat IgG2a (Chimeric) ab322993 at 5µg/ml (shown in green) and ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with Goat Anti-Rat IgG H&L (Alexa Fluor® 488) preadsorbed ab150165, Goat Anti-Rat IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue). Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

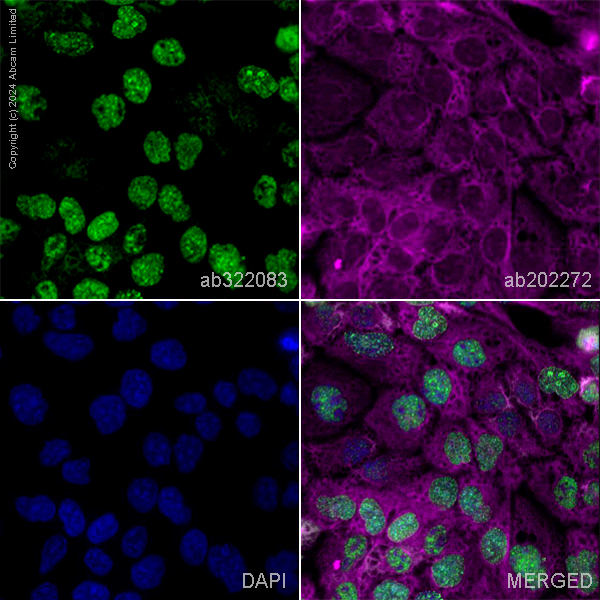

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272)

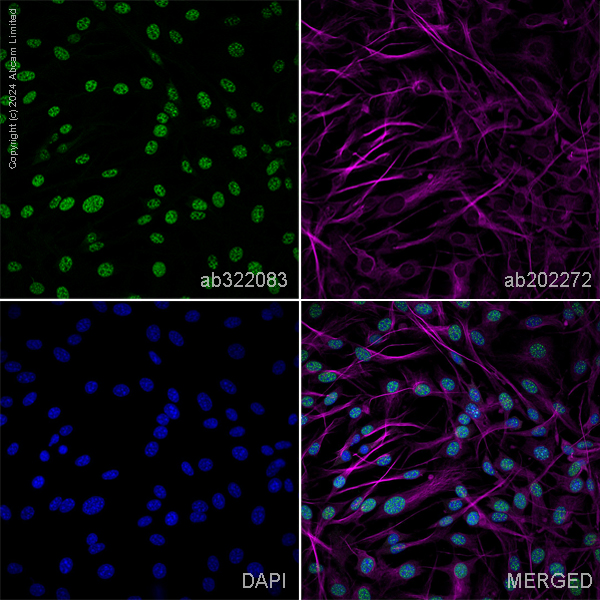

  Anti-PCNA [EPR3821] – Chicken IgY (Chimeric) ab322083 staining PCNA in A-431 cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with Anti-PCNA [EPR3821] – Chicken IgY (Chimeric) ab322083 at 1µg/ml (shown in green) and ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed ab150173, Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue). Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

  This data was developed using the same antibody clone in a different buffer formulation.

•

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272)

  Anti-PCNA [EPR3821] – Chicken IgY (Chimeric) ab322083 staining PCNA in NIH/3T3 cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with Anti-PCNA [EPR3821] – Chicken IgY (Chimeric) ab322083 at 1µg/ml (shown in green) and ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed ab150173, Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue). Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

  This data was developed using the same antibody clone in a different buffer formulation.

•

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272)

  Anti-Cytokeratin 5 - Cytoskeleton Marker [EP1601Y] – Goat IgG (Chimeric) ab321868 staining KRT5 in A431 (positive) and MCF7 (negative) cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal donkey serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with Anti-Cytokeratin 5 - Cytoskeleton Marker [EP1601Y] – Goat IgG (Chimeric) ab321868 at 1µg/ml (shown in green) and ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with Donkey Anti-Goat IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue).

  Also suitable in cells fixed with 4% paraformaldehyde (10 min).

  Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

  This data was developed using the same antibody clone in a different buffer formulation.

•

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272)

  Anti-alpha smooth muscle Actin [EPR5368] – Chicken IgY (Chimeric) ab321866 staining ACTA2 in HeLa (positive) and A431 (negative) cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with Anti-alpha smooth muscle Actin [EPR5368] – Chicken IgY (Chimeric) ab321866 at 1µg/ml (shown in green) and ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed ab150173, Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue).

  Also suitable in cells fixed with 4% paraformaldehyde (10 min).

  Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

  This data was developed using the same antibody clone in a different buffer formulation.

•

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272)

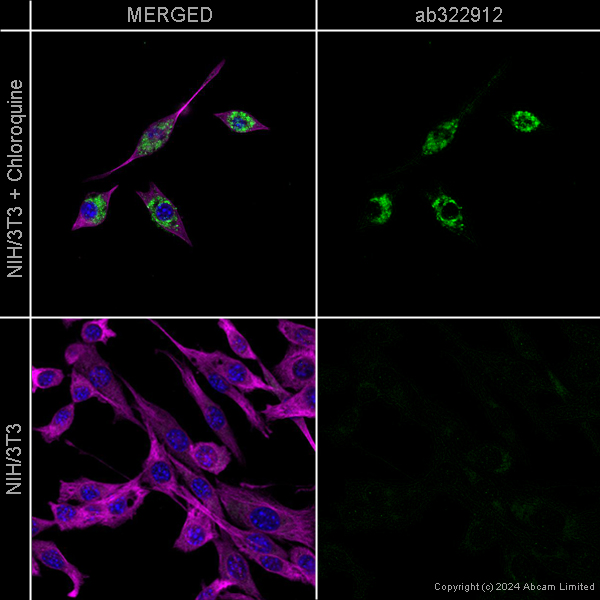

  Anti-LC3B antibody [EPR18709] - Autophagosome Marker – Chicken IgY (Chimeric) ab322912 staining LC3B in NIH/3T3 +/- Chloroquine (50µM 24 hours) cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with Anti-LC3B antibody [EPR18709] - Autophagosome Marker – Chicken IgY (Chimeric) ab322912 at 1µg/ml (shown in green) and ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed ab150173, Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue). Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272)

  Anti-LC3B antibody [EPR18709] - Autophagosome Marker – Chicken IgY (Chimeric) ab322912 staining LC3B in HAP1 cells (wildtype and MAP1LC3B knockout) +/- Chloroquine (50µM 24 hours) cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with Anti-LC3B antibody [EPR18709] - Autophagosome Marker – Chicken IgY (Chimeric) ab322912 at 1µg/ml (shown in green) and ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed ab150173, Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue). Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

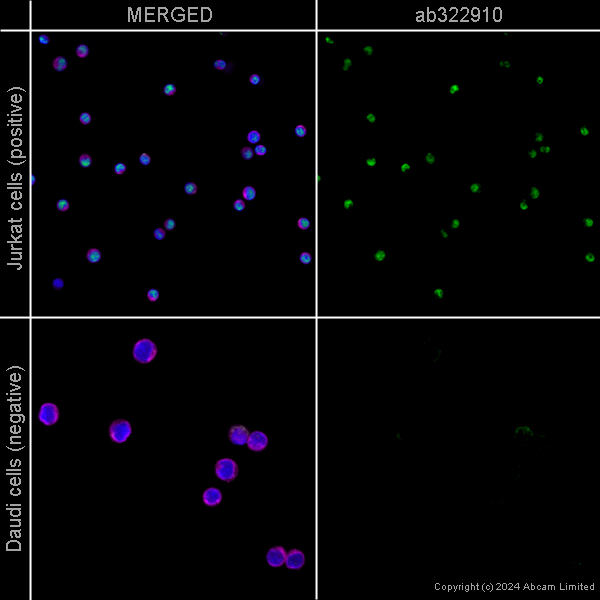

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272)

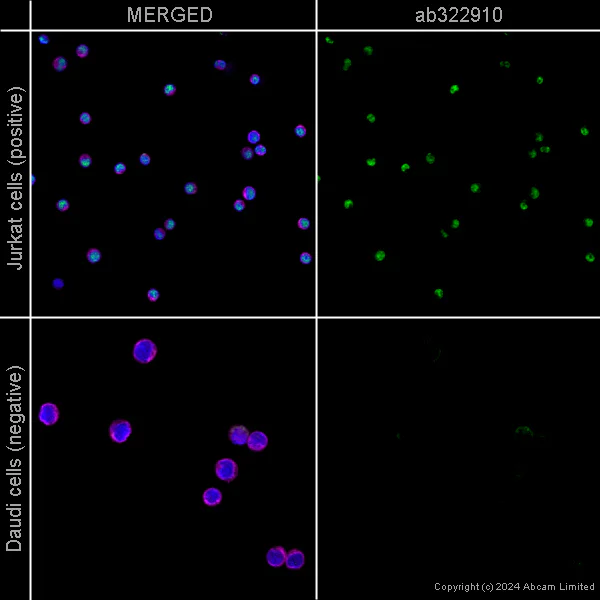

  Anti-Ctip2 antibody [EPR23120-25] – Rat IgG2a (Chimeric) ab322910 staining Ctip2 in Jurkat (positive) and Daudi (negative) cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with Anti-Ctip2 antibody [EPR23120-25] – Rat IgG2a (Chimeric) ab322910 at 1µg/ml (shown in green) and ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with Goat Anti-Rat IgG H&L (Alexa Fluor® 488) preadsorbed ab150165, Goat Anti-Rat IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue).

  Also suitable in cells fixed with 4% paraformaldehyde (10 min).

  Image was acquired with a confocal microscope (Leica-Microsystems TCS SP8) and a single confocal section is shown.

•

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272)

  Anti-TSG101 [EPR7130(B)] – Goat IgG (Chimeric) ab320807 staining TSG101 in NIH/3T3 cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal donkey serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with Anti-TSG101 [EPR7130(B)] – Goat IgG (Chimeric) ab320807 at 1µg/ml (shown in green) and ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with Donkey Anti-Goat IgG H&L (Alexa Fluor® 488) preadsorbed ab150133 Donkey Anti-Goat IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue).
  Also suitable in cells fixed with 4% paraformaldehyde (10 min).
  Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

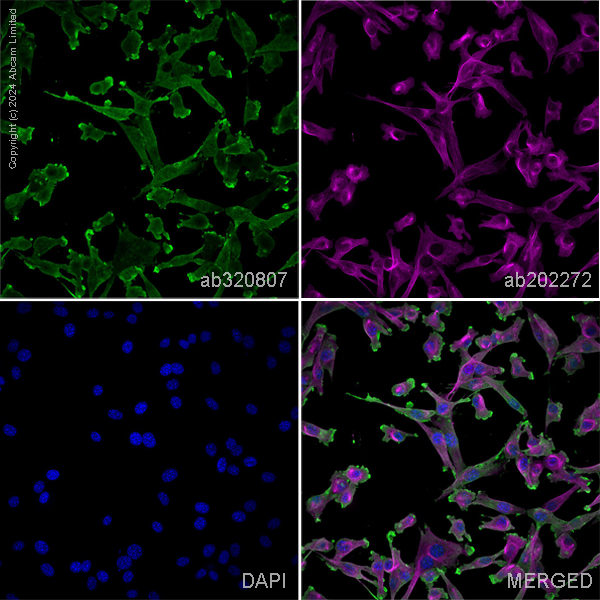

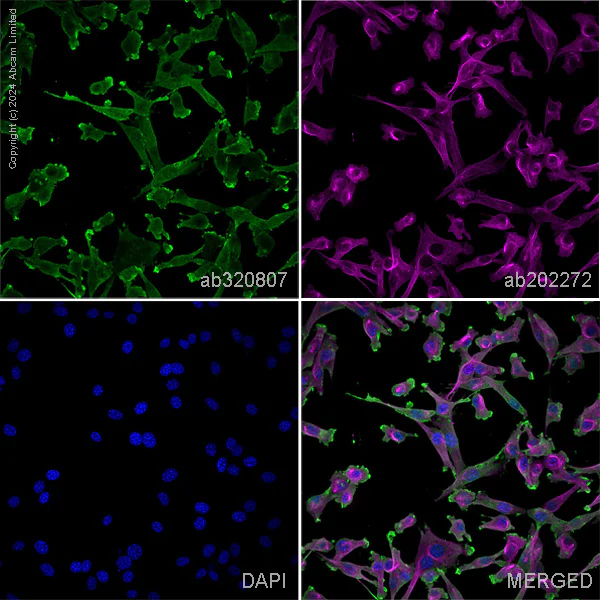

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272)

  Anti-TSG101 [EPR7130(B)] – Goat IgG (Chimeric) ab320807 staining TSG101 in HeLa cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal donkey serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with Anti-TSG101 [EPR7130(B)] – Goat IgG (Chimeric) ab320807 at 1µg/ml (shown in green) and ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with Donkey Anti-Goat IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue).

  Also suitable in cells fixed with 4% paraformaldehyde (10 min).

  Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

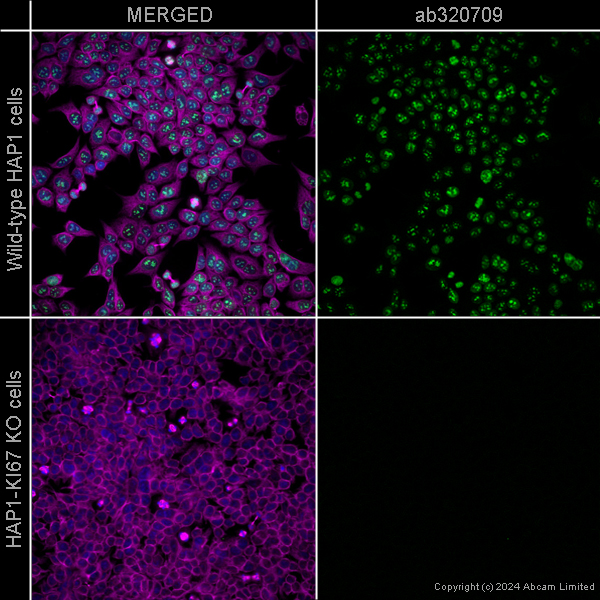

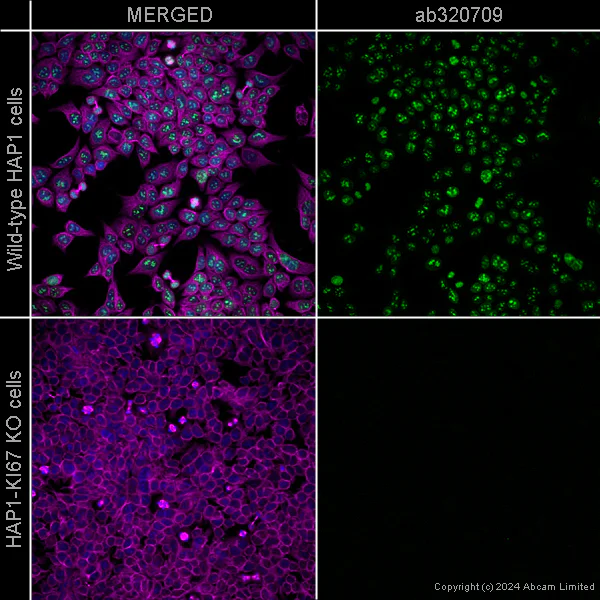

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272)

  Anti-Ki67 [SP6] – Chicken IgY (Chimeric) ab320709 staining KI67 in Hap1 (positive) and Hap1-KI67 (negative) cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with Anti-Ki67 [SP6] – Chicken IgY (Chimeric) ab320709 at 1 ug/ml (shown in green) and ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed ab150173, Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution. Nuclear DNA was labeled with DAPI (shown in blue). Also suitable in cells fixed with 4% paraformaldehyde (10 min). Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272)

  Anti-alpha smooth muscle Actin antibody [EPR5368] – Goat IgG (Chimeric) – BSA and Azide Free ab320059 staining ACTA2 in SV40LT-SMC cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal donkey serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with Anti-alpha smooth muscle Actin antibody [EPR5368] – Goat IgG (Chimeric) – BSA and Azide Free ab320059 at 1µg/ml (shown in green) and ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with Donkey Anti-Goat IgG H&L (Alexa Fluor® 488) preadsorbed ab150133 Donkey Anti-Goat IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue). Image was acquired with a confocal microscope (Leica-Microsystems TCS SP8) and a single confocal section is shown.

•

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272)

  Anti-MAP2 antibody [EPR19691] – Chicken IgY (Chimeric) – BSA and Azide Free ab319980 staining MAP2 in Mouse hippocampal neurons (positive) and NIH/3T3 (negative) cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with Anti-MAP2 antibody [EPR19691] – Chicken IgY (Chimeric) – BSA and Azide Free ab319980 at 1µg/ml and ab202272, Alexa Fluor 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed ab150173, Goat Anti-Chicken IgY H&L (Alexa Fluor 488) preadsorbed at 1/1000 dilution (shown in green). Nuclear DNA was labelled with DAPI (shown in blue).

  Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272)

  Anti-MAP2 antibody [EPR19691] – Chicken IgY (Chimeric) – BSA and Azide Free ab319980 staining MAP2 in Rat hippocampal neurons (positive) and SV40LT-SMC (negative) cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with Anti-MAP2 antibody [EPR19691] – Chicken IgY (Chimeric) – BSA and Azide Free ab319980 at 1µg/ml and ab202272, Alexa Fluor 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed ab150173, Goat Anti-Chicken IgY H&L (Alexa Fluor 488) preadsorbed at 1/1000 dilution (shown in green). Nuclear DNA was labelled with DAPI (shown in blue).

  Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272)

  Anti-Iba1 antibody [EPR16588] – Chicken IgY (Chimeric) – BSA and Azide Free ab318305 staining Iba1 in THP-1 (positive) and HeLa (negative) cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with Anti-Iba1 antibody [EPR16588] – Chicken IgY (Chimeric) – BSA and Azide Free ab318305 at 5 µg/ml and ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed ab150173, Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution (shown in green). Nuclear DNA was labelled with DAPI (shown in blue). Image was acquired with a confocal microscope (Leica-Microsystems TCS SP8) and a single confocal section is shown.

•

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272)

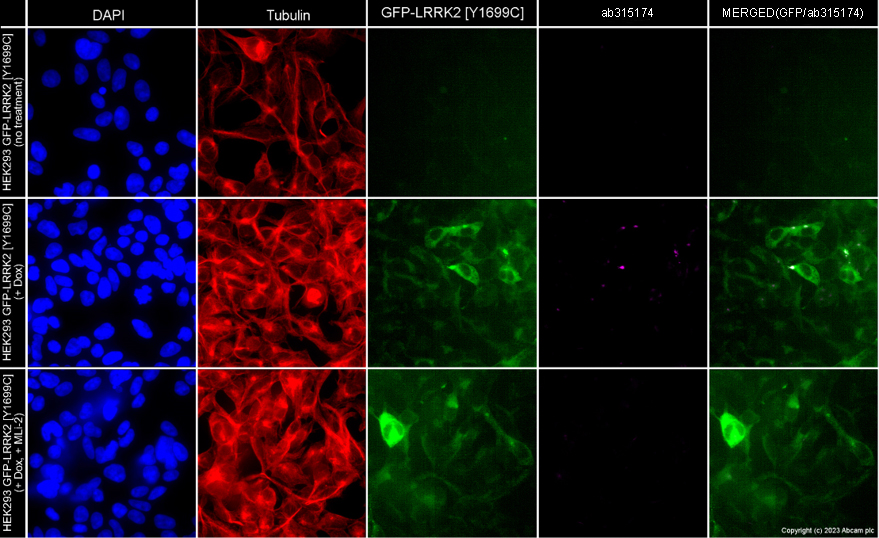

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HEK293-GFP-LRRK2 cells labelling RAB10 (phospho T73) with Anti-RAB10 (phospho T73) antibody [MJF-R21] - Mouse IgG2a (Chimeric) ab315174 at 1/400 dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 647) preadsorbed ab150119 Goat Anti-Mouse IgG H&L (Alexa Fluor® 647) preadsorbed (Goat Anti-Mouse IgG H&L (Alexa Fluor® 647) preadsorbed ab150119) antibody at 1/1000 2 ug/ml dilution (Green).

  Increased number of strongly stained cytoplasmic foci after Doxycycline treatment compared to untreated cells and after MLi-2 treatment as expected. Images were acquired on the Perkin Elmer® Operetta HCA and a maximum intensity projection of 8 confocal planes is shown for the representative images.

  ab202272 Recombinant Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272) was used to counterstain tubulin at 1/200 2.5 dilution (Red). The Nuclear counterstain was DAPI (Blue).

  Secondary antibody only control: Secondary antibody is Goat Anti-Mouse IgG H&L (Alexa Fluor® 647) preadsorbed ab150119 Goat Anti-Mouse IgG H&L (Alexa Fluor® 647) preadsorbed (Goat Anti-Mouse IgG H&L (Alexa Fluor® 647) preadsorbed ab150119) at 1/1000 2 ug/ml dilution.

•

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272)

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HEK293-GFP-LRRK2 cells labelling RAB10 (phospho T73) with Anti-RAB10 (phospho T73) antibody [MJF-R21-22-5] - Mouse IgG2a (Chimeric) ab315172 at 1/400 dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 647) preadsorbed ab150119 Goat Anti-Mouse IgG H&L (Alexa Fluor® 647) preadsorbed (Goat Anti-Mouse IgG H&L (Alexa Fluor® 647) preadsorbed ab150119) antibody at 1/1000 2 ug/ml dilution (Green).

  Increased number of strongly stained cytoplasmic foci after Doxycycline treatment compared to untreated cells and after MLi-2 treatment as expected. Images were acquired on the Perkin Elmer® Operetta HCA and a maximum intensity projection of 8 confocal planes is shown for the representative images.

  ab202272 Recombinant Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272) was used to counterstain tubulin at 1/200 2.5 dilution (Red). The Nuclear counterstain was DAPI (Blue).

  Secondary antibody only control: Secondary antibody is Goat Anti-Mouse IgG H&L (Alexa Fluor® 647) preadsorbed ab150119 Goat Anti-Mouse IgG H&L (Alexa Fluor® 647) preadsorbed (Goat Anti-Mouse IgG H&L (Alexa Fluor® 647) preadsorbed ab150119) at 1/1000 2 ug/ml dilution.

•

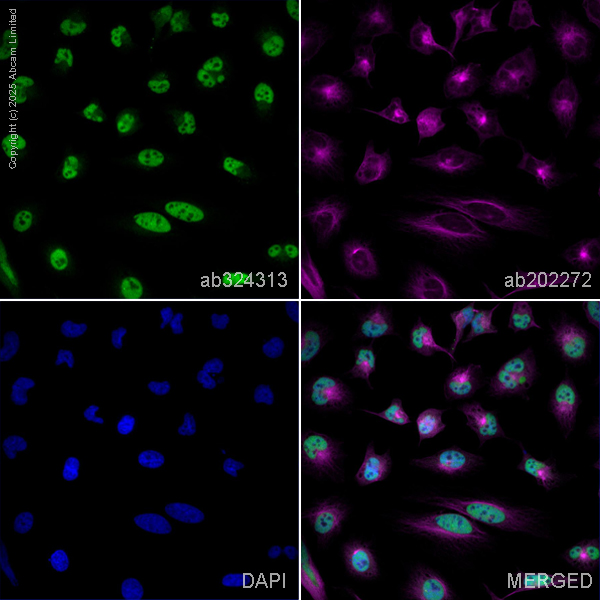

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272)

  Alpha Tubulin Immunocytochemistry/ Immunofluorescence staining of HeLa cells using rabbit Anti-alpha Tubulin antibody

  Anti-RPA32/RPA2 antibody [EPR2877Y] - Mouse IgG1 (Chimeric) ab324313 staining RPA2 in HeLa cells. The cells were fixed with 4% paraformaldehyde (10 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at 4°C with Anti-RPA32/RPA2 antibody [EPR2877Y] - Mouse IgG1 (Chimeric) ab324313 at 5µg/ml (shown in green) and ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117, Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue). Also suitable in cells fixed with 100% methanol (5 min).Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

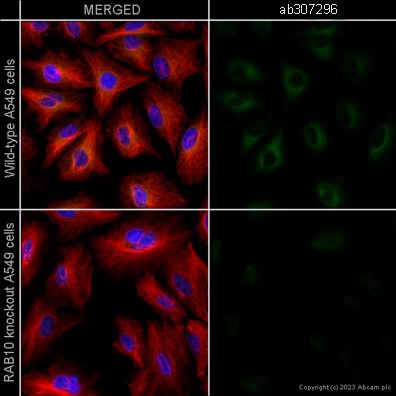

  Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab202272)

  Immunofluorescent analysis of 4% Paraformaldehyde fixed, 0.1% Saponin/PBS permeabilized wild-type A549 cells and RAB10 KO A549 (RAB10 knockout human lung carcinoma epithelial cell) (Human RAB10 knockout A549 cell line ab261868) labelling RAB10 with Anti-RAB10 antibody [MJF-R23] - Mouse IgG2a (Chimeric) ab307296 at 1/25000 (0.04 ug/ml) dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117 Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 (2ug/ml) dilution (Green). ab202272 Recombinant Alexa Fluor® 594 Tubulin [EP1332Y] was used to counterstain tubulin at 1/200 (2.5ug/ml) dilution (Red). The Nuclear counterstain was DAPI (Blue).

  Confocal image showing cytoplasmic staining in wild-type A549 cell line, and no staining in RAB10 KO A549 cell line. Images were acquired on the Perkin Elmer® Operetta HCA and a maximum intensity projection of 7 confocal planes is shown for the representative images.
