AB210616

Alexa Fluor® 594 Anti-SHP2 antibody [Y478]

Be the first to review this product! Submit a review

|

(1 Publication)

Rabbit Recombinant Monoclonal SHP2 antibody - conjugated to Alexa Fluor® 594. Suitable for ICC/IF, Flow Cyt (Intra) and reacts with Human samples. Cited in 1 publication.

View Alternative Names

PTP2C, SHPTP2, PTPN11, Tyrosine-protein phosphatase non-receptor type 11, Protein-tyrosine phosphatase 1D, Protein-tyrosine phosphatase 2C, SH-PTP2, SH-PTP3, PTP-1D, PTP-2C, SHP-2, Shp2

2 Images
Flow Cytometry (Intracellular) - Alexa Fluor® 594 Anti-SHP2 antibody [Y478] (AB210616)
  • Flow Cyt (Intra)

Lab

Flow Cytometry (Intracellular) - Alexa Fluor® 594 Anti-SHP2 antibody [Y478] (AB210616)

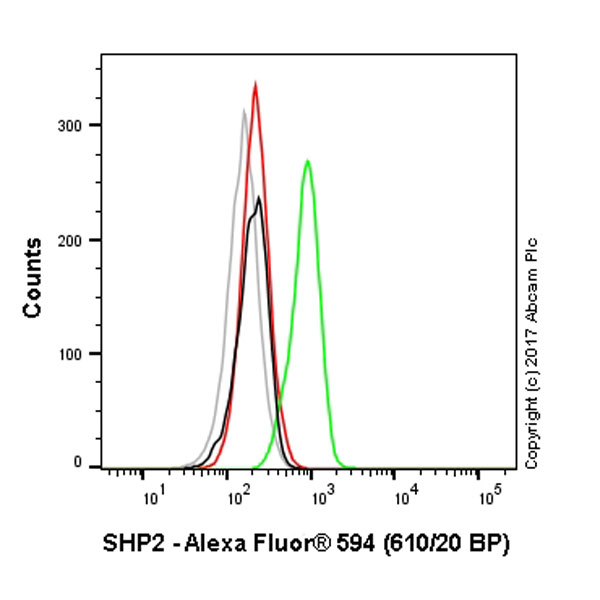

Overlay histogram showing HAP1 wildtype (green line) and HAP1-PTPN11 knockout cells (red line) stained with ab210616. The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Triton X-100 for 15 min. The cells were then incubated in 1x PBS / 10% normal goat serum to block non-specific protein-protein interactions followed by the antibody (ab210616, 0.1μg/ml dilution) for 30 min at 22°C.

A rabbit monoclonal IgG isotype control antibody (ab208568) was used at the same concentration and conditions as the primary antibody (HAP1 wildtype - black line, HAP1-PTPN11 knockout - grey line). Unlabelled sample was also used as a control (this line is not shown for the purpose of simplicity).

Acquisition of >5,000 events were collected using a 50 mW Yellow/Green laser (561nm)and 610/20 bandpass filter.

This antibody can also be used in HAP1 cells fixed with 4% formaldehyde (10 min), permeabilized with 0.1% PBS-Triton X-100 for 15 min under the same conditions.

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-SHP2 antibody [Y478] (AB210616)
  • ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 594 Anti-SHP2 antibody [Y478] (AB210616)

ab210616 staining SHP2 in MCF7 cells. The cells were fixed with 4% formaldehyde (10 min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with ab210616 at 1/50 dilution (pseudocolored in red) and ab195887, Mouse monoclonal to alpha Tubulin (Alexa Fluor® 488), at 1/250 dilution (shown in green). Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

Y478

Isotype

IgG

Conjugation

Alexa Fluor® 594

Excitation/Emission

Ex: 590nm, Em: 617nm

Carrier free

No

Reacts with

Human

Applications

Flow Cyt (Intra), ICC/IF

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "FlowCytIntra" : {"fullname" : "Flow Cytometry (Intracellular)", "shortname":"Flow Cyt (Intra)"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "1/50", "ICCIF-species-notes": "<p>This product gave a positive signal in MCF-7 cells fixed with 4% formaldehyde (10 min)</p>", "FlowCytIntra-species-checked": "testedAndGuaranteed", "FlowCytIntra-species-dilution-info": "0.1 µg/mL", "FlowCytIntra-species-notes": "<p></p>" } } }
style
left-column

Product details

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

Alexa Fluor® is a registered trademark of Molecular Probes, Inc, a Thermo Fisher Scientific Company. The Alexa Fluor® dye included in this product is provided under an intellectual property license from Life Technologies Corporation. As this product contains the Alexa Fluor® dye, the purchase of this product conveys to the buyer the non-transferable right to use the purchased product and components of the product only in research conducted by the buyer (whether the buyer is an academic or for-profit entity). As this product contains the Alexa Fluor® dye the sale of this product is expressly conditioned on the buyer not using the product or its components, or any materials made using the product or its components, in any activity to generate revenue, which may include, but is not limited to use of the product or its components: in manufacturing; (ii) to provide a service, information, or data in return for payment (iii) for therapeutic, diagnostic or prophylactic purposes; or (iv) for resale, regardless of whether they are sold for use in research. For information on purchasing a license to this product for purposes other than research, contact Life Technologies Corporation, 5781 Van Allen Way, Carlsbad, CA 92008 USA or outlicensing@thermofisher.com.

style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.4 Preservative: 0.02% Sodium azide Constituents: PBS, 30% Glycerol (glycerin, glycerine), 1% BSA
Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle|Store in the dark
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

SHP2 also known as PTPN11 is a protein tyrosine phosphatase with a molecular mass of approximately 68 kDa. It is expressed in various tissues including the heart liver and immune cells. SHP2 belongs to the non-receptor class of protein tyrosine phosphatases and plays a critical role in cell signaling by acting as a regulator of signal transduction processes. SHP2 mediates these processes by dephosphorylating specific phosphotyrosine residues on target proteins influencing various cellular functions like proliferation differentiation and survival.
Biological function summary

The role of SHP2 extends to involvement in several signaling cascades such as the Ras/MAPK and PI3K/AKT pathways. It functions as an essential component within protein complexes that facilitate cell communication and response to external signals. The protein modulates growth factor signaling and cytokine signaling highlighting its significance in normal cell function and development. SHP2's statement in signaling processes makes it an important regulator of cellular dynamics.

Pathways

SHP2 participates in the Ras/MAPK and PI3K/AKT signaling pathways which are important for regulating cell growth survival and differentiation. Within these pathways SHP2 interacts with various signaling molecules including Grb2 Sos and Gab family adaptors. These interactions coordinate cellular responses to growth factors and other extracellular cues ensuring proper pathway activation and control. By serving as a critical mediator SHP2 integrates signals that are necessary for appropriate cellular outcomes.

SHP2 is associated with several conditions such as Noonan syndrome and various cancers. Mutations in the PTPN11 gene which encodes SHP2 often result in aberrant signaling that leads to developmental anomalies or tumorigenesis. In Noonan syndrome the mutated SHP2 protein results in disrupted Ras/MAPK pathway signaling. As for cancers SHP2 is often found to be overactive leading to enhanced cell proliferation and survival. In these contexts SHP2 is interconnected with other proteins like RAS and RAF which also contribute to oncogenic pathway activation and disease progression.
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Acts downstream of various receptor and cytoplasmic protein tyrosine kinases to participate in the signal transduction from the cell surface to the nucleus (PubMed : 10655584, PubMed : 14739280, PubMed : 18559669, PubMed : 18829466, PubMed : 26742426, PubMed : 28074573). Positively regulates MAPK signal transduction pathway (PubMed : 28074573). Dephosphorylates GAB1, ARHGAP35 and EGFR (PubMed : 28074573). Dephosphorylates ROCK2 at 'Tyr-722' resulting in stimulation of its RhoA binding activity (PubMed : 18559669). Dephosphorylates CDC73 (PubMed : 26742426). Dephosphorylates SOX9 on tyrosine residues, leading to inactivate SOX9 and promote ossification (By similarity). Dephosphorylates tyrosine-phosphorylated NEDD9/CAS-L (PubMed : 19275884).
See full target information PTPN11
style
left-column

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

Advanced science (Weinheim, Baden-Wurttemberg, Germany) 10:e2303946 PubMed37897313

2023

Impaired Efferocytosis Enables Apoptotic Osteoblasts to Escape Osteoimmune Surveillance During Aging.

Applications

Unspecified application

Species

Unspecified reactive species

Rongyao Xu,Hanyu Xie,Xin Shen,Jiadong Huang,Hengguo Zhang,Yu Fu,Ping Zhang,Songsong Guo,Dongmiao Wang,Sheng Li,Kai Zheng,Wen Sun,Laikui Liu,Jie Cheng,Hongbing Jiang
View all publications
style
left-column
style
left-column
style
right-column

Alternative Products

Primary Antibodies

AB76285

Anti-SHP2 antibody [M163]

KO Validated

Western blot - Anti-SHP2 antibody [M163] (AB76285)

  • 0
  • 0
Primary Antibodies

AB9214

Anti-SHP2 antibody

Flow Cytometry (Intracellular) - Anti-SHP2 antibody (AB9214)

  • 4
  • 1
Primary Antibodies

AB131541

Anti-SHP2 antibody

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SHP2 antibody (AB131541)

  • 4
  • 1
Primary Antibodies

AB17939

Anti-SHP2 (phospho Y542) antibody

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SHP2 (phospho Y542) antibody (AB17939)

  • 0
  • 0
Primary Antibodies

AB187040

Anti-SHP2 antibody [EPR17829-9]

RabMAb|Recombinant|KO Validated|Trial Size

Immunoprecipitation - Anti-SHP2 antibody [EPR17829-9] (AB187040)

  • 0
  • 0
Primary Antibodies

AB32159

Anti-SHP2 antibody [Y477]

RabMAb|Recombinant|KO Validated

Western blot - Anti-SHP2 antibody [Y477] (AB32159)

  • 4
  • 1
Primary Antibodies

AB62322

Anti-SHP2 (phospho Y542) antibody [EP508(2)Y]

RabMAb|Recombinant|20ul selling size

Immunocytochemistry/ Immunofluorescence - Anti-SHP2 (phospho Y542) antibody [EP508(2)Y] (AB62322)

  • 0
  • 0
Primary Antibodies

AB230494

Anti-SHP2 antibody [Y477] - BSA and Azide free

RabMAb|Recombinant|KO Validated

Western blot - Anti-SHP2 antibody [Y477] - BSA and Azide free (AB230494)

  • 0
  • 0
Primary Antibodies

AB10555

Anti-SHP2 antibody

KO Validated

Western blot - Anti-SHP2 antibody (AB10555)

  • 4
  • 1
Primary Antibodies

AB62379

Anti-SHP2 (phospho Y582) antibody [EP509Y]

RabMAb

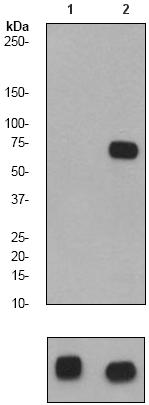

Western blot - Anti-SHP2 (phospho Y582) antibody [EP509Y] (AB62379)
