AB197640

Alexa Fluor® 647 Anti-Calponin 1 antibody [EP798Y]

RabMAb
Recombinant
What is this?

Be the first to review this product! Submit a review

(2 Publications)

Rabbit Recombinant Monoclonal Calponin 1 antibody - conjugated to Alexa Fluor® 647. Suitable for ICC/IF, IHC-P and reacts with Human, Mouse, Rat samples. Cited in 2 publications.

View Alternative Names

Calponin-1, Basic calponin, CNN1

1 Images

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 647 Anti-Calponin 1 antibody [EP798Y] (AB197640)

ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 647 Anti-Calponin 1 antibody [EP798Y] (AB197640)

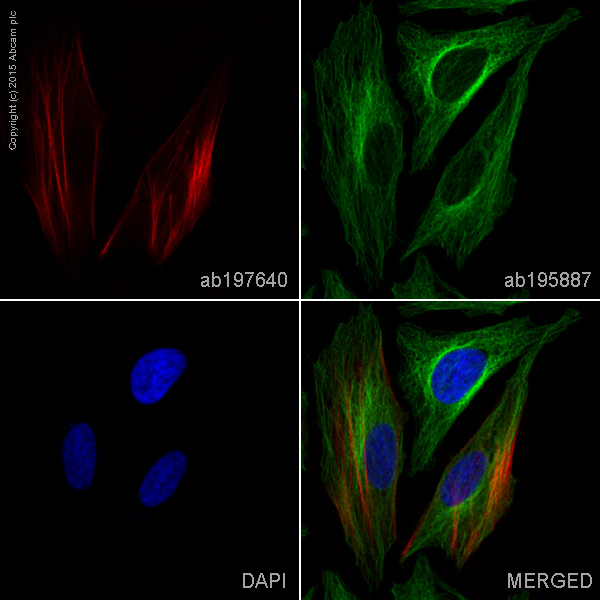

ab197640 staining Calponin 1 in HeLa cells. The cells were fixed with 4% formaldehyde (10 min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with ab197640 at 1/50 dilution (shown in red) and ab195887, Mouse monoclonal to alpha Tubulin (Alexa Fluor^® 488), at 1/250 dilution (shown in green). Nuclear DNA was labelled with DAPI (shown in blue).

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

This product also gave a positive signal under the same testing conditions in HeLa cells fixed with 100% methanol (5min).

Unconjugated

Anti-Calponin 1 antibody [EP798Y]
Carrier free

Anti-Calponin 1 antibody [EP798Y] - BSA and Azide free

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EP798Y

Isotype

IgG

Conjugation

Alexa Fluor® 647

Excitation/Emission

Ex: 650nm, Em: 665nm

Carrier free

Reacts with

Human, Human, Mouse, Rat

Applications

ICC/IF, IHC-P

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style

left-column

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "1/50", "ICCIF-species-notes": "This product gave a positive signal in HeLa cells fixed with 4% formaldehyde (10 min) and 100% methanol (5 min)", "IHCP-species-checked": "guaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "" }, "Mouse": { "ICCIF-species-checked": "guaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "IHCP-species-checked": "guaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "" }, "Rat": { "ICCIF-species-checked": "guaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "IHCP-species-checked": "guaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "" }, "Dog": { "ICCIF-species-checked": "predicted", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "IHCP-species-checked": "predicted", "IHCP-species-dilution-info": "", "IHCP-species-notes": "" }, "Pig": { "ICCIF-species-checked": "predicted", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "IHCP-species-checked": "predicted", "IHCP-species-dilution-info": "", "IHCP-species-notes": "" } } }

style

left-column

Product details

Patented technology
Our RabMAb^® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb^® patents.

Alexa Fluor® is a registered trademark of Molecular Probes, Inc, a Thermo Fisher Scientific Company. The Alexa Fluor® dye included in this product is provided under an intellectual property license from Life Technologies Corporation. As this product contains the Alexa Fluor® dye, the purchase of this product conveys to the buyer the non-transferable right to use the purchased product and components of the product only in research conducted by the buyer (whether the buyer is an academic or for-profit entity). As this product contains the Alexa Fluor® dye the sale of this product is expressly conditioned on the buyer not using the product or its components, or any materials made using the product or its components, in any activity to generate revenue, which may include, but is not limited to use of the product or its components: in manufacturing; (ii) to provide a service, information, or data in return for payment (iii) for therapeutic, diagnostic or prophylactic purposes; or (iv) for resale, regardless of whether they are sold for use in research. For information on purchasing a license to this product for purposes other than research, contact Life Technologies Corporation, 5781 Van Allen Way, Carlsbad, CA 92008 USA or outlicensing@thermofisher.com.

style

left-column

Properties and storage information

Form

Liquid

Purification technique

Affinity purification Protein A

Storage buffer

pH: 7.4 Preservative: 0.02% Sodium azide Constituents: PBS, 30% Glycerol (glycerin, glycerine), 1% BSA

Shipped at conditions

Blue Ice

Appropriate short-term storage duration

1-2 weeks

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

-20°C

Aliquoting information

Upon delivery aliquot

Storage information

Avoid freeze / thaw cycle|Store in the dark

style

left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

Calponin 1 also known as CNN1 or calponin-a is a 34-kilodalton protein that plays an important role in muscle contraction. Found mainly in smooth muscle tissues calponin 1 interacts with actin and myosin modulating their interactions and contributing to muscle contraction mechanics. It inhibits the ATPase activity of myosin which affects the contractile capacity of smooth muscle. These interactions are important for maintaining the proper function and tone of vascular and visceral smooth muscles.

Biological function summary

Calponin 1 acts as a regulatory protein in smooth muscle contraction by stabilizing actin filaments and modulating their interaction with other contractile proteins. It forms part of the thin filament-associated complex where it functions to control the conformational state of actin. This complex includes other proteins such as tropomyosin and troponin which together regulate the calcium-sensitive interactions between actin and myosin. The regulatory ability of calponin 1 contributes to the fine-tuning of smooth muscle contraction and relaxation processes.

Pathways

Calponin 1 plays a role in the RhoA/ROCK signaling pathway and the calcium-sensitive contractile pathway. These pathways are integral to smooth muscle contraction regulation and involve proteins such as Rho kinase (ROCK) and myosin light chain kinase (MLCK). Calponin 1 contributes to the modulation of the phosphorylation status of myosin light chains influencing the contractile response to various stimuli. This points to its involvement in the physiological response mechanism to vasoconstrictive agents.

Calponin 1 is linked to cardiovascular diseases like hypertension and vascular disorders. Its regulatory functions in smooth muscle contraction can influence vascular tone and blood pressure connecting it to conditions like atherosclerosis. Moreover calponin 1 interacts with proteins such as filamin and α-actinin which are also implicated in muscle contraction-related disorders. Researchers investigate these interactions to understand their contributions to the pathogenesis of such diseases.

style

left-column

style

left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Visit the General protocols
Visit the Troubleshooting

style

left-column

Target data

Thin filament-associated protein that is implicated in the regulation and modulation of smooth muscle contraction. It is capable of binding to actin, calmodulin and tropomyosin. The interaction of calponin with actin inhibits the actomyosin Mg-ATPase activity (By similarity).

See full target information CNN1

style

left-column

Publications (2)

Recent publications for all applications. Explore the full list and refine your search

Cell reports 42:113468 PubMed37995178

2023

BACH1 regulates the differentiation of vascular smooth muscle cells from human embryonic stem cells via CARM1-mediated methylation of H3R17.

Applications

Unspecified application

Species

Unspecified reactive species

Yunquan He,Jieyu Guo,Yueyang Yu,Jiayu Jin,Qingjun Jiang,Qinhan Li,Siyu Ma,Qi Pan,Jiayi Lin,Nan Jiang,Jinghua Ma,Yongbo Li,Yannan Hou,Xiuling Zhi,Lindi Jiang,Lefeng Qu,Elena Osto,Xinhong Wang,Xiangxiang Wei,Dan Meng

Cancer research 77:6891-6901 PubMed29055020

2017

Subtype-Specific Tumor-Associated Fibroblasts Contribute to the Pathogenesis of Uterine Leiomyoma.

Applications

Unspecified application

Species

Unspecified reactive species

Xin Wu,Vanida A Serna,Justin Thomas,Wenan Qiang,Michael L Blumenfeld,Takeshi Kurita

View all publications

style

left-column

style

left-column

style

right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.

For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
