AB193892

Alexa Fluor® 647 Anti-Caveolin-1 antibody [E249] - Caveolae Marker

RabMAb
Recombinant
What is this?

(1 Review)

(1 Publication)

Rabbit Recombinant Monoclonal Caveolin-1 antibody - conjugated to Alexa Fluor® 647. Caveola marker. Suitable for ICC/IF, Flow Cyt, IHC-P and reacts with Human, Mouse, Rat samples. Cited in 1 publication.

View Alternative Names

CAV, CAV1, Caveolin-1

4 Images

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 647 Anti-Caveolin-1 antibody [E249] - Caveolae Marker (AB193892)

IHC-P

Lab

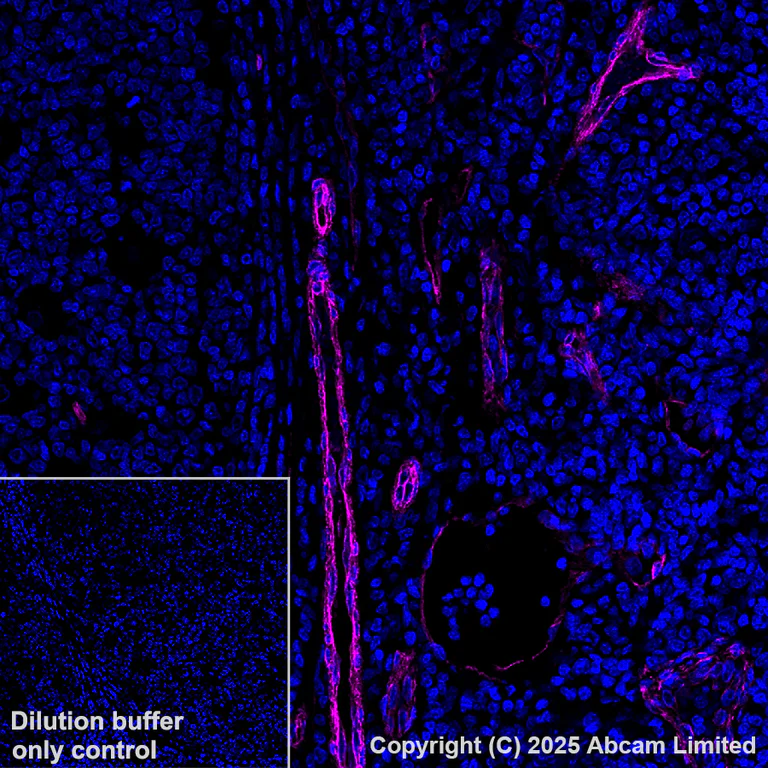

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 647 Anti-Caveolin-1 antibody [E249] - Caveolae Marker (AB193892)

Immunohistochemical analysis of paraffin-embedded human tonsil tissue labeling Caveolin-1 with ab193892 at 1/50 (10.0 μg/ml) dilution. Positive staining on endothelium of human tonsil. The primary antibody was incubated for 60 mins at room temperature (shown in magenta). Nuclear DNA was labeled with DAPI (shown in blue). The section was then mounted using Fluoromount^®. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 40 mins.

IHC-P

Lab

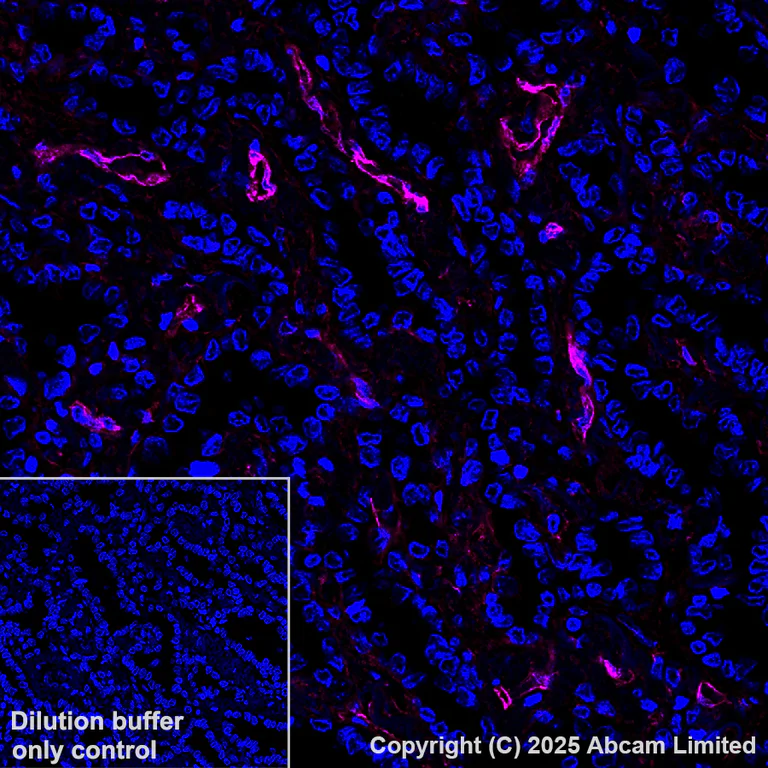

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 647 Anti-Caveolin-1 antibody [E249] - Caveolae Marker (AB193892)

Immunohistochemical analysis of paraffin-embedded human lung cancer tissue labeling Caveolin-1 with ab193892 at 1/50 (10.0 μg/ml) dilution. Positive staining on blood vessel of human lung cancer. The primary antibody was incubated for 60 mins at room temperature (shown in magenta). Nuclear DNA was labeled with DAPI (shown in blue). The section was then mounted using Fluoromount^®. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 40 mins.

IHC-P

Lab

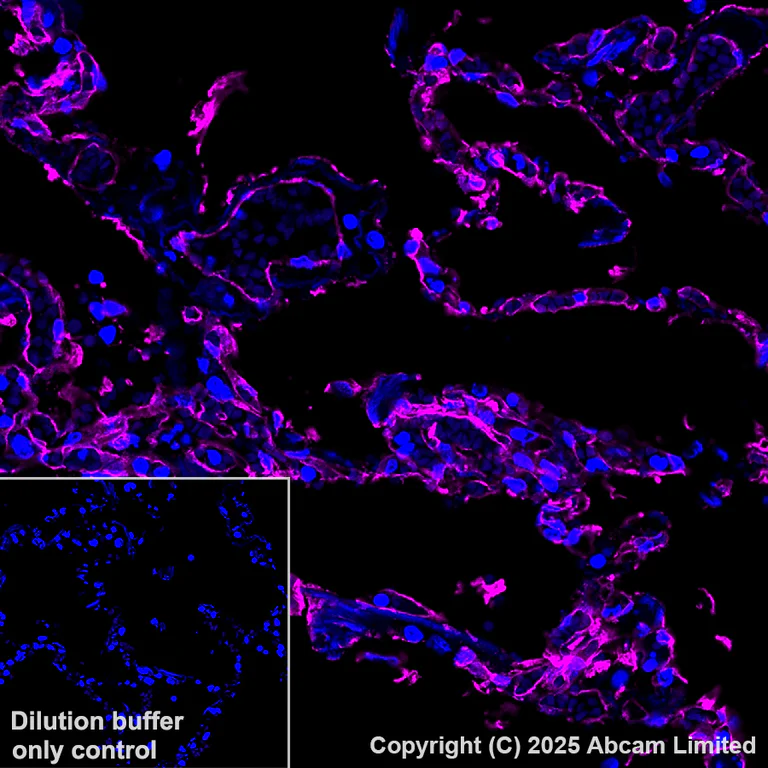

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 647 Anti-Caveolin-1 antibody [E249] - Caveolae Marker (AB193892)

Immunohistochemical analysis of paraffin-embedded human lung tissue labeling Caveolin-1 with ab193892 at 1/50 (10.0 μg/ml) dilution. Positive staining on human lung. The primary antibody was incubated for 60 mins at room temperature (shown in magenta). Nuclear DNA was labeled with DAPI (shown in blue). The section was then mounted using Fluoromount^®. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 40 mins.

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 647 Anti-Caveolin-1 antibody [E249] - Caveolae Marker (AB193892)

ICC/IF

Lab

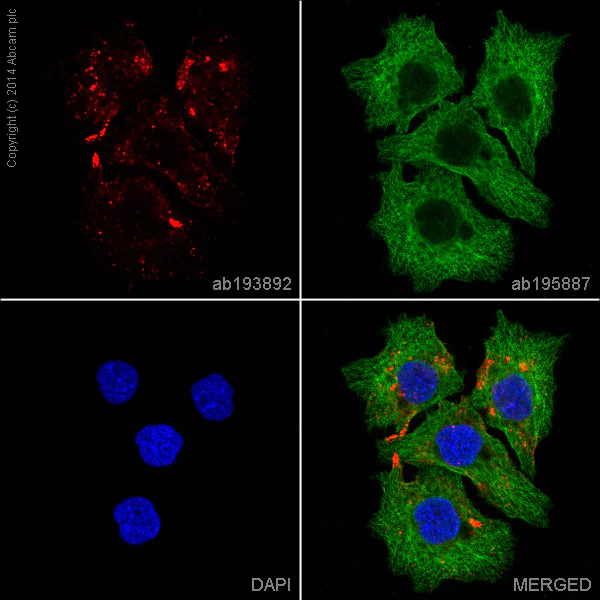

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 647 Anti-Caveolin-1 antibody [E249] - Caveolae Marker (AB193892)

ab193892 staining Caveolin-1 in A431 cells. The cells were fixed with 100% methanol (5 min), permeabilised in 0.1% Triton X-100 for 5 minutes and then blocked in 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated with ab193892 at 1/100 dilution (shown in red) and ab195887, Mouse monoclonal [DM1A] to alpha Tubulin (Alexa Fluor^® 488, shown in green) at 1/167 dilution overnight at +4°C. Nuclear DNA was labelled in blue with DAPI.

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

Carrier free

Anti-Caveolin-1 antibody [E249] - BSA and Azide free
Unconjugated

Anti-Caveolin-1 antibody [E249] - Caveolae Marker
519 Alexa Fluor® 488

Alexa Fluor® 488 Anti-Caveolin-1 antibody [E249] - Caveolae Marker
HRP

HRP Anti-Caveolin-1 antibody [E249] - Caveolae Marker

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

E249

Isotype

IgG

Conjugation

Alexa Fluor® 647

Excitation/Emission

Ex: 650nm, Em: 665nm

Carrier free

Reacts with

Human, Mouse, Rat

Applications

ICC/IF, IHC-P, Flow Cyt

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style

left-column

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "FlowCyt" : {"fullname" : "Flow Cytometry", "shortname":"Flow Cyt"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "1/100", "ICCIF-species-notes": "", "FlowCyt-species-checked": "guaranteed", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "1/50", "IHCP-species-notes": " Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol." }, "Mouse": { "ICCIF-species-checked": "guaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "FlowCyt-species-checked": "guaranteed", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "", "IHCP-species-checked": "predicted", "IHCP-species-dilution-info": "", "IHCP-species-notes": "" }, "Rat": { "ICCIF-species-checked": "guaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "FlowCyt-species-checked": "guaranteed", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "", "IHCP-species-checked": "predicted", "IHCP-species-dilution-info": "", "IHCP-species-notes": "" } } }

style

left-column

Product details

Patented technology
Our RabMAb^® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb^® patents.

Alexa Fluor® is a registered trademark of Molecular Probes, Inc, a Thermo Fisher Scientific Company. The Alexa Fluor® dye included in this product is provided under an intellectual property license from Life Technologies Corporation. As this product contains the Alexa Fluor® dye, the purchase of this product conveys to the buyer the non-transferable right to use the purchased product and components of the product only in research conducted by the buyer (whether the buyer is an academic or for-profit entity). As this product contains the Alexa Fluor® dye the sale of this product is expressly conditioned on the buyer not using the product or its components, or any materials made using the product or its components, in any activity to generate revenue, which may include, but is not limited to use of the product or its components: in manufacturing; (ii) to provide a service, information, or data in return for payment (iii) for therapeutic, diagnostic or prophylactic purposes; or (iv) for resale, regardless of whether they are sold for use in research. For information on purchasing a license to this product for purposes other than research, contact Life Technologies Corporation, 5781 Van Allen Way, Carlsbad, CA 92008 USA or outlicensing@thermofisher.com.

style

left-column

Properties and storage information

Form

Liquid

Purification technique

Affinity purification Protein A

Storage buffer

pH: 7.4 Preservative: 0.02% Sodium azide Constituents: PBS, 30% Glycerol (glycerin, glycerine), 1% BSA

Shipped at conditions

Blue Ice

Appropriate short-term storage duration

1-2 weeks

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

-20°C

Aliquoting information

Upon delivery aliquot

Storage information

Avoid freeze / thaw cycle|Store in the dark

style

left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

Caveolin-1 also known as Cav-1 is an integral membrane protein with a molecular weight of approximately 22 kDa. It functions mechanically as a scaffolding protein in caveolae which are tiny invaginations in the plasma membrane of many cell types. These structures are particularly abundant in adipocytes endothelial cells and muscle cells. Caveolin-1 anchors itself to the cell membrane and plays a role in organizing and concentrating certain signaling molecules.

Biological function summary

Caveolae provide a platform for various signaling pathways and involve caveolin-1 as a major component. Caveolin-1 interacts with multiple signaling molecules such as G-protein coupled receptors and Src family kinases to modulate signal transduction. This protein forms part of a larger caveolar complex contributing to cellular processes including endocytosis and lipid regulation. Its presence as a marker in caveolae highlights its significance in cellular functions.

Pathways

Caveolin-1 influences the insulin signaling and nitric oxide (NO) signaling pathways. In the insulin signaling pathway caveolin-1 interacts with insulin receptors to modulate glucose uptake. It also associates with eNOS (endothelial nitric oxide synthase) in the NO signaling pathway impacting vascular function. These relationships highlight its role in cellular communication and regulatory mechanisms within the human body.

Caveolin-1 is involved in cancer and cardiovascular diseases. In cancer altered expression of caveolin-1 contributes to tumor progression while in cardiovascular diseases it affects endothelial function through its interaction with eNOS. The connection of caveolin-1 to proteins like insulin receptors and eNOS reveals its critical influence in these conditions providing potential targets for therapeutic intervention.

style

left-column

style

left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Visit the General protocols
Visit the Troubleshooting

style

left-column

Target data

May act as a scaffolding protein within caveolar membranes (PubMed : 11751885). Forms a stable heterooligomeric complex with CAV2 that targets to lipid rafts and drives caveolae formation. Mediates the recruitment of CAVIN proteins (CAVIN1/2/3/4) to the caveolae (PubMed : 19262564). Interacts directly with G-protein alpha subunits and can functionally regulate their activity (By similarity). Involved in the costimulatory signal essential for T-cell receptor (TCR)-mediated T-cell activation. Its binding to DPP4 induces T-cell proliferation and NF-kappa-B activation in a T-cell receptor/CD3-dependent manner (PubMed : 17287217). Recruits CTNNB1 to caveolar membranes and may regulate CTNNB1-mediated signaling through the Wnt pathway (By similarity). Negatively regulates TGFB1-mediated activation of SMAD2/3 by mediating the internalization of TGFBR1 from membrane rafts leading to its subsequent degradation (PubMed : 25893292). Binds 20(S)-hydroxycholesterol (20(S)-OHC) (By similarity).

See full target information CAV1

style

left-column

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

APL bioengineering 5:026104 PubMed34027283

2021

Investigation of the hepatic development in the coculture of hiPSCs-derived LSECs and HLCs in a fluidic microenvironment.

Applications

Unspecified application

Species

Unspecified reactive species

Mathieu Danoy,Yannick Tauran,Stephane Poulain,Rachid Jellali,Johanna Bruce,Marjorie Leduc,Morgane Le Gall,Yuta Koui,Hiroshi Arakawa,Francoise Gilard,Bertrand Gakiere,Yukio Kato,Charles Plessy,Taketomo Kido,Atsushi Miyajima,Yasuyuki Sakai,Eric Leclerc

View all publications

style

left-column

style

left-column

style

right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.

For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
