Rabbit Recombinant Monoclonal CD16b antibody - conjugated to Alexa Fluor® 647. Suitable for ICC, Flow Cyt and reacts with Human samples.

Be the first to review this product! Submit a review

Images

Immunocytochemistry - Alexa Fluor® 647 Anti-CD16 antibody [EPR22409-124] (AB270140), expandable thumbnail
  • Flow Cytometry - Alexa Fluor® 647 Anti-CD16 antibody [EPR22409-124] (AB270140), expandable thumbnail

Key facts

Isotype
IgG
Host species
Rabbit
Conjugation
Alexa Fluor® 647
Excitation/Emission
Ex: 650nm, Em: 665nm
Storage buffer

pH: 7.4
Preservative: 0.02% Sodium azide
Constituents: 68% PBS, 30% Glycerol (glycerin, glycerine), 1% BSA

Form
Liquid
Clonality
Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
ICCFlow Cyt
Human
Tested
Tested

Tested
Tested

Species
Human
Dilution info
1/100
Notes

This product gave a positive signal in human PMBCs fixed with 4% formaldehyde (10 min) and 80% methanol (5 min).

Tested
Tested

Species
Human
Dilution info
1/500
Notes

-

Associated Products

Select an associated product type

3 products for Alternative Version

Target data

Function

Receptor for the Fc region of immunoglobulins gamma. Low affinity receptor. Binds complexed or aggregated IgG and also monomeric IgG. Contrary to III-A, is not capable to mediate antibody-dependent cytotoxicity and phagocytosis. May serve as a trap for immune complexes in the peripheral circulation which does not activate neutrophils.

Alternative names

CD16b, CD16B, FCG3, FCGR3, IGFR3, FCGR3B, Low affinity immunoglobulin gamma Fc region receptor III-B, Fc-gamma RIII-beta, FcR-10, IgG Fc receptor III-1, CD16-I, Fc-gamma RIII, Fc-gamma RIIIb, FcRIII, FcRIIIb

Recommended products

Rabbit Recombinant Monoclonal CD16b antibody - conjugated to Alexa Fluor® 647. Suitable for ICC, Flow Cyt and reacts with Human samples.

Key facts

Isotype
IgG
Conjugation
Alexa Fluor® 647
Excitation/Emission
Ex: 650nm, Em: 665nm
Form
Liquid
Clonality
Monoclonal
Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Clone number
EPR22409-124
Purification technique
Affinity purification Protein A
Concentration
Loading...

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle, Store in the dark

Notes

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Alexa Fluor® is a registered trademark of Molecular Probes, Inc, a Thermo Fisher Scientific Company. The Alexa Fluor® dye included in this product is provided under an intellectual property license from Life Technologies Corporation. As this product contains the Alexa Fluor® dye, the purchase of this product conveys to the buyer the non-transferable right to use the purchased product and components of the product only in research conducted by the buyer (whether the buyer is an academic or for-profit entity). As this product contains the Alexa Fluor® dye the sale of this product is expressly conditioned on the buyer not using the product or its components, or any materials made using the product or its components, in any activity to generate revenue, which may include, but is not limited to use of the product or its components: in manufacturing; (ii) to provide a service, information, or data in return for payment (iii) for therapeutic, diagnostic or prophylactic purposes; or (iv) for resale, regardless of whether they are sold for use in research. For information on purchasing a license to this product for purposes other than research, contact Life Technologies Corporation, 5781 Van Allen Way, Carlsbad, CA 92008 USA or outlicensing@thermofisher.com.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

CD16 also known as FCGR3A or CD16A protein is a low-affinity receptor for the Fc region of IgG. It weighs approximately 50-70 kDa and exists on the surface of several immune cells such as natural killer (NK) cells some populations of T cells and macrophages. The expression of CD16 mediates various cellular responses including antibody-dependent cellular cytotoxicity (ADCC) where it acts by engaging with immune complexes. Researchers often use anti-CD16 antibodies in flow cytometry to analyze the presence and quantity of CD16-expressing cells.

Biological function summary

This receptor plays a significant role in immune system regulation by contributing to the activation of immune effector cells. CD16 is not part of a larger complex but it operates in concert with CD3 proteins to trigger intracellular signaling pathways upon engagement with its ligand. Its function is important for the antibody-dependent clearance of infected or malignant cells from the body representing an essential linkage between innate and adaptive immunity.

Pathways

Signaling involving CD16 is integrated into the immune response mechanisms that include the Fc gamma receptor-mediated phagocytosis pathway. This pathway involves interactions with IgG antibodies and complements the activity of other Fc gamma receptors such as CD32 and CD64. Through these interactions CD16 enhances phagocytic activity and stimulates the secretion of cytokines and chemokines important for orchestrating an effective immune response.

Associated diseases and disorders

CD16 plays an important role in conditions like autoimmune diseases and certain cancers. Its expression and function are important in the pathophysiology of systemic lupus erythematosus where an imbalance in immune complex clearance leads to tissue damage. In oncology CD16 aids in the immune system's recognition and elimination of tumor cells working alongside proteins such as CD3 in modulating the body's anti-tumor response. Understanding CD16's involvement in these diseases helps in developing therapeutic strategies that harness the immune system's power such as monoclonal antibody therapies targeting CD16.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

2 product images

  • Immunocytochemistry - Alexa Fluor® 647 Anti-CD16 antibody [EPR22409-124] (ab270140), expandable thumbnail

    Immunocytochemistry - Alexa Fluor® 647 Anti-CD16 antibody [EPR22409-124] (ab270140)

    Immunofluorescence staining of CD16 in a subset of human PBMCs (human peripheral blood mononuclear cells) using ab270140. The cells were fixed with 4% formaldehyde (10 min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with ab270140 at 1/100 dilution (shown in red) and Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195887, Mouse monoclonal to alpha Tubulin (Alexa Fluor® 488), at 1/250 dilution (shown in green). Nuclear DNA was labelled with DAPI (shown in blue).

    Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

    This product also gave a positive signal under the same testing conditions in cells fixed with 80% methanol (5 min).

  • Flow Cytometry - Alexa Fluor® 647 Anti-CD16 antibody [EPR22409-124] (ab270140), expandable thumbnail

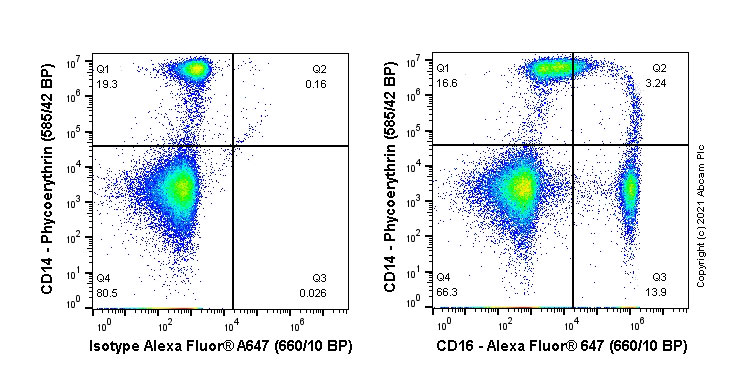

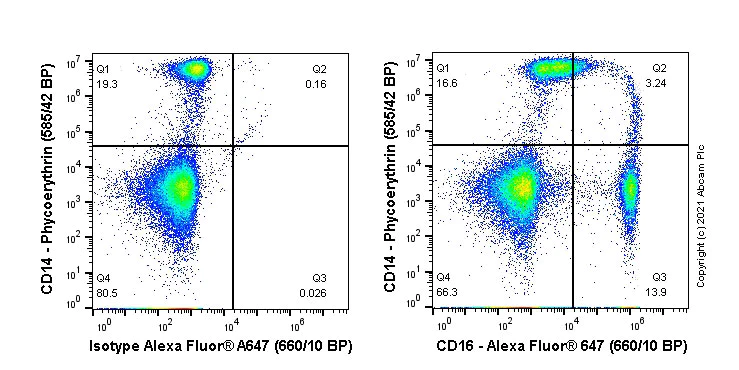

    Flow Cytometry - Alexa Fluor® 647 Anti-CD16 antibody [EPR22409-124] (ab270140)

    Flow cytometry staining of human peripheral blood mononuclear cells (PBMCs) with ab270140 (right) or Rabbit IgG (monoclonal) Alexa Fluor® 647 isotype (left). PBMCs were incubated for 30 min on ice in 1x PBS containing 10µg/mL human IgG and 10% normal goat serum to block FC receptors and non-specific protein-protein interaction followed by the antibody (ab270140) or Rabbit IgG (monoclonal) Alexa Fluor® 647 isotype (100 µL at 1µg/mL (1/500)) for 30 min on ice. The cells were simultaneously stained with CD14.

    Acquisition of >30000 events were collected using a 40 mW Red laser (638nm) and 660/10 bandpass filter. Events were gated on live single cells.

Downloads

Product protocols

For this product, it's our understanding that no specific protocols are required. You can:

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
